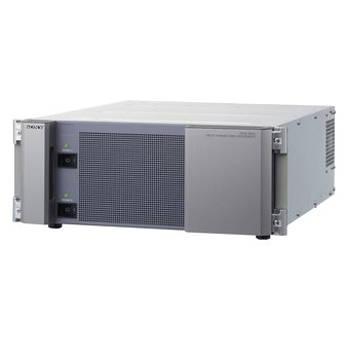

User Manual for Sony MVE-9000 Multi-Format DME Processor Click to enlarge the picture
Contents of the user manual for the Sony MVE-9000 Multi-Format DME Processor
- Product category: Switcher Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Switcher Accessories
|
User manual for the Sony MVE-9000 Multi-Format DME Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The MVE-9000 Multi-Format DME Processor from Sony is designed to serve as a counterpart for the Sony MVS-8000 Series switcher. It provides high picture quality and a rich set of features for the creation of various special effects in live environments and post-production. Its multi-format capabilities make it suitable for creating content in high-end production and post-production. - HD/SD multi-format capability
- With high-quality DME, it supports a variety of effects like 3D Linear/Nonlinear, Sparkle, Input Freeze, Defocus, Key Border, Beveled Edge, Glow, Sketch, Metal, Mask, Light, Shadow, Trail, and more
- Supports up to 4 channels of Combine with Intersect and Dim/Fade
- Effect data compatible with MVE-8000 (sold separately)
- Excellent picture quality
- Field/Frame-based processing
- High-performance pixel-based anti-alias filter
- High-quality multi-point interpolation
- Up to 4 channels can be configured on a channel basis using the Advanced Effect Board MKE-9040M (sold separately), thereby making system configurations flexible
- Compatible with the Input/Output Board Set MKE-9021M SDI interfaces for standalone operations and the MVS Interface Board Set MKE-9020M for a dedicated connection to the MVS Series switcher (both sold separately)
- 4U high, less than 15kg in weight, and less than 500 W consumed when fully loaded with its option boards
- Redundant power supply unit HK-PSU04 (sold separately) can be installed
- 4 RS-422 interfaces for control from external editor
- Each channel can be independently controlled
- 100Base-TX network interfaces allows the transfer of files (image, effect, setup, etc.) between equipment connected to the MVS/DVS Data LAN along with offering real time control via the MVS/DVS Control LAN
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MVE-9000 Multi-Format DME Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MVE9000 Specs | Supported Formats | HDTV:
1080i/50, 59.94, 60
1080p/23.976, 24, 25, 29.97, 30
720p/59.94
SDTV:
480i/59.94
576i/50 | | Video Input / Output | Using MKE-9020M (sold separately)
2 x MVS interface MDR 68-pin
(inputs/outputs: 2 x 2 CH), LVDS Using MKE-9021M (sold separately)
Input: 8 x BNC-type connectors, SDI
Output: 8 x BNC-type connectors, SDI | | Video In | 4 x BNC-type connectors, SDI | | Monitor Out | 4 x BNC-type connectors, SDI | | Reference Input | 2 x BNC-type connectors, 75 Ω with loop-through output
Analog black burst or HD tri-level sync | | LAN | Control LAN: 1 x RJ-45, 100Base-TX
Data LAN: 1 x RJ-45, 100Base-TX | | Remote | 4 x D-SUB 9-pin, RS-422 | | GPI | 2 x D-SUB 25-pin
16 x Dry contact or open collector
8 x Relay contact outputs
8 x Open collector outputs | | Power Requirement | 100 to 240 V ±10% 50/60 Hz | | Power Consumption | 500 VA | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 19.00 x 7.75 x 20.50" (482 x 194 x 520 mm) | | Weight | Approximately 44.1 lb (20 kg) |
