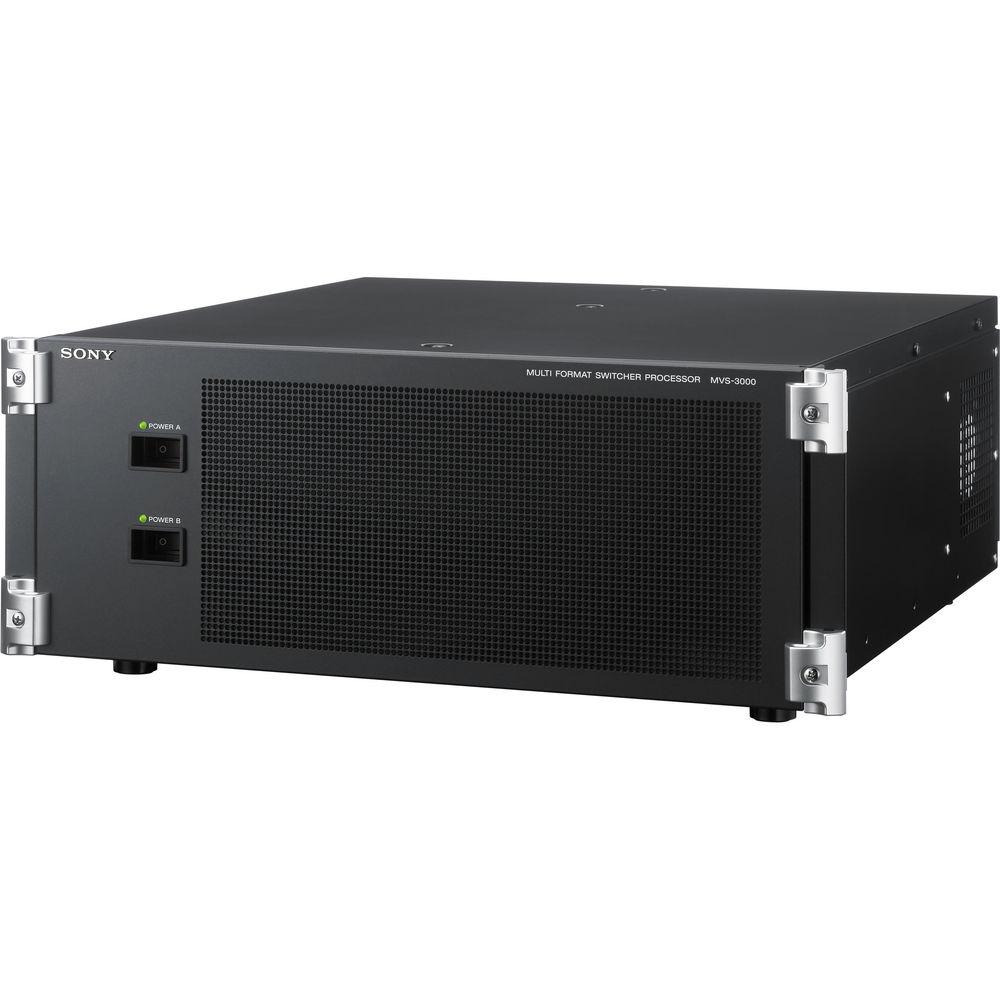

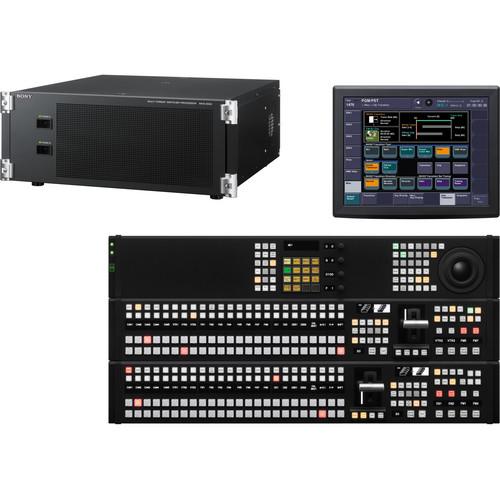

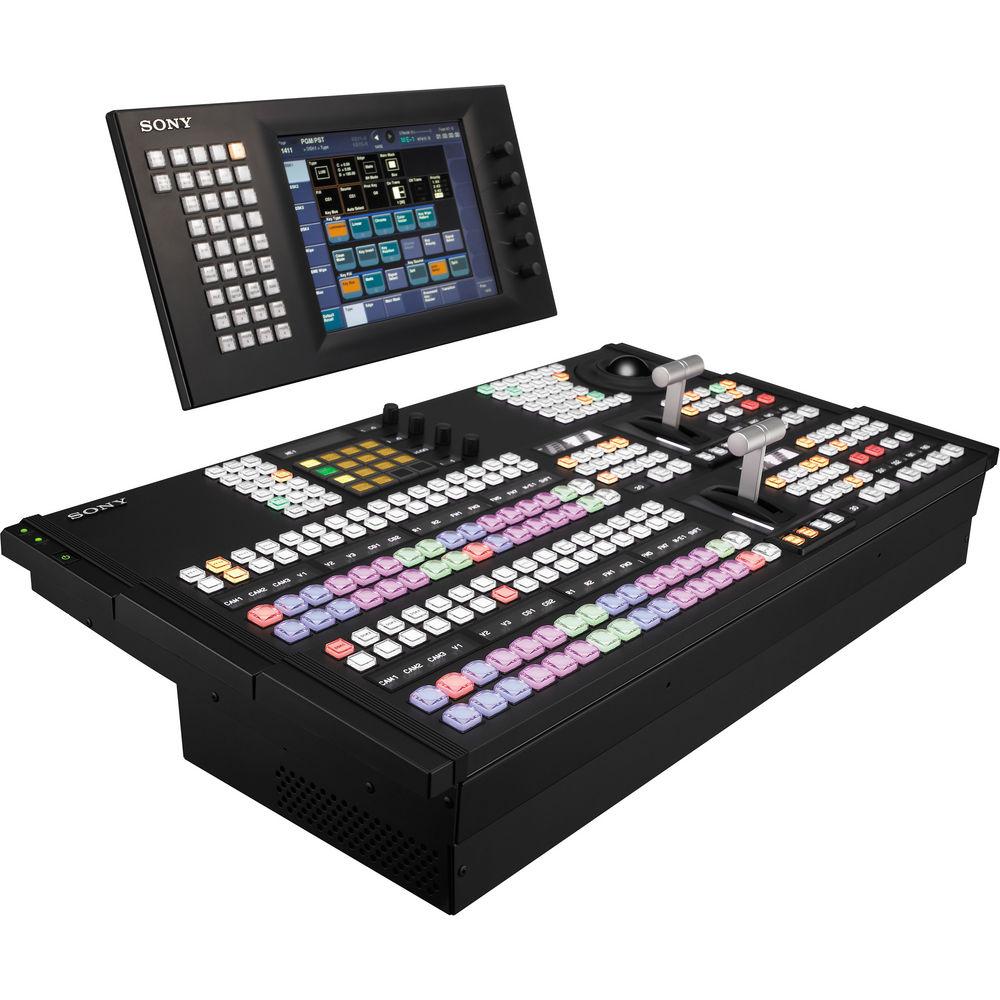

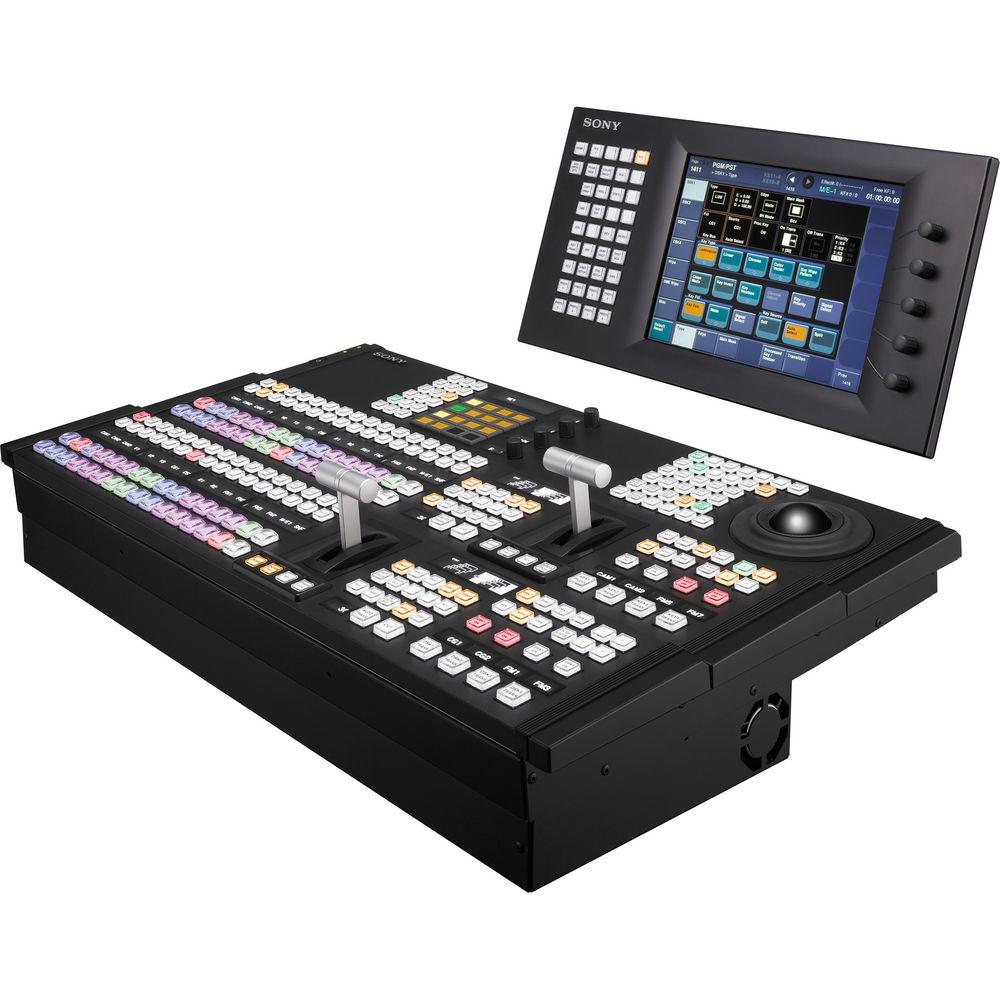

Product description The Sony MVS-3016APAC HD/SD Multi-format Switcher with 16-Button Control Panel is ideally suited for production studios, stadiums, houses of worship, and OB vehicles requiring multiple inputs in a limited space. It comes with two mix effects (M/Es), four keyers per M/E (each with chroma key), 2.5D resizers, color correction, and more.

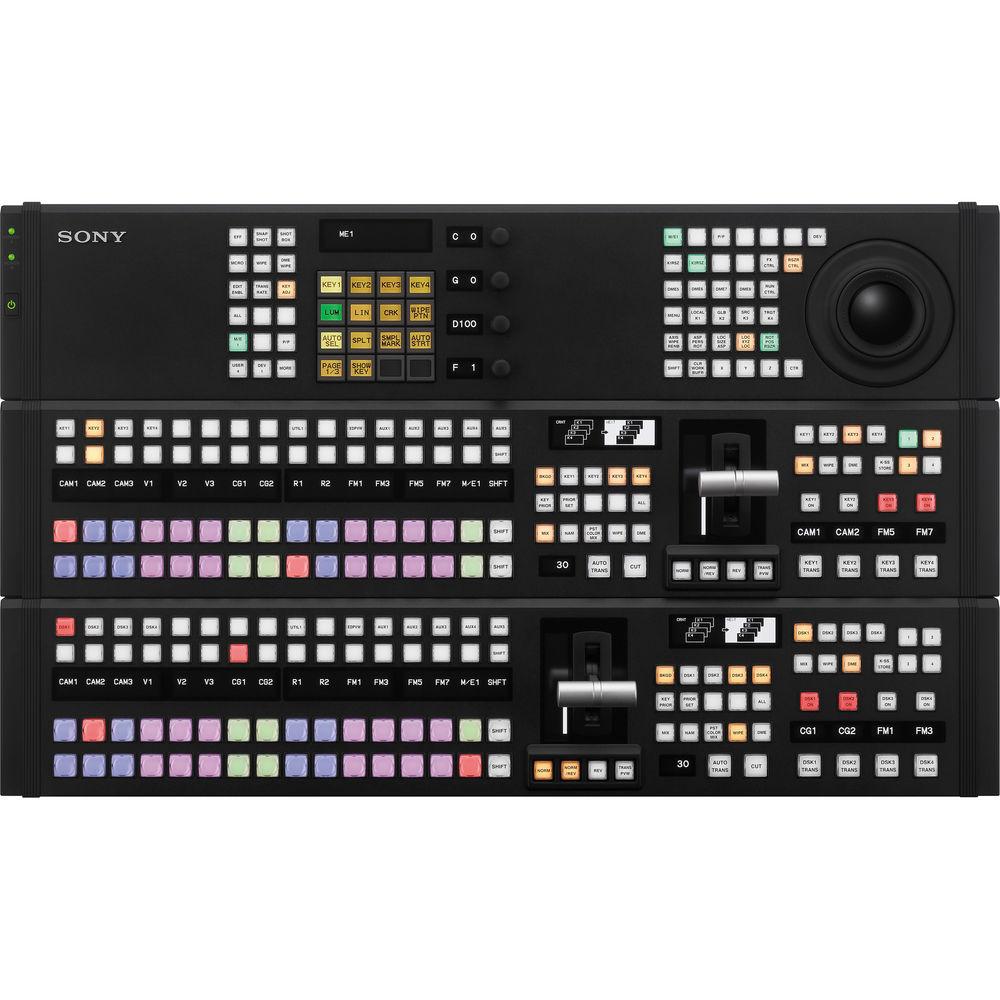

With the standard multi-viewer output, you save space on additional monitoring. The MVS-3000APAC includes the ICP-3016 sixteen button control panel, which incorporates an attractive black design and OLED mnemonic displays for optimal visibility. The self-contained 4RU processor offers simple configuration and is ideal for small production facilities that have limited installation space. - Key Features
-
- New custom-designed operational control surface
- Two mix effects (M/E) busses with four keyers per M/E
- Range of background transition effects
- Aux mix capability
- 32 inputs and 16 outputs
- Color correction for each input and AUX output
- Internal eight-channels frame memory
- Two channel multi viewer
- Extensive memory system for saving and recalling

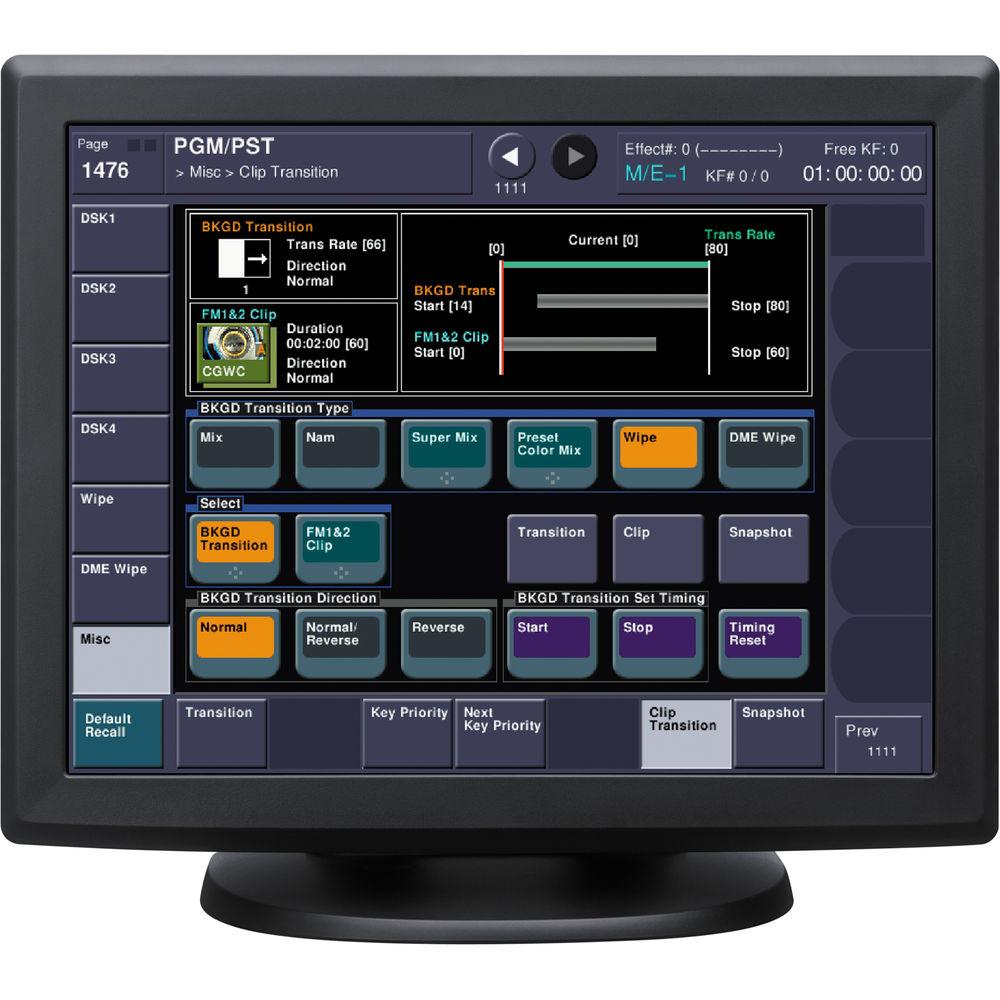

- Intuitive menu operation supporting standard VGA monitor/mouse and VGA touch panel monitors
- Redundant power supplies for processor and control panel
- Optional internal format convertor (MKS-6550)
- Optional two channel 3D DME (MKS-6570)
In the Box Sony MVS-3016APAC HD/SD Multi-format Switcher with 16-Button Control Panel 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MVS-3016APAC HD SD Multi-format Switcher with 16-Button Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MVS-3016A Specs | Editor 1 to 4 | 2x D-sub 9-pin, RS-422A | | FM Data | 1x RJ-45, 1000BASE-T | | FM Device | USB 2.0 | | GPI | 4x D-sub 25-pin, 18x TTL level inputs, 48x open collector outputs | | Network | 1x RJ-45, 1000BASE-T | | Reference | 2x BNC 75 Ω with loop-through output
HDTV systems: HD tri-level sync/SDTV analog sync/analog black burst
SDTV systems: Analog black burst/analog sync | | Video Inputs/Outputs | 12x assignable outputs
4x selectable outputs for Multiviewer, Format Converter, or Duplicate outputs
32x primary inputs
SD video outputs: up to 2 with the MKS-6550 format converter option | | Supported Formats | 1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i | | Frame Size | 2 M/E | | Power Consumption | AC 100 to 240 V, ±10%, 50/60 Hz
4 A to 1.7 A (fully loaded) | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Dimensions | 32.37 x 4.75 x 15.62" (82 x 12 x 39.6 cm) | | Weight | Approx. 46 lb fully loaded (21 kg) | | | | Package Weight | 116.0 lb | | Box Dimensions (LxWxH) | 41.0 x 29.0 x 26.5" |
