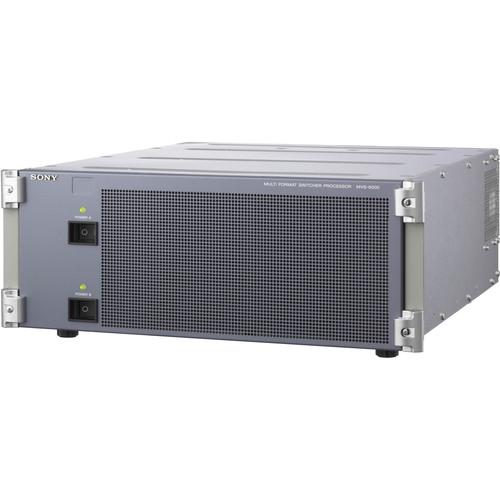

User Manual for Sony MVS-6000 Multi-Format Production Switcher Click to enlarge the picture
Contents of the user manual for the Sony MVS-6000 Multi-Format Production Switcher
- Product category: Production Switchers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Production Switchers
|
User manual for the Sony MVS-6000 Multi-Format Production Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony MVS-6000 is a Multi-Format capable live or production switcher. This switcher comes in a basic configuration but, offers up to 49 inputs with 24 outputs. It can be put together ala carte with device controls, DSK Faders, and many other modules with special effects and color correction features. Note: This device comes with the main chassis with 17 inputs, power supply, one mix and effect board. Other needed components should be added during purchasing. - Format Converter
- Format conversion capability can be incorporated by adding the MKS-8450G format converter board. This provides up and down conversion between HD and SD digital formats.
- Efficient Operation
- This switcher offer a large color touch-screen menu, enhanced button indicators, crosspoint source-name displays, Flexipad and Shot Box buttons are backlit and offer an LCD indicator for preset pattern icons.
- Creative M/E Functionality
- This switcher is equipped with four keyers for sophisticated layering in one M/E bus. This function is separate from the main fader and allows each keyer to have its own transition controls.
- DME
- A built-in DME allows two video signals to be composed in the background.
- Color Correction
- A highly capable color corrector can be applied to video outputs of the M/E or P/P buses. This assists in monitors to provide true color reproduction of the camera.
- Resizer
- A simple 2D DME offering effects on two of the four M/E keyers for simple operation related to wipes, keyframes and defocusing that can be applied to resized images.
- Side Flags Function
- This function allows a 4:3 image to form a 16:9 image by adding desired graphics to the sides of the 4:3 image.
- Enhanced Frame Memory System
- A frame memory system enables video frames to be captured and stored as still images. A sequence of frames can be recorded as a video clip. This clip is called a frame memory clip. This is accomplished by installing the MKS-8442G Frame Memory Board.
- Clip Transition Effects
- Clip transitions can be utilized when a computer generated image like a logo moves across the frame while a regular transition is performed between video sources.
- More Options
-
- 2-Channel DME
- Networking Functions
- Device Control
- Additional Control Panels
- System Management Software
- Plug-In Editing Control Software
- Simple PP Software
- Mix and Effect Upgrade
- Upgrade to Multi-Format
In the Box Sony MVS-6000 Multi-Format Production Switcher Chassis 17 Input Board 24 Outputs Mix and Effect Board Power Supply Unit 1 Year Parts
90 Day Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MVS-6000 Multi-Format Production Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MVS-6000 Specs | Video | System:SMPTE259M Standard Definition | | Audio | Utilized in Special Effect Transitions only | | Input and Output Connectors | Video In: x17 SMPTE259M on BNC Connectors
Audio In Clips for Transitions
Video Out: x24 SMPTE259M on BNC Connectors
Program Out, on BNC Connectors
Preview OutOn BNC Connectors
Monitor Out x8 on BNC Connectors
Control, LAN on RJ-45, Data LAN on RJ-45, GPI on D-Sub 25, Remote RS-422 on 9-pin
Reference, Looping on BNC Connectors | | Power Requirements | 100-240VAC @ 50/60Hz | | Power Consumption | 3-7 amps | | Dimensions (WxHxD) | 19 x 7 x 20.5" (48.2 x 17.6 x 52cm) | | Weight | 57.3 lbs (26kg) | | | | Package Weight | 46.3 lb | | Box Dimensions (LxWxH) | 26.5 x 22.9 x 13.5" |
