Product description The Sony MVS-6530PAC HD / SD Multi-format Switcher with 3 M/E Control Panel from the MVS-6500 Switcher series inherits the features and technologies from the MVS-X Switcher series. The MVS-6530PAC model is available in a 3 M/E configuration. It features high-performance keyers with chroma-key functionality and resizers, color correction, and multi-viewer outputs offering balance between size and specification. The MVS-6530PAC switcher is ideal for production that requires 48 inputs / 32 outputs and 3 M/E. It is equipped with 16 keyers, allowing sophisticated layering from each M/E. Separate from the main fader, each keyer has its own auto-transition controls, which allow users to insert or remove keys on an individual basis with independent wipes, DME wipes, and dissolves. For further flexibility, each keyer in every M/E also offers chroma-keying and color vector keying, eliminating restrictions of selectable key types. These fully featured M/Es allow total interoperability of effects on all M/Es. The resizer function allows simple 2.5D DME effects to be supported through 8 out of 16 keyers.
A variety of effects such as mosaic and defocus can be applied to resized images. All these effects can be created without the use of an external DME, bringing great advantages for both simple operation and minimal system cost. The MVS-6530PAC switcher possess a rich feature set including a 2-channel multi-viewer output, with a choice of 10- or 4-way split display, saving space on additional monitoring plus offering an easier set-up. It also features an AUX transition capability that allows users to mix transitions using AUX output, and ICP-6530 control panels that include color cross-point patterns ideal for grouping and high-visibility OLED source-name displays. These help the operator stay informed at all times of cross-point, button assignments and source type group. - Custom-designed operational control surface
- Two mix effects (M/E) busses with 4 keyers per M/E
- Two 2.5D resizers per M/E
- Range of background transition effects
- Color correction for each input and AUX output
- Internal 8-channels frame memory
- Extensive memory system for saving and recalling
- Intuitive menu operation with customer Sony touch panel GUI
- Redundant power supplies for processor and control panel

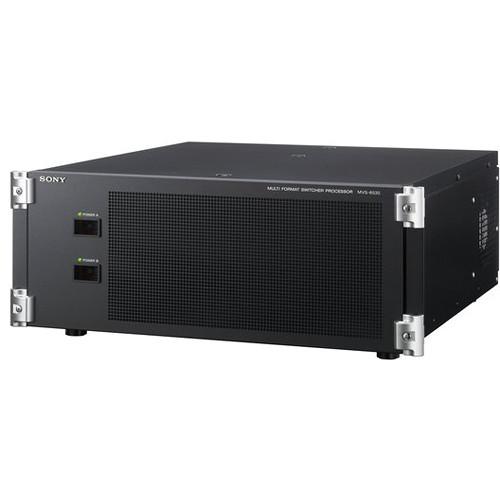

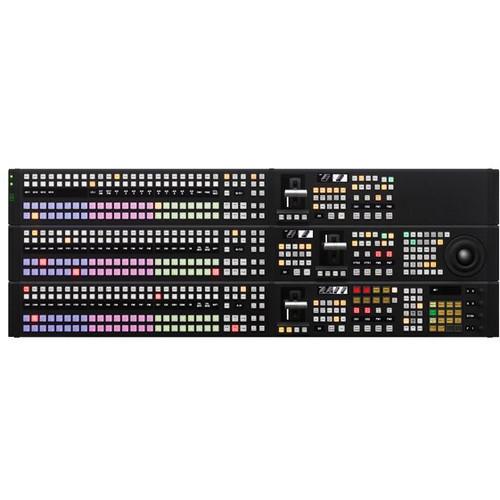

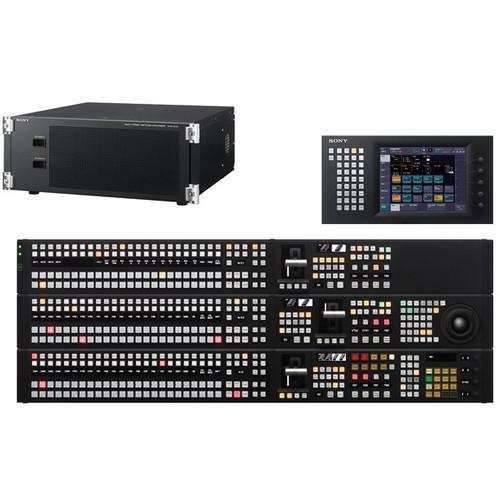

UPC: 027242277700 In the Box Sony MVS-6530PAC HD / SD Multi-format Switcher with 3 M/E Control Panel MVS-6530 Multi-Format Switcher Processor 3 M/E Control Panel (ICP-6530) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MVS-6530PAC HD SD Multi-format Switcher with 3 M E Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MVS-6530 Specs | Keyer | 4 keyers per M/E bank
8 keyers in P/P bank | | Built-in | DME: Supports 2 channels | | Multi-viewer | 2 channels, 10 or 4 splits | | Resizer | 2 resizers per M/E bank
4 resizers per P/P bank
2.5D DME | | Color Correction | Primary color correction for all inputs and AUX outputs | | Editor | 1 to 4: 2 x D-sub 9-pin, RS-422A | | FM | DATA: 1 x RJ-45, 1000BASE-T
Device: USB 2.0 | | GPI | 4 x D-sub 25-pin
18 x TTL level inputs
48 x Open collector outputs | | Network | 1 x RJ-45, 1000BASE-T | | Format | SD/HD: 1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i | | Frame Size | 3 M/E | | Inputs | 48 primary inputs
2 x BNC 75 Ω with loop-through output
HDTV systems: HD tri-level sync / SDTV analog synchronization / analog black burst
SDTV systems: Analog black burst / analog synchronization | | Output | 32 assignable outputs | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Power Consumption | 100 to 240 VAC, ±10%, 50/60 Hz
4 A to 1.7 A (fully loaded) | | Size | Processor: 4 RU | | Dimensions (W x H x D) | 19 x 7 x 20.5" (482 x 176 x 520 mm) | | Weight | Approximately 46.3 lb (21 kg) (fully loaded) |
