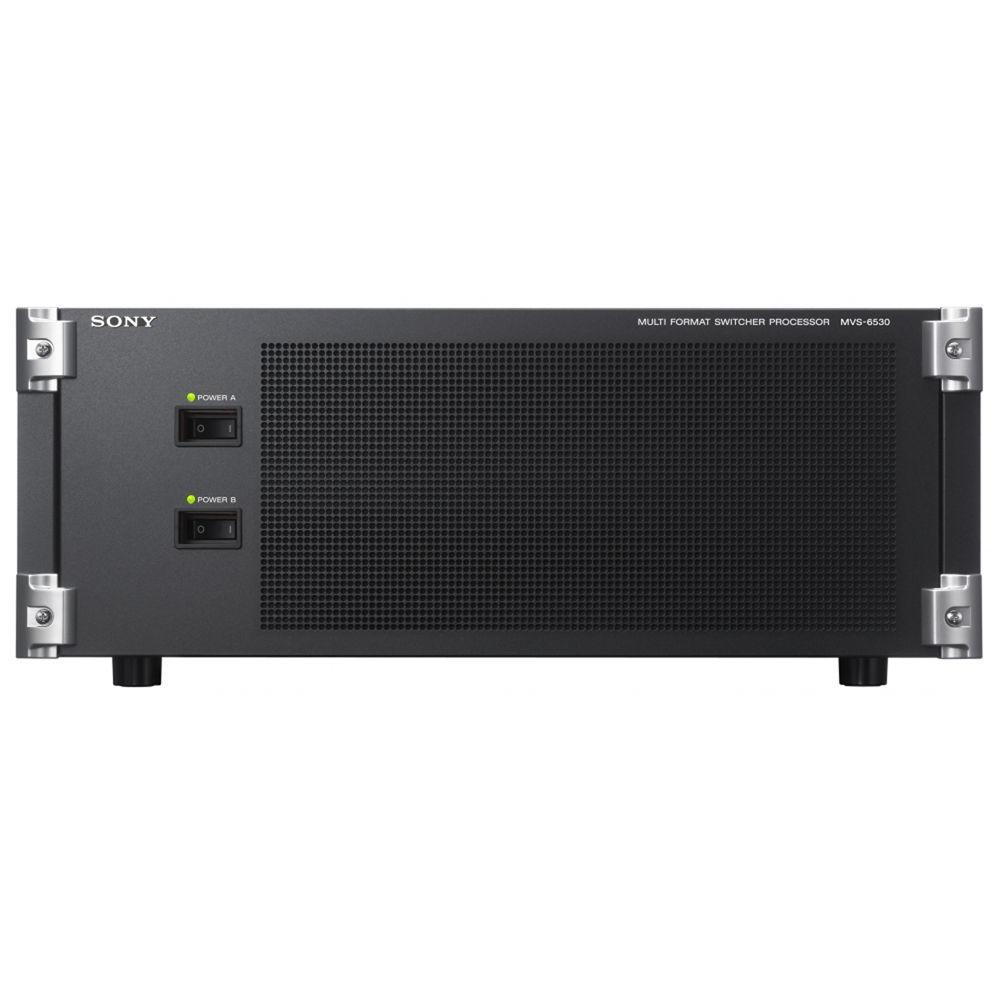

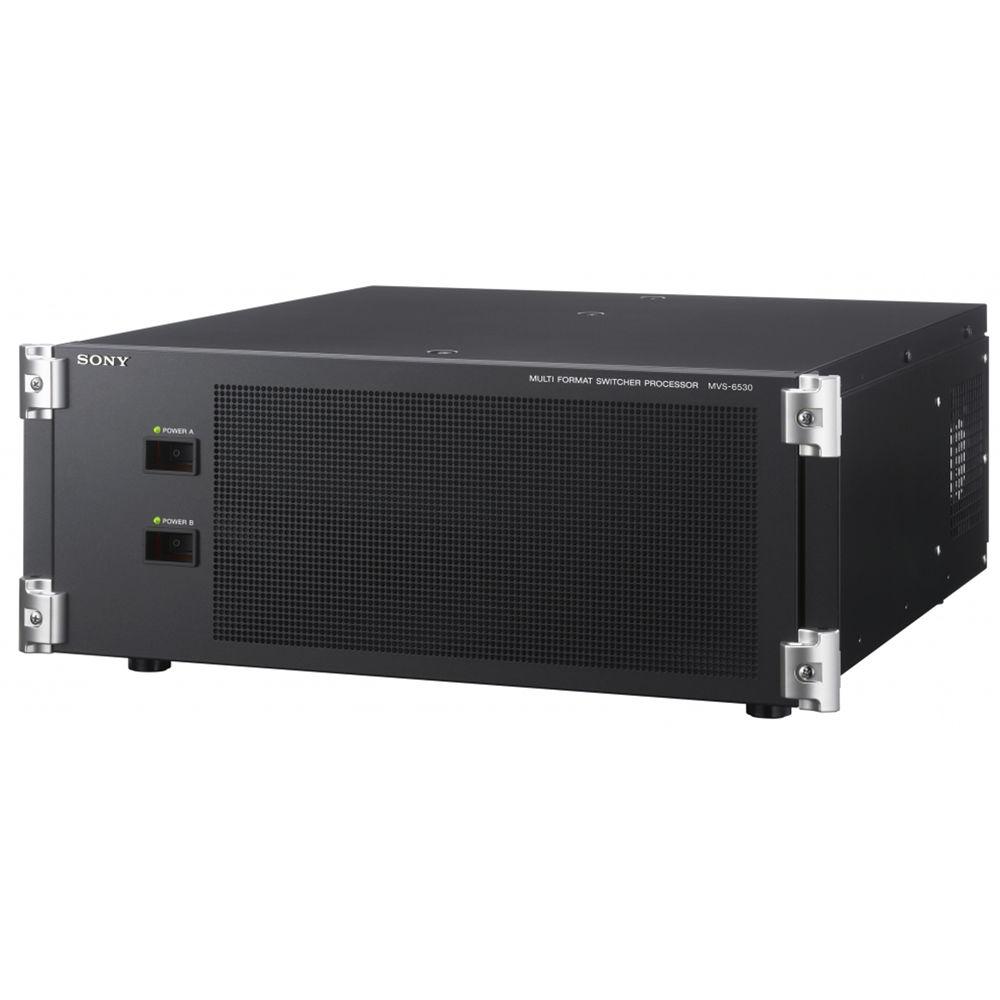

Product description The black MVS-6530 MVS Series Mid-Range SD/HD Video Switcher from Sony is ideally suited for medium-size productions. The switcher comes with capabilities such as three mix effects (M/E), four keyers per M/E, each with MVS high-performance chromakey, eight keyers in P/P bank, two internal channels of DME, 2.5D resizers, color correction, and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost.The control panel incorporates OLED mnemonic displays for optimal visibility, offering a user-friendly and intuitive operation. The self-contained 4RU processor employs a simple configuration for small production facilities that have limited installation space. -

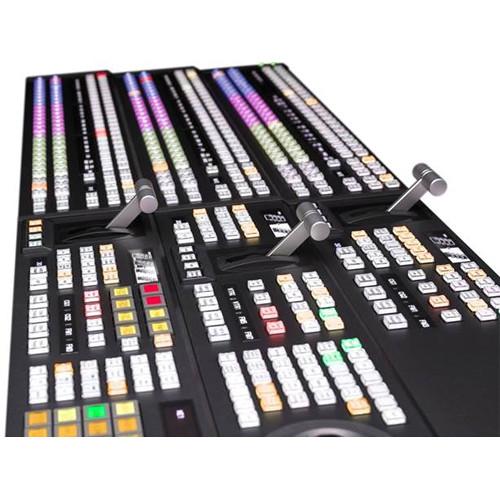

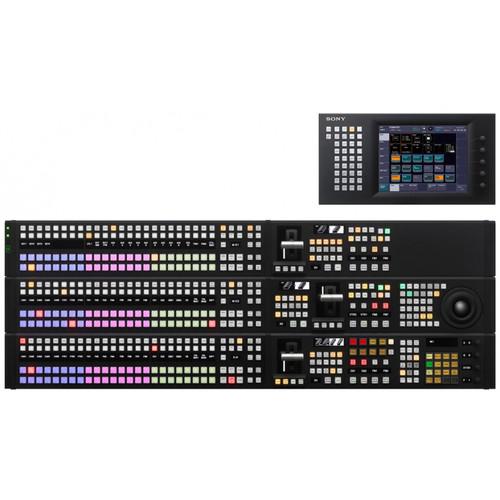

- Features the ICP-6530 Control Panel designed for easy operation in a fixed configuration in the CCP style
- OLED source name displays and RGB color source buttons included for optimal visibility and user-friendly operation.
- Three mix effect (M/E) switchers with four keyers on each bus and eight keyers on the PP row
- In multi-program mode, each M/E bus in the MVS system can be configured to operate in multi-program, providing four independent program outputs on each M/E
- Each separate program O/P can be configured with any combination of M/E keyers
- A powerful resizer function is provided that gives simple 2.5D DME effects for half the keyers in the switcher
- With adjustable parameters such as size, position, and aspect, as well as mosaic and defocus effects, the resizers are very useful for optimizing the on-screen composition, as they can also be activated for clip transitions, and the parameters can be memorized as part of a switcher snapshot, keyframe, or macro effect
- In order to correct for any color errors in the incoming signals, each input has a primary RGB color corrector, while each aux bus output has an identical color corrector circuit useful for correcting the color balance on in-vision monitors
- Additionally, aux mix ability is included which provides a mix transition, rather than a hard cut, on aux bus outputs
- Provides an internal high-capacity frame store with the ability to handle both individual images (stills) and animation sequences (clips) with embedded audio support
- The frame memory system supports eight-channel playback from on-board RAM storage, and images can be imported via USB connection or a real time backup using an external video store. Individual frame memory images or animation sequences can be instantly viewed and recalled via the touchscreen menu operation
- Two-channel multi-view system provides multi-viewer outputs directly from the main processor chassis, cutting down on the need for expensive external multi-viewers
- Each multi-viewer output can be set in either 10 or 4-way split operation, and signals are delegated to each separate pane accordingly
- Multi-viewer supports switcher name and border tally indicators
- Features 48 BNC primary inputs and 32 BNC assignable outputs
- Using the Flexi-Pad module, you can record operation sequences, then store and assign them to any desired button
In the Box Sony MVS Series Mid-Range SD/HD Video Switcher with 3 M/E (Black) 75 Ohm Terminator Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MVS Series Mid-Range SD HD Video Switcher with 3 M E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

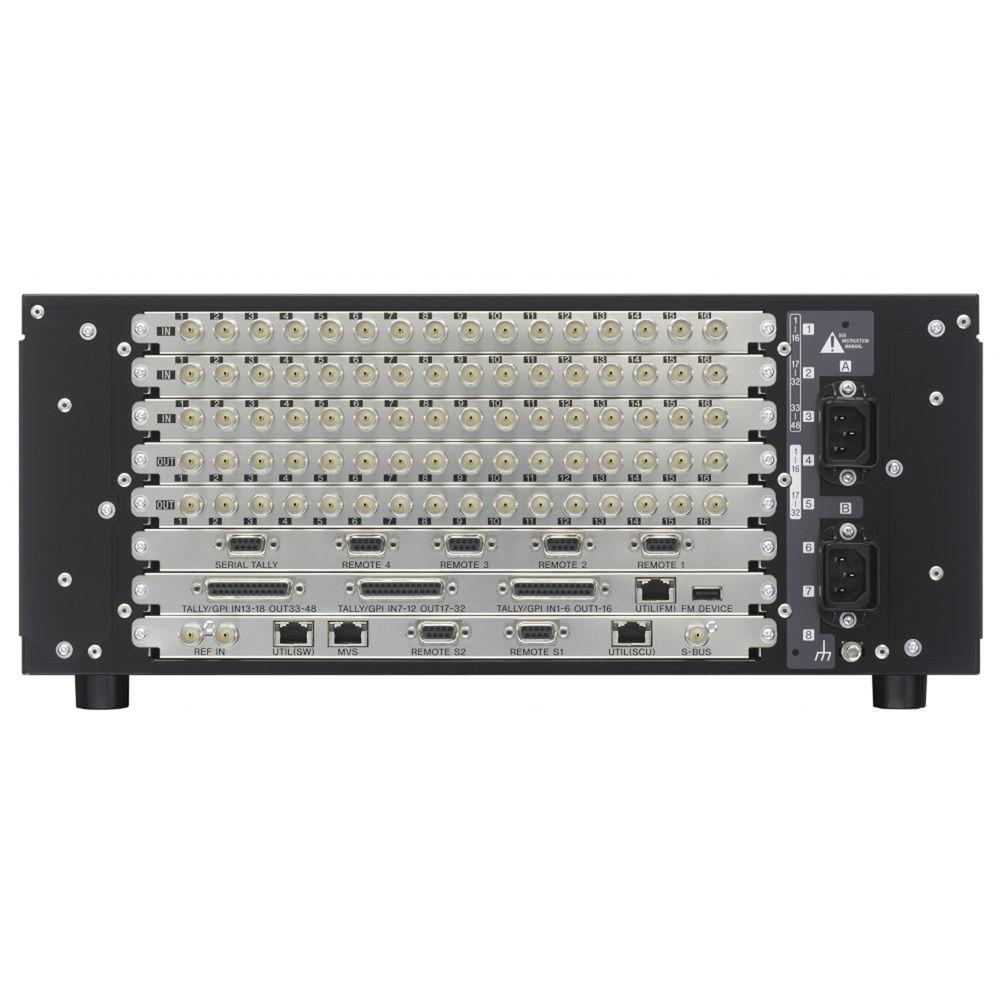

Technical parametersSony MVS6530 Specs | Inputs | 48 x BNC, maximum
SMPTE 292M (HDTV), SMPTE 259M-C (SDTV) | | Outputs | 32 x BNC, maximum
SMPTE 292M (HDTV), SMPTE 259M-C (SDTV) | | Reference | 2 x BNC, 75 Ohm with loop-through output
HDTV Systems: HD tri-level sync/SDTV analog sync/analog black burst
SDTV Systems: Analog black burst/analog sync | | Controls | MVS LAN:
1 x RJ-45, 1000BASE-T
UTIL (SW):
1 x RJ-45, 1000BASE-T
UTIL (SCU):
1 x RJ-45, 1000BASE-T
Remote:
4 x 1 to 4 D-sub 9-pin, RS-422A
Remote:
2 x S1 to S2 D-sub 9-pin, RS-422A
Tally/GPI:
4 x D-sub 25-pin, 18 x TTL level inputs, 48 x Open collector outputs
Serial Tally:
1 x D-sub 9-pin, RS-422A
S-BUS:
1 x BNC, 75 Ohm
UTIL (FM):
1 x RJ-45, 1000BASE-T
FM Device:
USB 2.0 | | Power Supply | 100 to 240 VAC, ±10%, 50/60 Hz | | Power Consumption | 4 to 1.7 A | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions (W x H x D) | 19 x 7 x 19" (48 x 18 x 49 cm) | | Weight | 46 lb (21 kg) Approx. |
