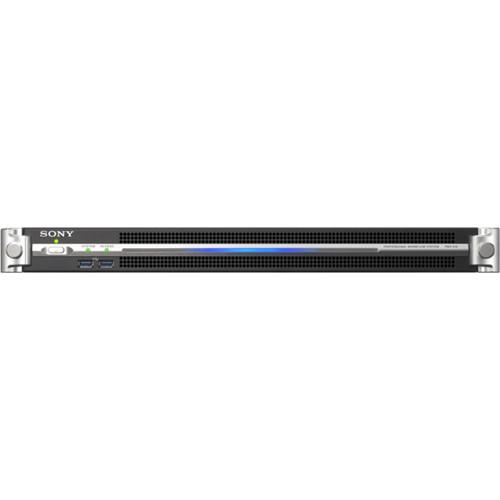

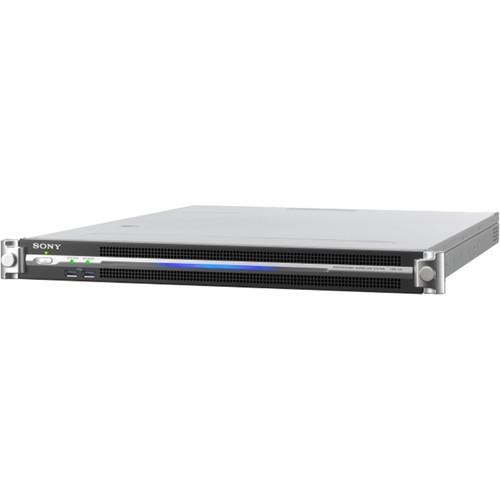

Product description The Network RX Station from Sony is an advanced system for live streaming video and audio directly from select XDCAM camcorders using 4G/LTE and Wi-Fi networks at up to 5 Mb/s. The station uses QoS (quality of service) technology or MPEG2-TS to maintain video and audio integrity during transmission. It can simultaneously control two SDI outputs for live stream from two locations at the same time. Multiple systems can be added for greater input and output loads.
The unit includes reference and timecode input connectors which enable synchronized operation with broadcast systems. In addition, it can output in a variety of broadcast formats including 1080i. The system comes with the preinstalled Connection Control Manager software that enables easy connection to camcorders and delivers efficient handling of the live streams. - Connection Control Manager Software
- The Connection Control Manager software enables easy connection to camcorders and delivers efficient handling of the live streams. The software is preinstalled on the unit and presents a comprehensive GUI that can be used to view thumbnails from multiple camcorders, control camcorder connections, transmission bit rates, and latency settings, and to monitor output from multiple units.
- QoS Technology
- Integrated Sony algorithms automatically adjust bandwidths and buffer sizes to match the characteristics of the wireless transmission. Users can be confident of high-quality streaming without concerning themselves with bandwidth settings and other technical issues. The system includes real-time ARQ (automatic repeat request), adaptive rate control (ARC), and forward error correction (FEC).
- Remote File Transfer
- The device allows remote access to proxy media within a supported camera or adapter. The remote operator can execute a file transfer from the camera or adapter to an FTP server or cloud service of choice.
In the Box Sony Network RX Station for Select XDCAM Camcorders Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Network RX Station for Select XDCAM Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PWS-110RX1A Specs | Compatible Cameras | PXW-Z450 / Z280 / Z190 / Z150 / Z90
PXW-X500 / X400 / X200 / X180 / X70 | | Supported Formats | 1080p: 59.94, 50
1080i: 59.94, 50
720p: 59.94, 50
576i: 50

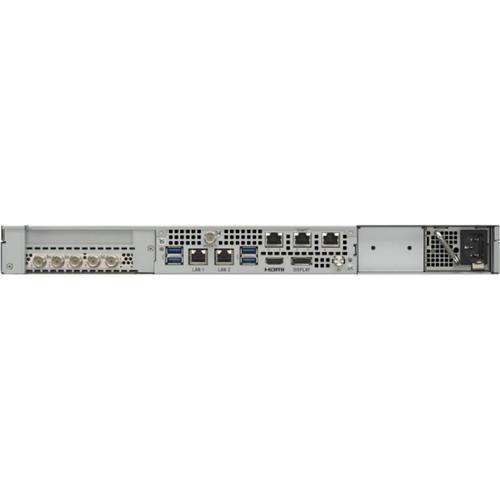

480i: 59.94 | | Connectors | 2 x RJ45, LAN Port (1000BASE-T, 100BASE-TX)
6 x USB 3.0 Type-A (2 Front and 4 Rear)
1 x HDMI 1.4a Type-A
1 x BNC, Ref Input
4 x BNC, SDI Ports
1 x BNC, TC Input | | Memory | 2 x 8 GB SO-DIMM (DDR4) | | Storage (SSD) | 120 GB | | Expansion Bus Connector | 2 x PCIe Gen2 8Lane (8 W) | | CPU | Intel Core i7 6700TE (2.4 GHz) | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Normal: 235 W
Standby: 3 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 90% | | Storage Humidity | 5 to 80% | | Dimensions | 17.3 x 17.2 x 20.0" / 44.0 x 43.6 x 50.7 cm | | Weight | 21.6 lb / 9.8 kg | | | | Package Weight | 29.15 lb | | Box Dimensions (LxWxH) | 25.75 x 22.0 x 7.75" |
