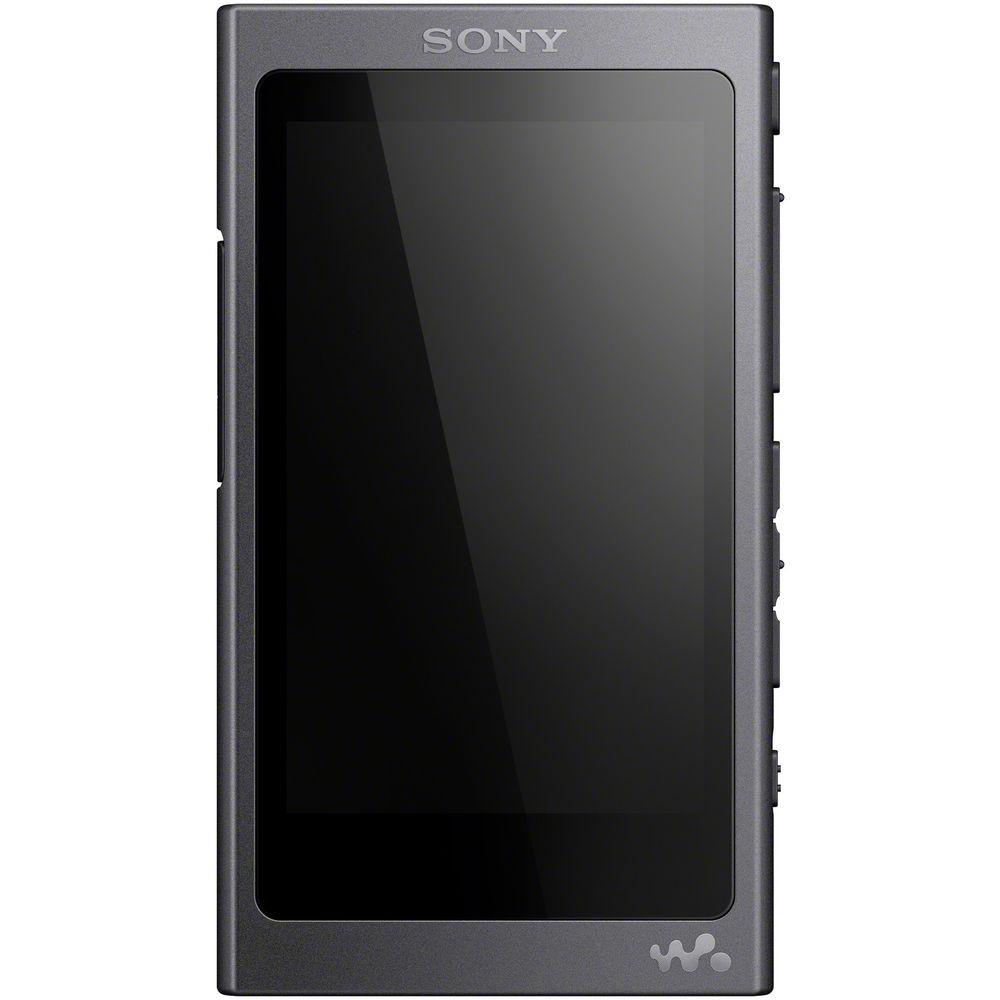

User Manual for Sony NWA45B Walkman Digital Music Player Click to enlarge the picture
Contents of the user manual for the Sony NWA45B Walkman Digital Music Player
- Product category: iPods & Media Players Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony iPods & Media Players
 |
User manual for the Sony NWA45B Walkman Digital Music Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

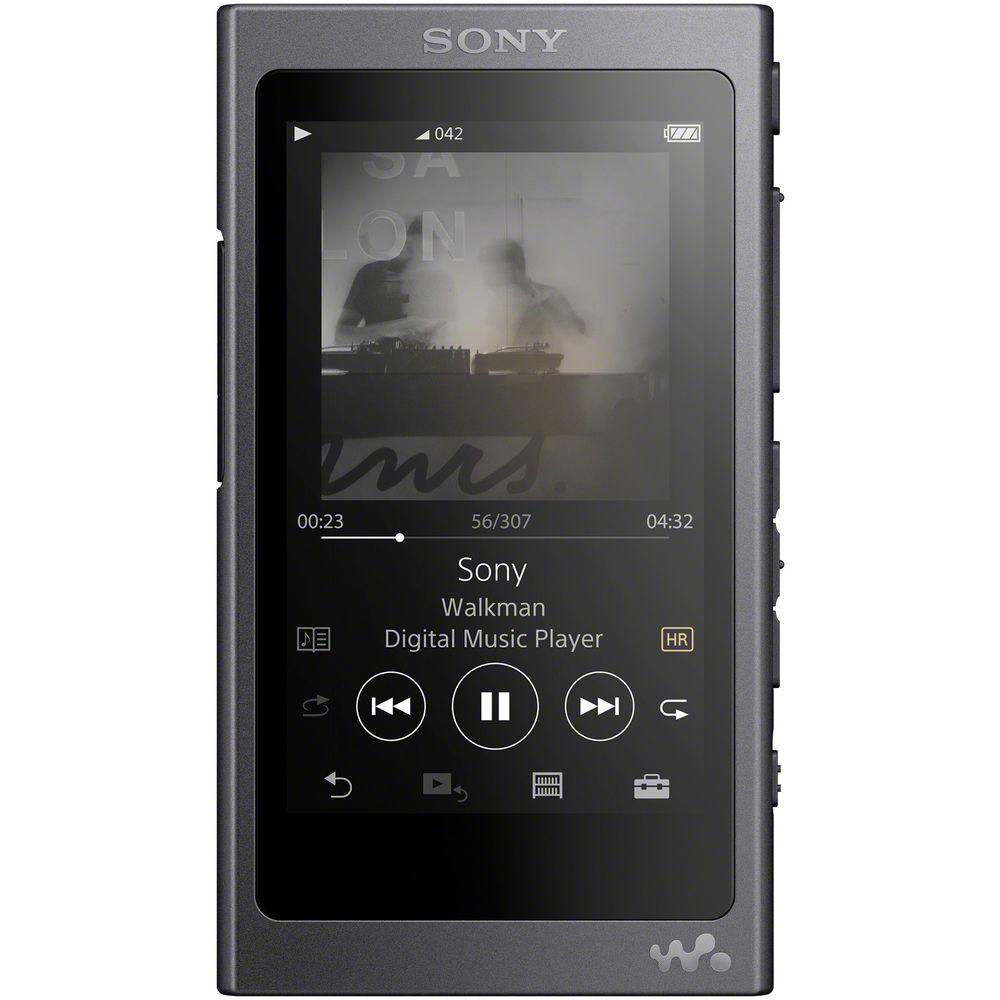

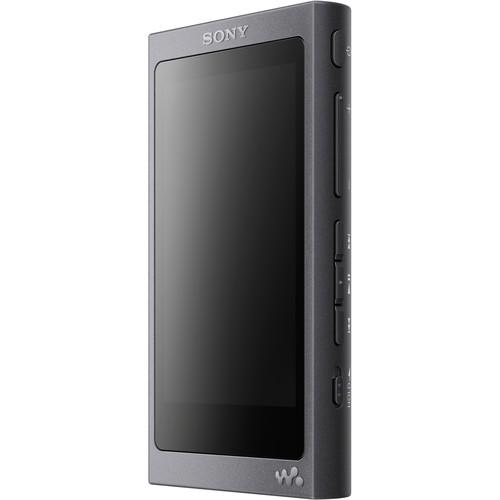

Product description Enjoy up to 45 hours of portable, high-resolution audio with the Sony NW-A45B Walkman Digital Music Player, offered here in a grayish black finish. This Walkman supports playback of PCM, AAC, WMA, and MP3 audio files, among others. It features 16GB of internal flash memory and supports microSD cards. The NW-A45 also boasts a 3.1" TFT color LCD touchscreen with an 800 x 480 resolution. Its built-in rechargeable battery provides up to 45 hours of continuous audio playback on a full 4-hour charge. This Walkman utilizes several audiophile-friendly technologies, including DSD over PCM Playback and DSEE HX upscaling. Sony's wireless codec, LDAC, delivers a higher bit rate than standard Bluetooth, so you can enjoy an enhanced listening experience with a compatible pair of wireless headphones. You can also pair the Walkman with other compatible devices over conventional Bluetooth with NFC. The NW-A45’s proprietary operating system works with Mac and Windows computers, and utilizes a simple drag-and-drop process for quickly moving songs from your computer library to the Walkman. Also, you can use the NW-45B as a USB DAC, circumventing your computer’s sound card and achieving better sound in the process through the unit’s S-Master HX amplifier. - Hi-Resolution Amplifier
- Optimized for High-Resolution Audio, the S-Master HX amplifier reduces distortion and noise, allowing you to enjoy all the subtleties in your music.
- DSD via PCM
- The NW-A45B supports DSD audio formats by way of high-quality PCM conversion.
- DSEE Upscaling
- The Digital Sound Enhancement Engine HX (DSEE HX) upscales compressed digital music files such as MP3, AAC, ATRAC, and WMA, bringing them closer to the quality of high-resolution audio.
- Precision-Engineered Build
- The circuit board of the NW-A40 Series has been engineered for efficiency. The layout from the battery to the audio block minimizes the power loop, making the power supply stable. This results in a clear sound with solid low end. Other precision-engineered components include lead-free solder on the circuit board and the S-Master HX chip (CXD-3778GF), resulting in an efficient electronic connection.
- Ambient Sound Mode with Compatible Headphones
- Listening to music but still want to hear the outside world? When you're using compatible IER-NW500N headphones, select Ambient Sound Mode and the NW-A45B will let in external sounds to keep you aware of your surroundings.
- LDAC Transmission
- LDAC uses a conventional Bluetooth connection, but transfers at a maximum data transfer rate up to 990 kbps–approximately three times that of other audio profiles. The result is a wireless listening experience capable of streaming PCM files with high sample rates.
- USB DAC
- Use your NW-A45B as a USB DAC (digital-analog converter) by pairing it with a Mac or Windows PC. When connected and activated using the supplied USB cable, the unit replaces your computer's regular sound processing with its own hardware.

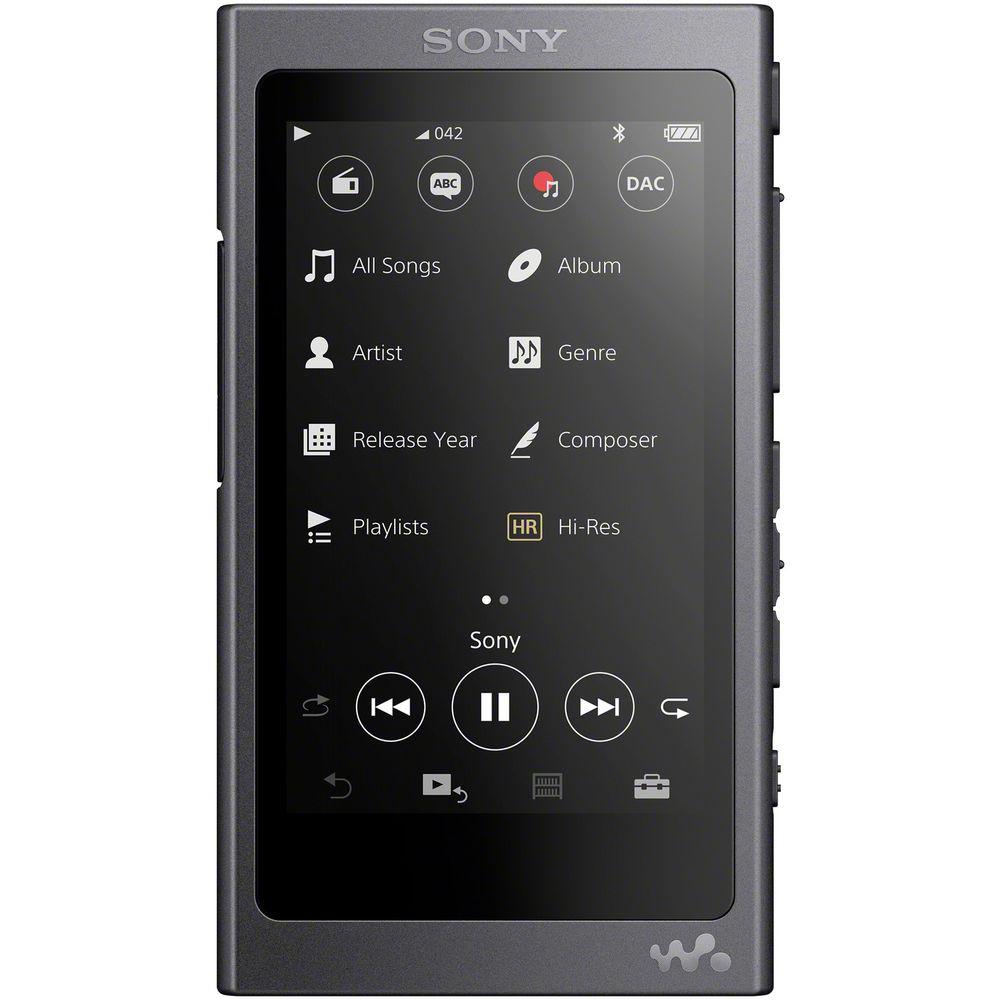

- Touchscreen Controls
- With the large, full-color touch screen, you can change tracks, create playlists, and more.

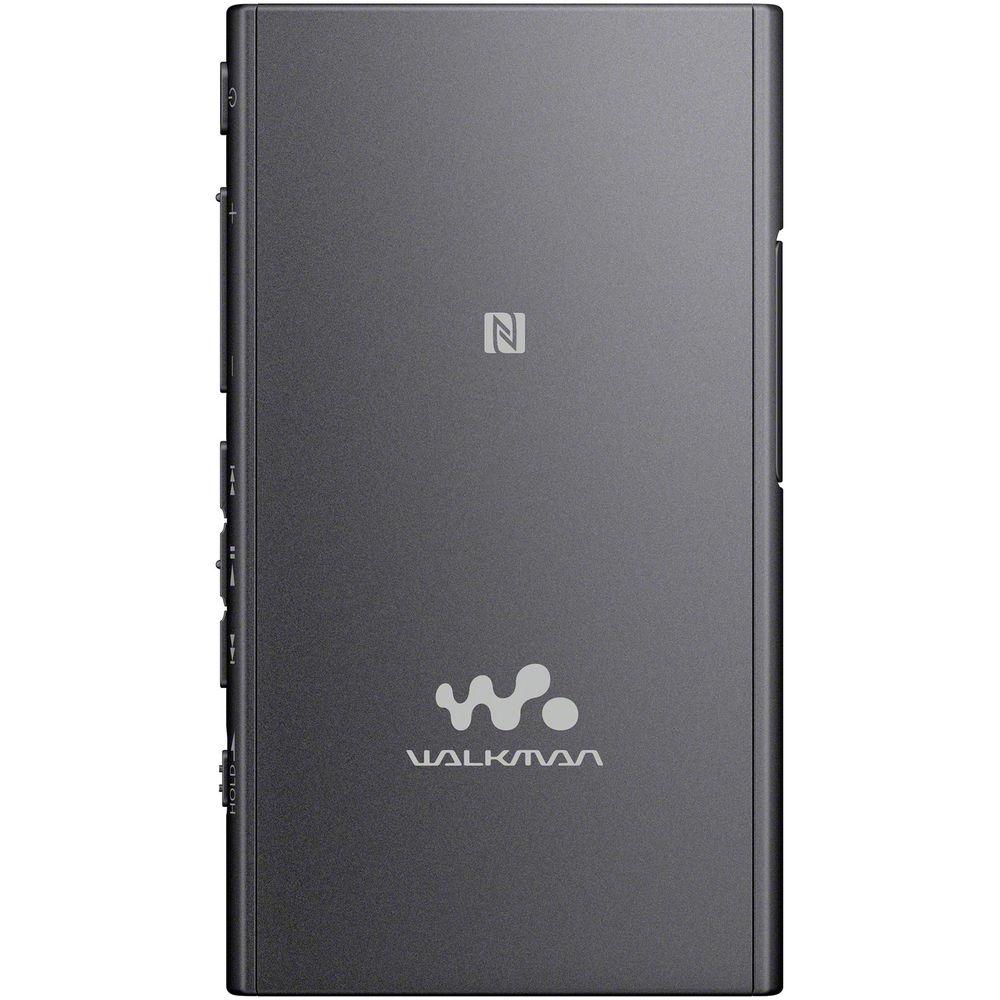

- Bluetooth with NFC
- Near Field Communication (NFC) and Bluetooth technology make connecting to your music fast and easy. Just touch your NFC-enabled device to the NW-A45B for a seamless connection, then start streaming.
- MQA Support
- The NW-A45B is fully compatible with MQA, furthering its functionality when it comes to lossless music.

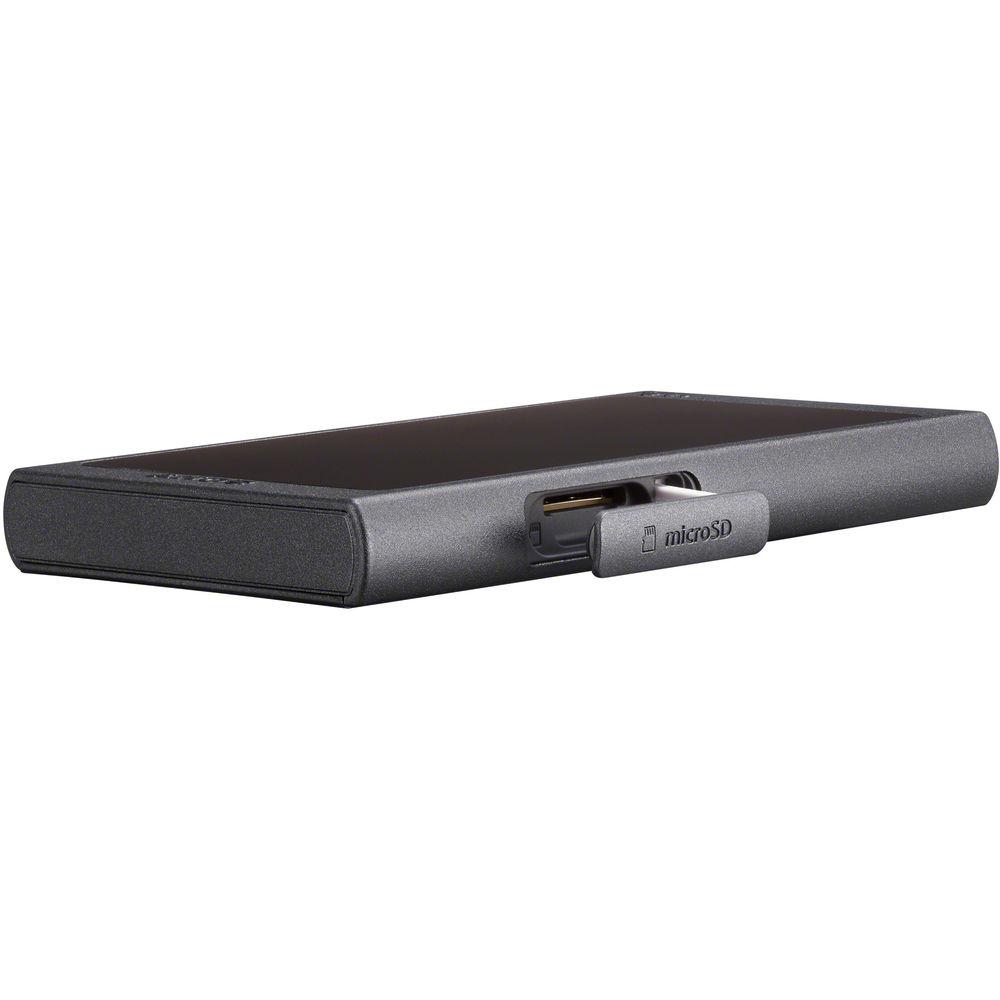

- Expandable Memory
- Want to store more music on your Walkman? Pop in an SD card (available separately) for additional memory.

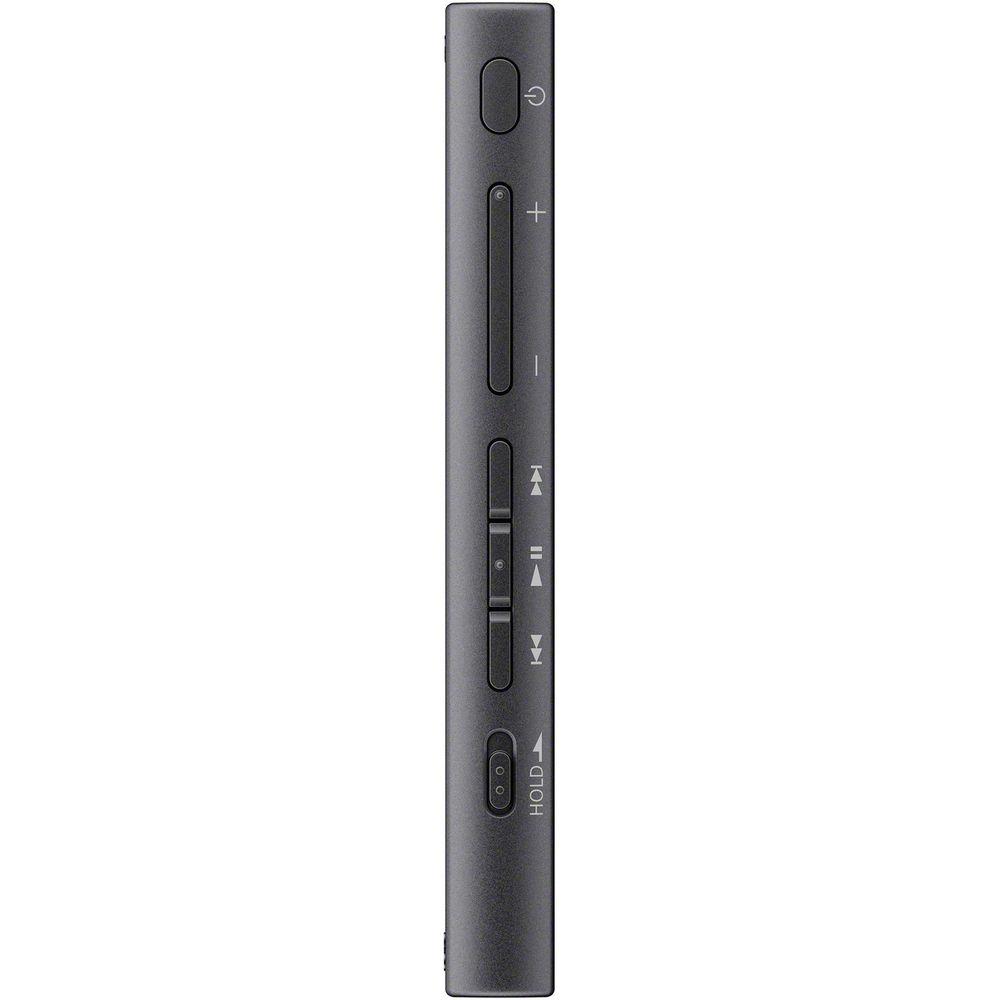

- Handy Buttons for Quick Control
- The play/pause, music selection, and volume buttons on the side panel are shaped and positioned for easy operation.
UPC: 027242906266 In the Box Sony NWA45B Walkman Digital Music Player (Greyish Black) USB Cable Limited 1-Year Warranty More from Manufacturer cacqbdszubactfrrxbwucxerasuxydayt Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony NWA45B Walkman Digital Music Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony NW-A45 Specs | | | Amplifier | 1 x S-Master HX | | External DAC Functionality | Yes | | Audio Resolution | DSD128: 2.8224 MHz / 1-Bit | | Volume Control | Analog | | Audio Power Output | 35 mW (Unbalanced) | | Custom Equalizer | Yes | | | | Operating System | Proprietary | | Internal Storage Capacity | 16 GB | | Flash Media Slot | 1 x SDXC | | Display | 3.1" LCD (800 x 480 Resolution) | | | | FM Tuner | Yes | | Formats Supported | Audio: AAC (6-320 kbps/8-48 kHz)
Audio: APE (8, 16, 24-bit/8-192 kHz [Fast, Normal, High])
Audio: ALAC (16, 24-bit/8-192 kHz)
Audio: DSD converted to PCM (1-bit/2.8224, 5.6448, 11.2896 MHz)
Audio: FLAC (16, 24-bit/8-192 kHz)
Audio: HE-AAC (32-144 kbps/8-48 kHz)
Audio: MP3 (32-320 kbps [supports variable bitrate]/32, 44.1, 48 kHz)
Audio: WMA (32-192 kbps [supports variable bitrate]/44.1 kHz) | | | | Wireless | Bluetooth 4.2
Bluetooth AVRCP | | Bluetooth Codecs | aptX, LDAC | | Connections | 1 x 1/8" (3.5 mm) Stereo Headphone
1 x WM-Port | | Built-In Mic | No | | | | Charging Time | Full Charge: 4 Hours | | | | System Requirements | Operating System
Windows 7, 8.1, 10
Mac OS X 10.8 - 10.12 | | Dimensions (W x H x D) | 2.2 x 3.8 x 0.4" / 55.9 x 97.5 x 10.9 mm | | Weight | 3.46 oz / 98 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.9 x 3.5 x 1.8" |
