Product description

Hi-Res Audio
• Record uncompressed, high-resolution audio at up to 24-bit / 192 kHz. Whether it's your live music set, a new podcast episode, or a breaking news report, the PCM-D10 unlocks a new level of detail and texture.

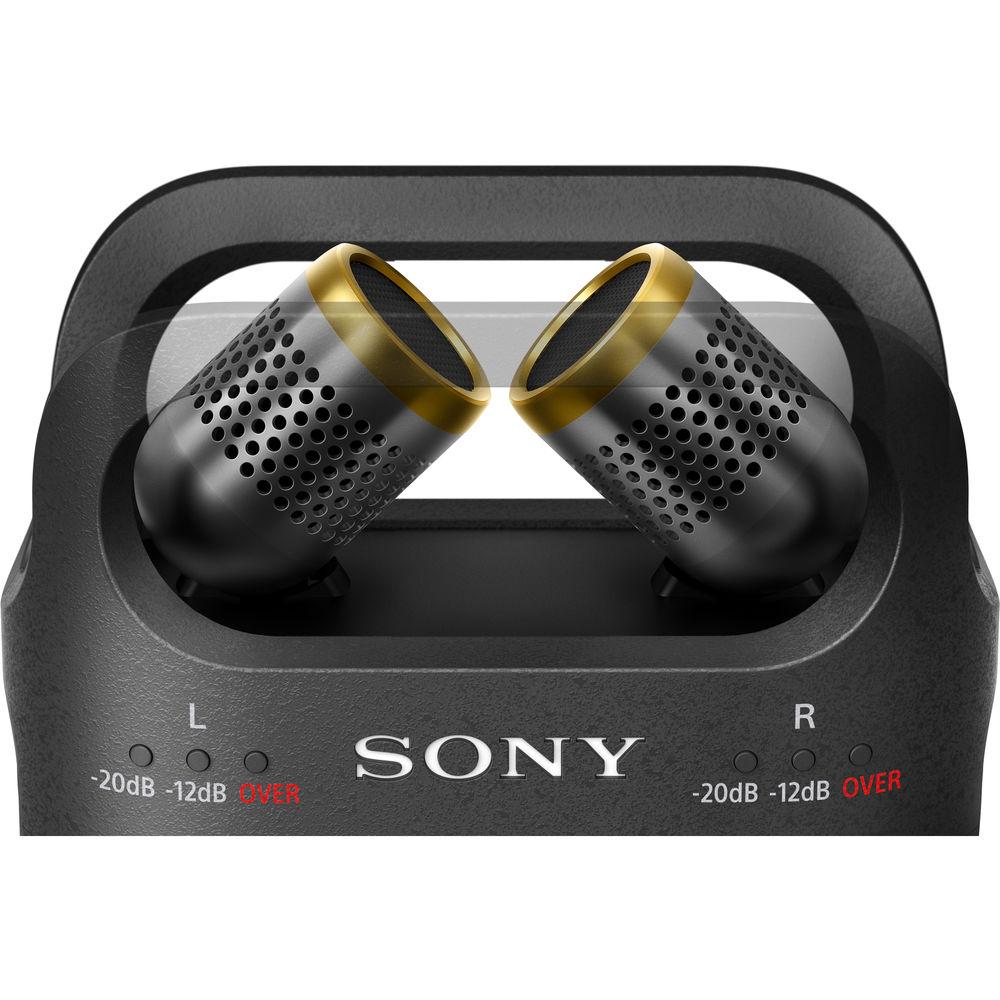

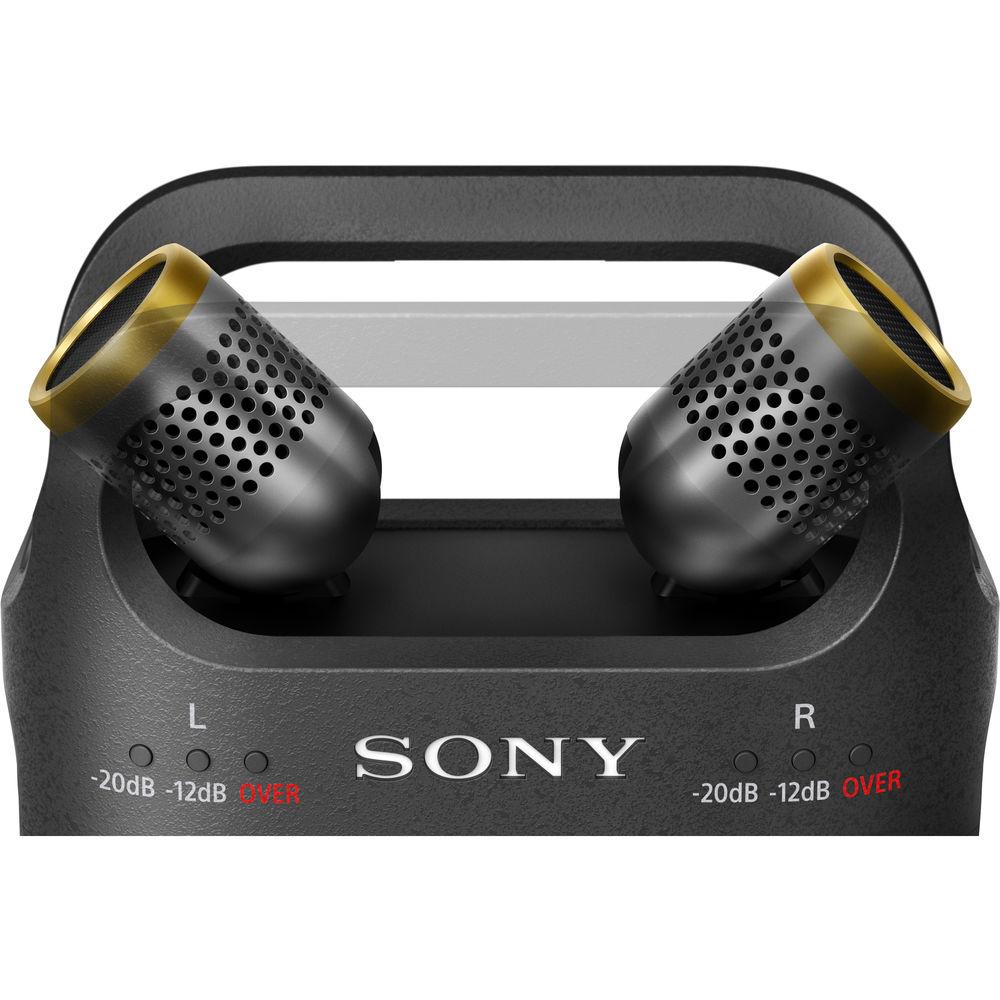

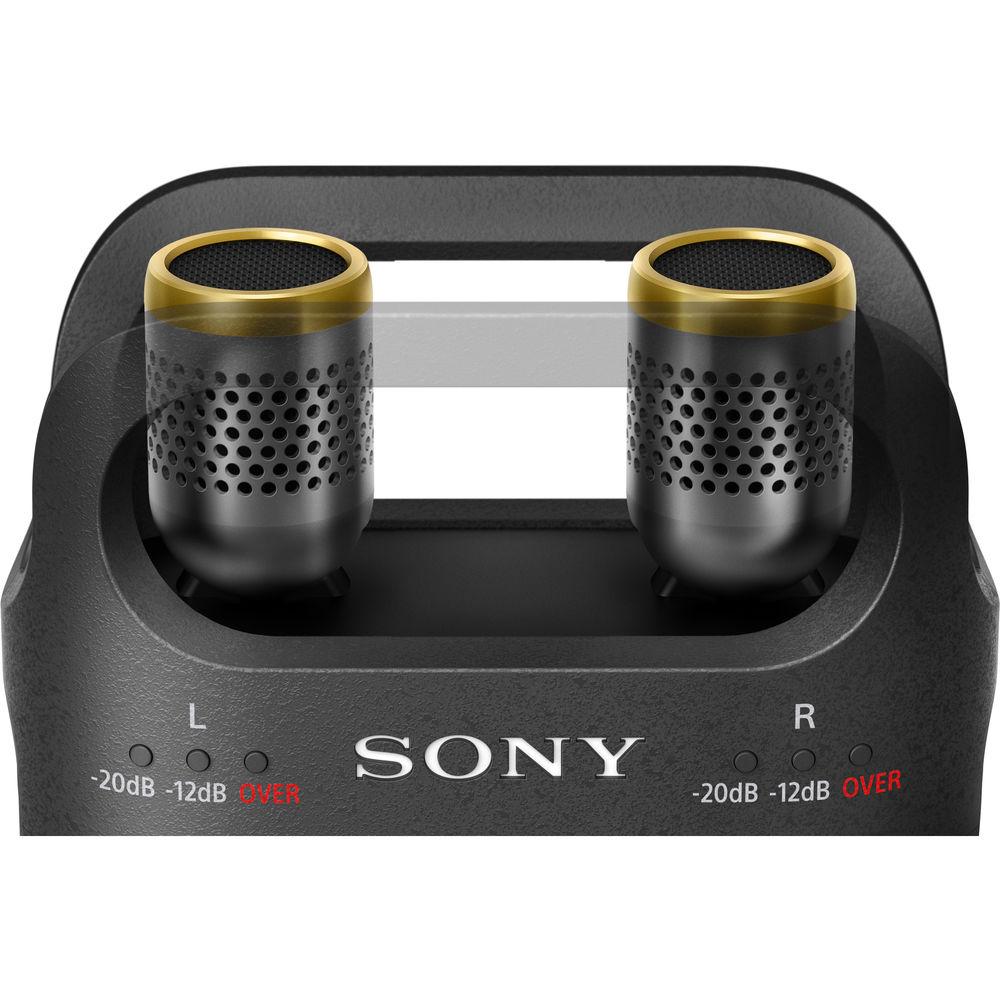

Onboard 3-Position Microphones
• The onboard stereo microphones feature low noise, a wide frequency range, and three recording positions. Choose XY for music performances, Zoom for interviews and discussions, or Wide Stereo for open and outdoor spaces.

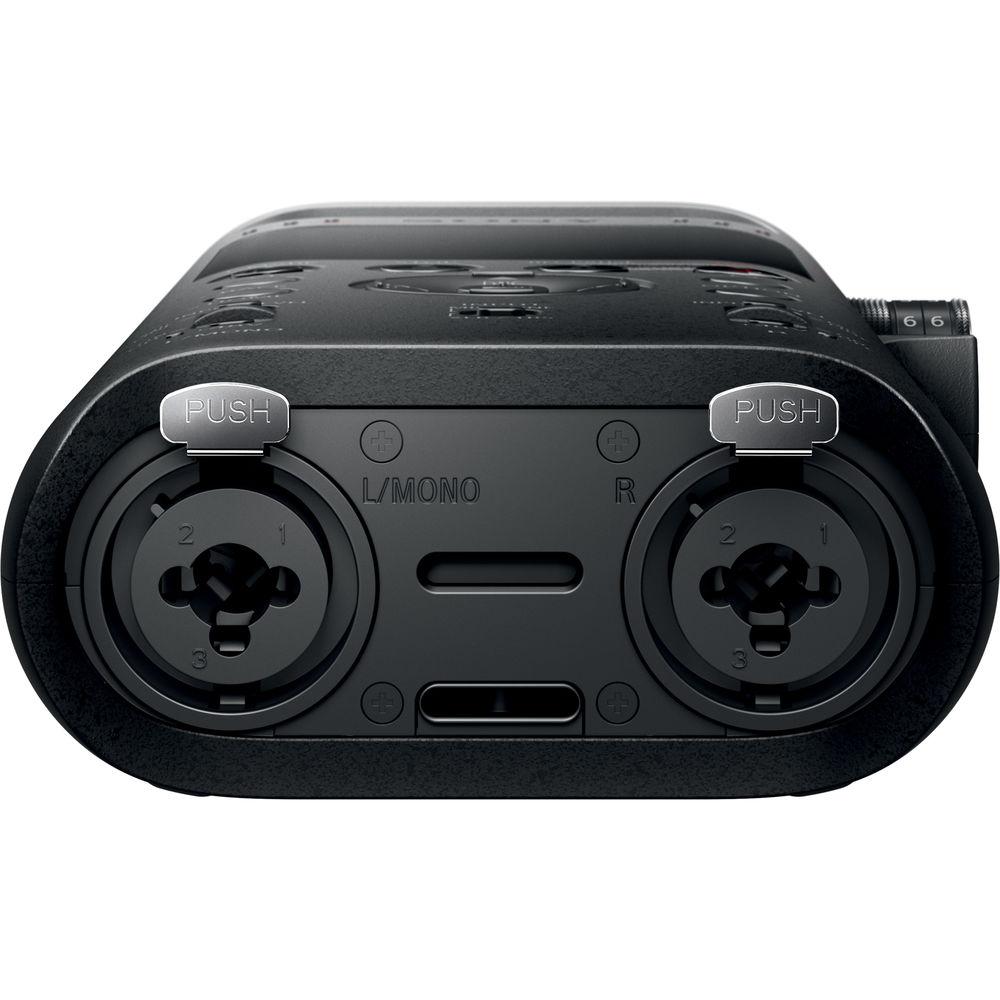

Dual XLR-1/4" TRS Combo Jacks
• Connect two external sources such as mics, keyboards, or mixer outputs to the dual XLR-1/4" TRS combo jacks. These jacks are separately switchable between mic or line level, and have independent 48V phantom power and secure push-lock jacks. You'll also find a dedicated stereo 3.5mm mini-jack input.

AK4558 Converters
• Combining two top-of-the-line AK4558 AD/DA converters with Sony's proprietary technology, the PCM-D10 maximizes the signal-to-noise ratio, and allows you to capture detailed, accurate audio at up to 192 kHz.

Versatile Input Level Control
• With the variable analog gain amplifier, you can dial in your audio levels with precision. The recorder features independent dials for left and right channels, so you're free to adjust one or both of your inputs. By incorporating analog controls, the PCM-D10 avoids the step noise that can be encountered with digital volume adjustments

Noise-Preventing Circuit Design
• Beneath the case of the PCM-D10 is a circuit board engineered to maintain uncompromising sound quality. The analog and digital circuits are completely separated on the board, reducing interference and boosting the signal-to-noise ratio. Also, the amp blocks are positioned close to the inputs for the clearest possible transmission.

Integrated Analog Headphone Amplifier
• Whether you're monitoring live or reliving the performance, you'll enjoy clear, detailed audio and high output power from the PCM-D10's MAX9723 analog headphone amp. This also features an integrated analog volume controller for smooth adjustment.

High S/N Mode
• With the high S/N mode, you can stop worrying about lost low levels. The PCM-D10's two ADCs record at different volumes (one regular and one lower); if any low levels are lost, the device automatically replaces these sections with audio captured at -12 dB. The result? Clear recordings for even the most dynamic performances.

Built-In Digital Limiter
• The PCM-D10's digital limiter lets you make interruption-free recordings even at high levels. When distortion occurs, the recorder will automatically fill clipped portions with a back-up recording at a lower level. This means that even if volume spikes, you can be confident you've recorded distortion-free files.

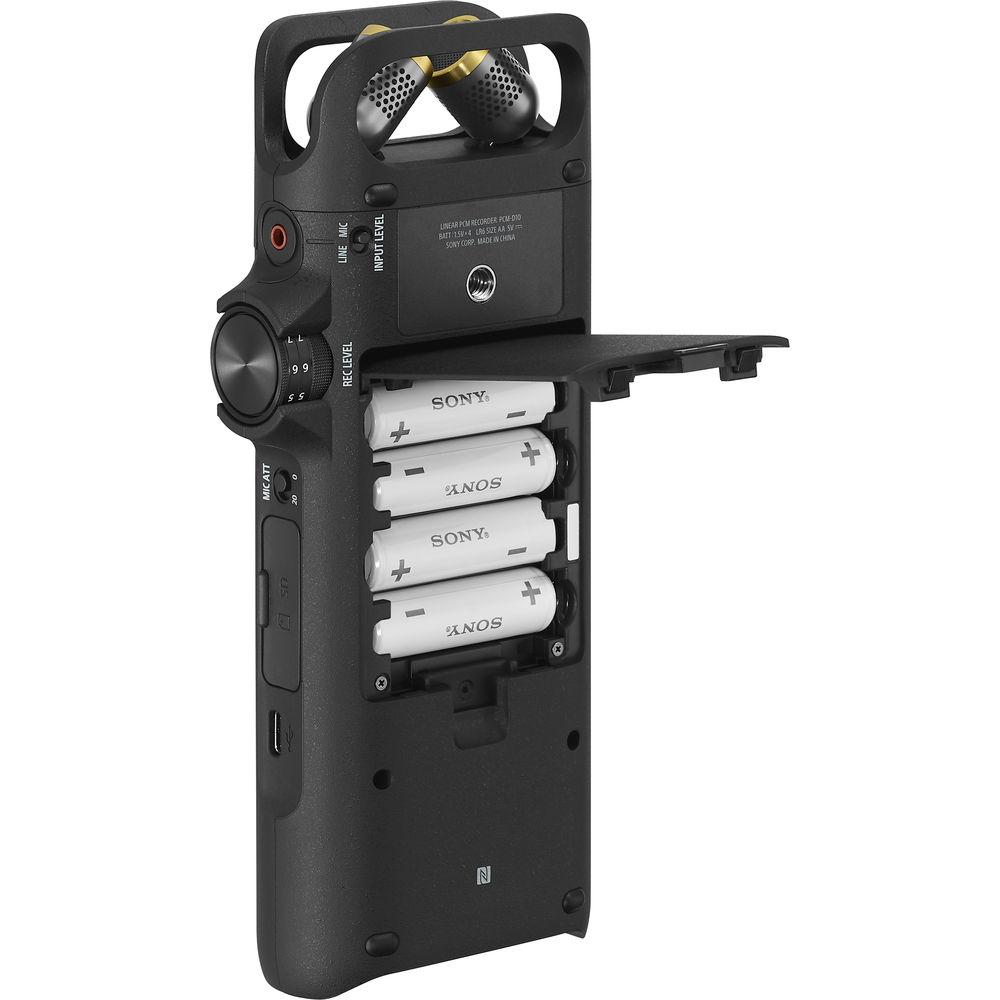

Powered via Batteries or USB
• Choose from different power supply options to match your recording environment. USB Type-C can be more suited to studio time, while dry cell batteries are ideal for recording in the field.

Up to 256GB of SD Card Storage
• With 16GB of internal memory, you're always ready to lay down high-resolution recordings. Recording time can be expanding without lowering audio resolution by adding up to 256GB of SD-card storage. Plus, if you turn on Cross-Memory REC mode, the recorder will automatically switch to SD card when you exceed the internal memory.

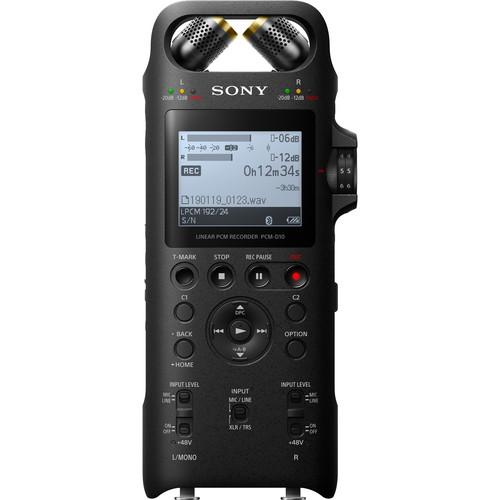

Clear Metering and Indication
• An easy-to-read, on-screen, backlit display shows separate peak levels for left and right channels, so you can see just where you need to tweak your inputs. Three peak level lamps will light up to indicate if your levels hit -20 dB, -12 dB, or overload. You can also monitor full-bandwidth stereo levels on the display or via the Sony REC Remote app.

Smartphone Control
• Use the Sony REC Remote app (available for Android and iOS) to start recordings from your smartphone. This helps eliminate the interference sometimes caused by jogging the device when you hit the REC button. You can also use the app to adjust most recording settings, mark tracks, and monitor your levels.

Selectable Mono Recording Mode
• Recording an interview? Simply switch from stereo to monaural mode and the PCM-D10 will record on only the left channel when an XLR cable is connected.

USB File Transfer
• Recorded your raw audio? Connect the PCM-D10 to your computer via included USB Type-C to USB Type-A cable, then import the audio files to work your editing or post-production magic. Included as a download link and serial number is Sound Forge Audio Studio 12, software that's ideal for cleaning up your interview audio or enhancing your band's performance before you share it with the world.

Intuitive Controls
• The PCM-D10 is designed with a simple, intuitive button layout, so nothing comes between you and capturing the perfect recording. Plus, there are two custom buttons you can assign to modes such as high S/N or the digital limiter, giving you a shortcut to the operations you use most.

Tripod Screw Hole
• Thanks to the 1/4"-20 tripod screw hole, you can easily and securely mount the PCM-D10.

Textured Finish
• The PCM-D10 is finished with a tactile, plot-painted texture. This helps you keep a firm grip on the recorder.

Windscreen
• The PCM-D10 comes with a windscreen, which is designed to reduce wind noise when you're working in the field.
