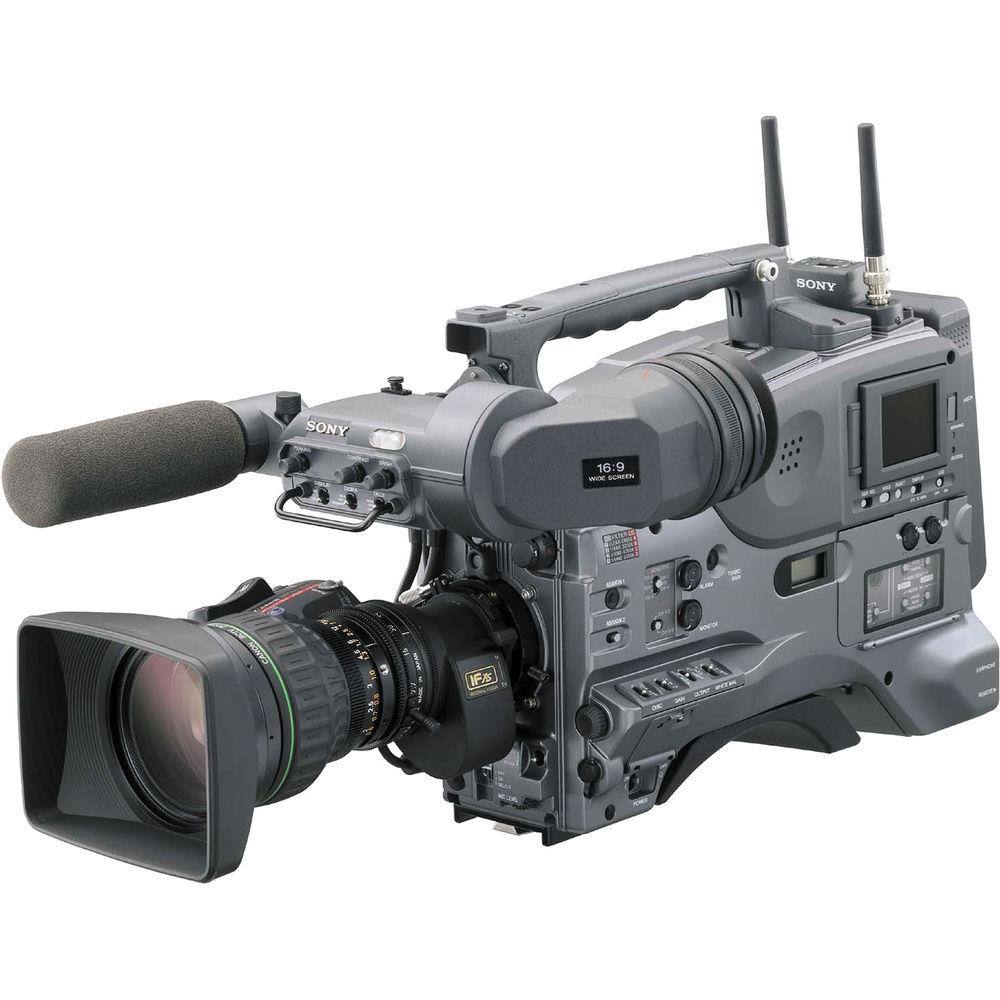

User Manual for Sony PDW-530 XDCAM Camcorder, 16:9 4:3 Switchable, MPEG IMX 4:2:2 DVCAM Formats Click to enlarge the picture
Contents of the user manual for the Sony PDW-530 XDCAM Camcorder, 16:9 4:3
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony PDW-530 XDCAM Camcorder, 16:9 4:3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony PDW-530 XDCAM Camcorder provides the durability and reliability professionals have become accustomed to with their full line of ENG camcorders. The PDW-530 provides excellent image quality, using the same imaging technology as the highly regarded MSW-900. The XDCAM takes recording to the next level, utilizing non-linear optical Blue Laser technology. Less time logging, capturing and digitizing footage allows videographers to move seamlessly between acquisition and post-production. This increase in efficiency will result in shorter production times leading to higher profitability. - Blue Laser Optical Drive Technology
- The XDCAM series is anchored by Blue Laser disc, which allows for storage capabilities large enough to record professional quality video. Optical discs give operators more control of the footage they acquire. This can be useful in instances such as news gathering, where footage often goes direct-to-broadcast. The hassle of rolling through tape is eliminated. Optical recording provides users with the advantages of non-linear work-flow combined the long record times that are necessary in the field.
- Excellent Picture Quality using MPEG IMX
- The PDW-530 can record to either the standard DVCAM or MPEG IMX format. The MPEG IMX's high-quality digital video utilizes 4:2:2 sampling with a data rate up to 50Mbps. Because the format is based upon MPEG compression standards, the camera integrates perfectly with other MPEG devices.
- Advanced Video Chip Technology
- The camera uses advanced CCD technology. The Power HAD EX CCDs have specifications that approach the very highest quality FIT chips found in top-tier equipment such as those used in HDTV production. The camera has an amazing 65 dB signal to noise ratio and smear level of -140 dB. The dynamic range of the camera makes it possible to control critical details in both the very brightest and lowest lighted portions of a scene
- Progressive Recording
- The PDW-530 has the ability to record in progressive mode, which enhances image quality and can provide a more 'film-like' image. The camera can switch between standard (30 fps) and 24P modes. The 24P mode gives video the look and shutter of film, which is conventionally shot at 24 frames per second.
- Loop Recording
- Camera Operators often find themselves missing the first few seconds of action due to camera pre-roll. With the XDCAM this becomes a thing of the past! Simply set the camera to the Loop Recording mode and the camera will buffer 10 seconds of audio and video into the camera's memory. This capability can help prevent the loss of unexpected but important events occurring before the operator even has the chance to press the REC button.
- Thumbnail Scene Selection
- Blue Laser disc technology allows for quick and easy scene selection using Sony's attached LCD. Bringing up clips couldn't be any easier. Randomly access clips and review them seamlessly.
In the Box Sony PDW-530 XDCAM Camcorder, 16:9/4:3 Switchable, MPEG IMX 4:2:2 / DVCAM Formats Operation Manual PDZ-1 Proxy Browsing Software MXF Proxy Viewer Software Viewfinder Shoulder Belt Monaural Microphone 1 Year Parts and Labor Warranty
7 Year "Powertrain" Warranty on Laser Block Guides & Manuals zffuvdwcax Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-530 XDCAM Camcorder, 16:9 4:3 Switchable, MPEG IMX 4:2:2 DVCAM Formats in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony PDW-530 XDCAM Camcorder, 16:9 4:3 Switchable, MPEG IMX 4:2:2 DVCAM Formats can be downloaded in PDF format at the link stated below.
Technical parametersSony PDW-530 Specs | | | Image Sensor | 3-Chip 2/3" CCD Sensor | | Horizontal Resolution (TV Lines) | 980 TV Lines | | Gain | -3 to 48 dB | | Signal-to-Noise Ratio | 65 dB | | Minimum Illumination | 0.13 lux | | | | Lens Mount | B4 Mount | | Shutter Speed | 1/32 to 1/2000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 1 x XDCAM Disc Card Slot | | | | Broadcast System Compatibility | NTSC | | Audio Recording | 4-Channel 24-Bit 48 kHz | | | | Audio Connectors | 2 x 3-Pin XLR Input
1 x Stereo 2RCA Output
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x BNC Timecode Output
1 x BNC Timecode Input
1 x BNC Genlock Input
1 x BNC Sync Output
1 x 8-Pin Hirose Control
1 x 6-Pin FireWire | | | | Display Type | LCD | | Screen Size | 2.5" | | | | Power Connectors | 1 x 4-Pin XLR Input
1 x 4-Pin XLR Output
1 x 2-Pin Light Output | | Power Consumption | 36 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Dimensions | 13.13 x 10.63 x 5" / 33.2 x 26.9 x 12.4 cm | | Weight | 9 lb / 4.1 kg |
