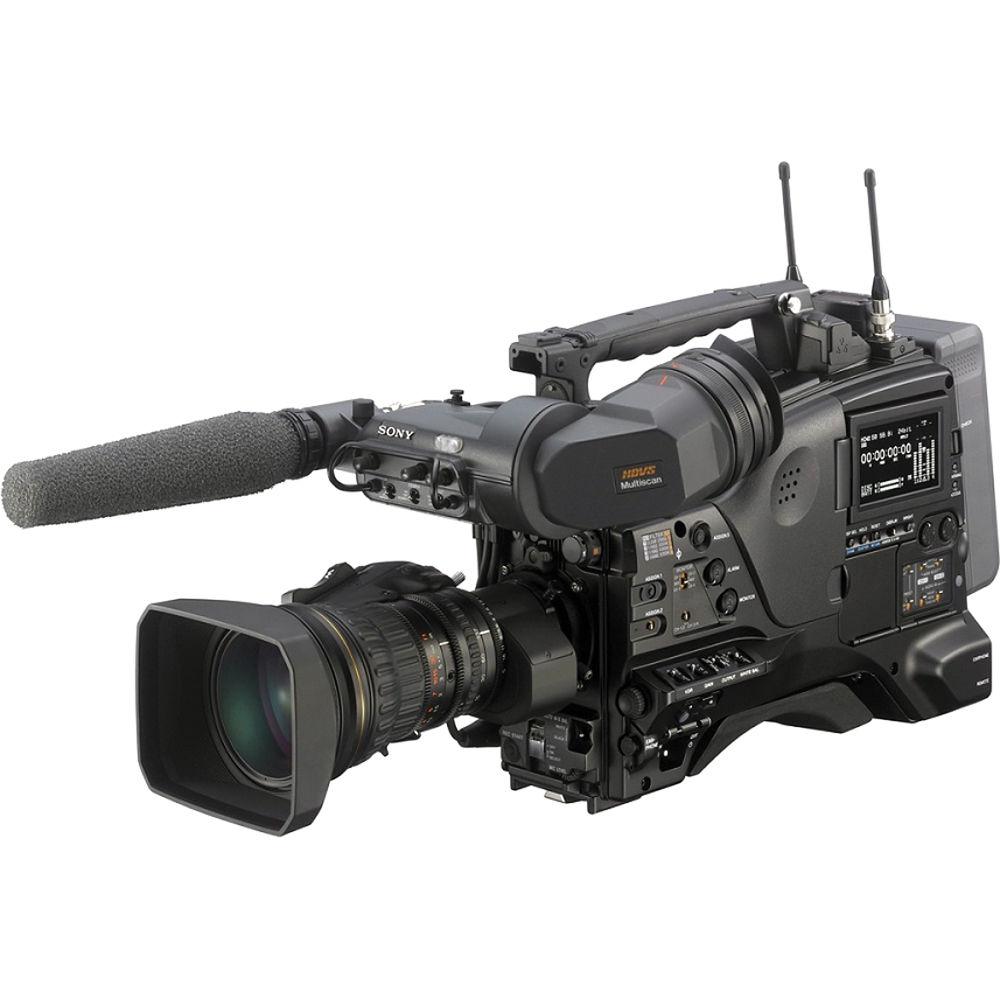

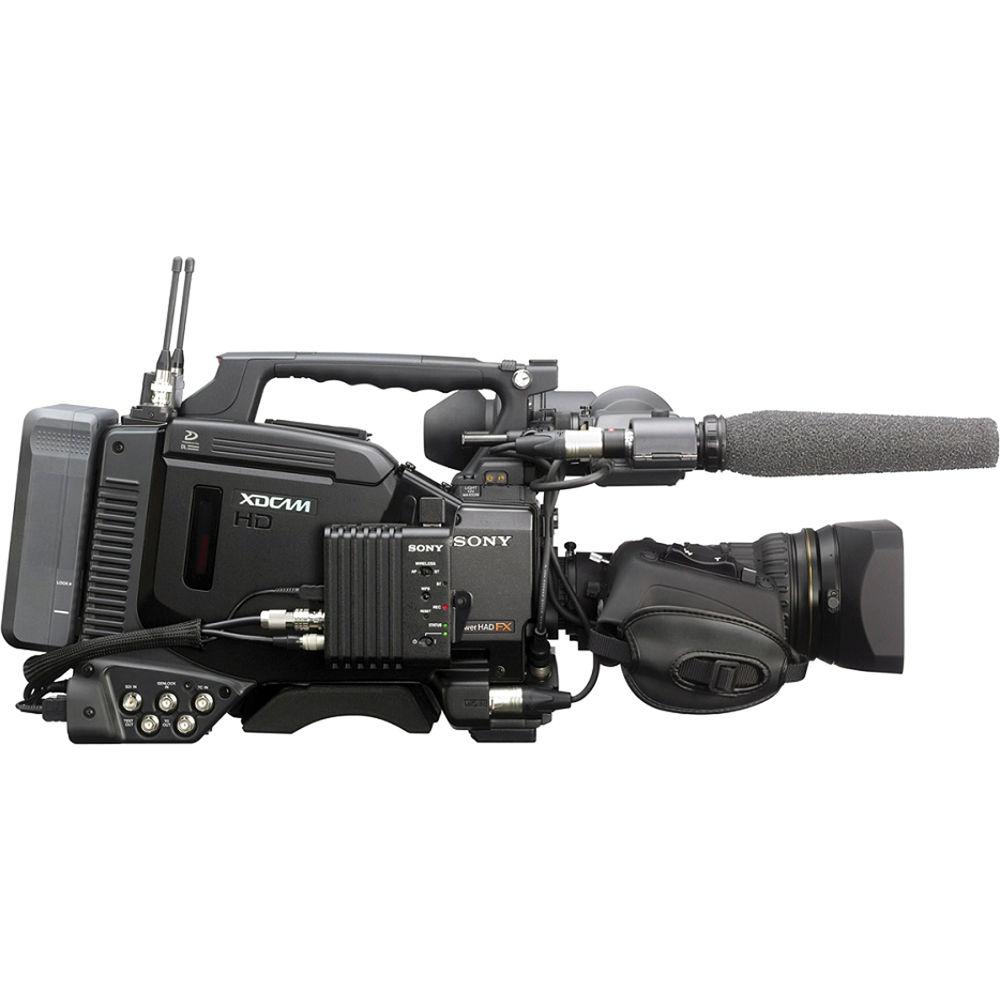

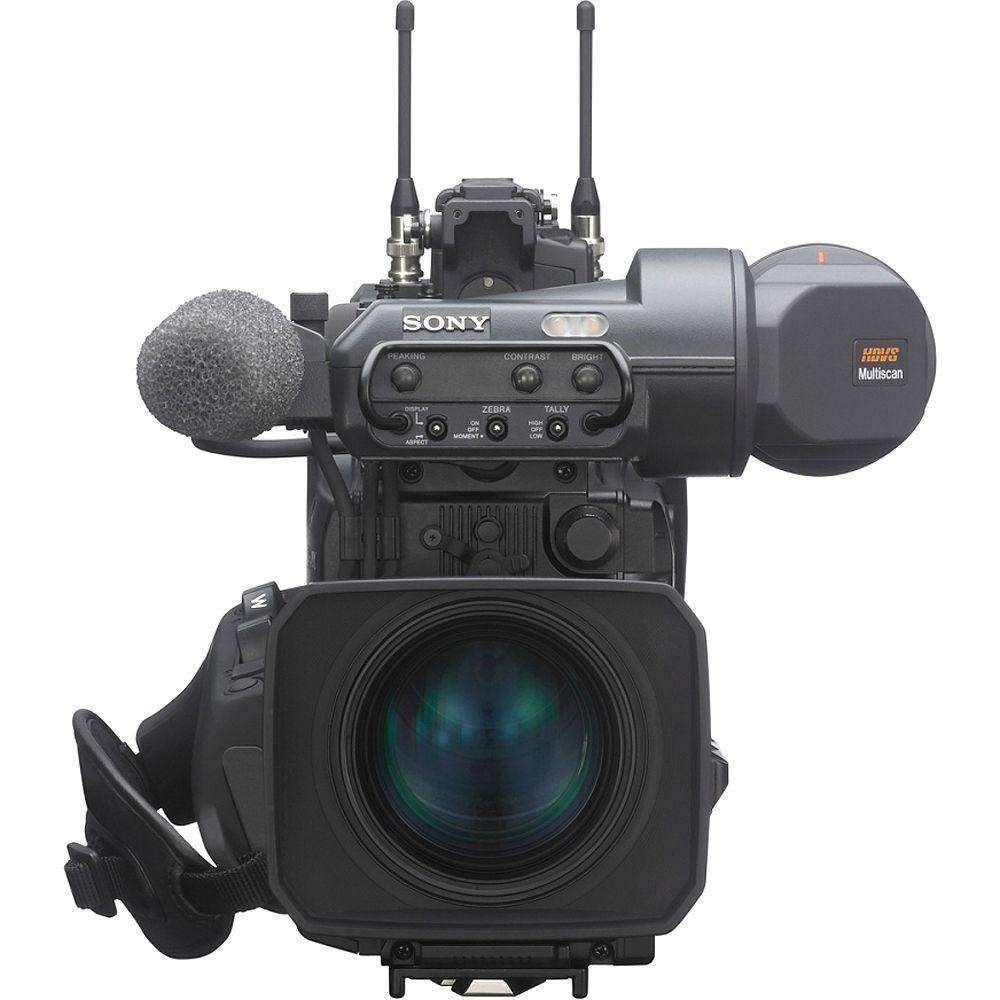

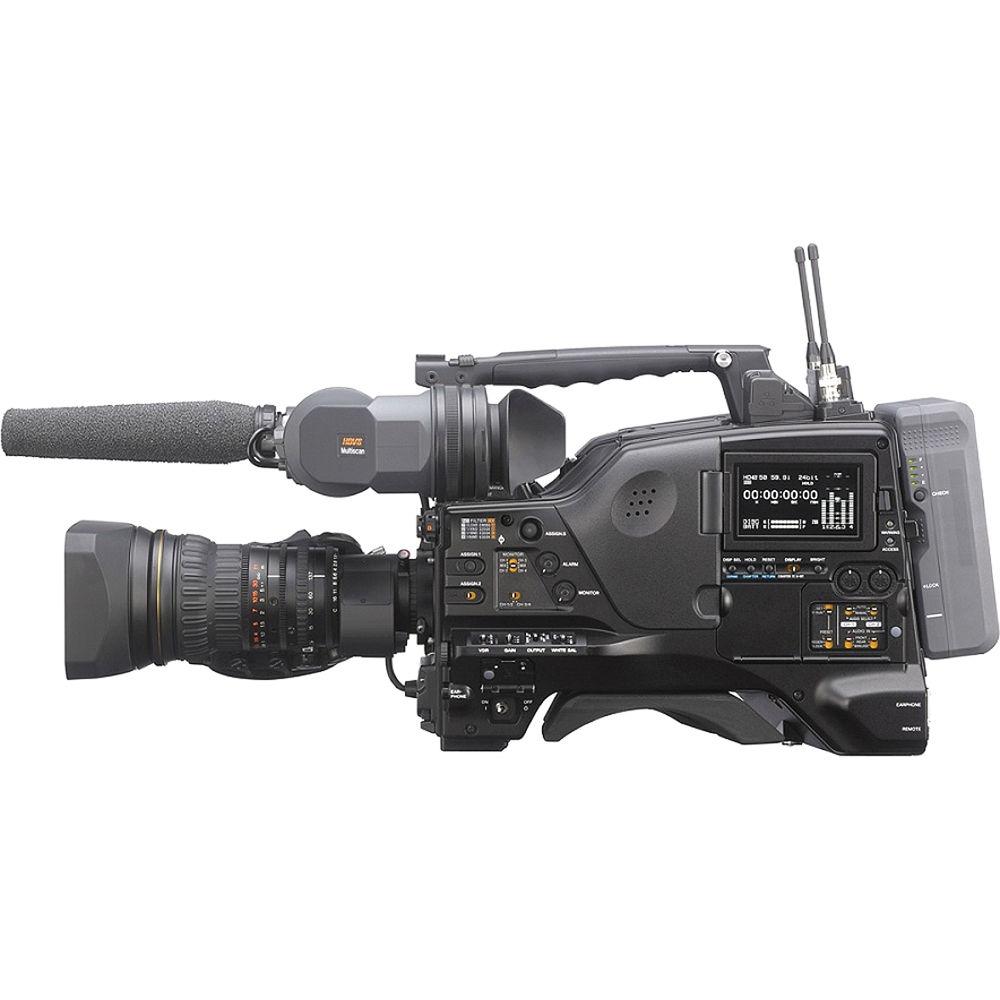

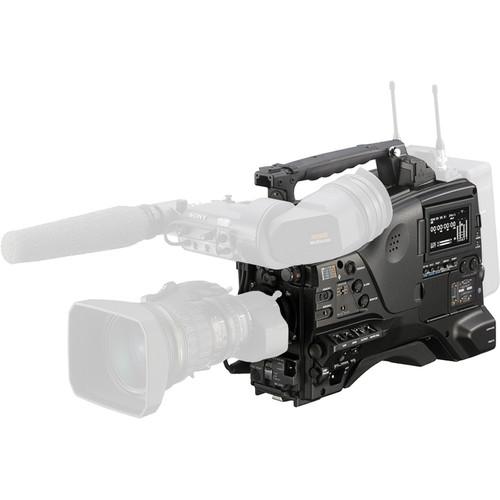

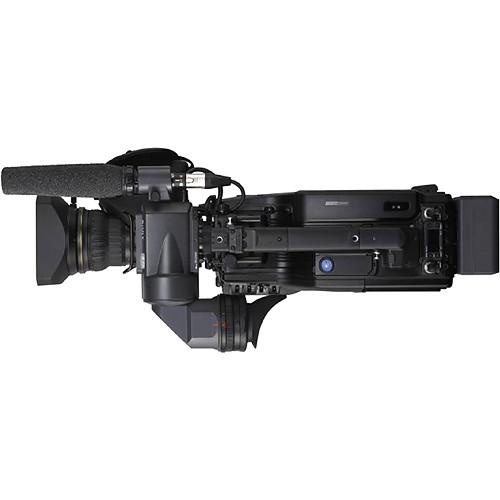

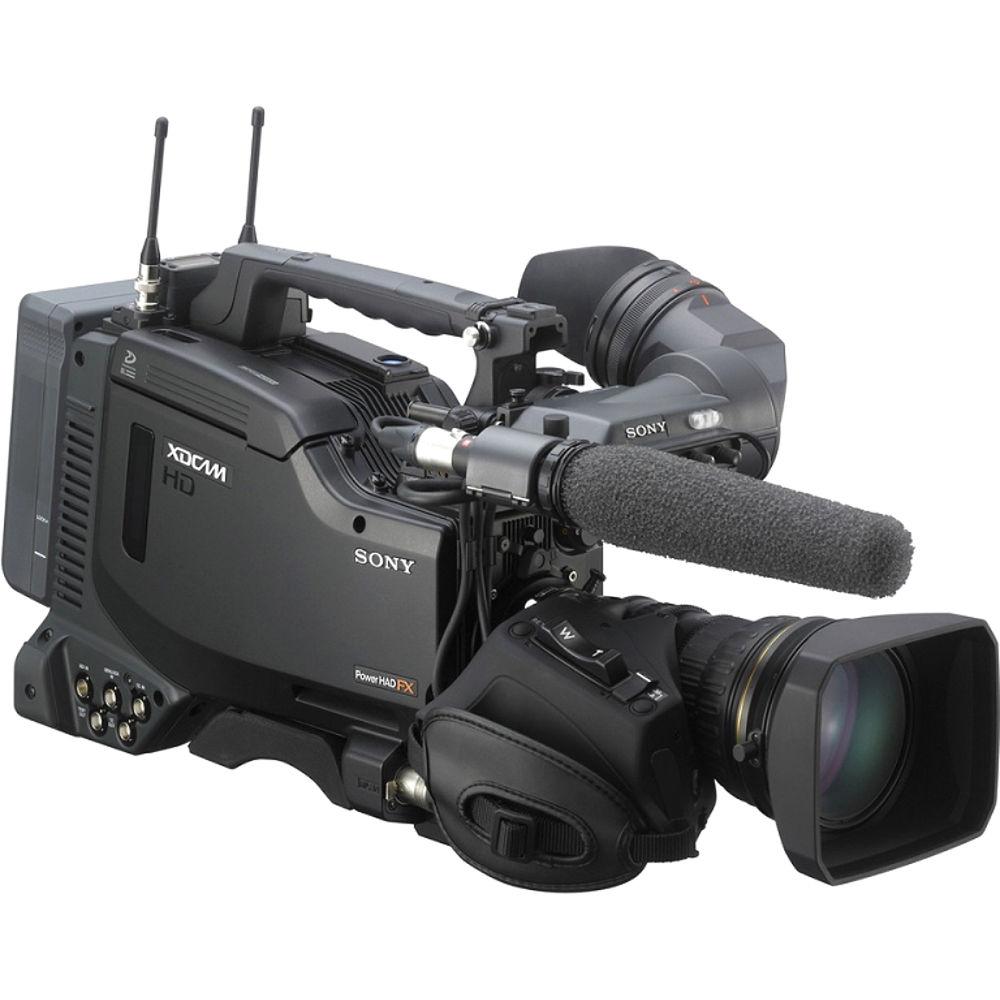

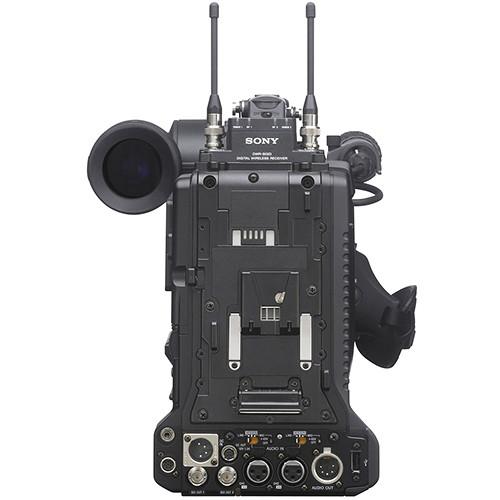

Product description The Sony PDW-850 XDCAM HD422 2/3" 3CCD Camera features an ENG-style shoulder mount design for use in the field and has CCU control and a "pool feed" video input for studio applications. Recording to the XDCAM professional disc format, the camera records in MPEG HD422, a broadcast-spec 50 Mb/s codec with 4:2:2 color sampling. The camera can also record in MPEG HD420 for longer recording times and can record legacy standard definition video in DVCAM or MPEG IMX. It features a standard 2/3" B4 lens mount. A viewfinder and batteries or power source are all available separately.
The 1920 x 1080 native picture is achieved thanks to three PowerHAD FX IT CCDs. The three-chip design splits up color into its three RGB components, thereby avoiding the interpolation and potential loss of detail on most single-chip designs. The camera can record at multiple frame rates up to 60p, including PAL area frame rates (50p/25p) and several 24p implementations.
Built-in GPS means location data can be included in the video metadata for reference later. A USB port allows for proxy files to be saved to an external storage device, saving scene data so a specific look can be recycled later. The port is also used for firmware updates and for connecting the optional CBK-WA100 wireless adapter for remote operation and proxy file transfer.
Because the XDCAM media supports random access, it is possible to jump almost instantly to any clip selected from the thumbnail menu. At the same time, the format provides a professional grade media designed specifically for video recording to provide the same confidence one has when using a tape format. The camera supports both the PFD50DLA and PFD23A professional discs for up to 95 minutes of recording in the highest quality. - Three 2/3" PowerHAD FX IT CCDs
- Improved from the previous generation, the sensor features lower noise while keeping high sensitivity and wide dynamic range. The signal-to-noise ratio has been improved from 59 to 62 dB, while maintaining a high sensitivity of f/11 at 60i.
- Dual Filter Wheels
- One set for ND and the other for white balance (CC):
- CC filters: A: Cross, B: 3200K, C: 4300K, D: 6300K
- ND filters: 1: Clear, 2: 1/4 ND, 3: 1/16 ND, 4: 1/64 ND
- ALAC (Auto Lens Aberration Compensation)
- In addition to the current ALAC function on the XDCAM and PMW camcorders, the PDW-850 offers the addition of ALAC on the vertical axis to help correct for lateral chromatic aberration
Note: ALAC cannot completely correct all lens aberration issues. Longitudinal chromatic aberration cannot be completely eliminated. - International Frame Rates
- The PDW-850 is capable of 50 or 60 Hz production, enabling users to create content for clients globally.
- Electrical Shutter
- Multiple shutter speeds are available, including "Slow shutter" mode and "ECS" mode:
- Slow shutter 1080i: 2, 3, 4, 5, 6, 7, 8, and 16 frames accumulation
- Slow shutter 720p: 2, 4, 6, 8, and 16 frames accumulation
- ECS: 50.1 Hz (50i mode); 60.01 Hz (60i mode)
- Slow shutter speed can be expanded to 32-frame accumulation through the Service Menu
- 4x Digital Extender
- The 4x digital extender gives you a quick way to zero in focus to a specific area of the frame. Operation of the digital extender can be assigned to an assignable button and can be 2x, 4x, or 6x. As with digital zoom, loss of detail will occur the more the image is magnified.
- 3" Onboard LCD Panel
- The body-side color LCD panel features a higher resolution that on the previous model. It is a transmissive-type panel with 960 x 540 (RGB) effective pixels. The panel allows for viewing of video, thumbnails, and menu characters in more detail. Unlike the PDW-700/F800, the sub-panel has been eliminated and the same information is now displayed on the color LCD panel during power-on.
- HD/SD-SDI and Composite "Pool Feed" Input
- The HD-SDI, SD-SDI, and composite inputs are now a standard. For composite video input, the PDW-850 utilizes the genlock input connector. In addition to HD-Y input for return video, the PDW-850 can accept 1080/720 HD-SDI for return video. This is available via the assignable switch in EE or REC modes. HD-SDI return can be monitored through the viewfinder (available separately) and on the LCD panel.
- DC Accessory Power Outputs
- The 4-pin DC output for audio accessories has been increased from 0.5 to 1.0A. There is also a D-Tap output for lights, monitors, or other peripherals up to 50W.
- GPS Module
- The GPS module is mounted in the camcorders handle while GPS data is displayed on the side LCD panel. The GPS data can be shown during playback as well and can be turned on or off with a menu setting (the default is OFF).
Note: If a disc with GPs data is ingested into PDW-U1/U2, the firmware (VFAM) version must be v5.1 or higher. - USB Connector
- The USB connector can be used in combination with the CBK-WA100 wireless adapter (available separately) for XDCAM proxy file recording, proxy copy from the recording, and firmware updates. Devices tested to work with the USB interface include:
- USM128GQX, 64GQX, 32GQX, 16GQX, 8GQX
- USM64GT, 32GT, 16GT, 8GT
- USM64GU 32GU, 6GU, 8GU, 4GU
In addition, "All File," "Scene File," "Lens File," "Reference File," and "User File" data can be saved or loaded from a USB flash drive or other USB storage device. The location of the USB connector has been moved from the handle to the right rear panel for easier connection of the wireless adapter.
Note: There is a per-file recording capacity limit of 4GB. You can record several files onto one recording device as long as any single file does not exceed the 4GB limit. - Supports CBK-WA100 Wireless Adapter
- Add the separately available CBK-WA100 Wi-Fi adapter to enable the following features:
- Linkage of proxy flies with the high-resolution versions by its file name and file duration
- Status indication on viewfinder
- Remote control of iris, zoom, VDR keys (FREV, PLAY, PAUSE, FFWD, PREV, STOP, NEXT), R/B Gain, AWB, and record start
- Planning metadata operation and high-resolution file transfer via the Content Browser mobile app for tablets and smartphones
- The VDR key and R/B Gain can be simultaneously controlled by the RM-B170 remote
Partial Proxy Creation:
- New for the PDW-850, the camcorder can output the remote trigger flag in "Rec2" mode via the HD-SDI output in Rec or Playback mode. This allows creation of short clips from the high-resolution files that can play back at full speed
- The partial playback mode is available via the Assignable switch
- The remote trigger mode in "Rec2P" is available without a requiring a USB connection to the camcorder
- Studio Camera Solution with CA/CCU
- The PDW-850 can be integrated into a studio setting thanks to its standard 50-pin interface, which is compatible with the CA-FB70 optical fiber or CA-TX 70 digital triax camera adapter and related CCU's.
Note: Some features are limited when using with CA/CCU. Please see the operation manual for a complete list of supported features. PsF formats (23.98, 25, 29.97) are not supported in studio configuration. In the Box Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder Shoulder Strap Microphone Cable Microphone Spacer Limited 1-Year Warranty Limited 2-Year Warranty on CCD Block Limited 7-Year Warranty on Optical Drive System Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-850 XDCAM HD422 2 3" 3CCD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDW-850 Specs | | | Image Sensor | 3-Chip 2/3" CCD Sensor | | Effective Sensor Resolution | 1920 x 1080 (2.07 MP) | | Horizontal Resolution (TV Lines) | 1000 TV Lines or More | | Gain | -6 to 42 dB | | Signal-to-Noise Ratio | 62 dB | | Minimum Illumination | 0.3 lux | | | | Lens Mount | B4 Mount | | Shutter Speed | 1/32 to 1/2000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 1 x XDCAM Disc Card Slot | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 59.94 fps (50 Mb/s)
MPEG2 4:2:0:
1440 x 1080p at 23.98/25/29.97 fps (25 to 35 Mb/s)
1280 x 720p at 50/59.94 fps (25 to 35 Mb/s) | | Audio Recording | 4-Channel 24-Bit 48 kHz | | | | Video Connectors | 2 x BNC (HD-SDI) Output
1 x BNC (Composite) Monitor Output
1 x BNC (HD-SDI) Input | | Audio Connectors | 1 x 5-Pin XLR Input/Output
1 x 1/8" (3.5 mm) Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 5-Pin XLR Input | | Other I/O | 1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
1 x RJ45 LAN
1 x 50-Pin Camera Interface
1 x BNC Genlock Input
1 x BNC Timecode Input
1 x BNC Timecode Output | | | | Display Type | LCD | | Screen Size | 3.5" | | Screen Resolution | 960 x 540 | | | | Power Connectors | 1 x 4-Pin XLR (12 VDC) Input
1 x 4-Pin XLR (11 to 17 VDC up to1 A) Output
1 x D-Tap (12 VDC) Output | | Power Consumption | 41 W | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 90% | | | | Dimensions | 5 x 10.6 x 13.2" / 124 x 269 x 332 mm | | Weight | 13 lb / 5.9 kg | | | | Package Weight | 12.7 lb | | Box Dimensions (LxWxH) | 17.5 x 14.0 x 11.0" |
