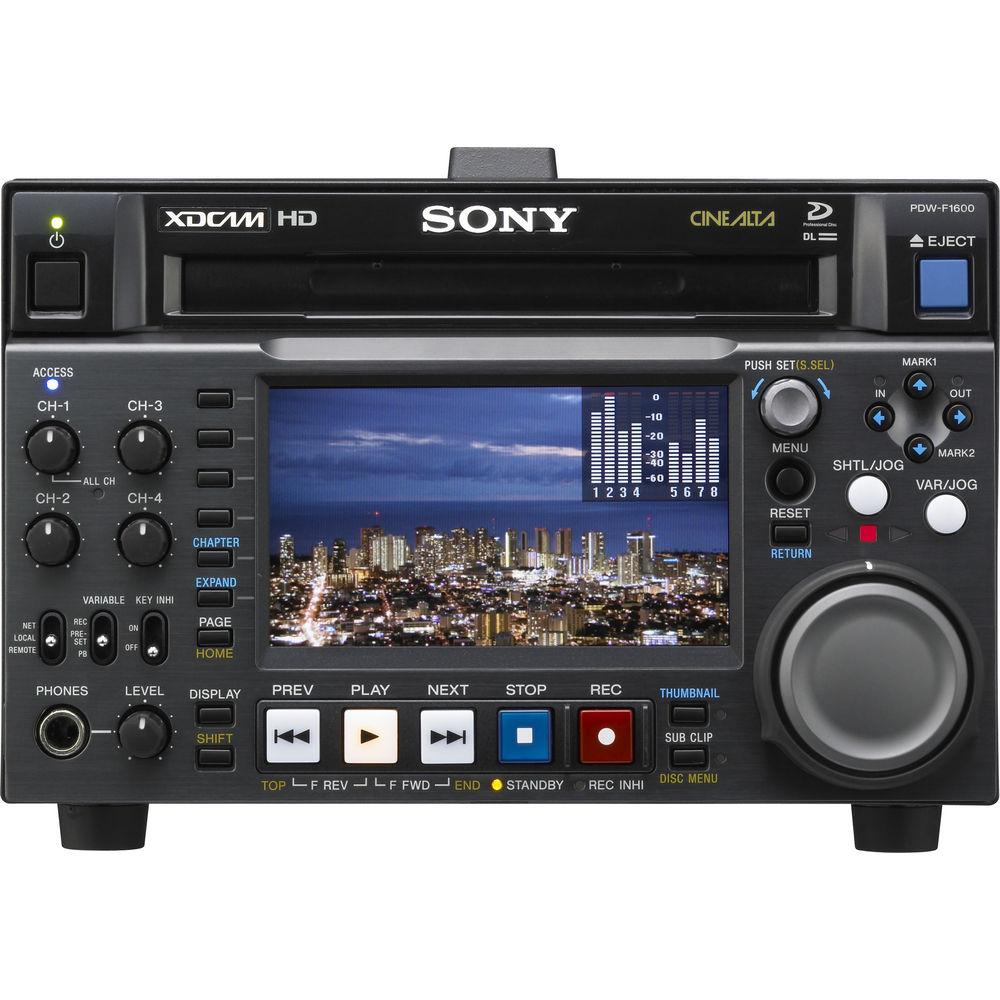

User Manual for Sony PDW-F1600 XDCAM HD Player Recorder Click to enlarge the picture
Contents of the user manual for the Sony PDW-F1600 XDCAM HD Player Recorder
- Product category: Recorders & Duplication Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Recorders & Duplication
 |
User manual for the Sony PDW-F1600 XDCAM HD Player Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

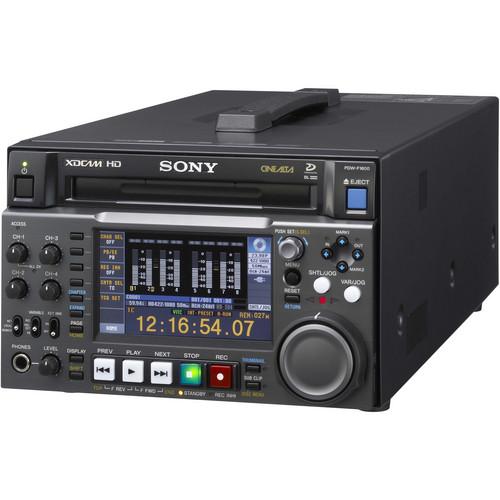

Product description The Sony PDW-F1600 is an XDCAM HD422 recorder and player. Built upon blue laser technology, the XDCAM HD line of products takes advantage of non-linear workflow, while keeping the same archiving infrastructure professionals are accustomed to with tape-based formats. The player is ideal for transferring footage into non-linear workstations. - Non-Linear Scene Selection

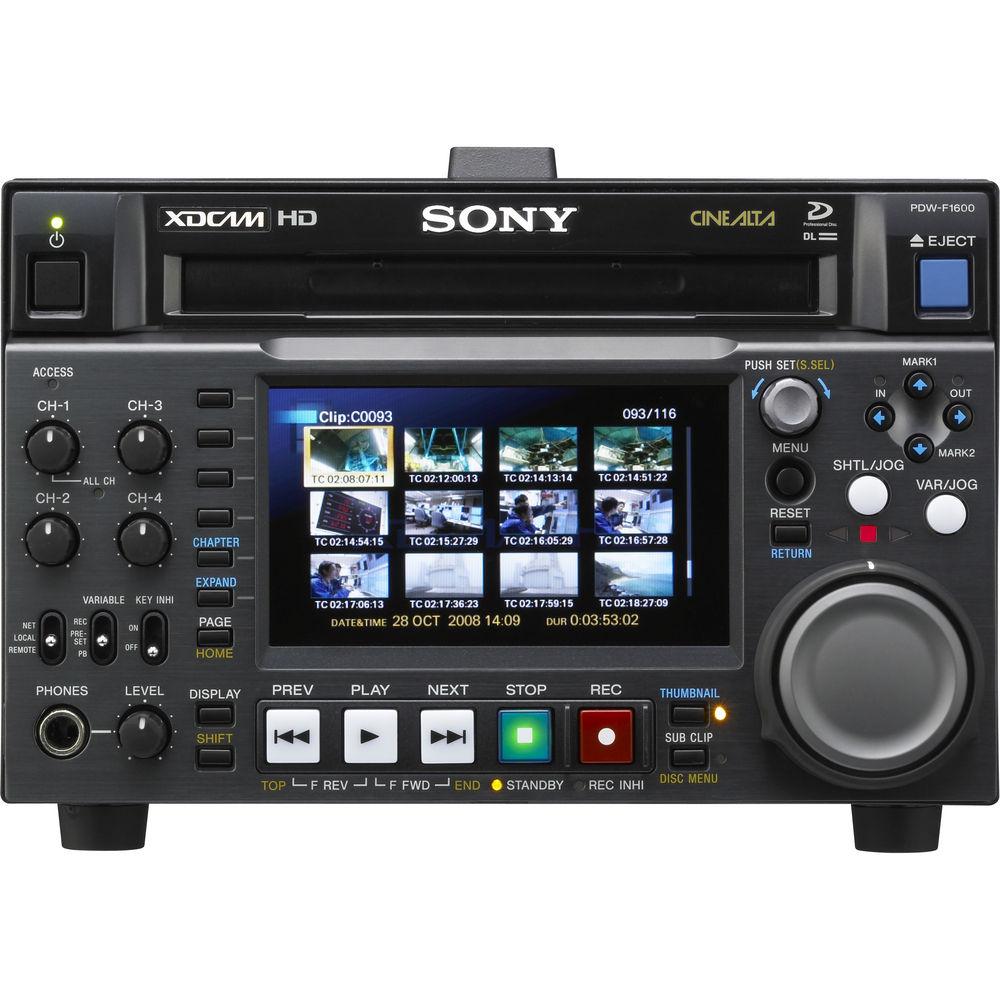

- Possibly the greatest attribute of working with non-linear optical recording is the ability to access scenes independently. This along with multiple viewing options makes XDCAM HD extremely powerful, increasing post-production efficiency. Sony's thumbnail scene selection tool makes looking for shots a breeze. Using the on board LCD, simply cycle through the list of clips to find what you need.
- Up and Downconversion
- Either convert DVCAM to MPEG HD or vice-versa, and output them via the HD analog component input connection. Upconversion gives users the ability to migrate existing SD footage to HD; This can be a valuable "insurance policy" for clients that might request older standard definition projects in HD. Downconversion can be useful as well, especially for mastering tapes to broadcast-ready standards or in the instance where it's undesirable to distribute your HD masters.
- Proxy Browsing
- Proxy Browsing refers to Sony's included Proxy software program from PC workstations. The software connects via i.LINK or Ethernet interfaces, and features easy access to clips. Search by metadata settings and make simple cuts. The cuts are saved as a "Clip List" and stored back on the disc. This function is powerful for streamlining the editing process during short deadlines. Proxy data can be accessed up to 20x real-time, making the process incredibly efficient.
- Expand Function
- The player allows easy access to longer clips by dividing them into 12 smaller, more manageable ones. The beginning of each division is shown as a thumbnail and enables quick viewing through longer shots. This feature is great for quick access to time-critical footage and can be especially helpful for news gathering where deadlines are crucial.
- HDV Compatibility
- The PDW-F1600 can be interfaced with Sony's full line of affordable HDV products with the optional PDBK-102 input card.
In the Box Sony PDW-F1600 XDCAM HD Player/Recorder 2-Year Parts and Labor Warranty xzewxzbvcebssq Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-F1600 XDCAM HD Player Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDW-F1600 Specs | Signal System | XDCAM HD422 | | Tape Format | Blue Laser Disc | | Tape Speed | N/A | | Signal-to-Noise Ratio | 53dB | | Maximum Recording Time | DVCAM: 85 min
MPEG HD (2 Channel):
35 Mb/s - 69 min, 25 Mb/s - 92 min, 18 Mb/s - 122 min
MPEG HD (4 Channel):
35 Mb/s - 66 min, 25 Mb/s - 87 min, 18 Mb/s - 113 min
MPEG HD422: 95 Min | | Audio Signal Format | DVCAM: 16 bits, 48 kHz, 4 Channels
MPEG HD/422: 16/24 bits, 48 kHz, 2/4 Channels | | Frequency Response | 20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz) | | Signal to Noise Ratio | Not Specified By Manufacturer | | Input and Output Connectors | HD Component: BNC (x1 Output)
RGB: 15-pin D-Sub (x1 Output)
SD Analog Composite: BNC (x1 Output)
Analog Audio: XLR (x1 Output) Audio Monitor: RCA (x1 Output)
i.LINK: FireWire 6-pin (HDV requires add-on card)
RS-422A: 9-Pin D-Sub
RS-232: 9-Pin D-Sub
Headphone: Stereo Phone Jack
Ethernet (Optional): 1000Base-T (RJ-45) | | Power Requirements | 100-240VAC, 50/60 Hz | | Power Consumption | 70W | | Operating Temperature | 40-104°F (5-40°C) | | Dimensions (WxHxD) | 12.1 x 4 x 16.5" (30.8 x 10.16 x 41.9cm) | | Weight | 15.4 lbs (7.2kg) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 21.5 x 12.7 x 10.5" |
