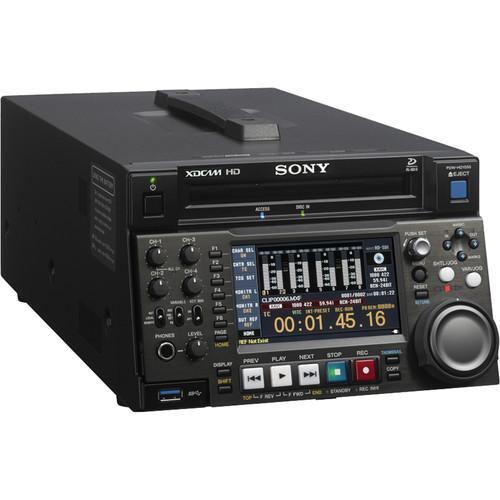

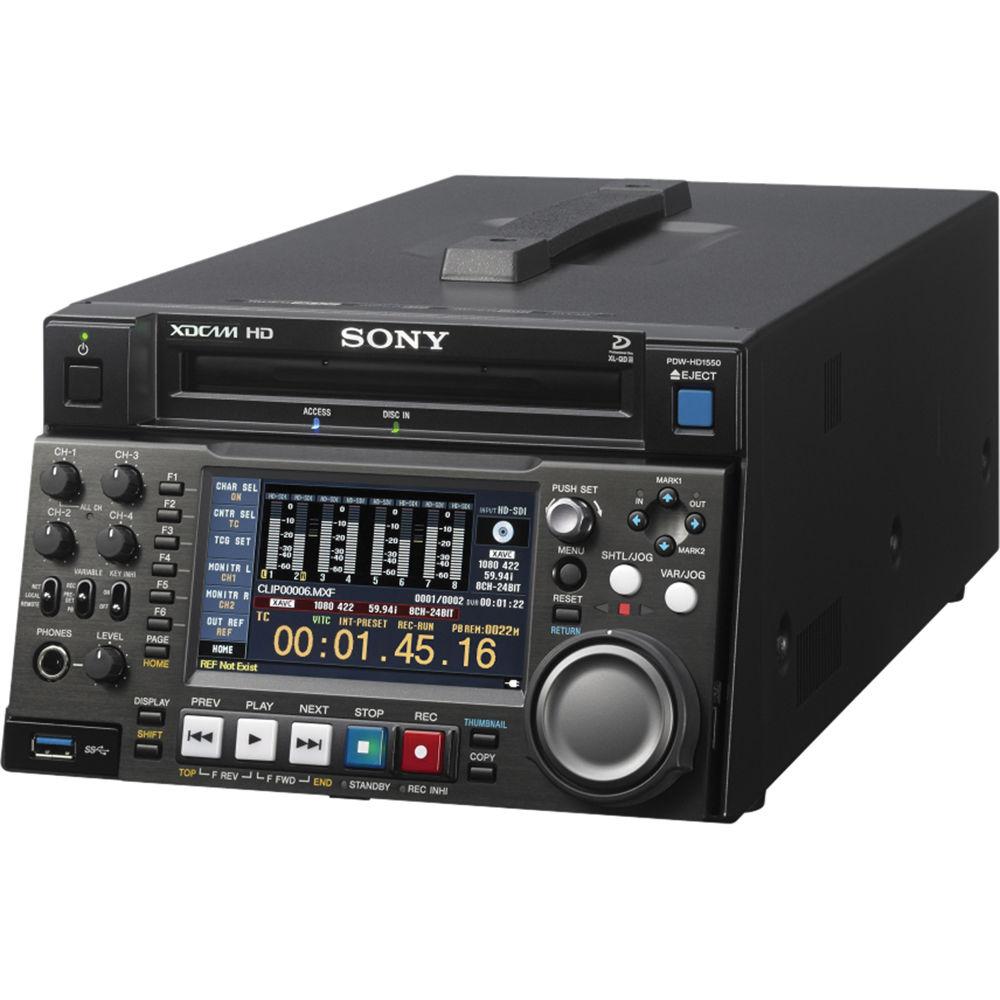

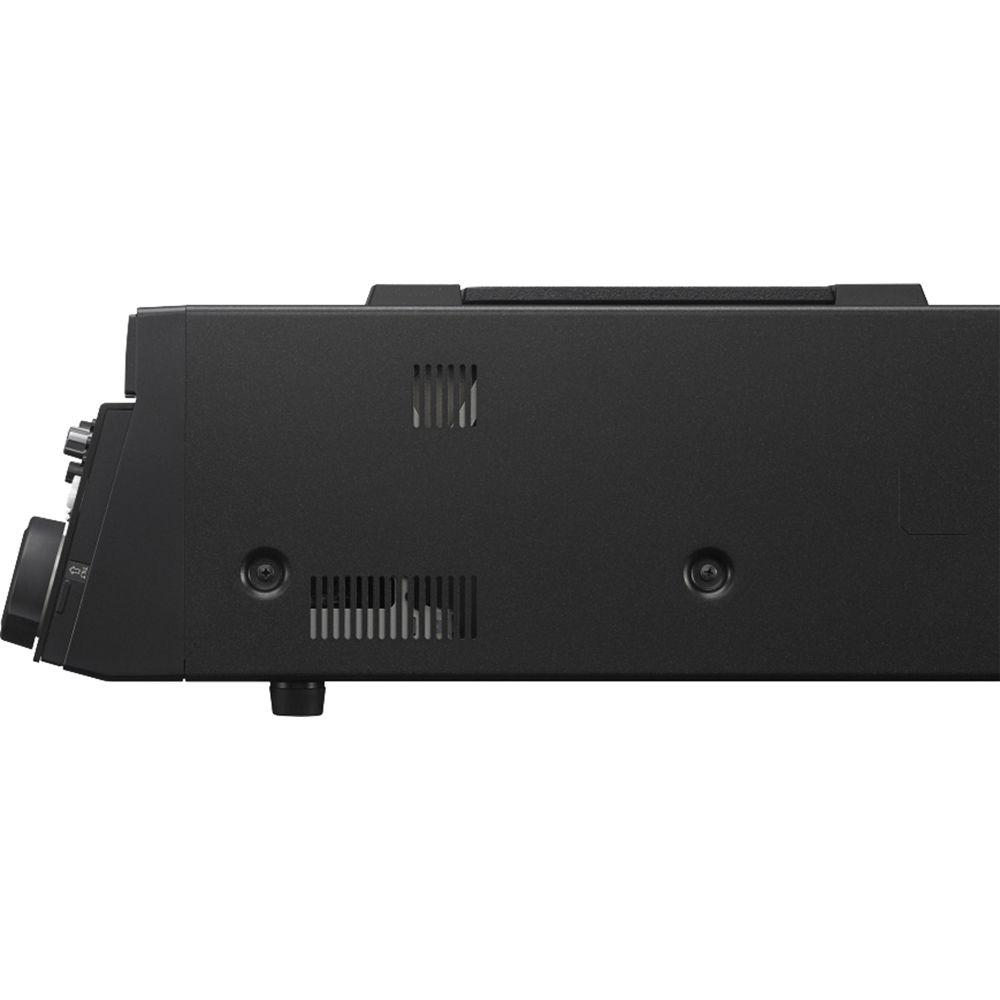

Product description The Sony PDW-HD1550 Professional Disc Recorder is a half-rack-size disc recorder which supports triple- and quad-layer discs, enabling a recording duration of more than three hours even in Full-HD MPEG HD422 format. In addition to MPEG HD422, this recorder supports XAVC Intra HD record/playback, as well as MPEG IMX and DVCAM formats in the SD domain. For SxS users, the PDW-HD1550 Recorder is equipped with a USB interface which supports an SxS and Professional Disc bridge solution. This recorder can realize smooth jog/shuttle operation by creating proxy data. The PDW-HD1550 is a reliable recording tool for a broad range of HD and SD production applications. Note: An optional XDBK-106 software key is required for XAVC operation. - Sustains Long-duration Recording
- The PDW-HD1550 supports cost-effective professional disk media, specifically developed with every consideration for professional recording applications. By supporting triple- and quad-layer professional discs, the PDW-HD1550 can sustain long-duration recording in MPEG HD422 up to approximately 240 minutes (50 Mb/s) with the PFD128QLW Professional Disc (not included). 1
Please Note: Approximately 190 minutes (50 Mb/s) with the PFD100TLA Professional Disc (not included). close - Multi-Format Capability
- The PDW-HD1550 has a highly flexible multi-format recording and playback capability as standard. Users can select recording and playback formats from HD (MPEG HD422 50 Mb/s and MPEG HD420 35 Mb/s / 25 Mb/s), and SD (MPEG IMX50/30 and DVCAM) in a variety of frame frequencies. In addition, 100 Mb/s XAVC Intra HD record/playback is supported in MXF file format which can be used in current XDCAM workflows. 2
Please Note: An optional XDBK-106 software key is required for XAVC operation. close - Co-Operation with External Media
- The PDW-HD1550 is equipped as standard a USB interface. Connecting an optional SxS reader/writer, the SBAC-US20, the user can easily copy recorded SxS clips to Professional Disc. This allows shooting with an SxS camcorder and then archiving to large-capacity Professional Disc media. Also, a simple copy is available by connecting an external USB HDD/SSD drive.
- Smooth Jog/Shuttle Dial Operation
- The PDW-HD1550 is equipped with a jog/shuttle dial and RS-422 control, providing VTR-like operation (Jog: -1 to +1 times normal speed; Variable: -2 to +2 times normal speed; Shuttle: -20 to +20 times normal speed). Created proxy data can support smooth frame-by-frame transitions even in XAVC format, which is equivalent to HD422 quality and helps the user to not miss any frame when checking recorded clips. 3
Please Note: 1 to 2 times normal speed in XAVC format. close - Other Key Features

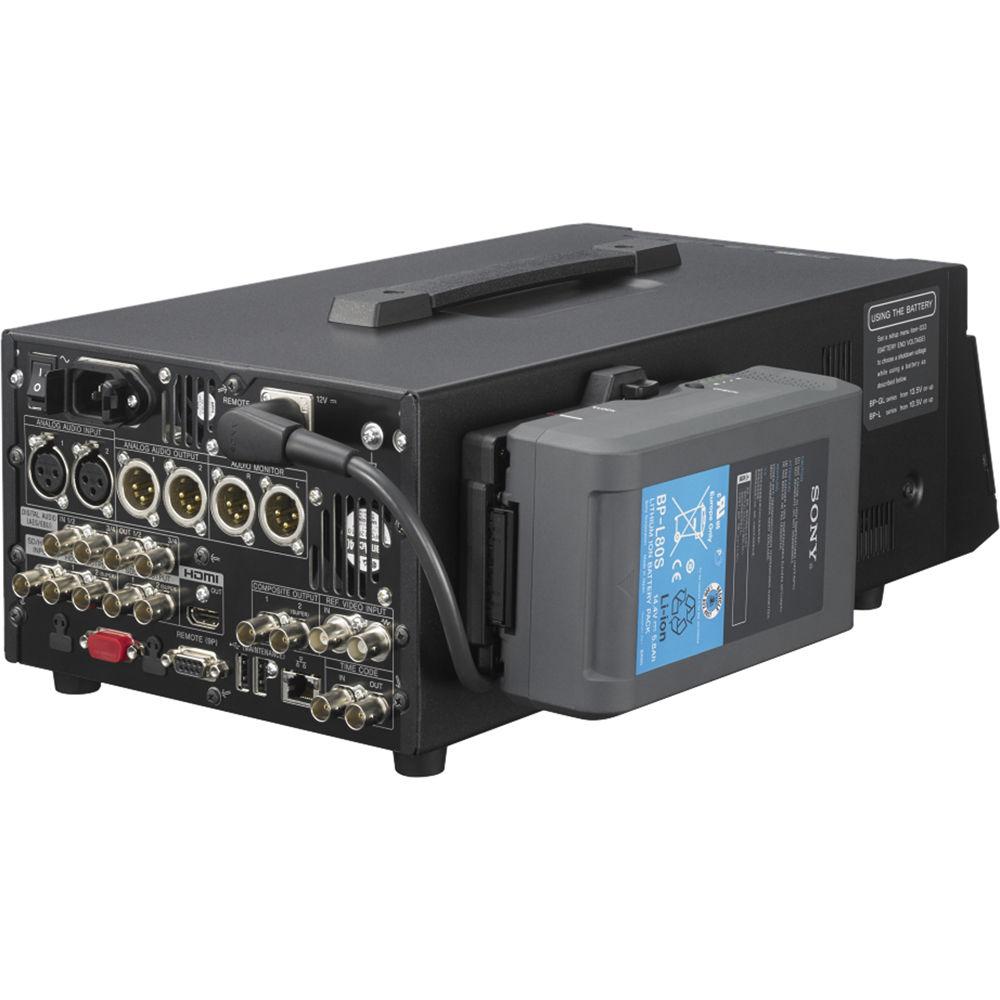

- The recorder can operate using either AC, DC, or battery power. It features a tilt-up front panel, RS-422A 9-pin remote control interface, Disc Exchange Cache, simple copy and backup by external USB device, up/down-conversion, and cross-conversion between 1080i and 720p.
xsaauvutverrxvwvrzuaxwuu Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-HD1550 Professional Disc Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDW-HD1550 Specs | | | Video Recording/Playback Format | MPEG HD422 (CBR, 50 Mb/s)
MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s), SP mode (CBR, 25 Mb/s), LP mode (VBR, maximum bit rate: 18 Mb/s)
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s)
XAVC (CBR, 100 Mb/s) MPEG HD 18 Mb/s and IMX 40 Mb/s are playback only
Optional XDBK-106 is required for XAVC recording/playback | | Audio Recording/Playback Format | MPEG HD422: 8 channel / 24 bits / 48 kHz
MPEG HD: 4 channel / 16 bits / 48 kHz MPEG IMX: 8 channel / 16 bits / 48 kHz or 4 channel / 24 bits / 48 kHz
DVCAM: 4 channel / 16 bits / 48 kHz
XAVC: 8 channel / 24 bits / 48 kHz MPEG HD 18 Mb/s and IMX 40 Mb/s are playback only | | Formats | Proxy Video Recording/Playback Format: MPEG-4 A-law (8 channel / 8 bits / 8 kHz) | | Recording/Playback Time | XAVC
UDF/MXF (100 Mb/s CBR): Approximately 120 minutes (128 GB), 92 minutes (100 GB), 46 minutes (50 GB), and 21 minutes (23 GB)
MPEG HD422
UDF/MXF (50 Mb/s CBR): Approximately 240 minutes (128 GB), 190 minutes (100 GB), 95 minutes (50 GB), and 43 minutes (23 GB)
MPEG HD
UDF/MXF (35 Mb/s VBR): Approximately 360 minutes (128 GB), 290 minutes (100 GB), 145 minutes (50 GB), 65 minutes (23 GB)
MPEG IMX
UDF/MXF (50 Mb/s Intra): Approximately 240 minutes (128 GB), 200 minutes (100 GB), 100 minutes (50 GB), 45 minutes (23 GB)
DVCAM
UDF/MXF (25 Mb/s CBR): Approximately 450 minutes (128 GB), 370 minutes (100 GB), 185 minutes (50 GB), and 85 minutes (23 GB) MPEG HD 18 Mb/s and IMX 40 Mb/s are playback only | | Speed Range | Search Speed Range
Shuttle Mode: -20 to 20 times normal speed (maximum +/-50 by remote)
Variable Mode: -2 times to 2 times normal speed
Jog Mode: -1 time to 1 time normal speed (-2 to 2 by remote)
Fast Forward/Reverse: 35/-35 times normal speed (maximum +/-50 by remote) Maximum speed varies depending on recorded clip condition or playback position in a disc

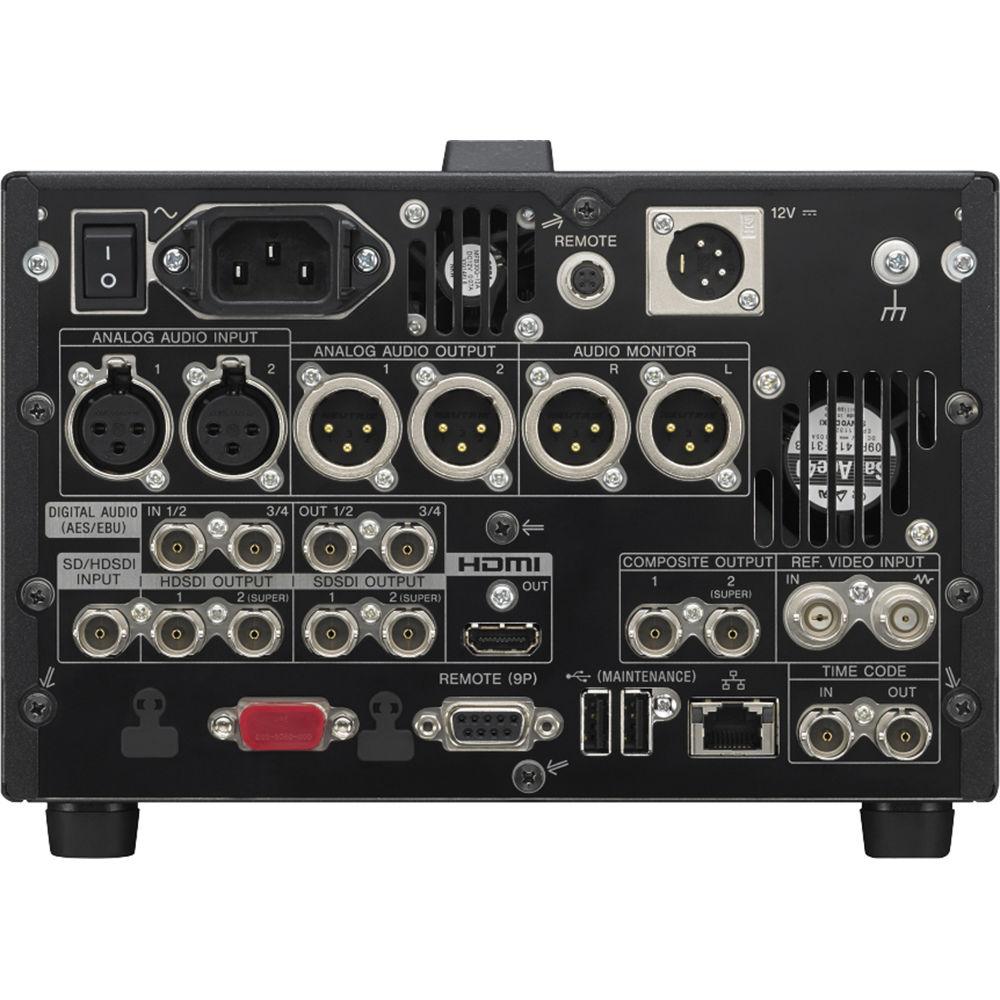

XAVC clip is -1 times to 2 times normal speed | | Drive | Media Drive: 1 x Professional Disc Drive | | Input | Reference Input: 2 x BNC (including loop-through), HD Tri-level sync (0.6 Vpp / 75 Ω positive/negative) or SD blackburst/composite sync (0.286 Vpp / 75 Ω / negative)
HD-SDI: 1 x BNC (HD/SD switchable), HD-SDI: SMPTE 292M (with embedded audio)
SD-SDI: SMPTE 259M (with embedded audio)
Analog Audio: 2 x XLR-type 3-pin (female) (channel selectable), +4/0/-3/-6 dBu (selectable), 10 kΩ, balanced (4 channels are available)
Digital Audio Input (AES/EBU): 2 x BNC, 4 channels (2 channels each, 1/2 and 3/4 channels), AES-3id-1995
Timecode: 1 x BNC, SMPTE timecode, 0.5 to 18 Vpp / 3.3 kΩ / unbalanced | | Output | Analog Composite: 2 x BNC
1 Vpp / 75 Ω / negative, SMPTE 170M
1 Vpp / 75 Ω / negative, SMPTE 170M, character On/Off
HD-SDI: 2 x BNC
SMPTE 292M (with embedded audio)
SMPTE 292M (with embedded audio), character on/off
SD-SDI: 2 x BNC
SMPTE 259M (with embedded audio)
SMPTE 259M (with embedded audio), character on/off
HDMI: 1 x Type A 19-pin
Video: 1080i, 720P, 480i, 480P, 576i, 576P
Audio: Linear PCM /2 channels / 16 bits / 48 kHz
HDMI Monitor: 1 x TYPE A 19-pin
Video: 1080i, 720P, 480i, 480P, 576i, 576P
Audio: 2 channels / 16 bits / 48 kHz
Analog Audio: 2 x XLR-type 3-pin (male) (channel selectable), 4/0/-3/-6 dBu (selectable), 600 Ω, Lo-z, balanced
Analog Audio Monitor: 2 x XLR-type 3-pin (male), 4 dBu, 600 Ω, Lo-Z, balanced
Digital Audio (AES/EBU): 2 x BNC, 4 channels (2 channels each, 1/2 and 3/4 channels), AES-3id-1995
Headphone: 1 x JM-60 Stereo phone jack, -13 dBu, 8 Ω, unbalanced
Timecode: 1 x BNC, SMPTE timecode, 1 Vpp / 75 Ω / unbalanced | | Ethernet | 1 x RJ-45
1000BASE-T: IEEE 802.3ab
100BASE-TX: IEEE 802.3u
10BASE-T: IEEE 802.3 | | USB | Front: 1 x USB 3.0 | | Remote Input | 1 x D-sub 9-pin (female), RS-422A | | DC Input | 12 V: 1 x XLR-type 4-pin (male) | | DC Output | 1 x 4-pin (female), 12 VDC, 7.5 W | | Maintenance | Rear: 2 x USB 2.0 for maintenance | | AC Input | 1 x AC Input, 100 to 240 V, 50/60 Hz | | | | Sampling Frequency | Y: 74.25 MHz, Pb/Pr: 37.125 MHz | | Quantization | HD422, MPEG HD, IMX, DVCAM: 8 bits/sample
XAVC: 10 bits/sample | | Error Correction | Reed Solomon Code | | Processor Adjustment Range | Video Level: -∞ to +3 dB
Chroma Level: -∞ to +3 dB
Set Up/Black Level: -30 IRE to +30 IRE/-210 mV to +210 mV
Chroma Phase: -30 to +30°
System Sync Phase: -15 to +15 μs
System SC Phase: 0 to 400 ns | | | | Sampling Frequency | 48 kHz | | Quantization | 24 bits | | Frequency Response | 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz) | | Dynamic Range | More than 90 dB | | Distortion | Less than 0.05% (at 1 kHz) | | Headroom | -20/-18/-16/-12/-9 dB (selectable) | | | | Other Features | Built-in Display: 4.3" type color LCD monitor
Built-in Speaker: 1 x Monaural | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 12 VDC | | Power Consumption | AC: 100 W
DC: 12 V, 7.5 A | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90% (relative humidity) | | Dimensions (W x H x D) | 8.3 x 5.2 x 16.5" (21.0 x 13.2 x 42.0 cm) (excluding protrusions) | | Weight | 14.3 lb (6.5 kg) approximately | | | | Package Weight | 17.95 lb | | Box Dimensions (LxWxH) | 21.5 x 13.0 x 10.6" |
