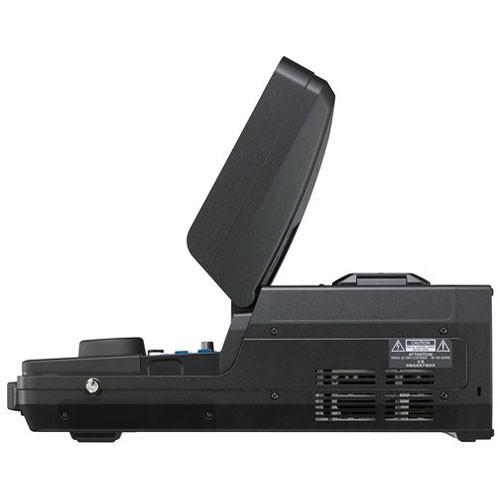

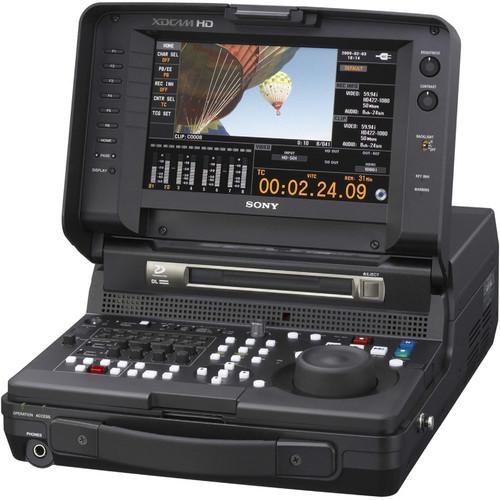

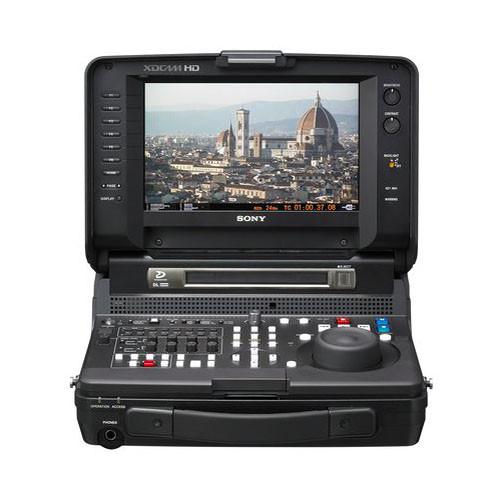

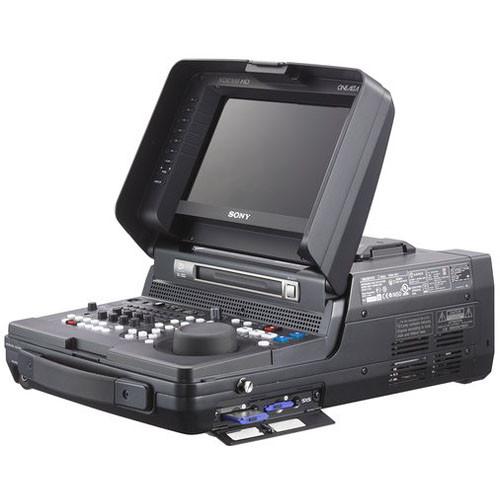

Product description The Sony PDW-HR1/MK1 is a portable recorder for Sony's high-end XDCAM HD422 format. The recorder accepts both dual and single-layer professional discs and can record in a variety of different settings. This version comes pre-installed with the PDBK-MK1 SxS Card option, which adds two ExpressCard slots and allows you to also review footage captured to SxS Card media. With its 9" LCD viewer and built-in stereo speaker--and ability to be powered using IDX batteries--this lightweight, mobile deck is ideal for field recording. - The pre-installed PDBK-MK1 SxS Card Option adds two ExpressCard slots to the PDW-HR1 which enables the PDW-HR1 to also read the FAT-32 formatted cards recorded by the XDCAM EX camcorders as well as the UDF formatted cards recorded by the PMW-500 camcorder.
- HD recording at up to 50 Mb/s using MPEG HD422
- Support for existing XDCAM HD and XDCAM SD formats as standard
- Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
- Long recording time (at 50 Mb/s): approximately 95 minutes on dual-layer disc and 43 minutes on single-layer disc
- Proxy data and metadata recording
- Built-in up-conversion to HD from SDI input when recording
- HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
- Multi-format compact HD/SD Recorder
- Video format (4:2:2 HD 1080 50i, 59.94i)
- High-quality eight-channel audio recording
- 9"-type color LCD display
- VTR-like jog/shuttle operation
- Video control (via front panel and remote)
- AC, DC, or battery powered
- DVB-ASI output by PDBK-202 option
- Key panel illumination light for use in low-light environments
- Clip Continuous Recording
In the Box Sony PDW-HR1/MK1 XDCAM HD422 Field Recorder PDBK-MK1 SxS Card Option Operation Manual Installation Manual XDCAM Application Software CD-ROM 1-Year Warranty ftbxursuvtqafccvddvryfysfya Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-HR1 MK1 XDCAM HD422 Field Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDW-HR1 Specs | Application | XDCAM HD422 Recording/Playback | | LCD | 9" | | Formats | Video:
MPEG HD422 (CBR: 50 Mb/s)
MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
LP mode (VBR, maximum bit rate: 18 Mb/s) (Playback only)
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s) Proxy Video:
MPEG-4 Audio:
MPEG HD422: 8 ch/24 bits/48 kHz
MPEG HD: 4 ch/16 bits/48 kHz
MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz
DVCAM: 4 ch/16 bits/48 kHz Proxy Audio:
A-law (8 ch/8 bits/8 kHz) | | Search Speed Range | Jog mode: -1 to +1 times normal speed
Variable mode: -1 to +1 times normal speed
Shuttle mode: -20 to +20 times normal speed

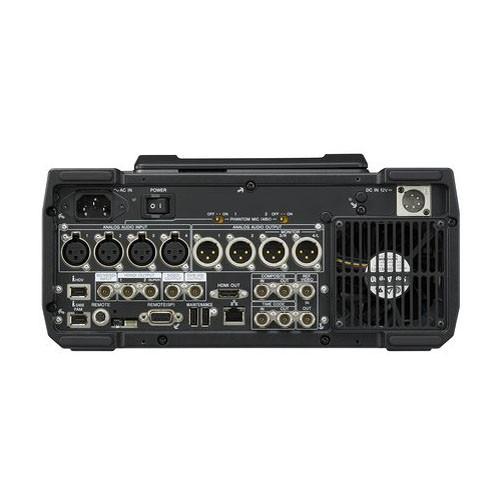

F.Fwd/Rev: -20 to +20 times normal speed | | Inputs/Outputs | Composite: BNC (x1 Input, x1 Output)
HD-SDI: BNC (x1 Input, x2 Output)
HDMI (x1 Output)
Reference: BNC (x2 Input)
Analog Audio: XLR 3-Pin, Female (x4 Input, x4 Output)
Timecode: BNC (x1 Input, x1 Output)
Headphone: Stereo MiniJack
i.LINK/FireWire: 6-Pin (x2)
Ethernet: RJ-45 1000-BaseT
DVB-ASI (x1 Output)
Remote: RS-422A, 9-Pin (x1 Input/Output)
USB: USB 2.0 (x2) | | Audio Capabilities | Sampling Frequency: 48 kHz
Quantization: 24 bits
Frequency Response: 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range: More than 90 dB
Distortion: Less than 0.05% (at 1kHz)
Headroom: 20/18/16/12 dB (selectable) | | Speaker | Built-in (x2), L/R | | Operating Temperature | 23-113°F (-5-45°C) | | Power Requirements | 100-240VAC, 50/60 Hz
12VDC | | Power Consumption | VAC: 65W
VDC: 55W | | Dimensions (WxHxD) | 11.9 x 5.2 x 15.8" (30 x 12.9 x 40cm) | | Weight | 16.3 lbs (7.4kg) | | | | Package Weight | 25.2 lb | | Box Dimensions (LxWxH) | 22.0 x 16.5 x 11.5" |
