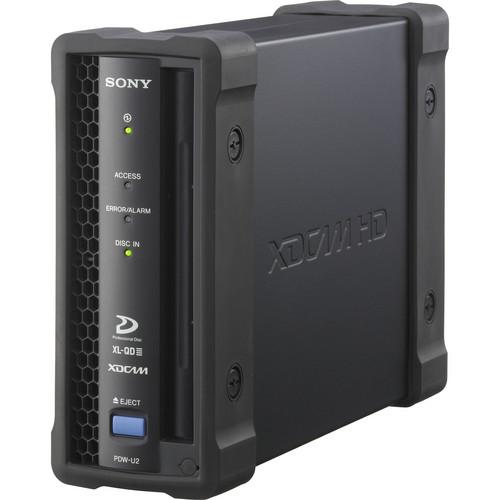

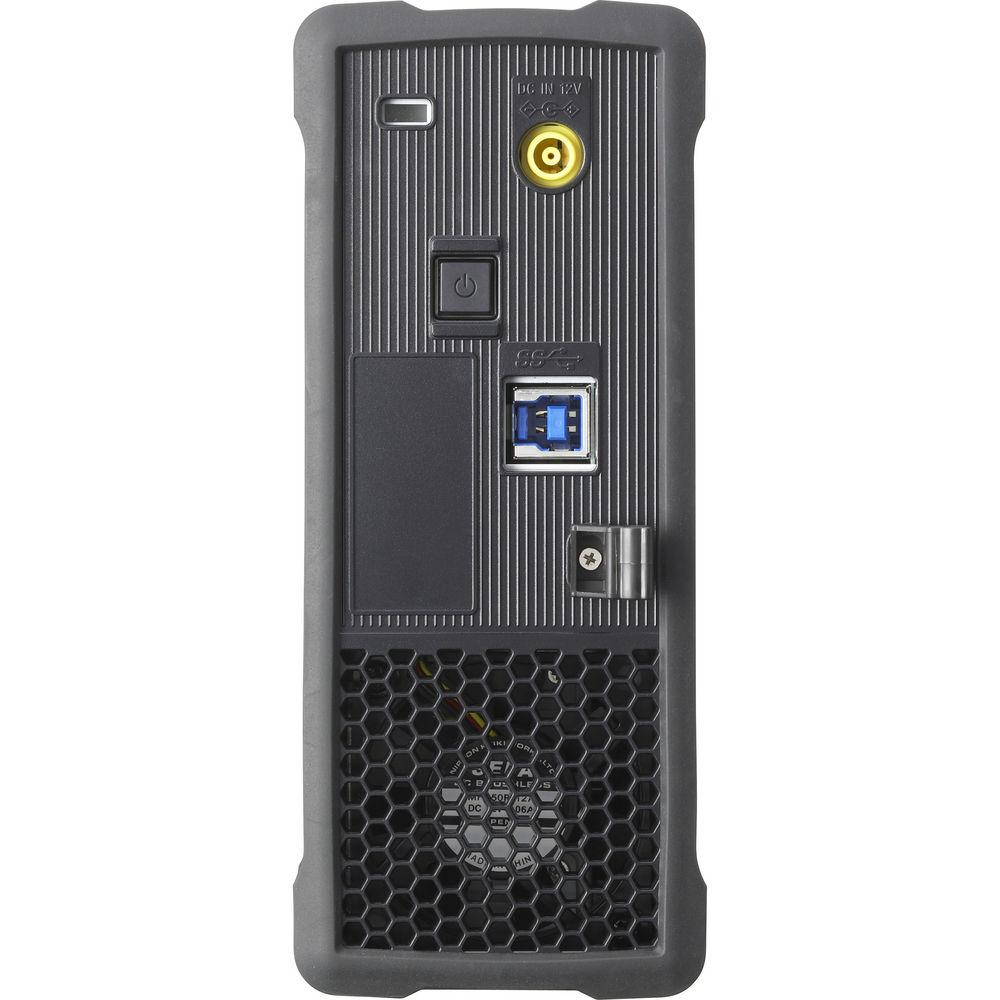

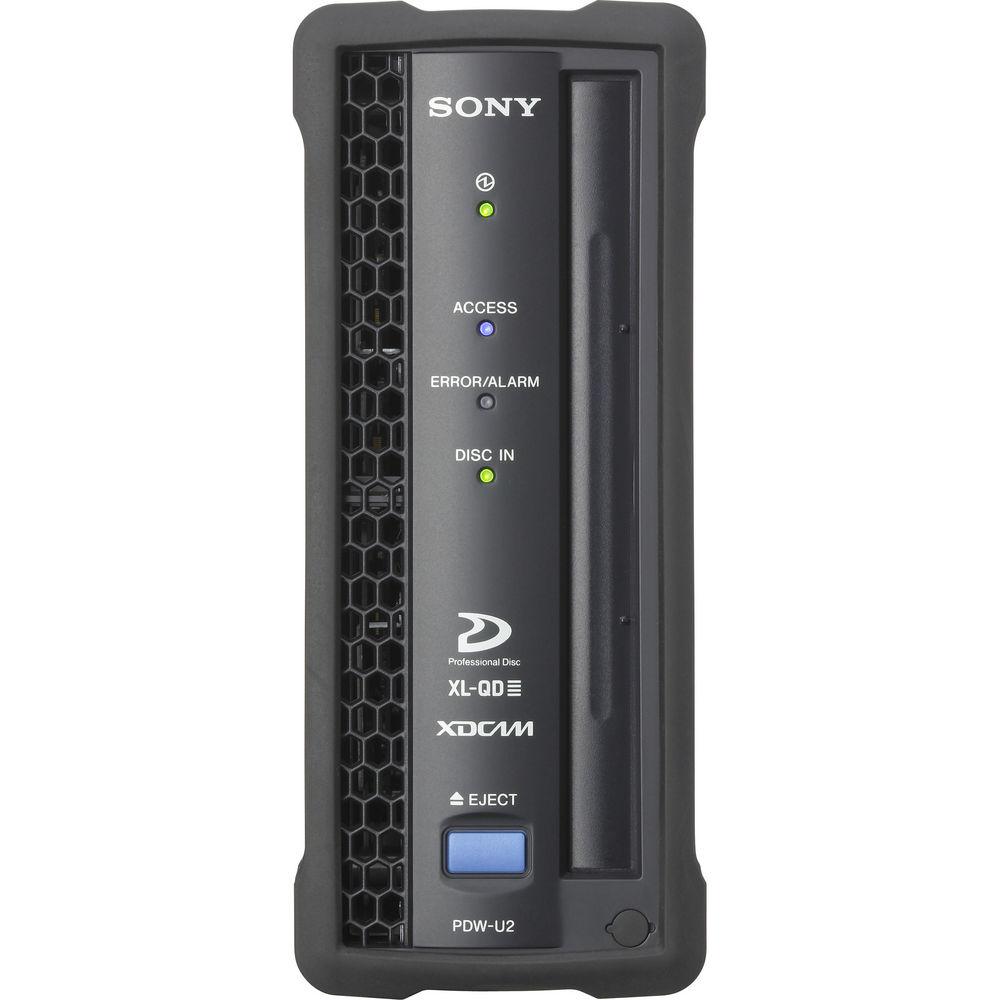

User Manual for Sony PDW-U2 USB 3.0 XDCAM Disc Drive Click to enlarge the picture
Contents of the user manual for the Sony PDW-U2 USB 3.0 XDCAM Disc
- Product category: Recorders & Duplication Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Recorders & Duplication
 |
User manual for the Sony PDW-U2 USB 3.0 XDCAM Disc contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony PDW-U2 USB 3.0 XDCAM Disc Drive is an external drive for conveying media to and from all XDCAM Professional Discs, whether SD or HD, single-, dual- or even quad-layer. The drive sits on your desk either horizontally or vertically and connects to your computer via USB 3.0, for extremely high data transfer speeds. (USB 3.0 is also backwards-compatible with USB 2.0, for compatibility with older systems.)The PDW-U2 features a dual-channel head system that puts two optics on one head to achieve much faster read and write speeds compared to previous-generation technology: reading is 2.6x faster, and write speed is 1.5x higher. For its speed, media compatibility, compact size, and convenient connection interface, the drive is well-suited for any edit suite or logging/transfer station. - Handles files in all formats: XDCAM HD422, XDCAM HD, and XDCAM SD
- Direct access to files on Sony XDCAM Professional Disc media from a USB-connected PC
- SuperSpeed USB 3.0 interface – backwards-compatible with high-speed USB 2.0 interface
- Handles quad-layer write-once (PFD-128QLW) in addition to dual-layer disc (PFD-50DLA) and single-layer disc (PFD-23A)
- High capacity and a new workflow via quad-layer, write-once media support. The quad-layer disc offers over four hours of recording of HD422 (50 Mb/s) material, which means you can reduce your facility's cost-per-media-capacity and even use memory media material as storage media
- High-speed read/write with the newly developed two-channel, single-head DCHS drive. Read 2.6x faster and write 1.5x faster than the previous-generation drive with single-/dual-layer discs
- Small and light form factor – can be operated either horizontally or vertically
- Data file recording using a User Data folder
- Up to 333 Mb/s read speed
In the Box Sony PDW-U2 USB 3.0 XDCAM Disc Drive XDCAM Application Software CD-ROM PDW-U2 CD-ROM AC Adapter USB 3.0 Cable 1 Year Limited Warranty rdzacxedtcfxutsudcyrxtuswsrcefzvz Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PDW-U2 USB 3.0 XDCAM Disc Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDW-U2 Specs | Interface | SuperSpeed USB 3.0 | | Compatible Formats | Video
MPEG HD422 (50 Mb/s)
MPEG HD (35/25/18 Mb/s)
MPEG IMX (50/40/30 Mb/s)
DVCAM (25 Mb/s)
Proxy Video
MPEG-4
Audio
MPEG HD422: 8-channel / 24 bits / 48 kHz
MPEG HD: 4/2-channel / 16 bits / 48 kHz
MPEG IMX: 8-channel / 16 bits / 48 kHz, or 4-channel / 24 bits / 48 kHz
DVCAM: 4-channel / 16 bits / 48 kHz
Proxy Audio
A-law: 8/4/2-channel / 8 bits / 8 kHz | | Read Speed | Up to 333 Mb/s | | Power Requirement | 12V DC (AC adapter supplied) | | Power Consumption | 19W | | Operating Temperature | 41 to 104 °F (5 to 40 °C) | | Storage Temperature | -4 to 140 °F (-20 to 60 °C) | | Operating Humidity | 20-90% (relative humidity) | | Dimensions (HxWxD) | 6.5 x 2.7 x 8.6" (164 x 67.4 x 219mm) | | Weight | 3.75 lb (1.7 kg) | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 11.9 x 11.4 x 5.7" |
