Product description - Portable Listening Amplifiers and DACs: First Look

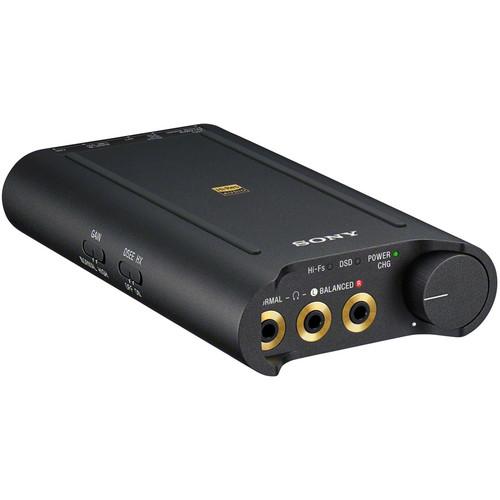

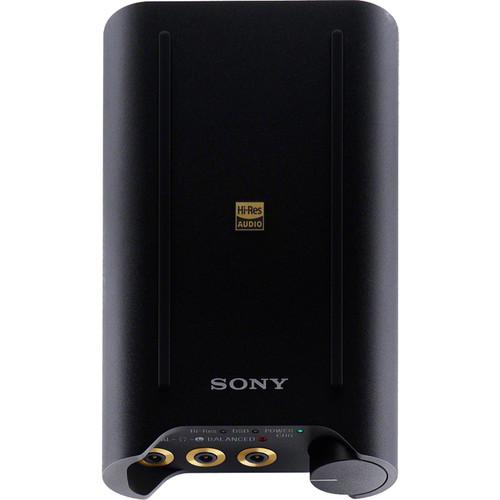

The Sony PHA-3 High Resolution USB DAC and Headphone Amplifier can help reveal details and layers in the high resolution audio files stored on your PC, smartphone, tablet or music player. The unit converts Hi-Res signals (PCM up to 384 kHz/32 bit and DSD) from your device's digital output for you to enjoy through headphones. The D/A conversion technology provides a spacious, three-dimensional soundstage with clear channel separation over the amplifier's balanced output.
The device supports PCM files up to 384 kHz/32-bit resolution on a computer, up to 48 kHz/24-bit resolution on an iPhone/iPad/iPod, up to 192 kHz/24-bit through an optical link, as well as 2.8 MHz and 5.6 MHz DSD files. It can deliver a frequency response of 10 to 100,000 Hz with 0.01% distortion into an impedance between 8Ω and 600Ω. When using the balanced output, the amplifier can supply a maximum of 320 mW (at 32 Ω at 1% distortion) to each channel of the stereo pair.

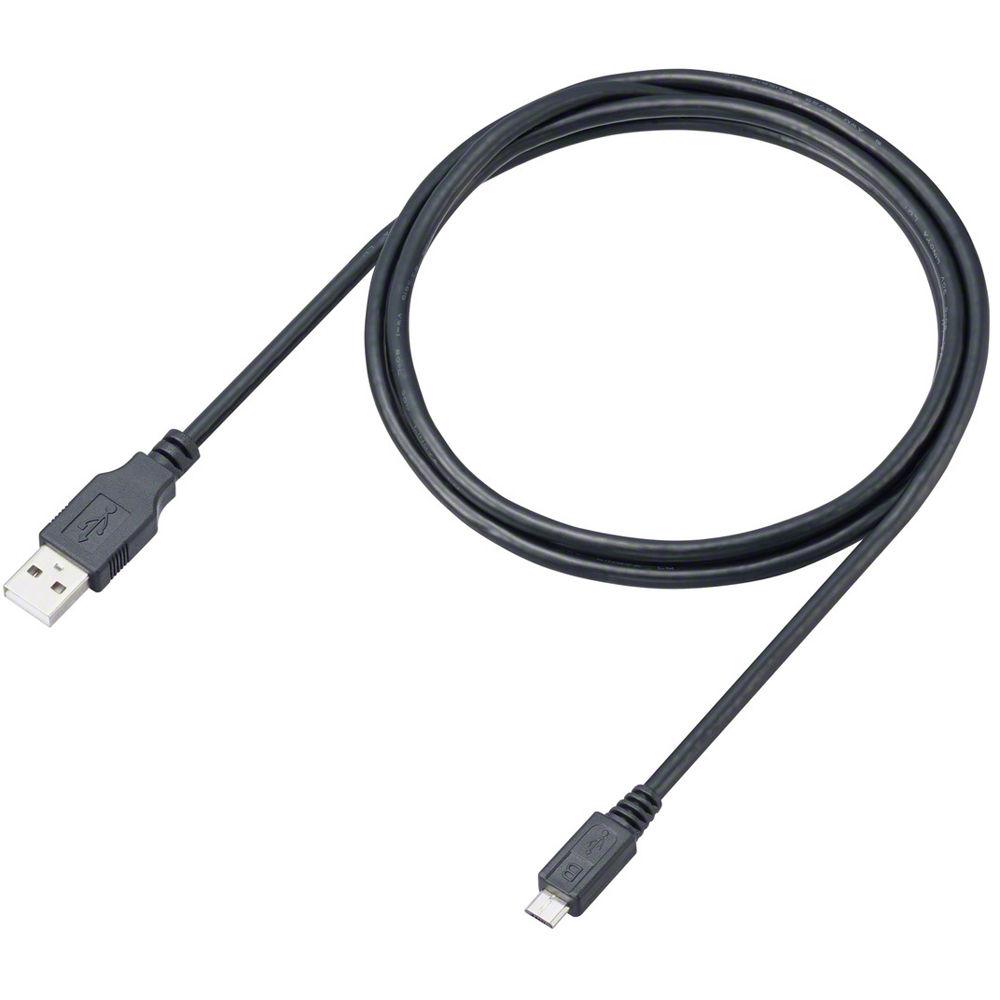

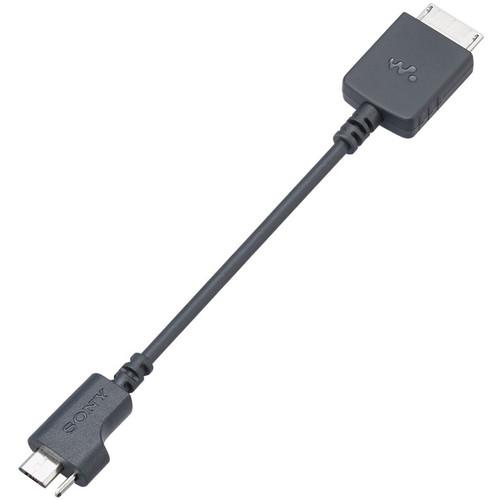

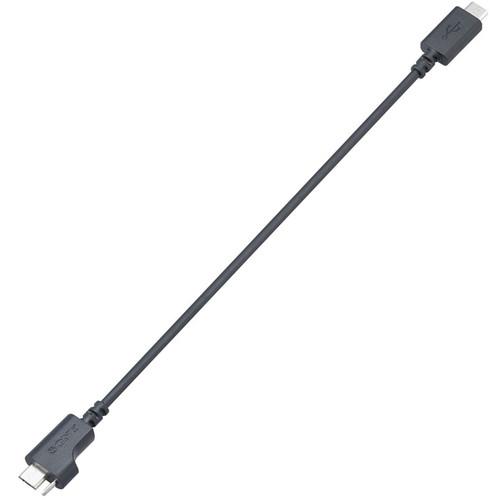

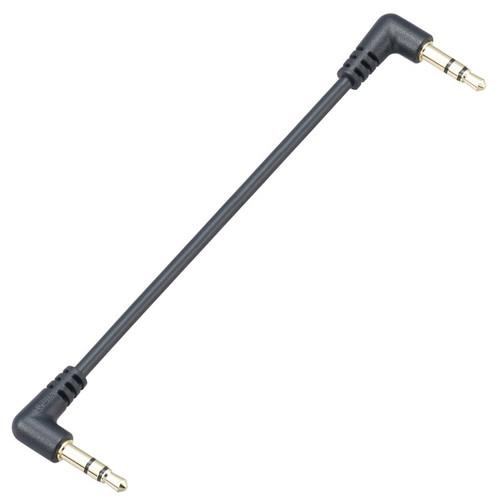

The combination DAC and headphone amplifier is compatible with both Windows and Mac OS X computers and comes with: one digital cable for WALKMAN devices, one digital cable for Xperia mobile devices, two micro-USB cables, one stereo mini audio cable, two USB AC adaptors and four silicone belts. UPC: 027242879317 In the Box Sony PHA-3 High Resolution USB DAC and Headphone Amplifier Digital Cable For WALKMAN Digital Cable For Xperia 2 x Micro-USB Cables Audio Cable (stereo mini) 2 x USB AC Adaptors 4 x Silicone Belts Warranty 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PHA-3 High Resolution USB DAC and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PHA3 Specs | Operating Environment | Compliant OS:
Windows 8.1, Windows 8.1 Pro, Windows 8, Windows 8 Pro, Windows 7, Windows Vista
Mac OS X (v10.6.8 or later)
CPU: Intel Core 2 Processor 1.6 GHz or better
Memory: 1 GB or better
USB port (USB 2.0 high speed) | | Resolution | PCM:
When Connecting a Computer: Maximum 384 kHz/32 bit
When Connecting iPhone/iPad/iPod: Maximum 48 kHz/24 bit
When Connecting Optical Link: Maximum 192 kHz/24 bit
DSD: 2.8 MHz, 5.6 MHz | | Frequency Range | 10 to 100,000 Hz (audio in input) with 0.01 or less distortion at 1,000 Hz | | Impedance | 8 to 600 Ω | | Maximum Input | 2 V RMS (audio in) | | Maximum Output | Balanced connection: Approximately 320 mW + 320 mW (32 Ω at 1% distortion)

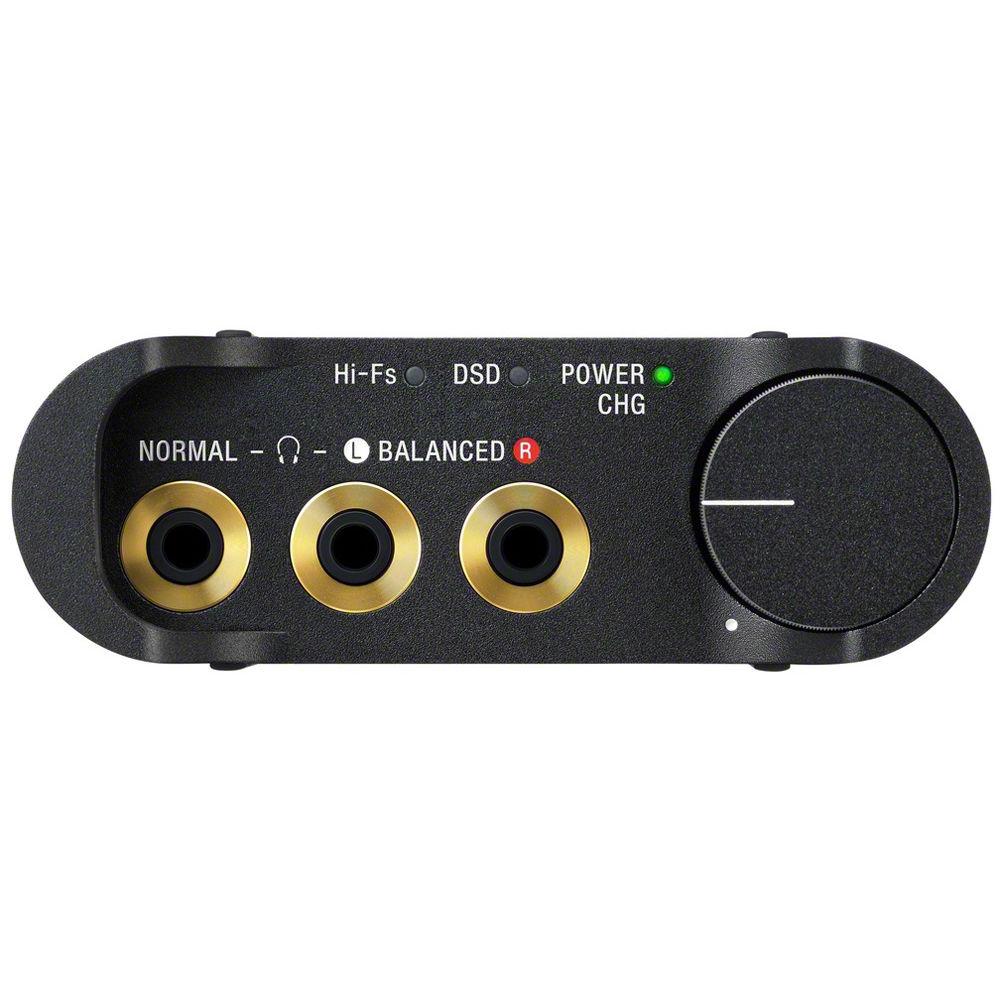

Normal Connection: Approximately 100 mW + 100 mW (32 Ω at 1% distortion) | | Audio Output Jack | 3-pole mini jack (balanced L/R)

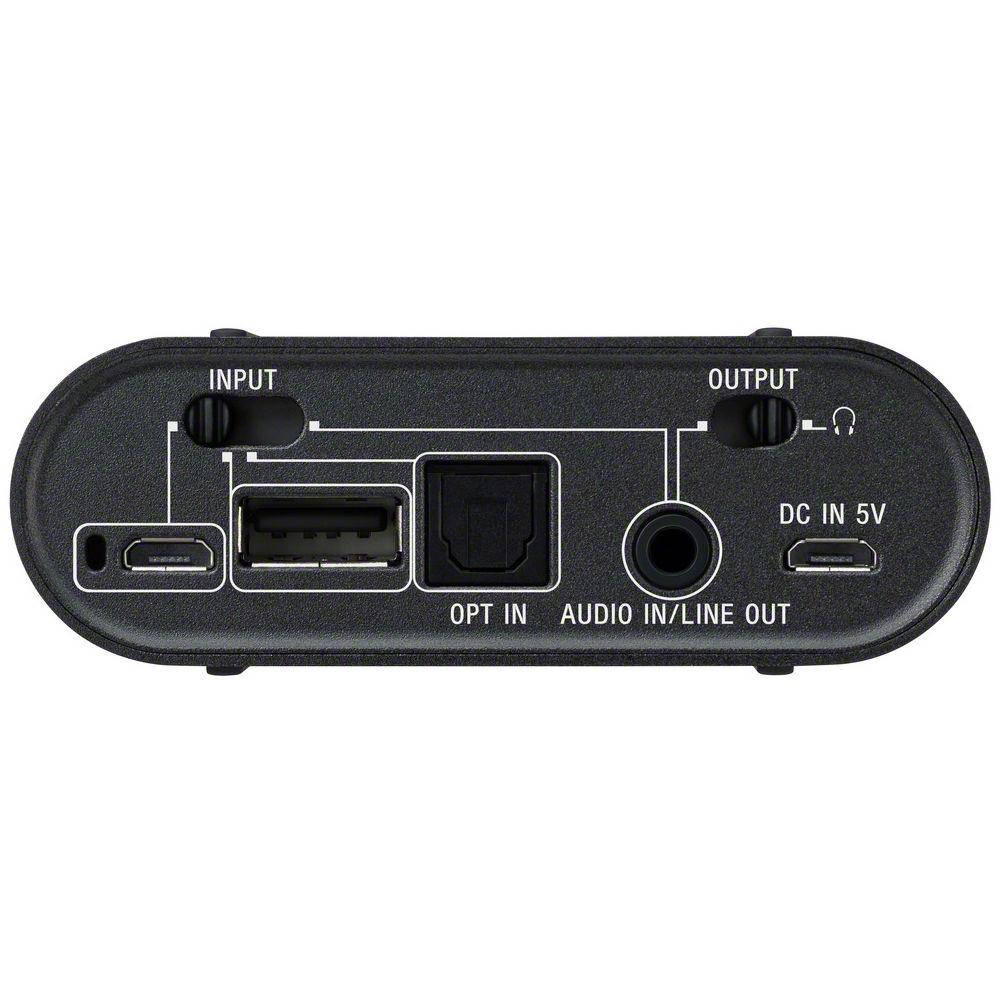

Stereo mini jack (normal) | | Audio Input Jack | Computer/WALKMAN/Xperia connecting port
iPhone/iPad/iPod connecting port
Optical input connecting port (OPT IN port)
Stereo mini jack | | Power Source | 5 VDC when using the AC adaptor | | Power Consumption | 13.5 W | | Dimensions (W x H x D) | Without Projecting Parts: 3.150 x 1.142 x 5.532 (80.00 x 29.00 x 140.50 mm) | | Weight | Approximately 8.15 oz (231 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 7.1 x 5.0 x 3.3" |
