Product description Quick Look: The Sony PMW-PZ1 Read More - Sony PMWPZ1 4K SxS Memory Player: Quick Look

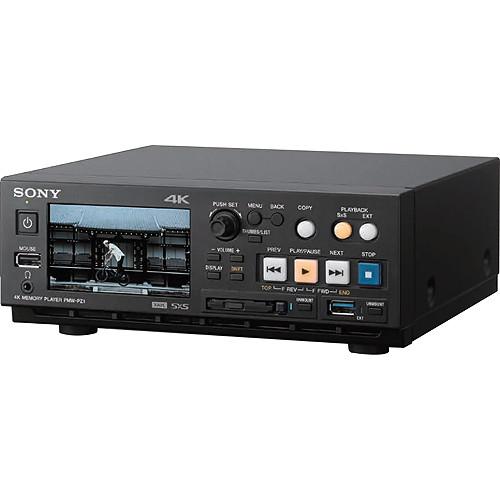

Sony's PMW-PZ1 4K SxS Memory Player makes playing back 4K footage as easy as inserting your SxS card and pressing play. It features a single SxS card slot, HDMI output, 4 x 3G/HD-SDI outputs, analog audio output, and a 3.5-inch LCD. This combination enables the seamless playback, copying, and monitoring of 4K and HD video across a diverse range of applications not only for video production but also for development of 4K equipment and 4K video walls at events, exhibitions, museums, and other venues.
The player supports XAVC Intra and XAVC Long at frame rates up to 59.94p, with planned future updates to expand the formats the unit supports. You can connect an optional USB drive and copy directly from an SxS card to the USB, choosing the level of data verification you wish. The built-in 3.5" LCD monitor lets you watch playback without requiring any additional hardware. The VTR-style buttons allow you to control playback without engaging a menu system. - Multi-Format
- The PMW-PZ1 supports multi-format playback capability for 4K and HD. It can playback a variety of formats including XAVC Intra, XAVC Long, with further format support planned. It also supports playback of material recorded at a variety of frame rates including 4K at 59.94p, 50p, 29.97p, 25p, and 23.98p
- Direct Playback and Viewing
- You can playback footage from SxS memory cards or from an external USB storage device (real time playback from external drives not guaranteed). Please use appropriate media depending on bit rate of the data. (Sony recommends SSD or RAID-type HDD)
- Simple Copy and Back-Up

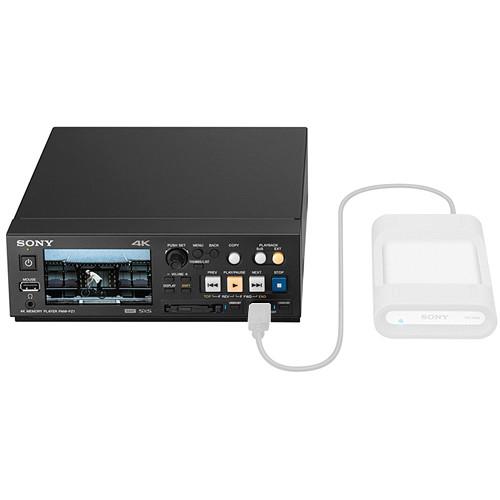

- The USB interface is designed for connection to an external USB storage device. This enables users to copy data in SxS media directly to external storage without the need for other devices. The PMW-PZ1 creates a copy log (csv format) in the external USB storage device, which helps users to easily check the file names of copied files. For greater accuracy in the copy process, users can activate a verify function before copying to avoid any copy errors.
- Versatile Control

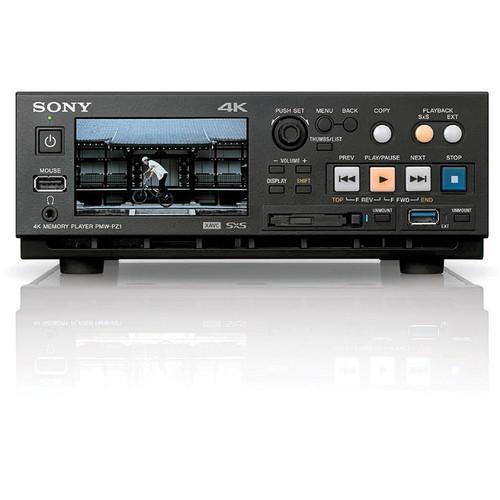

- You can control the PMW-PZ1 directly from the front panel, which features a high-quality, 3.5-inch, color, LCD front screen. Control is also possible with USB mouse through the USB interface.
- Interface

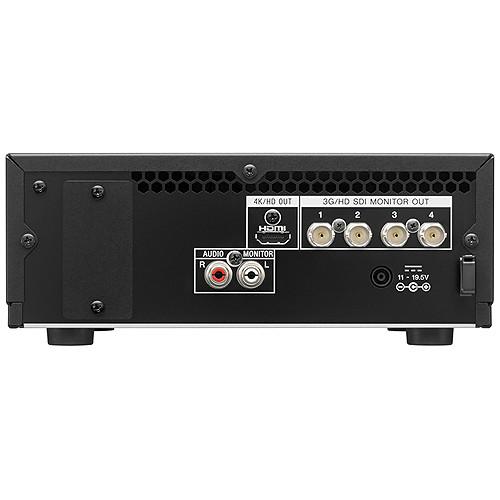

- The PMW-PZ1 incorporates a host of versatile input and output interfaces, including a HDMI port and four 3G/HD-SDI outputs. The HDMI port allows you to connect to professional monitors and projectors, or even consumer TVs. Independent analog audio output are built into the unit, for independent monitoring or connection to speakers. Two USB interfaces, one for connection to external USB storage and the other to a mouse device for the user to control the PMW-PZ1, provide access and control over an optional external drive.
In the Box Sony PMW-PZ1 4K SxS Memory Player AC Adapter 4-Pin XLR cable Limited 1-Year Warranty Video: Sony PXW- X320 + PMW-PZ1 4K SXS Memory Player BH Online Videos 11/10/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PMW-PZ1 4K SxS Memory Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PMW-PZ1 Specs | LCD | 1 x 3.5" color LCD
960 x 540
16:9 | | Media Card Slots | Single SxS card slot | | Playback Formats | 4K: XZVC Intra (4096 x 2160)
QFHD: XAVC Intra, XAVC LONG (3840 x 2160)
HD: XAVC Intra, XAVC LONG (1920 x 1080) | | Frame Rate (fps) | Progressive: 59.94 / 50 / 29.97 / 25 / 23.98 | | File System | SxS: exFAT
XQD: exFAT
External: exFAT, NTFS | | Outputs | HD/3G-SDI: 4 x BNC ( 2-Sample Interleave output, SMPTE 424, 425 (Level A/B) / SMPTE 292M standards)
HDMI 4K/HD: Type A 19-pin (1), output, up to 4K 60P 4:2:0 8bit
Analog Audio: RCA jack (L,R) -17dBu (Reference Level)
Headphone: 1 x stereo mini jack | | Interface | USB: 1 x USB (for mouse)
USB 3.0: 1 z USB 3.0 (for external storage) | | Power | Input: 1 x DC jack
11 to 19.5 VDC | | | | Package Weight | 8.51 lb | | Box Dimensions (LxWxH) | 12.0 x 11.2 x 8.2" |
