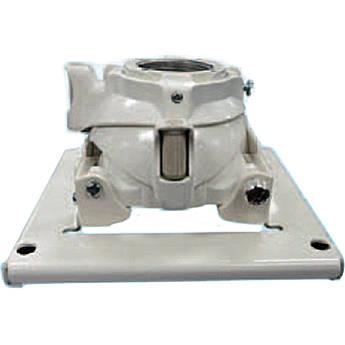

User Manual for Sony Projector Suspension Support Click to enlarge the picture
Contents of the user manual for the Sony Projector Suspension Support
- Product category: Projector Mounts Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Projector Mounts
|
User manual for the Sony Projector Suspension Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony Projector Suspension Support is designed for the Sony VPLFX30 and VPLFX35 projectors, and has a load bearing capacity of 65 lb (29.48 kg). Multiple mounting options enable you to mount the projector to a 1.5” (3.81 cm) standard threaded pipe (NPT) or a single ceiling stud. With the help of a versatile tool, you can mount the projector on an NPT pipe by using a socket wrench and socket wrench extension. The projector can be quickly attached, and a fine tune control allows you to adjust the roll up to 5° to either side, pitch up to 15° down and 5° up, and yaw up to 20° left and right. - Designed for the VPLFX30 and VPLFX35 Sony projectors
- Load bearing capacity of 65 lb (29.48 kg)
- Multiple mounting options - enable you to mount the projector to a 1.5" (3.81 cm) standard threaded pipe (NPT) or a single ceiling stud
- With the help of a versatile tool you can mount the projector on NPT pipe by using a socket wrench and socket wrench extension
- Projector can be quickly attached
- Fine tune control - allows you to adjust the roll up to 5˚ to either side, pitch up to 15˚ down and 5˚ up and yaw up to 20˚ left and right
In the Box Sony Projector Suspension Support Quick Set Base 2 x 3" Wood M5 Security Wrench M3 Security Allen Wrench Installation Disk M6 x 6mm Security Set Screw M6 x 8mm Security Screw M5 x 12mm Security Screw 3 x M5 x 10mm Combo Screw 3 x M5 x 10mm Lock-it Security Screw 1-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Projector Suspension Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PAM600 Specs | Designed for | Designed for VPLFX30 and VPLFX35 projectors | | Load Capacity | 65 lb (29.48 kg) | | Roll Adjustment | Up to 5° (either side) | | Pitch Adjustment | Up to 15° down Up to 5° up | | Yaw Adjustment | Up to 20° left / right | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 11.4 x 11.3 x 6.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
