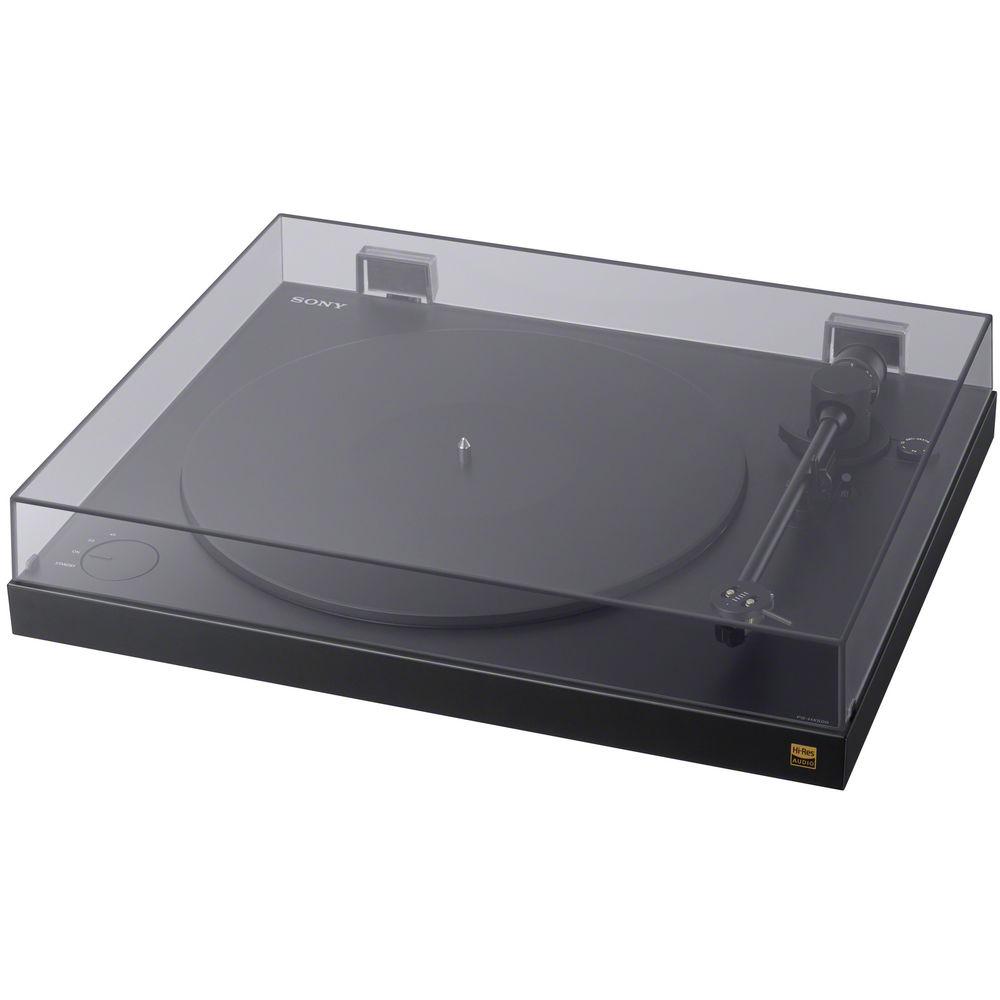

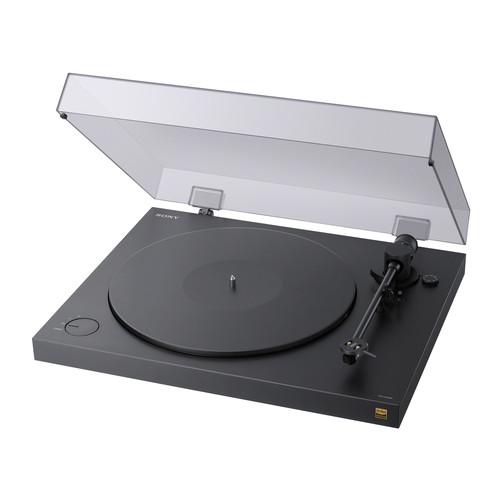

Product description Digitally store your vinyl records in Hi-Res Audio with the Sony PS-HX500 Stereo Turntable. Its USB output allows you to connect it to your Windows or Mac computer for convenient connection and conversion. It supports 33 1/3 and 45 rpm speeds and features a stereo RCA audio output that can connect to a preamp or directly to your sound system. - High-Resolution Audio
- Enjoy the subtle nuances of studio-quality sound in quality higher than CD with High-Resolution Audio.
- Play Vinyl and Record in High-Resolution
- Hook up the PS-HX500 turntable to your computer via USB, play a record, and capture every aspect of the vinyl with DSD 5.6 MHz native conversion. Convert your vinyl collection into High-Resolution Audio, take it out for a walk with your compatible portable media player, or just sit back and enjoy playing your vinyl originals.
- USB Digital Output
- Connect the turntable to a computer to rip your favorite tracks to music files.
- Built-In Phono EQ
- The PS-HX500 supports both phono and line output so you can play through the integrated amp or the external phono EQ.
- Convert Your Records to Digital Music Files
- The PS-HX500 is equipped with an A/D converter, so you can connect it to your computer with a USB cable and record your vinyl as High-Resolution Audio tracks to backup your vinyl collection or to take tracks outdoors with you on your compatible portable media player.
- Included Conversion Software
- Simply connect the PS-HX500 to your computer's USB port and convert your vinyl tracks into digital ones. The supplied computer application lets you rip, edit, and store tracks from your vinyl records. The editing app lets you cut unwanted parts of the recording and split tracks.
- DSD Native A/D Converter
- The internal A/D converter supports native conversion from analog to DSD 2.8 MHz or 5.6 MHz. The DSD file format reproduces the subtle nuances of your recording, making it suitable to capture and play back your vinyl tracks.
- High-Resolution Audio File Formats
- In addition to DSD-recorded DSF files, recording and playback of PCM-recorded WAV files is also supported.

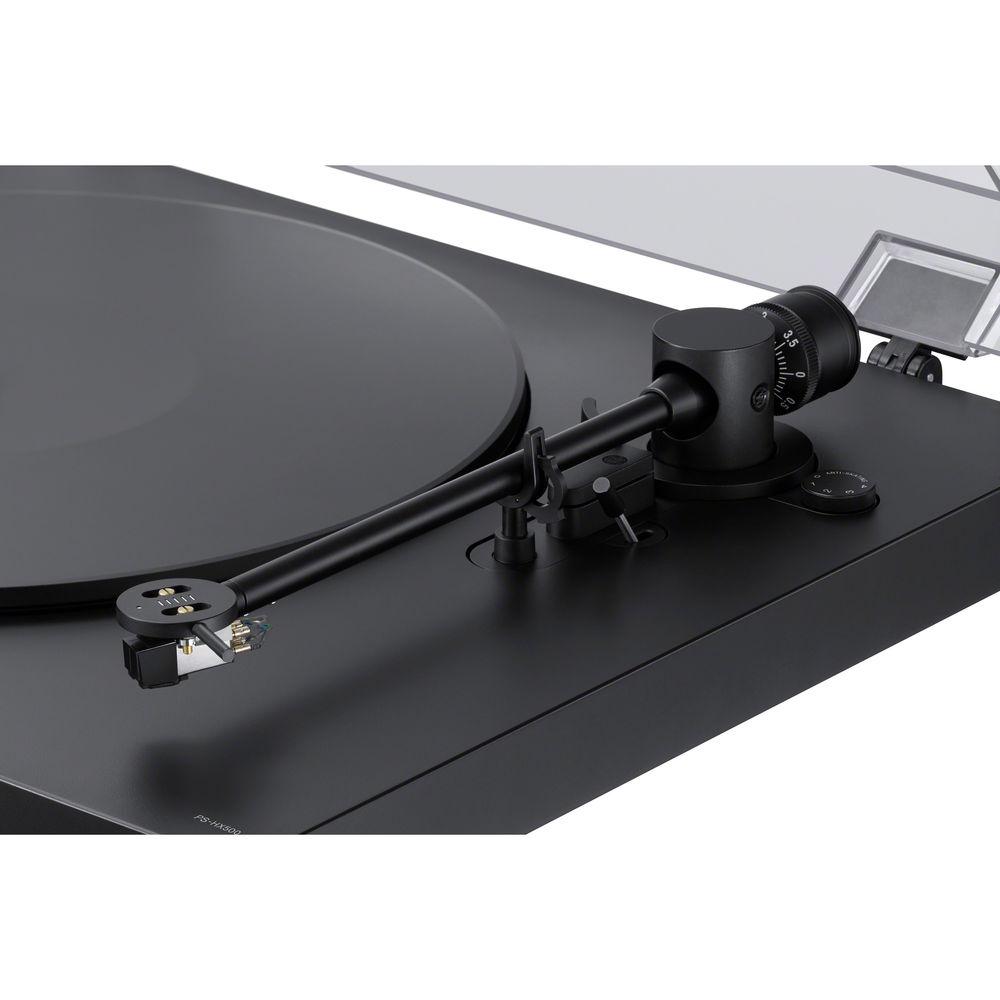

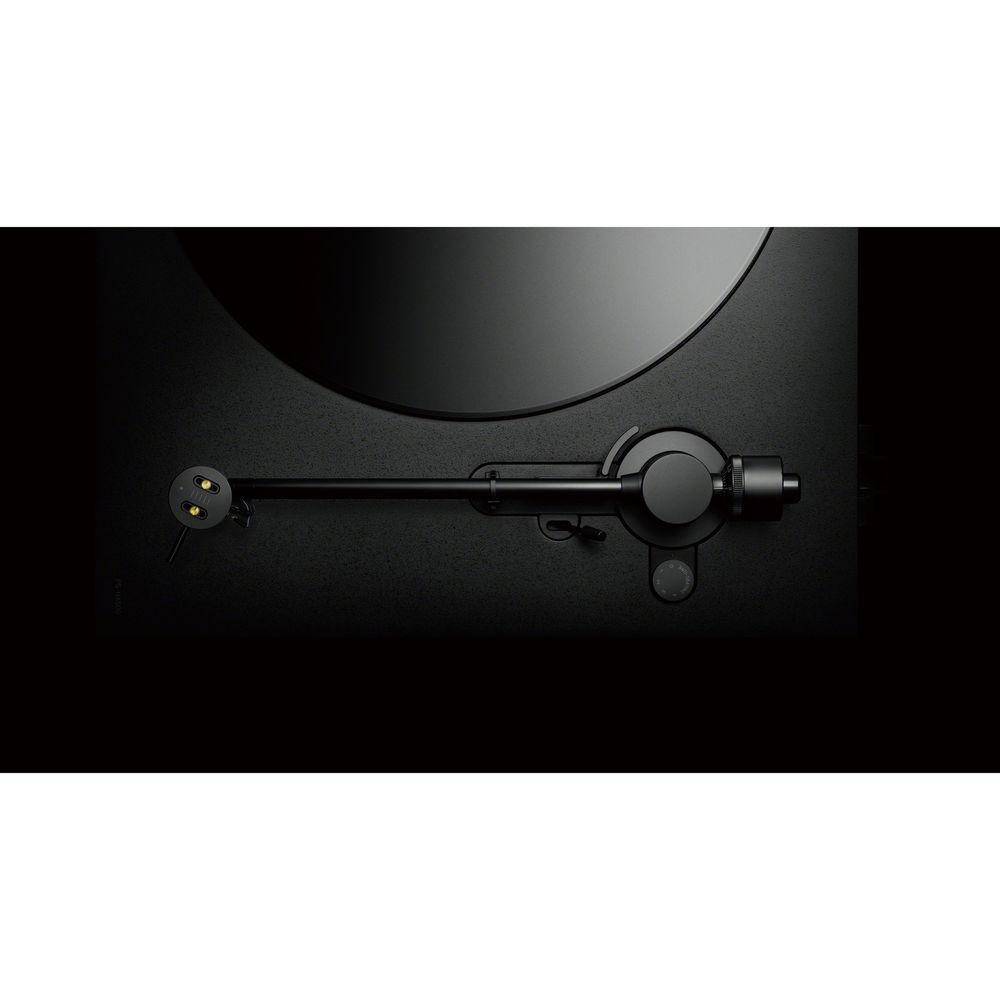

- Integrated Shell-Type Straight Tonearm
- The integrated shell is designed to improve durability and stabilize the cartridge for enhanced focusing and dimensionality of sound, while its structure improves trace-ability.
- Enhanced Stability
- The turntable is designed to deliver stable rotation for optimal and natural delivery of your music. The spindle-bearing construction is fashioned to stabilize the belt drive to achieve natural sound reproduction.

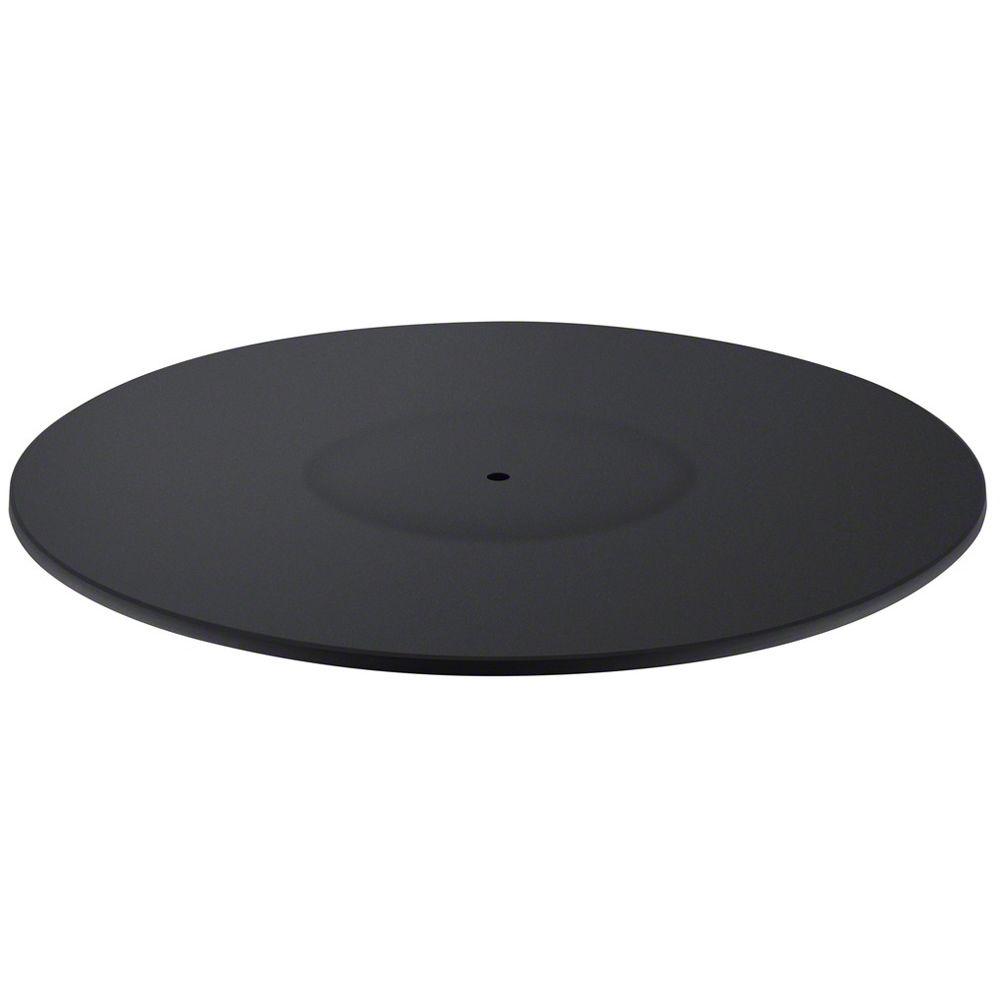

- 0.2" Rubber Mat
- The mat's adherence to the record's surface is designed to minimize unnecessary resonance for clean sound.
- Aluminum Die-Cast Platter
- The aluminum die-cast platter is intended to offer a superb balance between strength and mass.
- Acoustic-Grade MDF Cabinet
- The 1.18-inch thick MDF cabinet is designed for accurate soundstage reproduction.

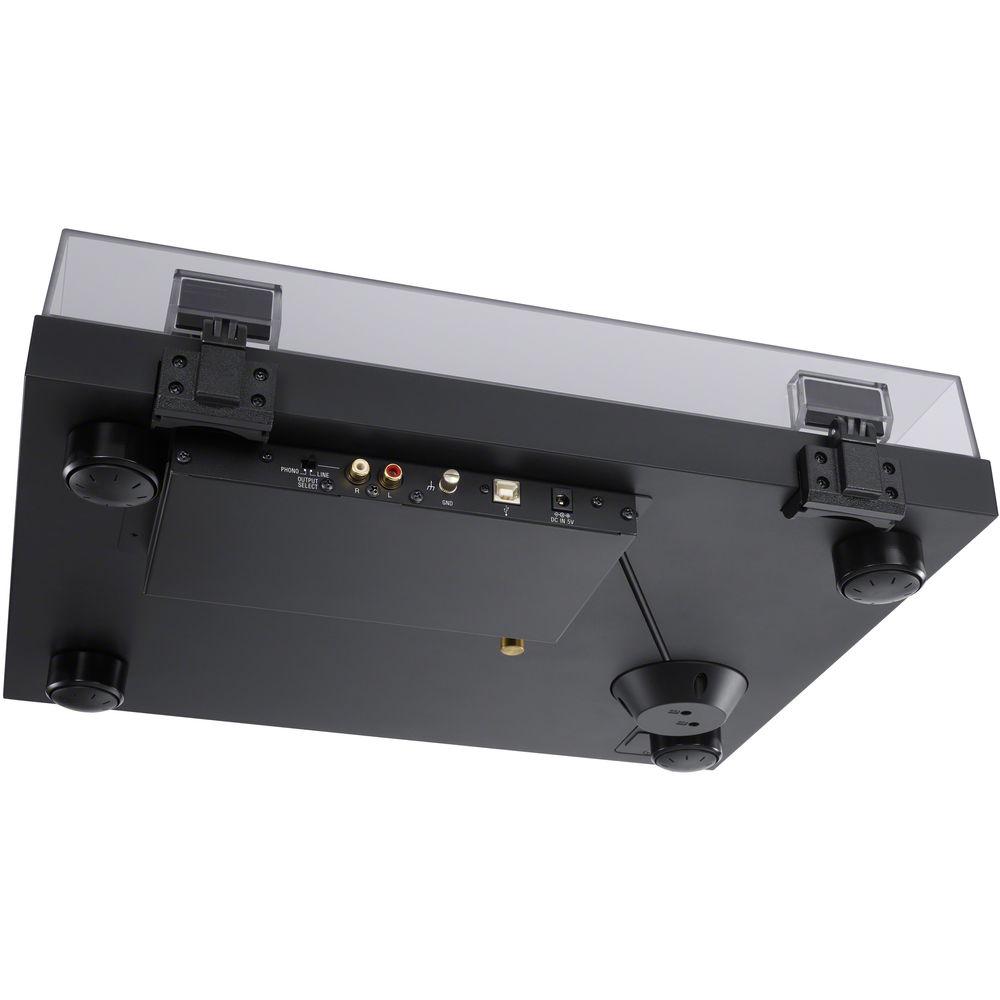

- Insulated Structure
- The structure is insulated by rubber dampers to eliminate vibration from racks and other peripherals.
UPC: 027242893382 In the Box Sony PS-HX500 Stereo Turntable with USB 45 rpm Adapter 6.6' USB Cable 4.9' Stereo RCA Cables with Ground Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PS-HX500 Stereo Turntable with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PS-HX500 Specs | | | Drive Method | Belt drive | | Wow and Flutter | ≤0.25% | | Motor | DC motor | | Rotation Speed | 33 1/3, 45 rpm | | Turntable Platter | 11.7" (296 mm) aluminum die-cast alloy component with 0.2" (0.5 cm) rubber mat | | Bearing | Spindle-bearing construction | | Output | 1 x Gold-plated stereo RCA with ground, line/phono switchable
1 x USB Type-B, version 2.0 | | | | Material | Tonearm: Aluminum alloy component
Headshell: Aluminum die-cast alloy component | | Tonearm Type | Straight | | Tracking Force | 0.1 oz (3 g) | | Cartridge Type | MM | | | | Output Voltage | Line Out: 190 mV @ 1 kHz
Phono Out: 3 mV @ 1 kHz | | | | OS Compatibility | Windows XP, Vista, 7, 8, 10 (32- and 64-bit)
Mac OS X 10.9, 10.10, 10.11 | | Recording Formats | DSF 2-Channel: 5.6 MHz / 2.8 MHz
WAV 2-Channel: 4.1 kHz / 48 kHz / 96 kHz / 192 kHz (16-bit / 24-bit) | | Construction Material | 1.18" (3 cm) MDF | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 3 W | | Power Efficiency | Class 6 | | Dimensions (W x H x D) | 16.875 x 4.125 x 14.375" (430 x 104 x 366 mm) | | Weight | 11.9 lb (5.4 kg) | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 19.9 x 16.9 x 7.1" |
