User Manual for Sony PS-LX300USB USB Stereo Turntable and Powered Speakers Kit Click to enlarge the picture
Contents of the user manual for the Sony PS-LX300USB USB Stereo Turntable and
- Product category: Turntables Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Turntables
|
User manual for the Sony PS-LX300USB USB Stereo Turntable and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

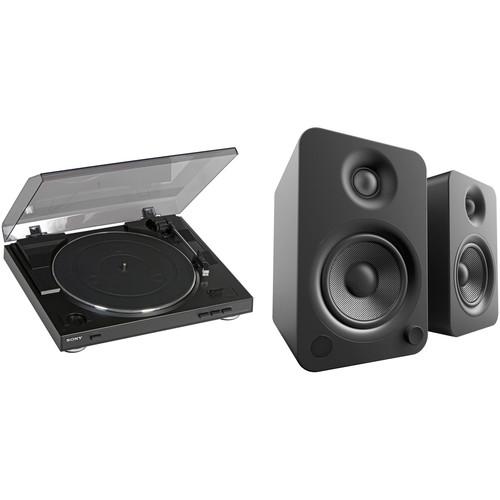

Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records almost instantly with this Kit that includes the Sony PS-LX300USB USB Stereo Turntable and the matte black Kanto Living YU4 2-Way Powered Bookshelf Speakers. The turntable features a USB output designed to provide simple archiving of your favorite vinyl records.
The speakers are powered, so you can simply plug them in and connect them to the turntable or whatever other source you want with their optical, 1/8", or RCA jacks. They feature a bass-reflex design with rear-facing bass ports to enhance the low-frequency effects of the 4" woofers, while highs are produced with the 1" silk dome tweeters. Conveniently, all the inputs are located on the left speaker, which has a binding post pair output to the right speaker. - Sony PS-LX300USB USB Stereo Turntable The Sony PS-LX300USB USB Stereo Turntable is a belt-drive turntable with a USB output for direct connection to PCs, iPod, and other compatible USB audio devices. The USB output allows for easy vinyl archiving directly to software (supplied). The efficient belt-drive system provides accurate play and control. It features 33 1/3 and 45 RPM record playback, built-in phono preamp, dust cover, RCA outputs, EQ switch, and fully automatic operation.
- Convenient USB Port
- Using the USB connection, you can import all that music into your computer and create MP3 files to store on a PC or bring along with you on your favorite portable player.
- Audio Studio Software
- The supplied Audio Studio software makes it easy for you to archive your music from vinyl, optimize the sound, and store it on your PC.
- Built In Phono Preamp
- Connecting this turntable to a component that does not have a phono input is not a problem; it features a built-in phono preamp.
UPC: 027242731271 - Kanto Living YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black) Play audio from nearly any device with the pair of matte black Kanto Living YU4 2-Way Powered Bookshelf Speakers. They feature an RCA, 1/8" mini, and two optical TOSLINK inputs, plus built-in Bluetooth for wireless connectivity. The RCA input can function as either a line-level or phono input via a rear-mounted switch, and a ground terminal is onboard to attach to your turntable. A 5V USB port is also built-in to keep your phone charged during playback. Each speaker has a 4" Kevlar woofer and a 1" silk dome tweeter to produce a total RMS output of up to 70W. An IR remote is included, along with speaker wire and an 1/8" AUX cable for instant connectivity.
- Turntable-Friendly
- For laid-back listeners, hardcore gamers, and vinyl enthusiasts alike, the 4 was designed to do it all. All you need to do is provide the source.
- Designed for Sound and Aesthetics
- Kanto speakers feature sanded cabinets, woven Kevlar drivers, and silk dome tweeters to embody both sound and design.
- Enhanced Connectivity
- Inspired by an appreciation for both digital and analog connectivity, the 4 is designed to give you the freedom to enjoy all your devices. Connect your turntable directly to the speakers' built-in phono preamp, transmit audio from your display via optical TOSLINK, or connect your subwoofer for extra bass.
- Remote Control
- The included remote control allows you to switch between sources, tune your sound, and control playback while streaming via Bluetooth.
- Additional Features
-
- A rear-mounted switch allows you to flip between Phono and Line RCA input types.
- Keep your phone charged with the rear-mounted 5V USB port.
- Auto-standby mode helps conserve energy when the speakers are not in use.
UPC: 800152716800 In the Box - PS-LX300USB USB Stereo Turntable fvsbdvuaebzzecucbbsfyesytvfceyaudy
- Software CD-ROM Disc (Sound Forge Audio Studio LE)
- USB Cable
- Dust Cover
- 1-Year Parts and Labor Warranty
- Kanto Living - YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black) fvsbdvuaebzzecucbbsfyesytvfceyaudy
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PS-LX300USB USB Stereo Turntable and Powered Speakers Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony PS-LX300USB USB Stereo Turntable
| Motor | Belt-Drive | | Speeds | 33 1/3 and 45 RPM | | Output Connectors | L/R RCA Phono
USB Output | | Brake | Not Specified by Manufacturer | | Pitch Control Range | Not Specified by Manufacturer | | Wow and Flutter | 0.25% (WRMS) | | Signal-to-Noise Ratio | 50dB | | Compatibility | Computers:
IBM PC/AT or Compatible Computers
Operating Systems:
Windows Vista: Home Basic, Home Premium, Business, Ultimate
Windows XP Home Edition Service Pack 2 or Higher
Windows XP Professional Service Pack 2 or Higher | | Power Requirements | 110VAC, 60Hz | | Dimensions (WxHxD) | 15.7 x 3.9 x 13.5" (420 x 100 x 342mm) | | Weight | 6 lbs (2.7kg) | | Color | Black | | | | Box Dimensions (LxWxH) | 18.8 x 16.1 x 6.4" | - Kanto Living YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black)
| | | Drivers | 1x 4" (10.2 cm) Kevlar woofer per speaker
1x 1" (2.54 cm) silk dome tweeter per speaker | | Total Power Output | RMS: 70 W total
Peak: 140 W total | | Amplifier Type | Class D | | Port | 1.25" (3.2 cm) dual flared bass ports | | Frequency Response | 60 Hz to 20 kHz | | THD | <0.25% | | Crossover Type | 2-way | | Crossover Frequency | 2 kHz | | | | Input Connector | Left Speaker:
1 x RCA L/R pair with phono preamp
2 x Optical TOSLINK
1 x 1/8" (3.5 mm) AUX
Right Speaker:
1 x Knurled speaker binding post pair from left speaker | | Output Connector | Left Speaker:
1 x RCA line-level connection to subwoofer
1 x Knurled speaker binding post pair to right speaker
1 x USB charge 5 V, 1 A | | Wireless | Bluetooth with aptX | | Other Connections | Left Speaker:
1 x AC input
1 x Ground terminal | | Input Sensitivity | 560 mV | | | | Construction Material | MDF | | Mounting Options | 1/4"-20 mounting hole on base | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Standby Power Consumption | <0.5 W | | Dimensions (W x H x D) | Each Speaker: 5.5 x 8.7 x 7.5" (14 x 22 x 19 cm) | | Weight | Left Speaker: 6.9 lb (3.2 kg)
Right Speaker: 5.5 lb (2.5 kg) | | | | Box Dimensions (LxWxH) | 16.299 x 12.362 x 11.181" |
