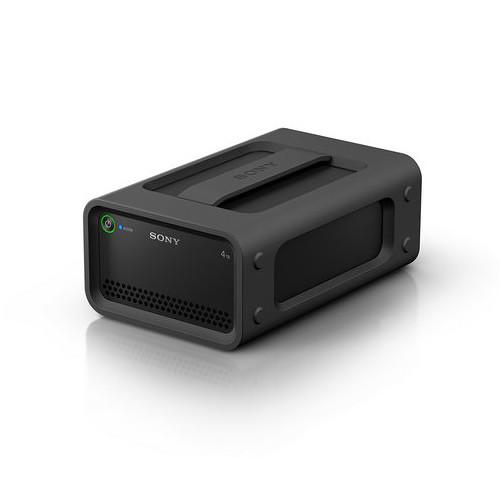

User Manual for Sony PSZ-RA4T 4TB 2-Bay Thunderbolt 2 Portable RAID Array Click to enlarge the picture
Contents of the user manual for the Sony PSZ-RA4T 4TB 2-Bay Thunderbolt 2
- Product category: Hard Drive Arrays Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Hard Drive Arrays
|
User manual for the Sony PSZ-RA4T 4TB 2-Bay Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The Sony PSZ-RA4T 2-Bay Thunderbolt 2 Portable RAID Array comes built with two 2TB 3.5" hard drives that deliver a total storage capacity of 4TB for your Windows and Mac systems. This portable drive system is designed to transport large amounts of data between locations safely by featuring an integrated handle along with a rugged design that physically protects the drives. To transfer content quickly, it sports a hardware RAID controller as well as two Thunderbolt 2 ports. Moreover, a USB 3.0 port is on board so you can use it with a wide variety of devices.
Sony has outfitted the PSZ-RA4T with two 7200 rpm hard drives that are configured in a RAID 0 array, which enhances the drive's transfer speeds to 440 MB/s. To fit your changing needs, this RAID array lets you reconfigure the drives in RAID 1 or JBOD. Additionally, the drives come formatted in the exFAT file system, allowing you to access the data on virtually all types of Windows and Mac systems. - Shock-Resistance and Reliability
- Internal and external rubber dampers protect the RAID storage in the field. A built-in handle provides easy portability
- Fast Transfer Speeds for 4K Content
- Transfer speeds of up to 440 MB/s reduces transfer times and contributes to an efficient 4K workflow
- Convenient Connectivity
- Supports Windows and Mac, features one USB 3.0 port and two Thunderbolt 2 ports, and features Thunderbolt daisy chaining for up to 6 Thunderbolt-equipped devices
- Media Management Features
- The downloadable Memory Media software Utility program for Sony memory media products provides enhanced media management. It allows you to see device information such as capacity, file system, and RAID mode as well as checking the status of the drives. You can also quickly reformat the drives or erase data before re-use
UPC: 027242893825 In the Box Sony PSZ-RA4T 4TB 2-Bay Thunderbolt 2 Portable RAID Array (2 x 2TB) USB Cable Thunderbolt Cable AC Adapter (VGP-AC19V77) Power Cord Label Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PSZ-RA4T 4TB 2-Bay Thunderbolt 2 Portable RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PSZ-RA4T Specs | | | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 440 MB/s (Read/Write in RAID 0) | | RAID Modes | RAID 0, 1, JBOD | | | | Total Raw Capacity | 4 TB (2 x 2 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | RAID 0 | | Pre-Format | exFAT | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 19.5 VDC at 3.3 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 8 to 90% | | Operating Shock | 20 G / 11.00 ms | | Storage Shock | 50 G / 11.00 ms | | | | Dimensions (W x H x D) | 6.1 x 3.9 x 9.5" / 156.0 x 100.0 x 241.0 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 15.6 x 8.9 x 5.8" |
