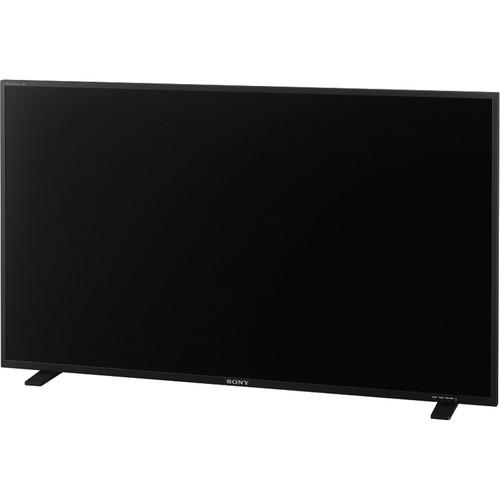

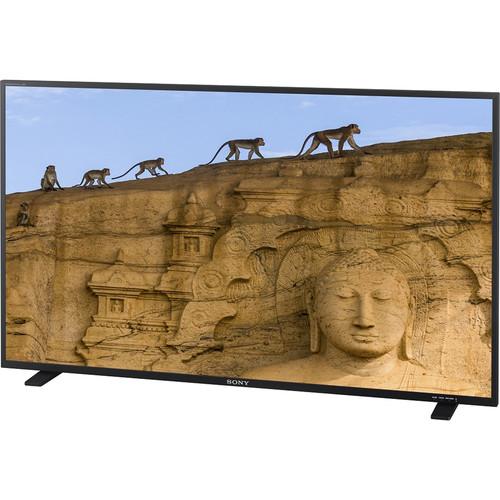

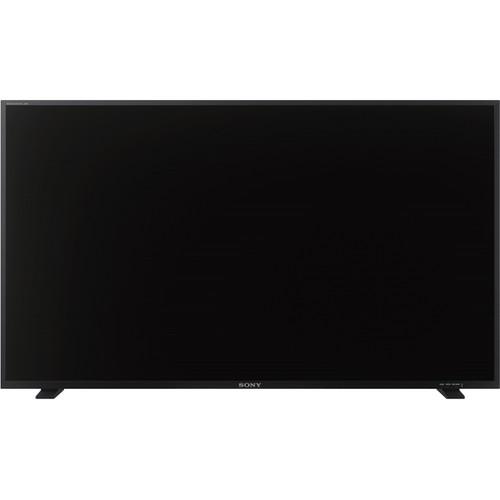

Product description The PVM-X550 55" 4K Trimaster EL OLED Monitor from Sony is a professional monitor designed for use as a companion client monitor alongside the more compact Sony BVM-X300 master monitor. Features of this UHD 4K (3840 x 2160) monitor include an HDR (high dynamic range) mode, precise black and color reproduction, wide color-gamut support, individual pixel shutoff, a wide viewing angle, and lightweight form factor. Both 4K 2-sample interleave, and 4K square division signals are supported. In 3G/SDI quad-view mode, the PVM-X550 supports up to 2160p60, with separate settings for each of the four displays.The PVM-X550's high dynamic range renders images with complex lighting in greater detail with finer tonal range, and improved shadow and highlight reproduction. The monitor's S-Gamut3.cine and S-Gamut3 color gamut support coordinates with Sony 4K camera color spaces.Additional features include Ethernet-based remote control via the optional BKM-16R unit, detailed and adjustable marker settings, up to five lockable user-preset profiles, a slim and lightweight form, and dual-position wall mounting. Interfaces consist of two sets of quad-3G/SDI inputs and outputs, HDMI and LAN inputs, and a stereo 3.5mm mini jack audio output. - 55" 4K (3840 x 2160) OLED Panel
- The lightweight, 10-bit, 4K OLED panel features a 1.78:1 (16x9) aspect ratio and adjustable markers

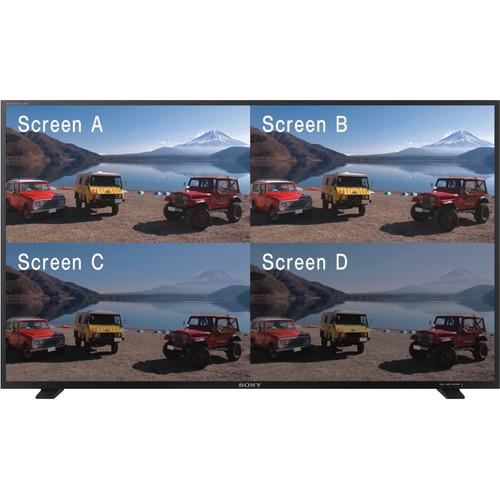

- Quad-View Display Function
- View four HD feeds simultaneously while controlling each view separately
- HDR (High Dynamic Range) Display Mode
- HDR mode displays greater shadow detail, truer blacks, and increased tonal range
- Precise Black and Color Reproduction
- Individual pixels can be fully turned off, enabling deeper blacks and accurate color reproduction
- Wide Color-Gamut Support
- S-Gamut3 and S-Gamut.cine support coordinates with Sony 4K cine-style cameras, while partial support is offered for ITU-R BT.2020 and ITU-R BT.709 color gamuts
- Gamut Marker for Rec. 2020 Colors
- Rec. 2020 colors, from Rec.709 and DCI-P3 color gamuts, are marked with a zebra pattern
- Multiple Gamma Support
- In addition to 2.2, 2.4, and CRT, multiple gammas (including S-Log2, S-Log3, ST.2084, and HLG) are supported

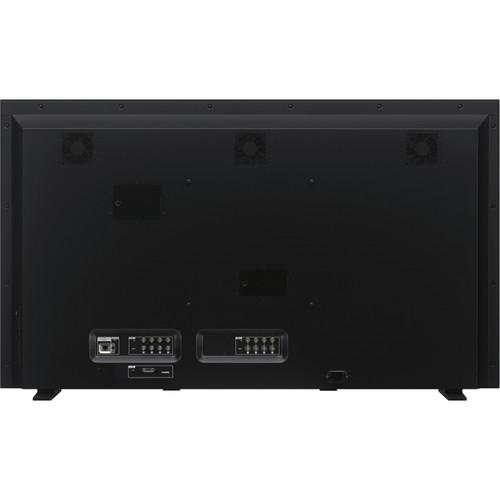

Additional Features - Two sets of quad 3G/SDI inputs/outputs
- Five lockable user-preset profiles
- Dual wall-mounting positions
- Ethernet-based remote control for up to 32 monitors via the optional BKM-16R control unit (not included)
UPC: 027242897717 In the Box Sony PVM-X550 55" 4K Trimaster EL OLED Monitor AC Power Cord AC Plug Holder HDMI Cable Holder 2 x Stands (Includes 8 Screws) CD-ROM Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PVM-X550 55" 4K Trimaster EL OLED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PVM-X550 Specs | | | Panel Type | OLED | | Display Size | 54.6" / 138.7 cm | | Active Area | 47.6 x 26.8" / 120.9 x 68.1 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 100 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Image Controls | Color Temperature Selection, Screen Markers | | | | Video | 8 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0a) Input
8 x BNC (3G-SDI) Output | | HDCP Support | Yes, Version 2.2 | | Audio | 1 x 3.5 mm Monitor Output | | Built-In Speaker | None | | Other I/O | 1 x LAN (RJ45) | | Card Slot | None | | | | Video Format | SDI
DCI 4K: 24/25/29.97/30/50/59.94/60
UHD 4K: 24/25/29.97/30/50/59.94/60
1080p: 24/25/29.97/30/50/59.94/60
DCI 2K: 24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/30
1080i: 59.94/60
720p: 24/25/29.97/30/50/59.94/60 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.3 to 5.7 A | | Battery Type | None | | Power Consumption | 290 W (Typical)
500 W (Maximum) | | | | Operating Humidity | 30 to 85% | | Operating Temperature | 32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended) | | Storage Humidity | 0 to 90% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 48.9 x 28.3 x 3.3" / 124.2 x 71.9 x 8.4 cm
48.9 x 29 x 8.1" / 124.2 x 73.7 x 20.6 cm, Including Feet | | Weight | 47.8 lb / 21.7 kg | | | | Package Weight | 63.0 lb | | Box Dimensions (LxWxH) | 60.0 x 35.25 x 9.25" |
