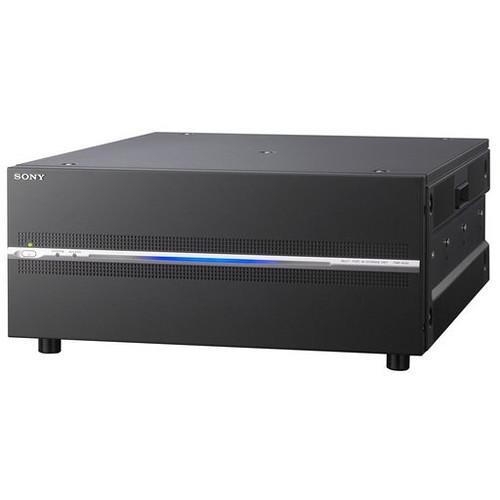

User Manual for Sony PWS-4500 ISO Record Bundle Click to enlarge the picture
Contents of the user manual for the Sony PWS-4500 ISO Record Bundle
- Product category: Recorders & Duplication Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Recorders & Duplication
|
User manual for the Sony PWS-4500 ISO Record Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The PWS-4500 ISO Record Bundle from Sony includes PWS-4500 Multi-Port AV Storage System and PWA-RCT1 Record Control Software for PWS-4400. Capable of recording images in the XAVC recording format, the PWS-4500 Multi-Port AV Storage System offers flexible I/O configurations, high-frame-rate (HFR) recording, and an intuitive user interface designed for professional operators. It creates a multi-port slow-replay server system for live sports production in both 4K and HD infrastructures. The connectivity with Sony’s IP-based infrastructure is assured by the Networked Media Interface, while enhanced system efficiency and flexibility are provided by the Share Play file sharing feature. To establish the PWS-4500 System as the replay server in a live server system, you need three additional units including the PWSK-4403 Control Panel, the PWS-100PR1 Production Control Station, and the PWS-100MG1 Media Gateway Station (none included). The PWA-RCT1 is a running application software (requires Windows 8 or higher) that provides another method to control each port on multiple units of the PWS-4400 Multi Port AV Storage unit. The software can be used for triggering rec/stop/play/file transfer from a single PC with an intuitively operational GUI. The PWA-RCT1 adds increased operational flexibility to the PWS-4400 so that it could be offered as an easy-to-use multi-port 4K/HD production recorder for a wider variety of production usages. - WS-4500 Multi-Port AV Storage System
-
- Capable of recording up to four 4K video signals/six HD video signals and 16 audio channels (uncompressed, 24-bit, 48 KHz) using the very efficient XAVC recording format
- In a 4K workflow, a single XAVC file is created and recorded to the PWS-4500 System, which is easily handled by non-linear editing systems in the post-production stage
- The system records 4K/HD XAVC intra frames between 600 Mb/s (4K 50p/59.94p) and 100 Mb/s (1080, 50i/50.94i) in HD
- XAVC fits into the growing 4K live production environment and you can explore creative possibilities in both 4K and HD live production
- With the optional PWSL-DH45 codec, the PWS-4500 System can also record files as Avid DNxHD 220x/145/45, which is an ideal fit for the Avid DNxHD post-production environment
- PWS-4500 System can be configured flexibly using various option boards and software
- From a 4-channel HD production recorder with a basic configuration, you can expand to a 4-channel 4K recorder/HD 8-channel recorder solution with a Networked Media Interface
- System records camera feeds captured at a high frame rate with Sony’s live camera systems, and can instantaneously replay them in very smooth slow motion at HD 2x and 3x as standard
- You can also achieve HD 4x, 6x, and 8x, and 4K 2x slow-motion replay by using either of the optional software: HD 4x, 6x, and 8x: PWSL-HF45 HFR / 4K 2x: PWSL-HR45 4K/HD Cut Out Software and PWSL-HF45 HFR (High-frame rate) software
- The intuitive operability of the PWS-4403 Control Panel helps you to control slow-motion replay and making full use of its jog dial, fader lever, and industry standard button layout
- Large 2TB memory enables 6 hours of recording in 4K and 24-hour recording in HD
- Memory expandable up to 8TB
- By installing the PWSL-HR45 4K/HD Cut Out software, a full HD picture can be cut out from up to 3 recorded 4K sources
- Each cut out sequence uses key frames referenced to timecode, position & zoom level for fast, intuitive, and creative operation
- You can also select Live Zoom mode
- PWS-4500 System can simultaneously create and record HD files from a 4K camera feed, and you can use those HD files as proxy material
- To assure high reliability, the PWS-4500 System comes with a redundant power supply unit as standard
- Networked Media Interface lets you connect with any IP live production environment simply by adding the optional PWSK-4506F Networked Media Interface Board, allowing video and audio signals to be received and transmitted over an IP network
- Once clips have been recorded by a PWS-4500 Server connected to a dedicated 10 GbE IP network, the new Share Play feature enables these clips to be shared among all connected PWS-4500 Servers to deliver a more efficient workflow
- Eliminates the need to push or pull clips between different servers
- PWS-4500 System can be used as a multi-channel recorder using the XAVC recording format
- Supports 4K to HD resolutions
- The unit features high-speed & high-capacity memory storage and supports transfers over IP, so it fits well into the network infrastructure
- Record Control Software
-
- Supports XAVC codec 4K XAVC-I (600 Mbps @ 60p) and HD XAVC-I (100 Mbps @ 60i)
- Supports LPCM 24-bit 16-channels for audio
- 4K recording at 60 fps with PMW-F55 and 120 fps with F65
- HD cut-out mode allows the operator to generate HD output from a 4K image
- Supports a touch-based interface with variable zoom and key frames
- Two GbE ports
- Supports RS-422 control Sony VTR/Disk, VDCP and Odetics protocols
- Includes 2TB internal storage
- 4K Stitch support
- With a single PWS-4400 it is possible to record and playback two 4K signals
- This makes it suitable for the Sony PWA-4KS 4K Stitch application
- 4K Stitch combines the output of two 4K cameras to create an 8K x 2K video canvas
- Up to three virtual HD cameras can be derived using this technology with full Pan, Scan, and Zoom capabilities
In the Box Sony PWS-4500 ISO Record Bundle PWS-4500 Multi-Port AV Storage System czffeaswreddexdxsyayfudd PWA-RCT1 Record Control Software for PWS-4400 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PWS-4500 ISO Record Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PWS-4500ISO Specs | | | Sampling Frequency | Y: 74.25 MHz, Pb/Pr: 37.125 MHz | | Conversion Modes | Video: 8/10 bits
Audio: 24 bits | | Compression | XAVC, Avid DNxHD | | Sampling Frequency | 48 kHz (video sync) | | Headroom | 20 dB/18 dB/16 dB/15 dB/12 dB/9 dB (selectable) | | Connectors | Encoder:
SDI Input (1 to 4):
4 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
3G SDI (2.97 GHz) SMPTE ST 424 Level A, B
SDI Output (INPUT MONITOR 5 to 8)
4 x BNC
HD SDI (1.485 Gb/s), 3G SDI (2.97 GHz)
(Does not satisfy the SDI signal standard, and should be used for input signal monitor applications only)
2 x Monitor BNC:
HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
Time Code Input: 1 x BNC, 0.5 to 5 Vpp, 10 kOhms
Time Code Output: 1 x BNC, 1.5 Vpp, low impedance
Digital Audio (AES/EBU) Input:
4 x BNC Channel 1/2 to 7/8, AES/EBU format, unbalanced
When connecting devices for AES/EBU signal input/output, it is recommended to use a cable whose length is less than 984' (300 m)
Decoder:
SDI Output (1 to 8):
8 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
3G SDI (2.97 GHz) SMPTE ST 424 Level A, B
SDI Output (Monitor)
2 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
Time Code Output: 1 x BNC, 1.5 Vpp, low impedance
Digital Audio (AES/EBU) Output:
4 x BNC, Channel 1/2 to 7/8, AES/EBU format, unbalanced
File Sharing: Share Play 1 to 2: RJ-45 x 2, Network Interface 10G Copper
Monitoring:
NMI Monitor 1 to 2: RJ-45 x 2, Network interface 1G Copper
Monitor: HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
Reference Input:
2 x BNC including 1 loop through, 75 Ohms with terminal switch, HD (tri-level sync), SD (black burst), NTSC: 0.286 Vpp, 75 Ohms, PAL: 0.3 Vpp, 75 Ohms
Remote:
REMOTE 1/2 to REMOTE 7/8: 4 x RJ-45
GPIO (25P): 25-pin D-Sub, 1 x female
Network 1 to 2: RJ-45 (x2), 1000BASE-T
Maintenance: 1 x USB
Network: 1 x SFP+, 10GBASE-SR/LR (add-in card) | | Recording Format | XAVC, Avid DNxHD | | Power Requirements | 100 to 127 VAC / 200 to 240 VAC | | Power Consumption | Maximum 480 W | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | −4 to +140°F (−20 to +60°C) | | Humidity | 25 to 90% (non-condensing) | | Weight | 48 lb (22 kg) | | | | Compatibility | PWS-4400 Storage System | | Maximum Number of Devices | 4 | | Internal Storage | 2 TB | | Maximum Recording Time | 5 hours @ 4K 60p (600 Mb/s)
24 hours @ HD 60i (100 Mb/s) | | Operating System | Windows 8 or higher |
