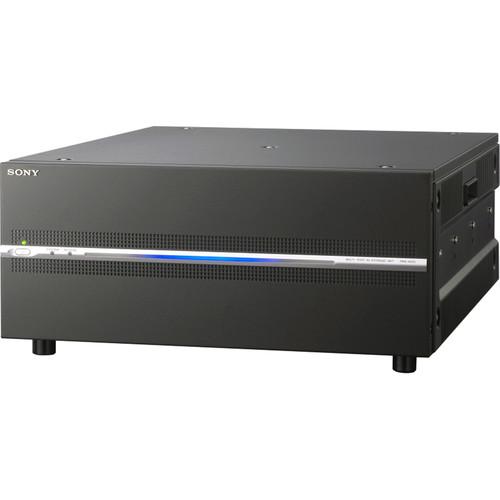

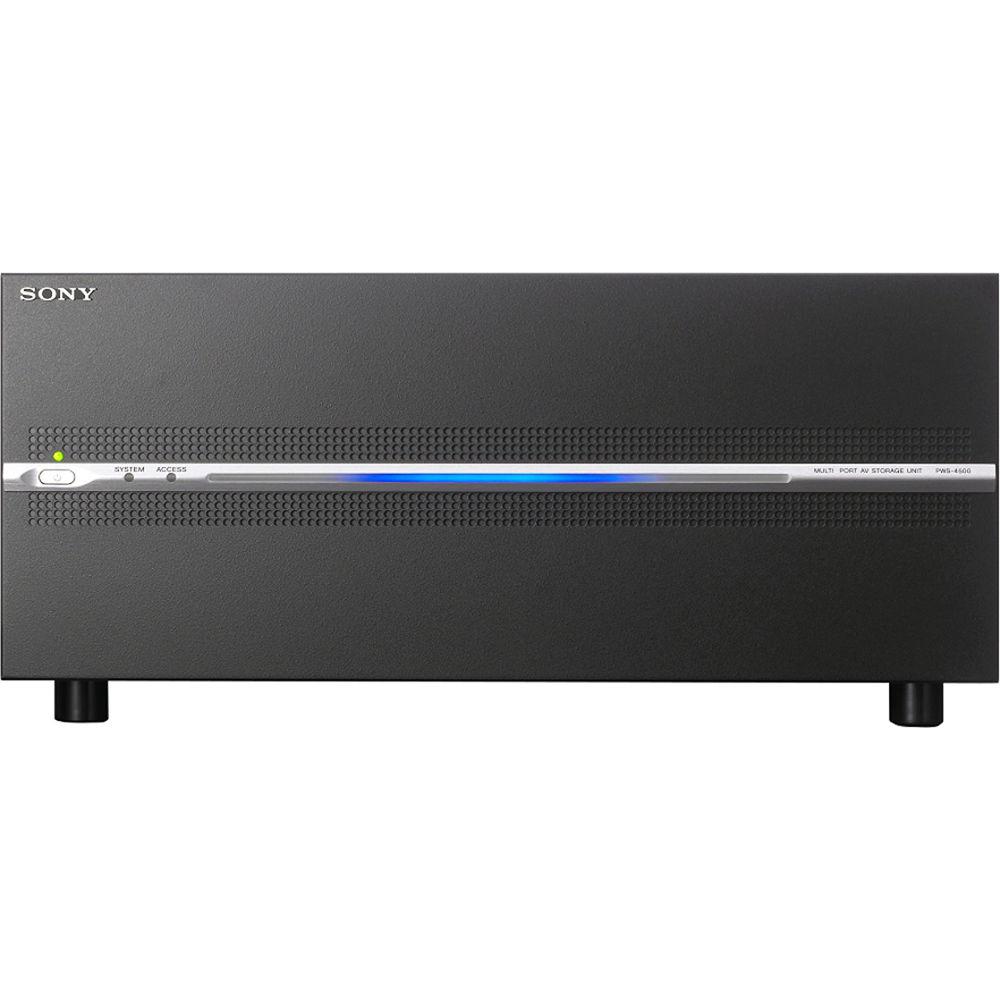

Product description Capable of recording images in the XAVC recording format, the PWS-4500 Multi-Port AV Storage System from Sony offers flexible I/O configurations, high-frame-rate (HFR) recording, and an intuitive user interface designed for professional operators. It creates a multi-port slow-replay server system for live sports production in both 4K and HD infrastructures.The connectivity with Sony’s IP-based infrastructure is assured by a Networked Media Interface, while enhanced system efficiency and flexibility are provided by a Share Play file sharing feature. To establish the PWS-4500 System as the replay server in a live server system, you need three additional units including the PWSK-4403 Control Panel, the PWS-100PR1 Production Control Station, and the PWS-100MG1 Media Gateway Station. - XAVC Format
-
- Capable of recording up to four 4K video signals/six HD video signals and 16 audio channels (uncompressed, 24-bit, 48 KHz) using the XAVC recording format
- In a 4K workflow, a single XAVC file is created and recorded to the PWS-4500 System, which is easily handled by non-linear editing systems in the post production stage
- The system records 4K/HD XAVC intra frames between 600 Mb/s (4K 50p/59.94p) and 100 Mb/s (1080, 50i/50.94i) in HD
- XAVC fits into the growing 4K live production environment and you can explore creative possibilities in both 4K and HD live production
- With the optional PWSL-DH45 codec, the PWS-4500 System can also record files as Avid DNxHD 220x/145/45, which is an ideal fit for the Avid DNxHD post production environment
- Flexible configuration for 4K and HD
-
- PWS-4500 System can be configured flexibly using various option boards and software
- From a 4-channel HD production recorder with a basic configuration, you can expand to a 4-channel 4K recorder/HD 8-channel recorder solution with a Networked Media Interface
- 4K/HD HFR Recording and Replay
-
- System records camera feeds captured at a high frame rate with Sony’s live camera systems, and can instantaneously replay them in very smooth slow motion at HD 2x and 3x as standard
- You can also achieve HD 4x, 6x, and 8x, and 4K 2x slow-motion replay by using either of the optional software: HD 4x, 6x, and 8x: PWSL-HF45 HFR / 4K 2x: PWSL-HR45 4K/HD Cut Out Software and PWSL-HF45 HFR (High-frame rate) software
- The intuitive operability of the PWS-4403 Control Panel helps you to control slow-motion replay and making full use of its jog dial, fader lever, and industry standard button layout
- Large-Capacity Memory Storage
-
- Large 2TB memory enables 6 hours of recording in 4K and 24-hour recording in HD
- Memory expandable up to 8TB
- HD Cut Out from 4K
-
- By installing the PWSL-HR45 4K/HD Cut Out software, a full HD picture can be cut out from up to 3 recorded 4K sources
- Each cut out sequence uses key frames referenced to timecode, position & zoom level for fast, intuitive, and creative operation
- You can also select Live Zoom mode
- 4K/HD Simultaneous Recording
-
- PWS-4500 System can simultaneously create and record HD files from a 4K camera feed, and you can use those HD files as proxy material
- Redundant Power Supply
-
- To assure high reliability, the PWS-4500 System comes with a redundant power supply unit as standard
- Connectivity with Next-Generation IP-Based Infrastructure
-
- Networked Media Interface lets you connect with any IP live production environment simply by adding the optional PWSK-4506F Networked Media Interface Board, allowing video and audio signals to be received and transmitted over an IP network.
- Efficient file sharing via 10 GbE IP Networking
-
- Once clips have been recorded by a PWS-4500 Server connected to a dedicated 10 GbE IP network, the new Share Play feature enables these clips to be shared among all connected PWS-4500 Servers to deliver a more efficient workflow
- Eliminates the need to push or pull clips between different servers
- Multi Port AV Storage Unit
-
- PWS-4500 System can be used as a multi-channel recorder using the XAVC recording format
- Supports 4K to HD resolutions
- The unit features high-speed & high-capacity memory storage and supports transfers over IP, so it fits well into the network infrastructure
In the Box Sony PWS-4500 Multi-Port AV Storage System 4 x RJ45-DSUB Cable Limited 1-Year Warranty for Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PWS-4500 Multi-Port AV Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

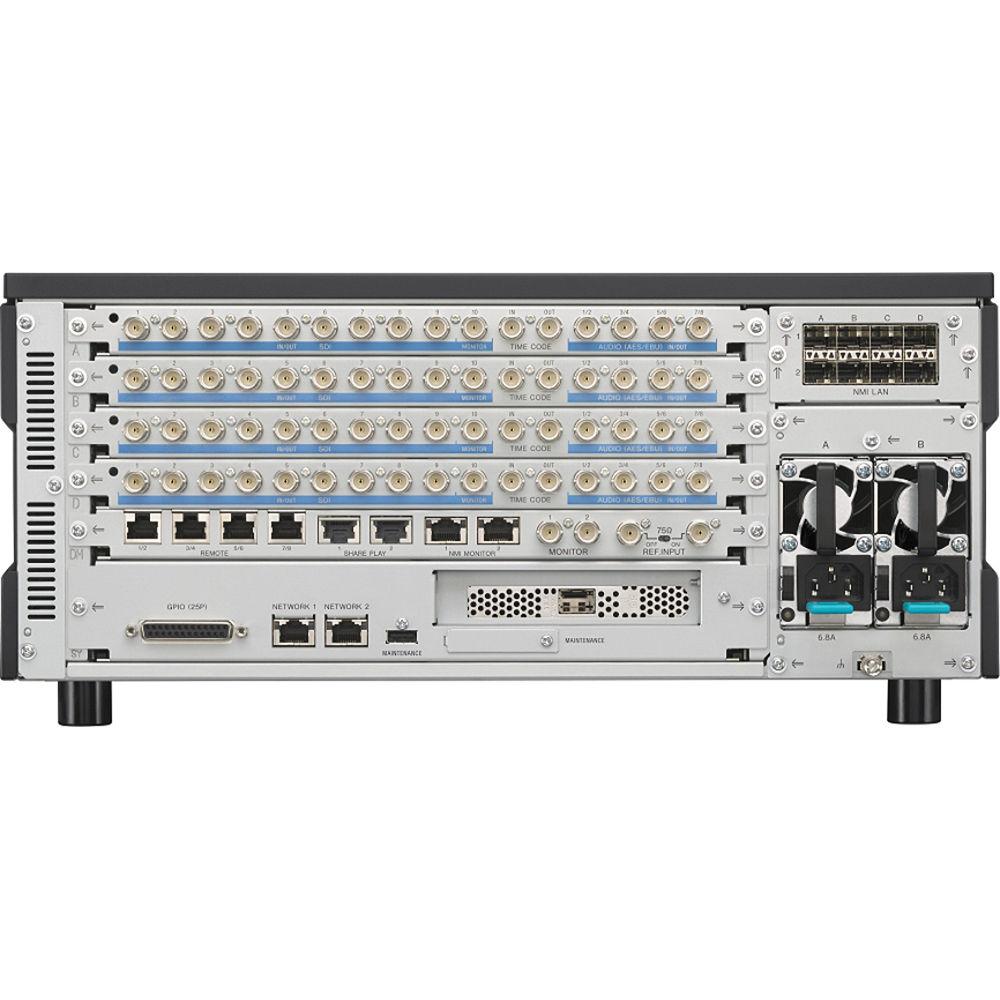

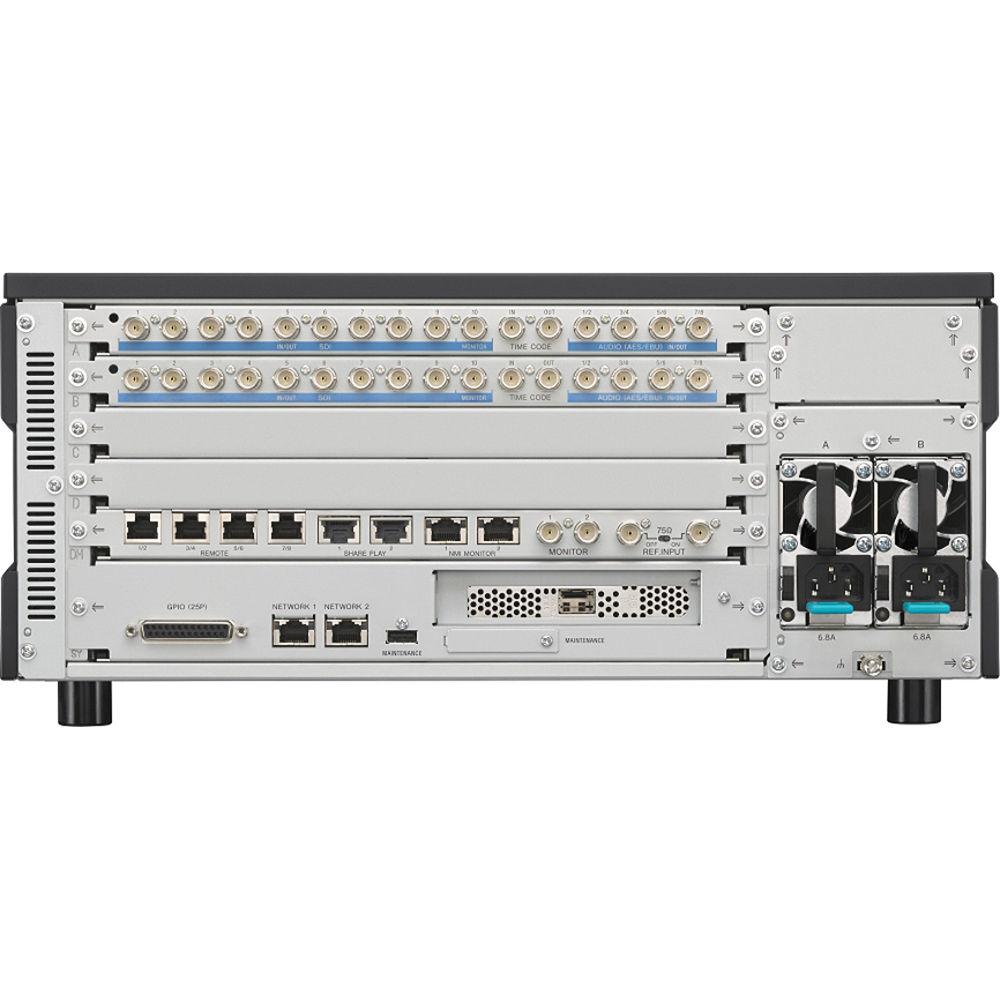

Technical parametersSony PWS-4500 Specs | | | Sampling Frequency | Y: 74.25 MHz, Pb/Pr: 37.125 MHz | | Conversion Modes | 8/10 bits | | Compression | XAVC, Avid DNxHD | | | | Sampling Frequency | 48 kHz (video sync) | | Conversion Modes | 24 bits | | Headroom | 20 dB / 18 dB / 16 dB / 15 dB / 12 dB / 9 dB (selectable) | | | | Connectors | SDI Input (1 to 4):
4 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant
3G SDI (2.97 GHz) SMPTE ST 424 Level A, B
SDI Output (INPUT MONITOR 5 to 8)
4 x BNC
HD SDI (1.485 Gb/s), 3G SDI (2.97 GHz)
(Does not satisfy the SDI signal standard, and should be used for input signal monitor applications only)
2 x Monitor BNC:
HD SDI (1.485 Gb/s) SMPTE ST 292-1/BTA-S004B compliant
Time Code Input: 1 x BNC, 0.5 to 5 Vpp, 10 kOhms
Time Code Output: 1 x BNC, 1.5 Vpp, low impedance
Digital Audio (AES/EBU) Input:
4 x BNC Channel 1/2 to 7/8, AES/EBU format, unbalanced
When connecting devices for AES/EBU signal input/output, it is recommended to use a cable whose length is less than 984' (300 m) | | | | Connectors | SDI Input (1 to 8):
8 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant
3G SDI (2.97 GHz) SMPTE ST 424 Level A, B
SDI Output (Monitor)
2 x BNC
HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant
Time Code Output: 1 x BNC, 1.5 Vpp, low impedance
Digital Audio (AES/EBU) Output:
4 x BNC, Channel 1/2 to 7/8, AES/EBU format, unbalanced
File Sharing: Share Play 1 to 2: RJ-45 x 2, Network Interface 10G Copper
Monitoring:
NMI Monitor 1 to 2: RJ-45 x 2, Network interface 1G Copper
Monitor: HD SDI (1.485 Gb/s) SMPTE ST 292-1 / BTA-S004B compliant
Reference Input:
2 x BNC including 1 loop through, 75 Ohms with terminal switch, HD (tri-level sync), SD (black burst), NTSC: 0.286 Vpp, 75 Ohms, PAL: 0.3 Vpp, 75 Ohms
Remote:
Remote 1/2 to Remote 7/8: 4 x RJ-45
GPIO (25P): 25-pin D-Sub, 1 x female
Network 1 to 2: RJ-45 (x2), 1000BASE-T
Maintenance: 1 x USB
Network: 1 x SFP+, 10GBASE-SR/LR (add-in card) | | | | Recording Format | XAVC, Avid DNxHD | | Power Requirements | 100 to 127 VAC / 200 to 240 VAC | | Power Consumption | Maximum 480 W | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | −4 to 140°F (−20 to 60°C) | | Humidity | 25 to 90% (non-condensing) | | Dimensions | 16.8 x 6.9 x 21.3" (42.7 x 17.4 x 54.1 cm) | | Weight | 48 lb (22 kg) |
