User Manual for Sony PXW-X400 Shoulder Camcorder Click to enlarge the picture
Contents of the user manual for the Sony PXW-X400 Shoulder Camcorder
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony PXW-X400 Shoulder Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

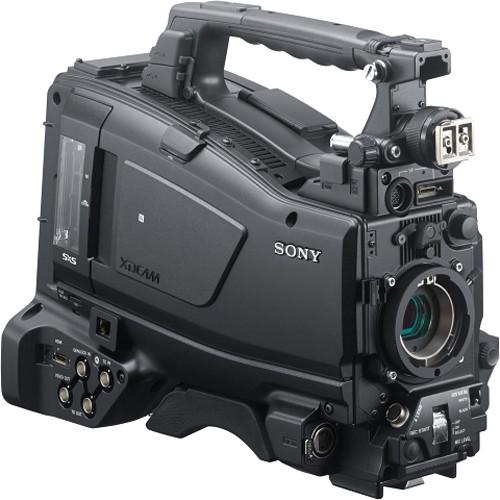

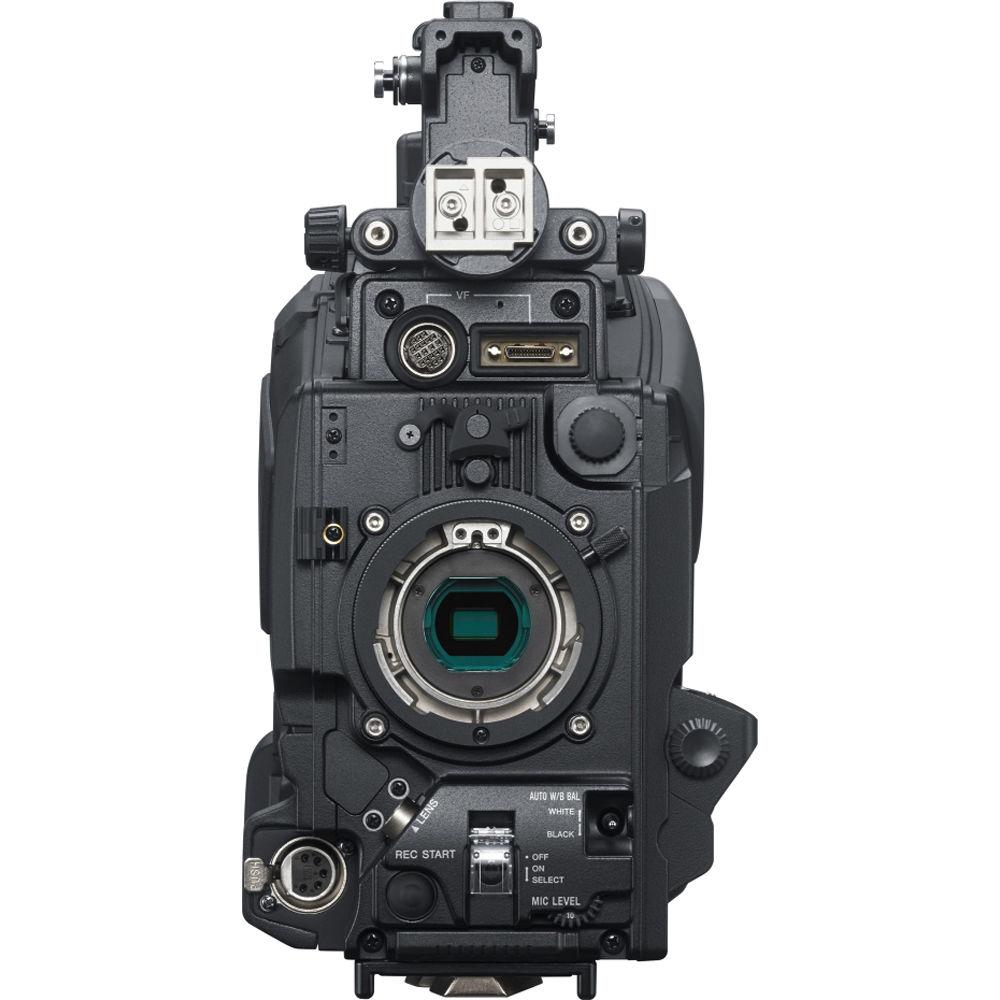

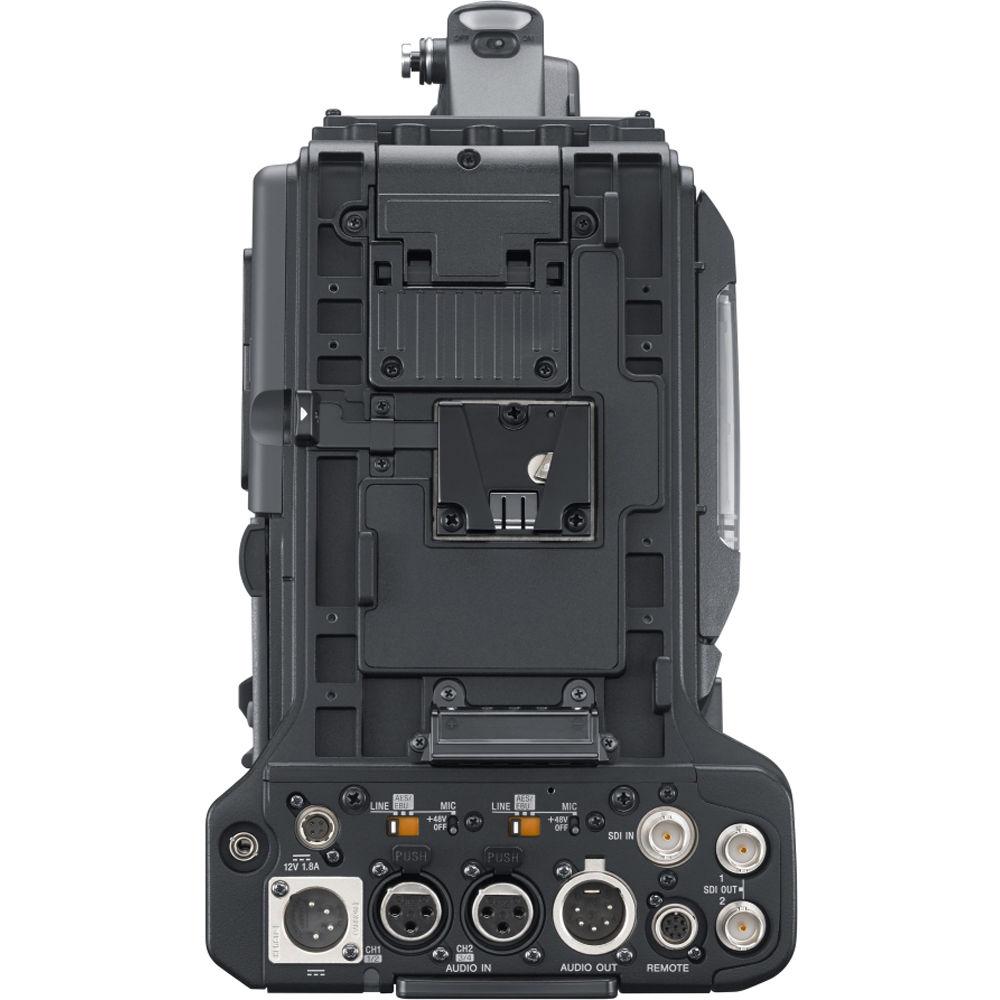

Product description The PXW-X400 Shoulder Camcorder Body from Sony features three-chip 2/3” Exmor CMOS image sensors to offer high picture quality and S/N ratio. The PXW-X400 Camcorder supports the Sony XAVC codec up to 1080/59.94p and 50p recording, in addition to MPEG and DVCAM formats. Its optimized and user-oriented body weight balance reduces the burden of shouldering this camcorder. In combination with the optional PWS-100RX1 Network RX Station, this camcorder enables simple yet high-quality wireless ENG workflow, providing QoS (Quality of Service)-based live streaming that will save considerable time.The PXW-X400 Camcorder provides a variety of AV and IT interfaces including two HD/SD-SDI, HDMI, composite outputs, RJ45, and USB3.0. Its built-in wireless function and an HD/SD-SDI input that supports a pool-feed function make it even more convenient for use. This user-oriented XDCAM Series camcorder satisfies a broad variety of ENG and studio applications. - Image Sensor
- Incorporating three 2/3" Full-HD Exmor CMOS sensor (1920 x 1080), this camcorder achieves high resolution, high sensitivity (F12 at 60 Hz / F13 at 50 Hz), low noise (62 dB), and a wide dynamic range to give more freedom of expression for creative shooting.
- Multiple Format Recording
- The PXW-X400 Camcorder offers a wide array of recording formats for a variety of applications including ENG, EFP, and studio use. Developed on MPEG-4 AVC/H.264 compression, the XAVC codec provides support for the Full HD format of XAVC long 4:2:2 1080/50p and 59.94p formats.
- Built-In Wireless Module and ONLINE Button
- To support effective wireless news production workflows, the PXW-X400 Camcorder incorporates a built-in wireless capability. It also provides an 'ONLINE' button, located on the inside panel, which lets you instantly switch on functions like Network Client Mode, Auto Proxy Upload, and Live Streaming.
- Embedded RJ45 Connector
- This Ethernet connector provides robust and fast connection to the network and can be utilized for file transfer, live streaming, and camera control from a web browser
- NFC (Near Field Communication) for Easy Wireless LAN Connection
- An NFC function supports easy connection for launching the CBM (Content Browser Mobile) application on a smartphone or tablet. This means you can skip cumbersome setup procedures.
- Optimized Weight Balance
- This camcorder minimizes your physical stress even during the longest shooting operations because its center of gravity has been moved to the back of the body to achieve optimized weight balance and stable image shooting.
- I/O Interface
- Dual 3G-SDI output enables simultaneous output of up to two 1080p50/59.94 signals. Multi-purpose audio input accepts both analog audio signals and AES/EBU digital audio signals. SDI input for pool-feed operation, so you can input and record 1.5GB HD/SD-SDI distributed signals from another camera. Each connector is located separately and, so there's no need for you to switch between input and output.
- Low Power Consumption
- This camcorder achieves power consumption as low as 22W in normal recording mode. This enables continuous recording operation for approximately 240 minutes with Sony's BP-GL95A (sold separately) standard-type battery.
- Supports Full HD OLED Viewfinder
- Equipped with two types of connectors for a viewfinder interface, the PXW-X400 Camcorder supports a variety of Sony's viewfinders, including the Full HD OLED HDVF-EL30 and HDVF-EL20, as well as the QHD LCD CBK-VF02. The HDVF-EL30 has a 960 x 540 resolution sub-LCD panel.
- ONLINE Button for Easy Network Connection
- The PXW-X400 Camcorder is equipped with a dedicated ONLINE button on the inside panel. This delivers simple one-touch operation of ON/OFF switching for three network connection functions.
- Content Browser Mobile (CBM)
- CBM application software controls the camcorder remotely and is available on both Android and iOS.
- Network Client Mode
- You can connect Sony's PWS-100RX1 Network RX Station (sold separately) to send proxy clips or live streaming with Sony's QoS technology. The PXW-X400 Camcorder can also be controlled remotely by the RX station.
- Auto Upload (Proxy)
- Clip files recorded on the camcorder can be transmitted via a network automatically when the recording is finished. XAVC 4:2:0 Long GOP clips are supported.
- Live Streaming
- This camcorder can transfer MPEG2-TS (UDP/RTP) to a third-party decoder
- Three-Color LED Indicator
- The ONLINE button indicates the status (Disabled, Ready, Enabled) in three ways (off, orange, blue).
- Sony's QoS Technology
- Sony's unique QoS (Quality of Service) technology minimizes risk of image quality degradation, image freeze, or audio disruption, and helps maintain video and audio integrity during communications. The PWS-100RX1 Network RX Station comes with Sony-original algorithms that automatically adjust bandwidths and buffer sizes to match the characteristics of wireless communications.
- Sony Advanced Streaming with QoS
- The Sony QoS Technology improves the clarity that's possible on a single 3G/4G/LTE cellular channel or your own wireless LAN network, or limited communication band of Ethernet. You get better pictures, even given the limitations of real-world networks. The endpoint of Sony's QoS streaming is the versatile PWS-100RX1 Receiver Station. 1
Please Note: Cellular streaming requires appropriate carrier dongle and service. close - Conventional MPEG2-TS Streaming
- For maximum flexibility, Sony's XDCAM wireless solutions also support conventional MPEG-TS streaming, so that you can stream to a wide range of receivers, including compatible third-party receivers and decoders. Sony wireless solutions will stream over a wireless LAN network or over a 3G/4G/LTE cellular network, with the appropriate carrier dongle and service. You can also enjoy wired streaming over Ethernet, using the embedded RJ45 connector, via a router/hub.
- Flexible File Transfer
- During field shooting news or other time-sensitive content, you can transfer files wirelessly so there's no need to wait for the delivery of physical media. The receiving server gets a bit-for-bit clone of the original camera file, with all the original audio, video, and metadata.
- Simultaneous Recording on Two SxS Cards
- The PXW-X400 Camcorder offers a simultaneous recording capability for peace-of-mind productions. Simultaneous recording is available on both SxS cards as a backup measure. This is within the same codec and with the same operating point in the recording formats such as XAVC-Intra, XAVC-Long, MPEG HD422, or MPEG HD (420). You can also achieve simultaneous recording with a proxy file in all combinations with the above formats using SD cards.
- GPS Functionality
- On activation, the built-in GPS receiver module records GPS data in an MXF file and a proxy file, and automatically imposes it on the live streaming signal. It is also useful for tracking shooting locations in post-production and when station-based staffs need to map a crew's location with the PWS-100RX1 Receiver for streaming.
- Flexible Camera System Operation
- The CA-FB70 Optical Fiber Camera Adapter or the CA-TX70 Digital Triax Camera Adapter (both sold separately) can be attached to the PXW-X400 Camcorder for live camera operation. The CA-FB70 Adapter enables the camcorder to transmit signals via an optical fiber cable up to 820' between the CA-FB70 and HXCU-FB70 Optical Fiber Camera Control Unit (CCU) with power and signal transmission. The CA-TX70 Adapter transmits signals via Triax cable up to 1968' between the CATX70 and HXCU-TX70 Digital Triax Camera Control Unit.
- RGB Color LCD Display
- The PXW-X400 Camcorder is equipped with an RGB color LCD display on the inside panel. In addition to thumbnail and menu displays, you can see and monitor video reproduction in QHD (960 x 540 pixels) resolution.
- Other Features
- Newly developed ALAC (Automatic Lens Aberration Compensation) feature decreases specific patterns of chromatic aberration caused by the lens. The camcorder supports user gamma and Focus Assist function for easier focusing on the viewfinder and provides a graphic bar indicator, while the viewfinder can indicate Waveform, Vector Scope, or Histogram. The Digital Extender function enables images to be digitally expanded two to four times in size without any loss of F-drop image sensitivity.
In the Box Sony PXW-X400 Shoulder Camcorder (Body Only) Shoulder Strap Cold Shoe Kit Wireless LAN USB Module (IFU-WLM3) for Sony VPL-E200 Series Projectors Limited 1-Year Warranty Spec sheet PDF 4.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-X400 Shoulder Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony PXW-X400 Shoulder Camcorder can be downloaded in PDF format at the link stated below.
Technical parametersSony PXW-X400 Specs | | | Image Sensor | 3-Chip 2/3" CMOS Sensor | | Effective Sensor Resolution | 1920 x 1080 (2.07 MP) | | Horizontal Resolution (TV Lines) | 1000 TV Lines or More | | Gain | -3 to 42 dB | | Signal-to-Noise Ratio | 62 dB | | Minimum Illumination | 0.013 lux | | | | Shutter Speed | 1/1/2 to 1/1/2000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SxS Card Slots
1 x SD (Unspecified Type) Card Slot | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | XAVC-I:
1920 x 1080p at 23.98/25/29.97 fps (89 to 112 Mb/s)
1280 x 720p at 50/59.94 fps (112 Mb/s)
XAVC-L:
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s) | | Variable Frame Rates | 1080p: 1 to 60 fps
720p: 1 to 60 fps | | | | Video Connectors | 1 x HDMI Output
1 x BNC (Composite) Output
2 x BNC (3G-SDI) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Headphone Output
1 x 5-Pin XLR Input/Output
1 x 5-Pin XLR Mic Level Input | | Other I/O | 1 x BNC Timecode Output
1 x RJ45 LAN
1 x 20-Pin Viewfinder
1 x 26-Pin Viewfinder
2 x USB Type-A
1 x USB Type-B
1 x 50-Pin
1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
1 x DE-15 Wireless Receiver
1 x BNC Genlock Input
1 x BNC Timecode Input | | | | Display Type | LCD | | Screen Size | 3.5" | | Screen Resolution | 960 x 540 | | | | Power Connectors | 1 x 2-Pin Light Output
1 x 4-Pin Hirose (11 to 17 VDC up to1.8 A) Output
1 x 4-Pin XLR (11 to 17 VDC) Input | | Power Consumption | 24 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 6 x 11 x 13" / 15 x 27 x 33 cm | | Weight | 7 lb / 3.6 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.4 x 14.3 x 9.7" |
