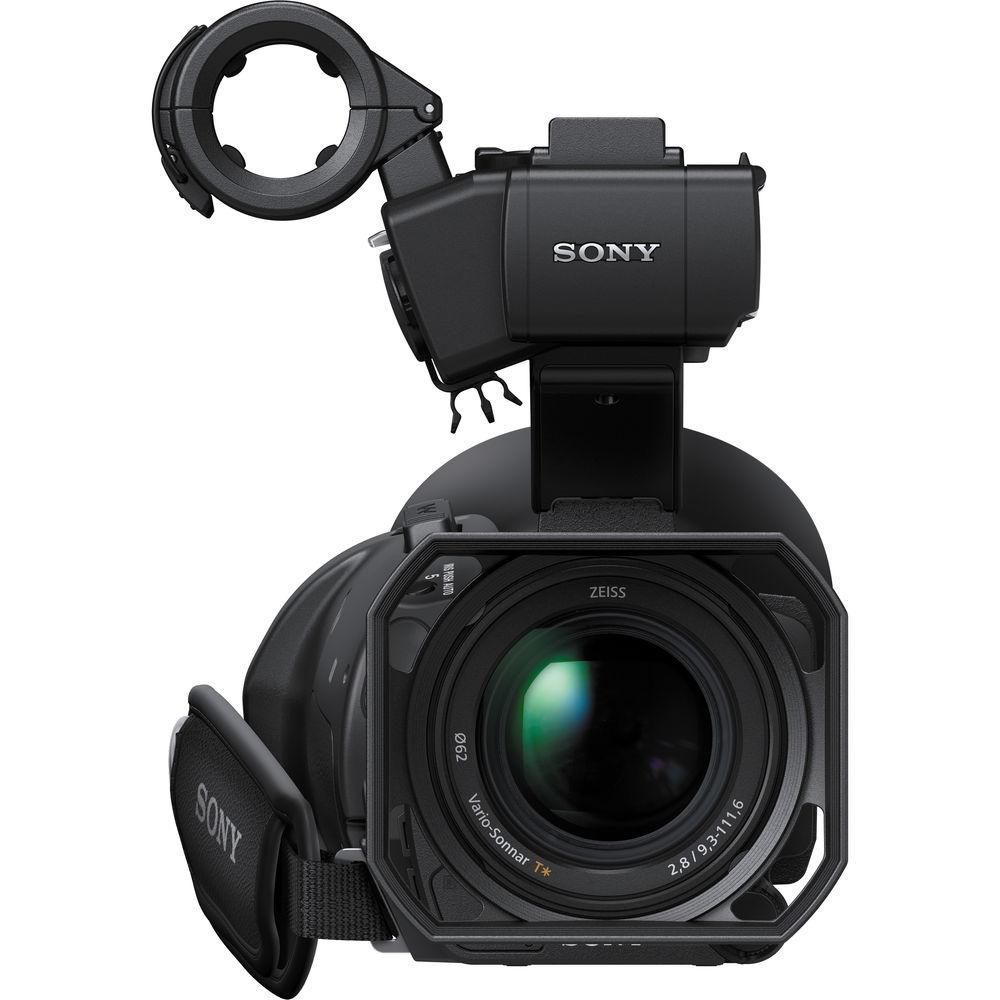

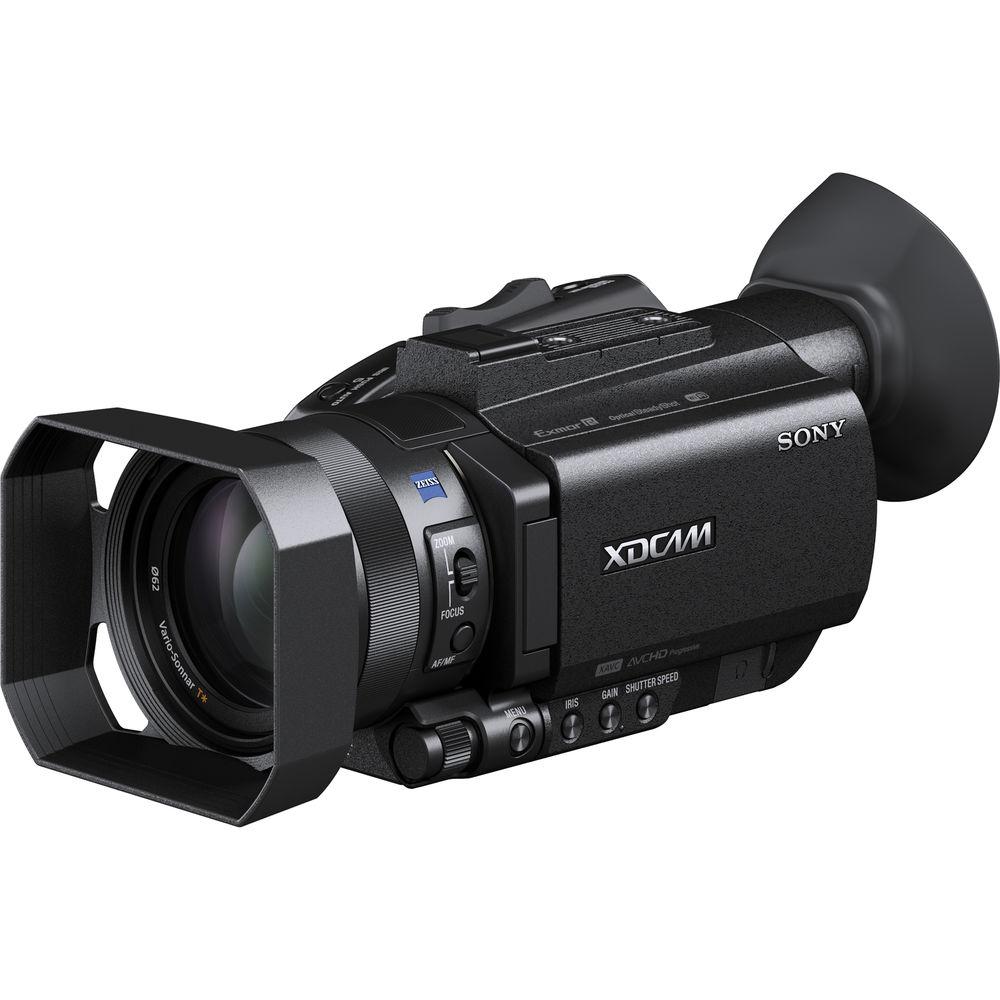

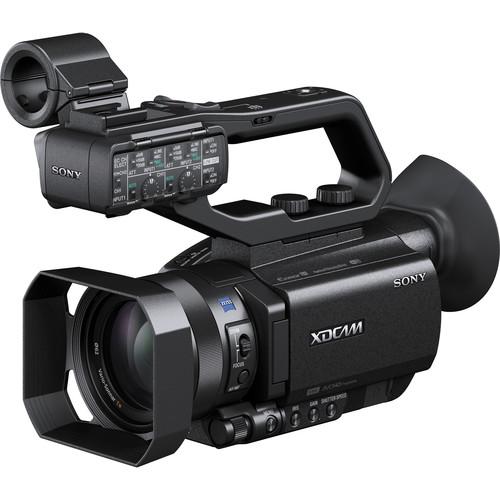

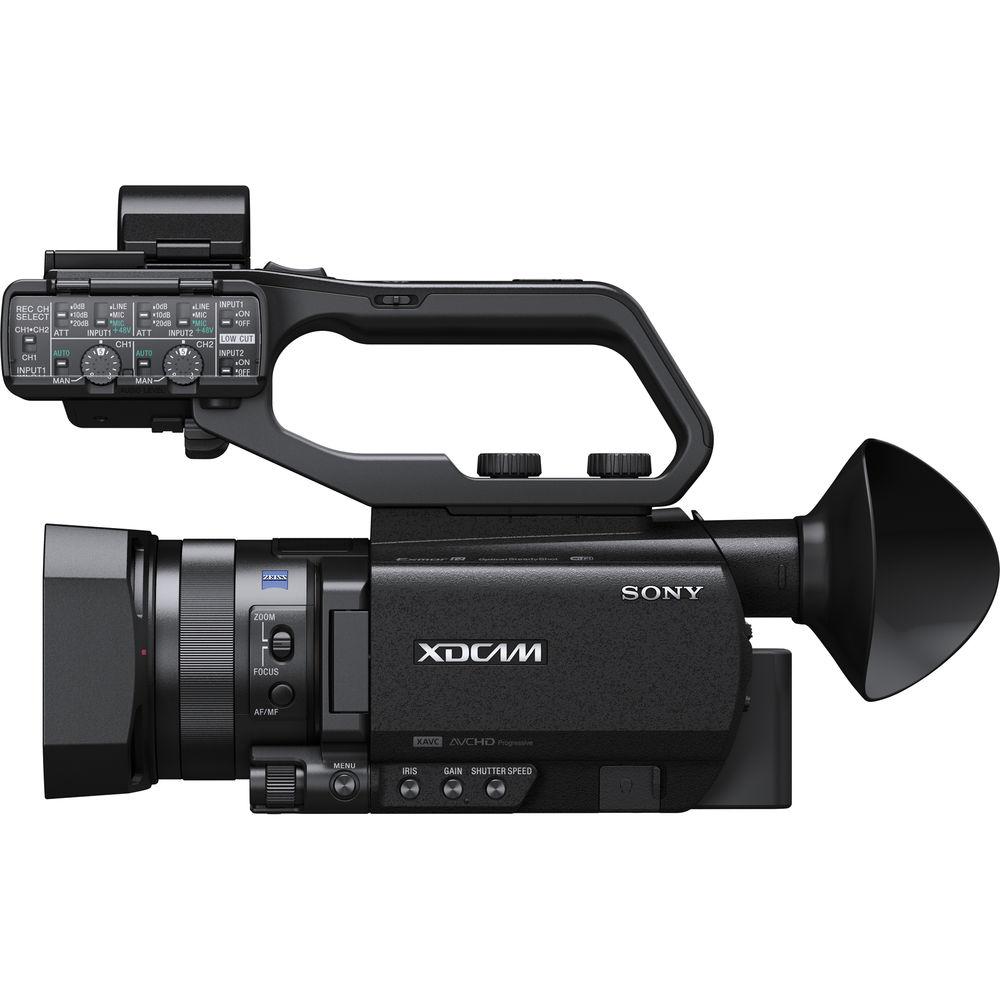

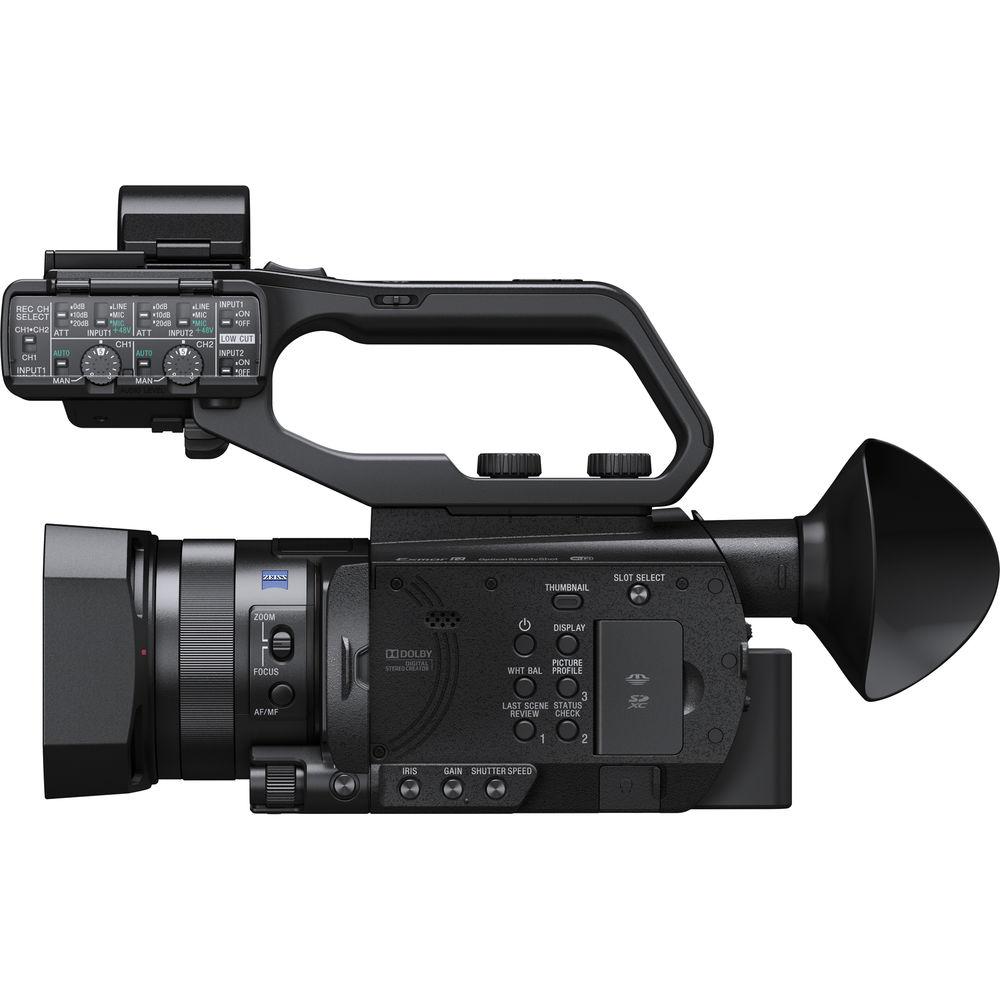

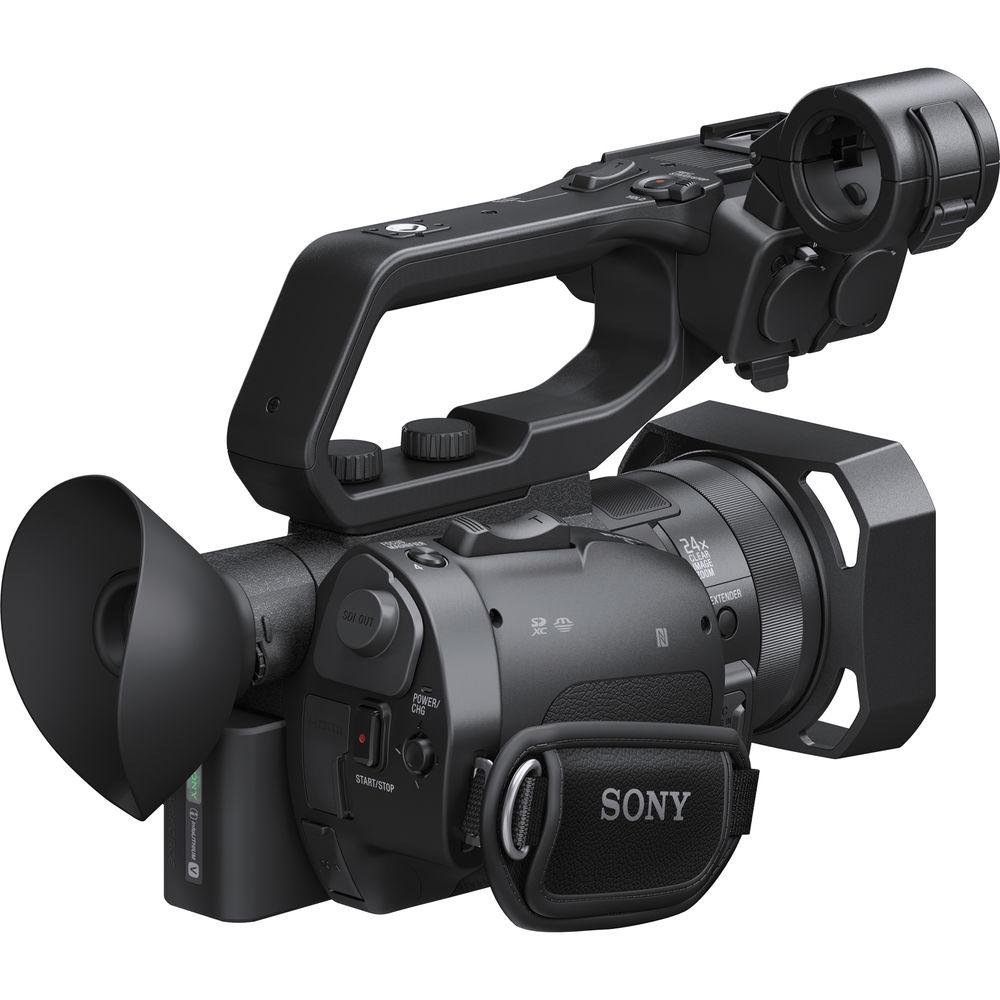

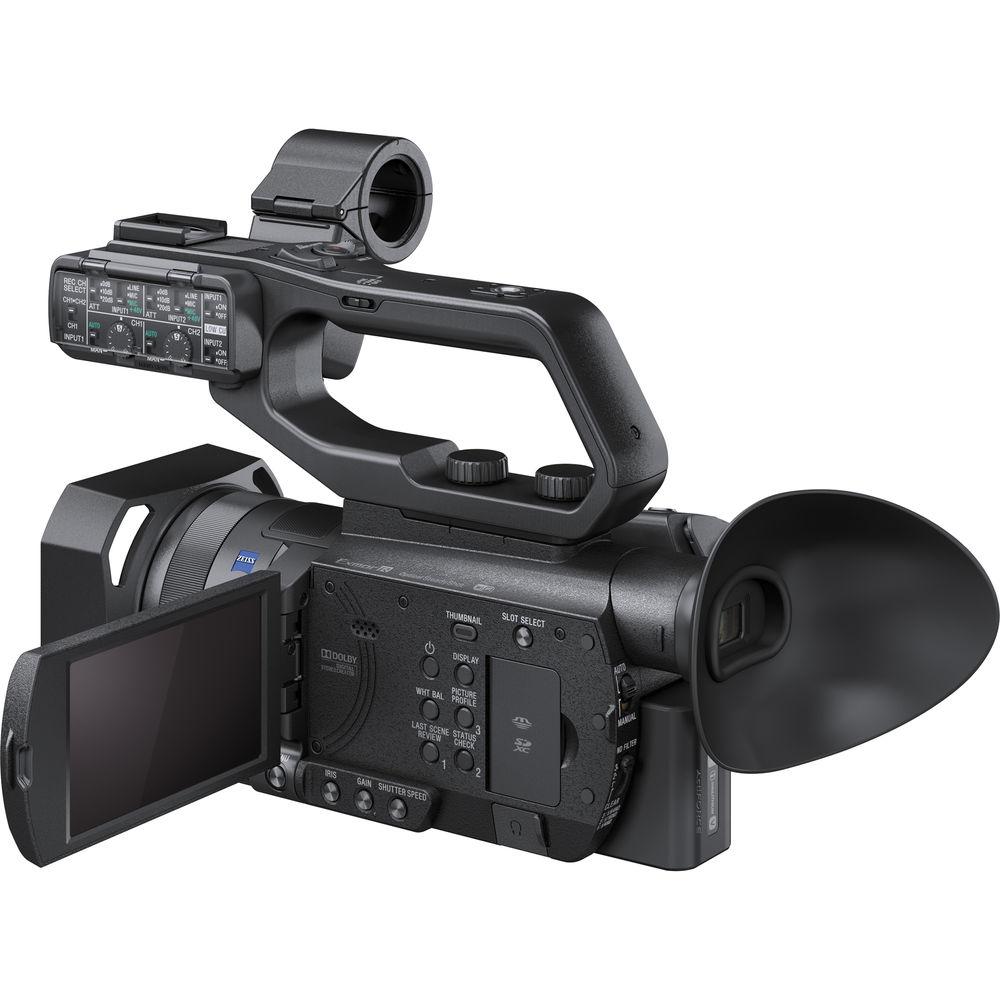

User Manual for Sony PXW-X70 Professional XDCAM Compact Camcorder Click to enlarge the picture
Contents of the user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Introducing the New Sony PXW-X70 XDCAM, a 4K-Ready Compact Camcorder Read More Sony's PXW-X70 Professional XDCAM Compact Camcorder is about the same size as a conventional 1/3" professional compact camcorder, but it features a 1" type sensor, which is larger than a super-16 sized sensor and more than eight times the size of a 1/3" sensor. The larger Exmor R sensor size provides for more cinematic appearing depth of field than a 1/3" sensor is capable of and features a back-side illuminated design for improved low light performance. It features an integrated 12x optical zoom lens with a manual lens ring for zoom/focus control, and a three level switchable ND filter. The top handle incorporates two 3-pin XLR inputs for recording audio from XLR microphones.
The camera records HD video using the XAVC Long-GOP codec with 4:2:2, 10-bit color sampling at 50 Mb/second, providing footage with a high data rate that is suitable for broadcast applications. Sony's Slow & Quick Motion is built-into the camera. The camera features two SD card slots, allowing simultaneous and relay recording, and both a 3G-SDI and an HDMI output. The camera supports control via Wi-Fi using smartphones or tablets and the optional Content Browser Mobile application. Planned upgrades will allow the camera to record in 4K UHD as well as add file transfer and streaming via Wi-Fi. - 4K Upgrade
- An optional upgrade via a license key (Sony part # CBKZ-X70FX) allows the camera to record 4K.
- The 1" type sensor features 14.2 million effective pixels on a sensor that is more than 8 times larger than a 1/3" type sensor. The larger size of the pixels allows them to gather more light compared to a 1/3" sensor. The Exmor R designation indicates the sensor features a back-side illuminated design, which allows more light to reach the sensor's photosites for increased light sensitivity and less noise in low light conditions.

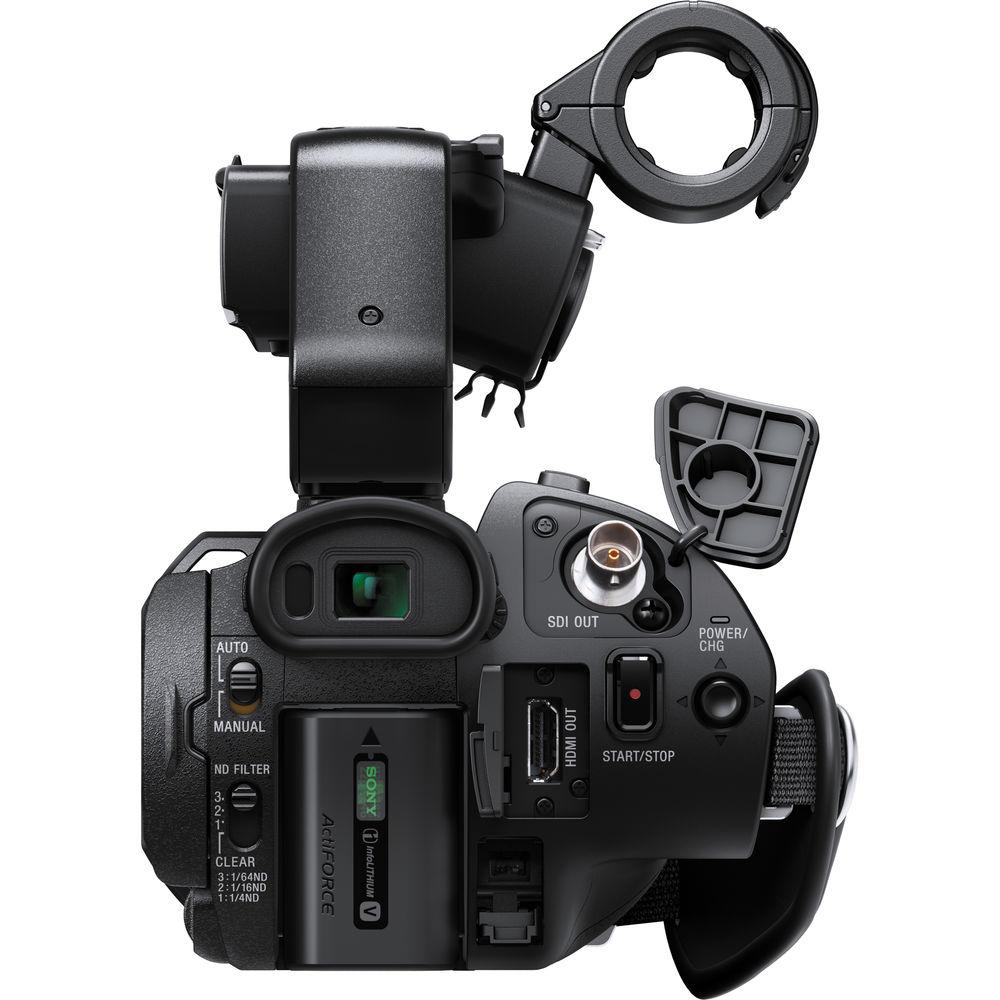

- The PXW-X70 is a compact camcorder that weighs less than 3 pounds including the XLR handle unit, battery (NP-FV70), lens hood and large eye-cup. It features professional interfaces including 3G-SDI and HDMI output connectors, an XLR handle unit with zoom lever, a manual lens ring that can control zoom and focus, and an ergonomic palm grip with large zoom lever. Its records video to two SD memory card slots that can be used for simultaneous and relay recording and to backup files.
- The camera is capable of using Sony's Slow & Quick motion recording, which allows you to shoot at selectable frame rates (1, 2, 4, 8, 15, 30, 60 / 1, 2, 3, 6, 12, 25, 50.)

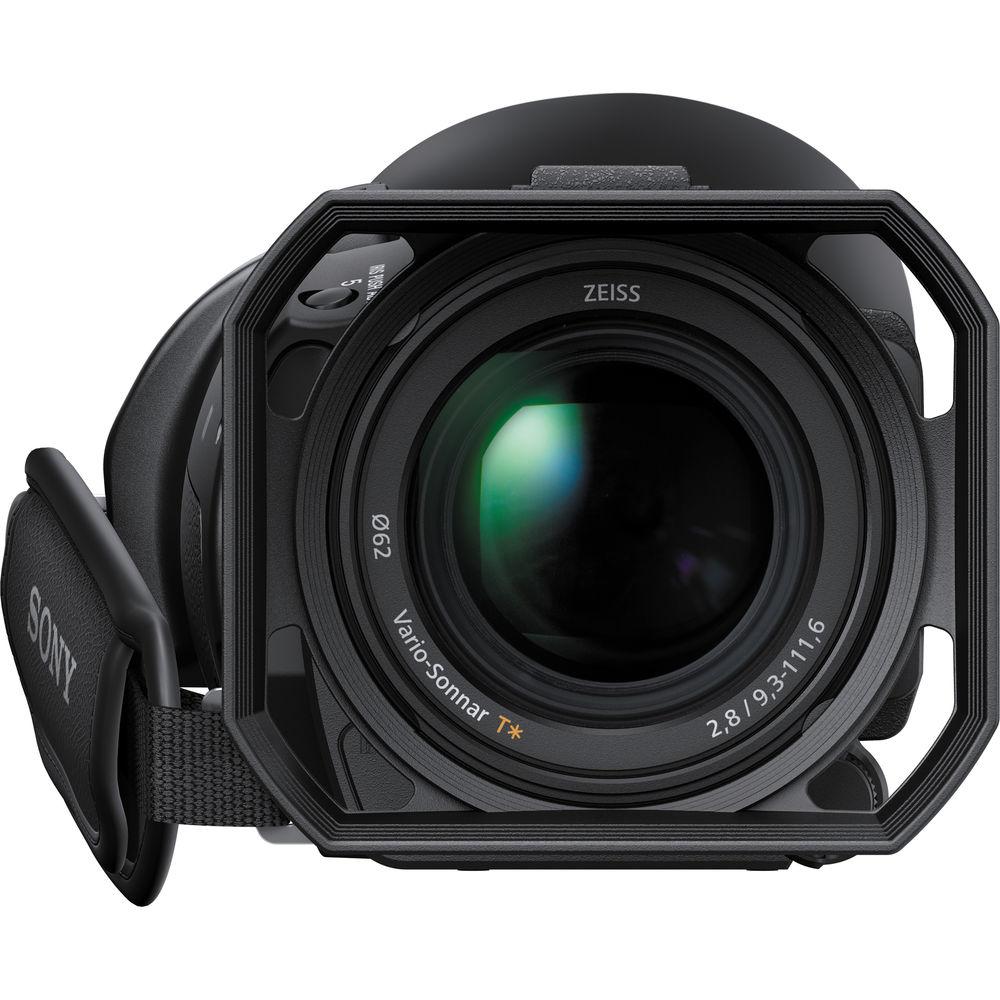

- The integrated 12x optical zoom lens incorporates a three-level switchable ND filter, with 24x clear Image Zoom technology that retains the quality of the HD image, and a digital extender allows you to zoom up to 48x.
- Multiple recording choices are available depending on application, including XAVC, AVCHD, and DV file-based recording. The PXW-X70 records in XAVC using the MXF file format, which efficiently compresses full HD (1920 x 1080) resolution using the MPEG-4 AVC/H.264 CODEC. Color sampling is 4:2:2 10-bit with high-efficiency Long-GOP compression at 50 Mbps, 35 Mbps, or 25 Mbps for broadcast quality images.
- Supporting Near Field Communication functions, the camera allows easy, one-touch wireless LAN connection to a smartphone or tablet, while the Content Browser Mobile application allows confirmation of shot angles and operation of the camcorder by remote, including spot focus and iris adjustment.
UPC: 027242884649 In the Box Sony PXW-X70 Professional XDCAM Compact Camcorder XLR Handle Unit with Microphone Holder Lens Hood Lens Cap Eyecup Accessory Shoe Kit USB Cable Rechargeable Battery Pack (NP-FV70) AC Adapter AC-L200D AC Power Cord Wireless Remote Commander (RMT-845) CR2025 Battery Limited 1-Year Warranty Guides & Manuals wqqqxbebfttrfzyzveafdctuwtffcsdwuxyey More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder can be downloaded in PDF format at the link stated below.
Technical parametersSony PXW-X70 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 20.00 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | White Balance Range | 2300 to 15,000K | | | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm | | Max Digital Zoom | 48x | | Maximum Aperture | f/2.8 to 4.5 | | Filter Size | 62 mm | | | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SD (Unspecified Type) Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | XAVC-L:
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output | | Audio Connectors | 2 x 3-Pin XLR Mic Level Input
1 x 1/8" (3.5 mm) Stereo Input | | Wireless Interfaces | Wi-Fi | | | | EVF Display Type | OLED | | Screen Size | .39" | | EVF Resolution | 1,440,000 Dots | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 1 x Multi-Interface Shoe | | Dimensions | 4.8 x 4.1 x 10.8" / 120.7 x 103.5 x 274.3 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 5.13 lb | | Box Dimensions (LxWxH) | 10.2 x 9.65 x 6.0" |
