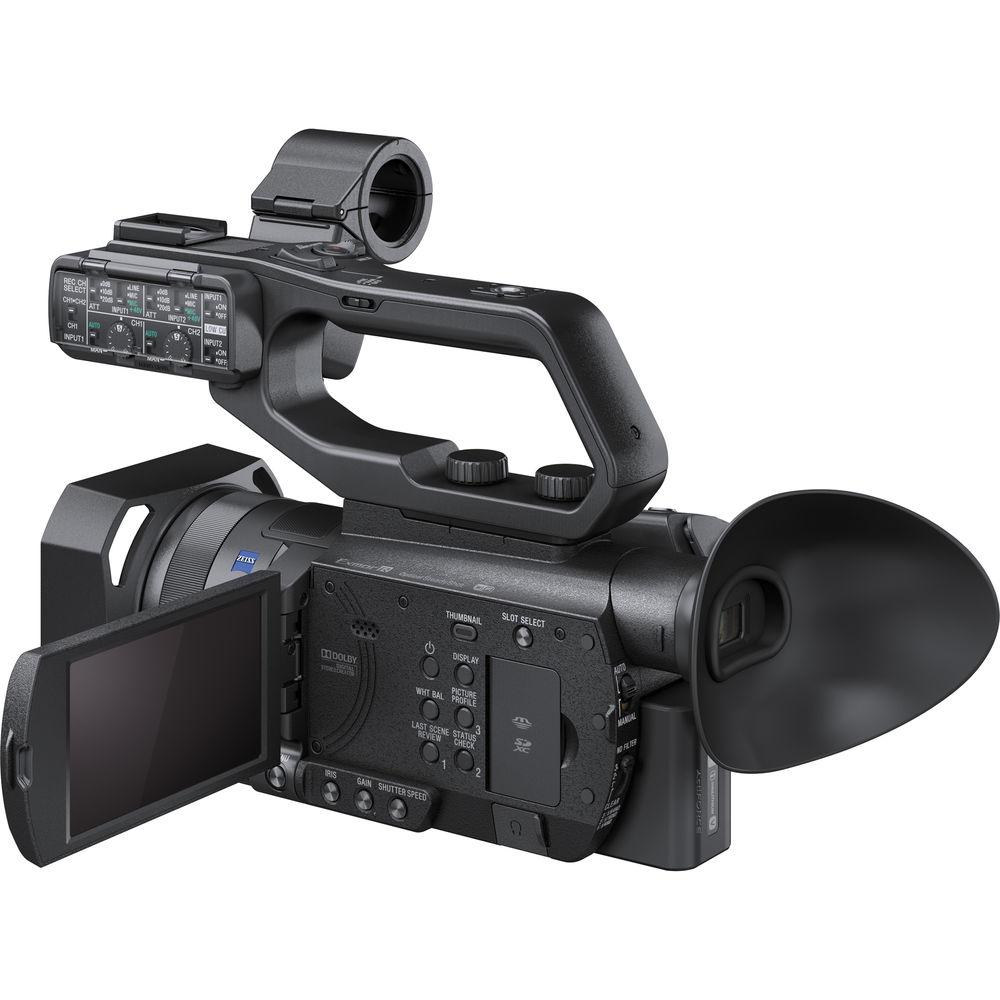

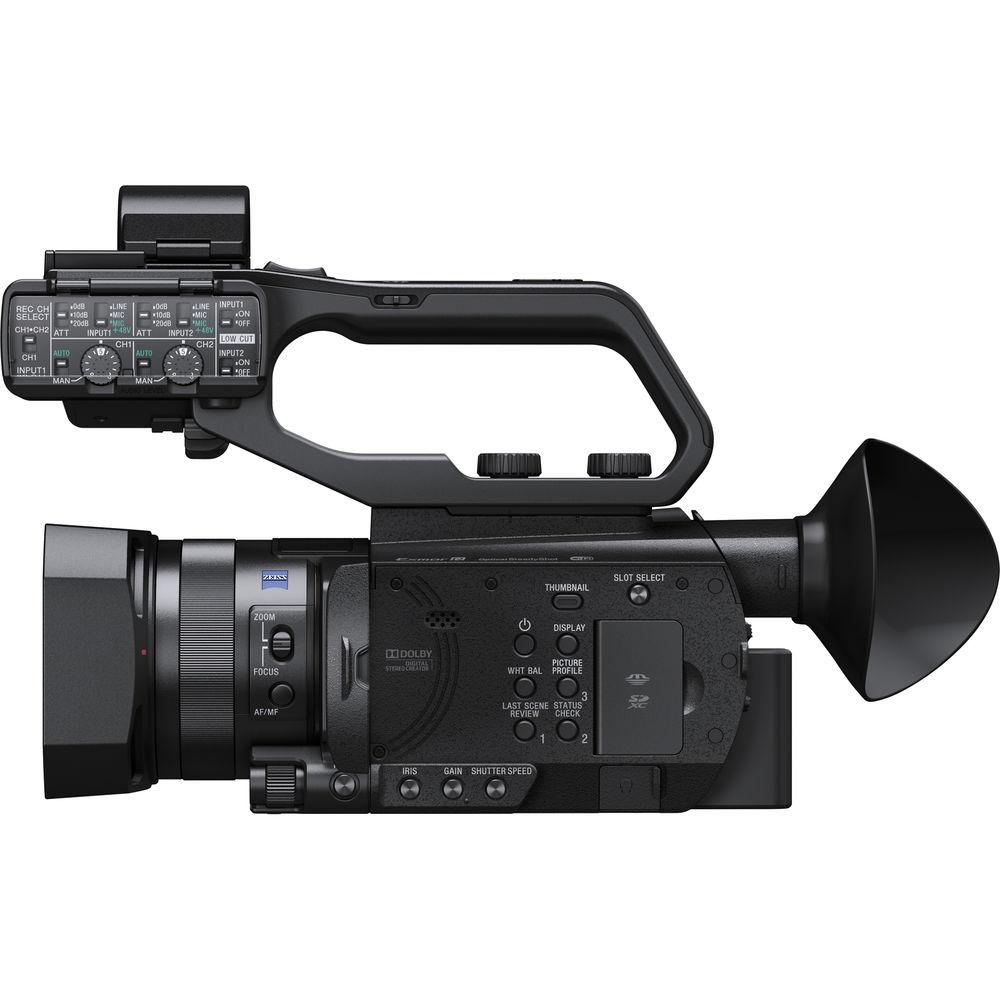

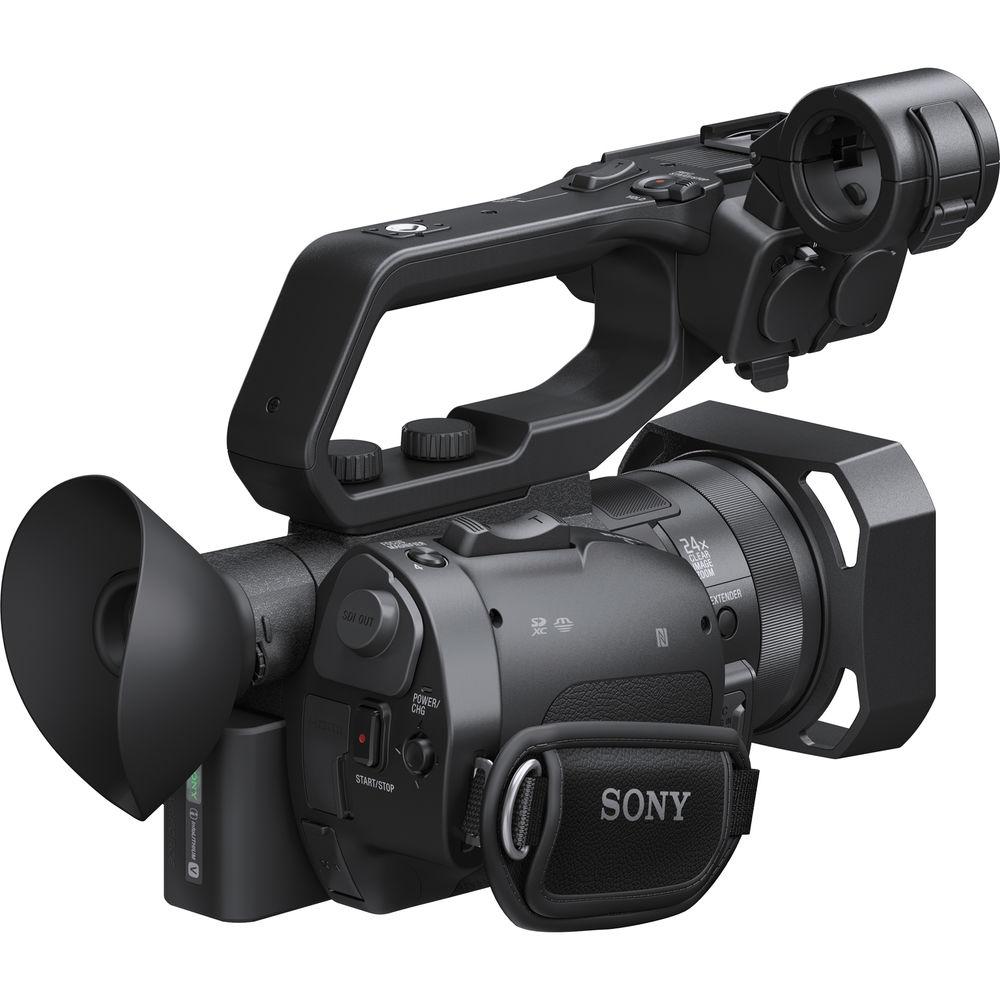

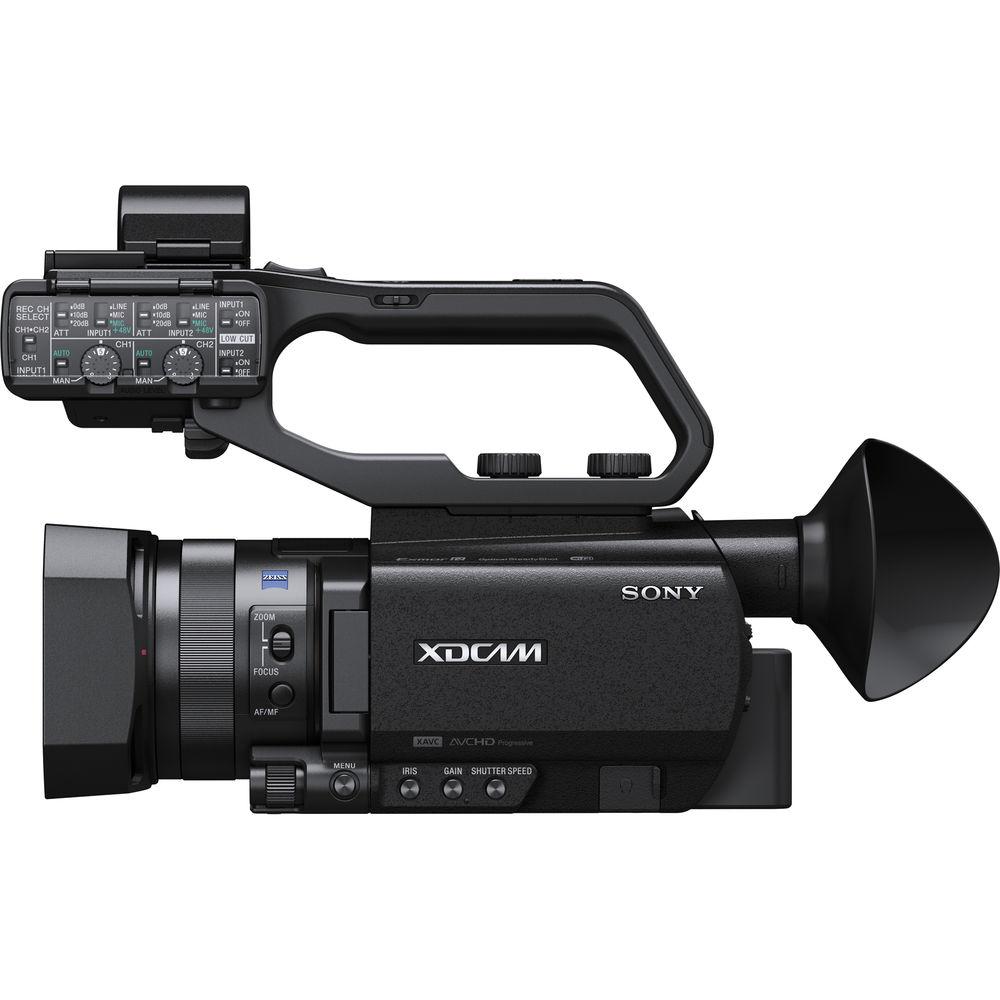

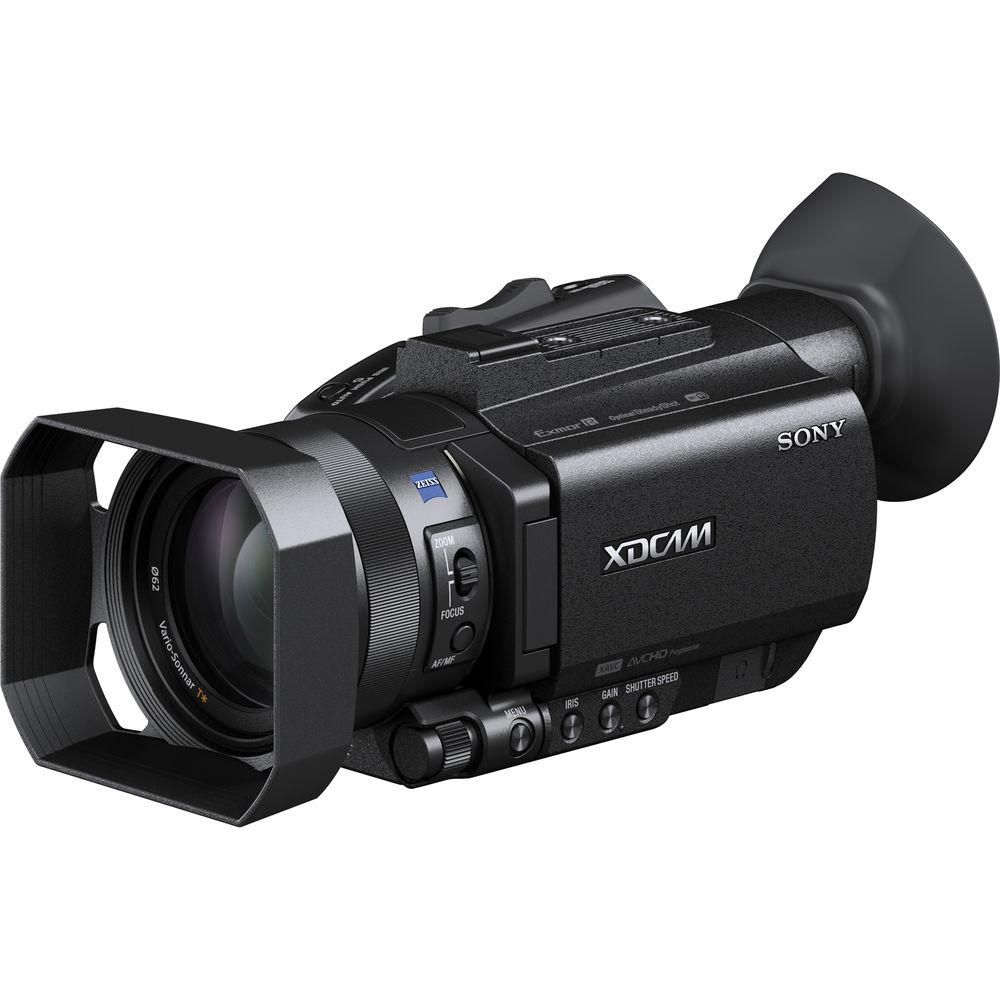

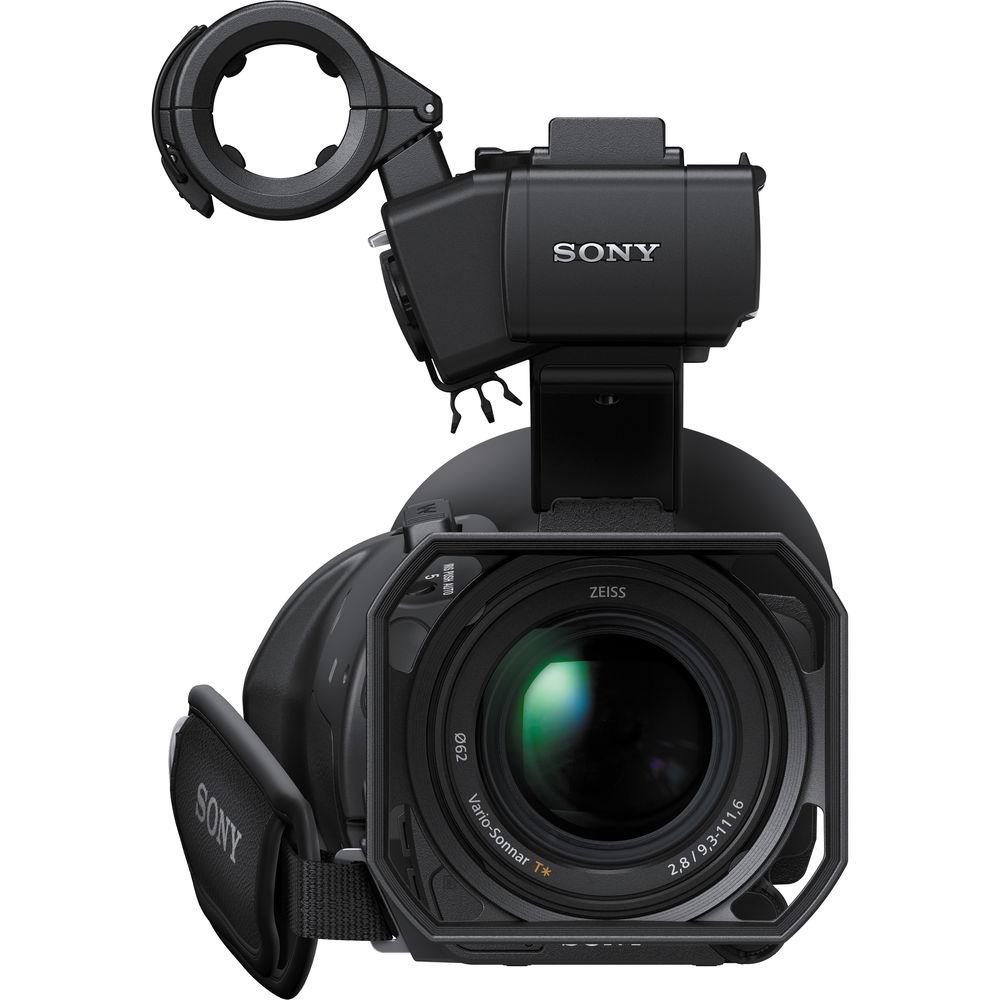

Product description Introducing the New Sony PXW-X70 XDCAM, a 4K-Ready Compact Camcorder Read More The Sony PXW-X70 Professional XDCAM Compact Camcorder (PAL) is about the same size as a conventional 1/3" professional compact camcorder, but it features a 1" sensor, which is larger than a super-16 sensor and more than eight times the size of a 1/3" sensor. The larger Exmor R sensor size provides for more cinematic-appearing depth of field than a 1/3" sensor is capable of, and features a backside illuminated design for improved low-light performance. It features an integrated 12x optical zoom lens with a manual lens ring for zoom/focus control, and a three-level switchable ND filter. The top handle incorporates two 3-pin XLR inputs for recording audio from XLR microphones.
The camera records HD video using the XAVC Long-GOP codec with 4:2:2, 10-bit color sampling at 50 Mbps, providing footage with a high data rate that is suitable for broadcast applications. Sony's Slow & Quick Motion is built into the camera. The camera features two SD card slots, allowing simultaneous and relay recording, and offers both a 3G-SDI and an HDMI output. The camera supports control via Wi-Fi using smartphones, tablets, and the optional Content Browser Mobile application. Optional upgrades allow the PXW-X70 to record in 4K UHD (Sony CBKZ-X70FX, sold separately), as well as add file transfer and streaming via Wi-Fi. - 4K Upgrade
- An optional upgrade via a license key (Sony# CBKZ-X70FX) allows the camera to record 4K.
- The 1" sensor features 14.2 million effective pixels on a sensor that is more than eight times larger than a 1/3" type sensor. The larger size of the pixels allows them to gather more light compared to a 1/3" sensor. The Exmor R designation indicates the sensor features a backside illuminated design, which allows more light to reach the sensor's photosites for increased light sensitivity and less noise in low-light conditions.

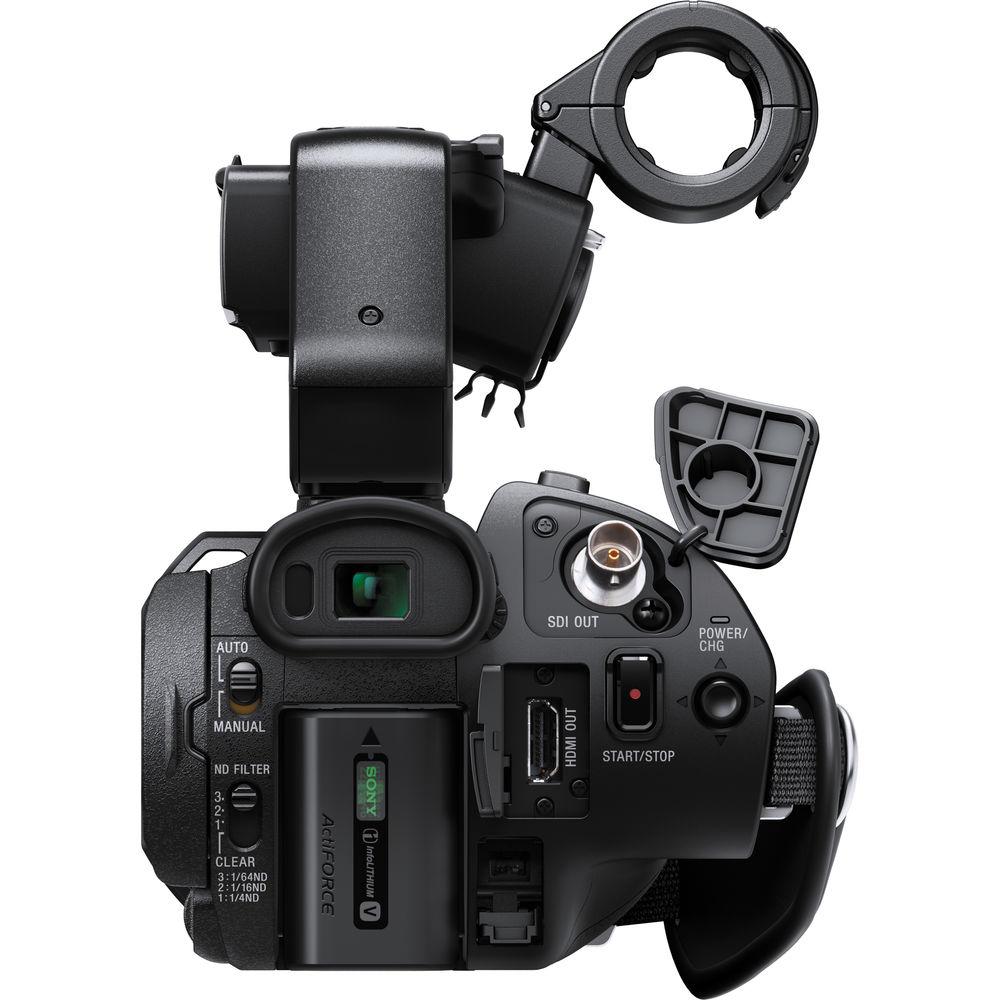

- The PXW-X70 weighs approximately three pounds (including the XLR handle unit, NP-FV70 battery, lens hood, and large eyecup). It features professional interfaces including 3G-SDI and HDMI output connectors, an XLR handle unit with zoom lever, a manual lens ring that can control zoom and focus, and an ergonomic palm grip with large zoom lever. It records video to two SD memory card slots that can be used for simultaneous or relay recording, and to back up files.
- The camera is capable of using Sony's Slow & Quick Motion recording, which allows you to shoot at selectable frame rates (1, 2, 4, 8, 15, 30, 60 / 1, 2, 3, 6, 12, 25, 50).

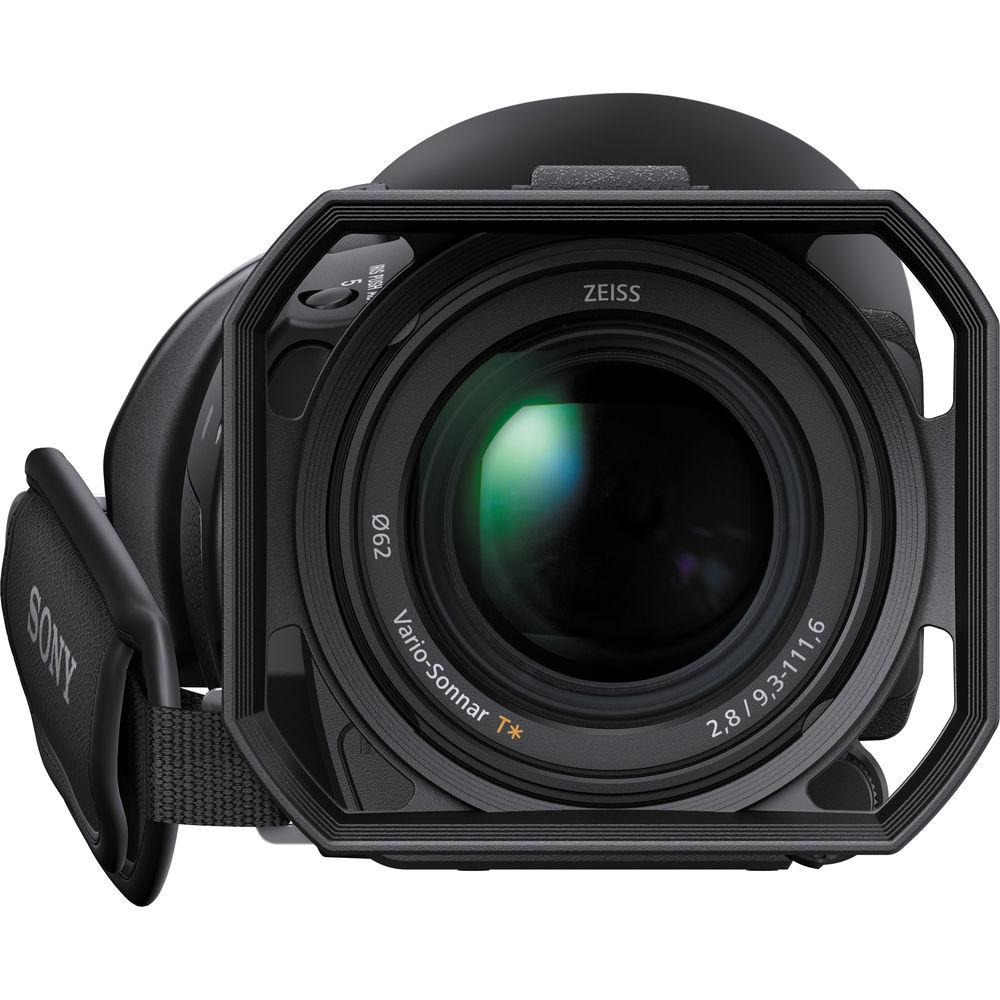

- The integrated 12x optical zoom lens incorporates a three-level switchable ND filter, with 24x Clear Image Zoom technology that retains the quality of the HD image, and a digital extender that allows you to zoom up to 48x.
- Multiple recording choices are available depending on the application, including XAVC, AVCHD, and DV file-based recording. The PXW-X70 records in XAVC using the MXF file format, which efficiently compresses Full HD (1920 x 1080) resolution using the MPEG-4 AVC/H.264 codec. Color sampling is 4:2:2 10-bit with high-efficiency, Long-GOP compression at 50 Mbps, 35 Mbps, or 25 Mbps for broadcast quality images.
- Supporting Near Field Communication (NFC) functions, the camera allows easy, one-touch wireless LAN connection to a smartphone or tablet, while the Content Browser mobile application allows confirmation of shot angles and operation of the camcorder by remote, including spot focus and iris adjustment.
In the Box Sony PXW-X70 Professional XDCAM Compact Camcorder (PAL) XLR Handle Unit with Microphone Holder Lens Hood Lens Cap Eyecup Accessory Shoe Kit USB Cable NP-FV70 V-Series Rechargeable Battery Pack (1960mAh, 6.8-8.4V) AC Adapter AC-L200D AC Power Cord Wireless Remote Commander (RMT-845) CR2025 Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PXW-X70E Specs | Sensor | 1" Exmor R CMOS
20 MP Sensor
14.2 MP Effective pixels | | Lens | 12x Optical zoom
24x Clear Image Zoom
48x With digital extender
Aperture: f/2.8 - f/4.5
Focal Length: 9.3 to 111.6mm (Equivalent to 29 to 348mm on 16:9 35mm lens) | | Filter | Built-In Optical
1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND | | Filter Size | Accepts 62 mm screw-in filters | | Video Sampling | 4:2:2 10-bit | | Gain | -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC | | White Balance | Preset (Indoor: 3200K / Outdoor: 5600K±7 steps / Color Temperature Set Range: 2300-15000K)
One-push A, B, Auto selectable | | Compression | MPEG-4 AVC/H.264
Long-GOP
50
35
25 | | Viewfinder | Built-In LCD: 3.5"-type LCD (approx. 1.56 M dots)
Viewfinder: 0.39"-type OLED (approx. 1.44 M dots) | | Recording Format | XAVC Long
XAVC-L 50: VBR, maximum 50 Mbps, MPEG-4 H.264/AVC- LPCM 24-bit, 48 kHz, two channels
XAVC-L 35: VBR, maximum 35 Mbps, MPEG-4 H.264/AVC- LPCM 24-bit, 48 kHz, two channels
XAVC-L 25: VBR, maximum 25 Mbps, MPEG-4 H.264/AVC- LPCM 24-bit, 48 kHz, two channels
AVCHD
VBR: Maximum 28 Mbps, MPEG-4 H.264/AVC
LPCM: 24-bit, 48 kHz, two channels
DVCAM
CBR: 25 Mbps
LPCM: 16-bit, 48 kHz, two channels | | Recording Frame Rate | XAVC-L 50
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
XAVC-L 35
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
XAVC-L 25
1920 x 1080i: 59.94/50
AVCHD
1920 x 1080p: 59.94/50/29.97/23.98/25
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
DV
720x576i: 50
720x480i: 59.94 | | Recording/Playback Time | XAVC-L
LPCM 2ch 50 Mbps: approx. 120 minutes with 64 GB memory card
LPCM 2ch 35 Mbps: approx. 170 minutes with 64 GB memory card
LPCM 2ch 25 Mbps: approx. 220 minutes with 64 GB memory card
AVCHD
LPCM 2ch PS Mode: approx. 290 minutes with 64 GB memory card; 145 minutes with 32 GB memory card
LPCM 2ch FX Mode: approx. 340 minutes with 64 GB memory card; 170 minutes with 32 GB memory card
LPCM 2ch FH Mode: approx. 450 minutes with 64 GB memory card; 225 minutes with 32 GB memory card
DV
Approx. 280 minutes with 64 GB memory card; 140 minutes with 32 GB memory card | | Outputs | 1 x 3G-SDI
1 x HDMI
1 x Multi/Micro USB (Requires optional breakout cable) | | Mic Input | 2 x XLR 3-pin, female
1 x 3.5 mm Stereo mini jack with plug-in power | | Accessory Shoe | 1 x Multi Interface Shoe | | Media Card Slots | 2 x SDXC | | Wireless | NFC
Wireless LAN | | Power Consumption | Approx. 5.5 W (While recording with viewfinder at 50 Mbps, XAVC HD 1080i60)
Approx. 5.8 W (While recording with LCD at 50 Mbps, XAVC HD 1080i60) | | Battery Operating Time | Approx. 120 minutes (Using NP-FV70 battery, recording with LCD, XAVC 1080i60, 50 Mbps) | | Temperature | Operating
32 to 104°F / 0 to 40°CStorage
-4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 4.8 x / 4.1 x 10.8" / 120.7 x 103.5 x 274.3 mm (With lens hood and eyecup) | | Weight | 3.1 lb / 1.4 kg (Including camera body, XLR handle unit, NP-FV70 battery, lens hood, and large eyecup) | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 10.0 x 9.5 x 6.0" |
