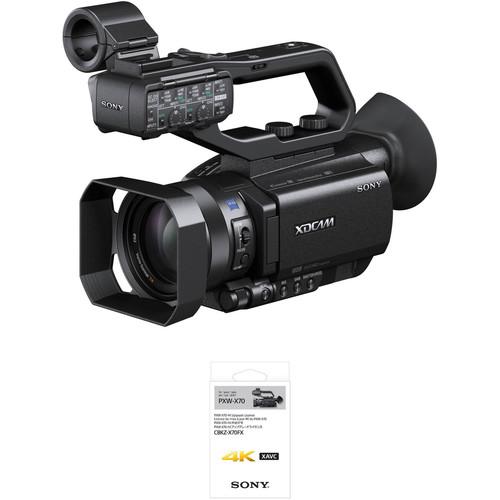

User Manual for Sony PXW-X70 Professional XDCAM Compact Camcorder with 4K Upgrade License Click to enlarge the picture
Contents of the user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
|
User manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Introducing the New Sony PXW-X70 XDCAM, a 4K-Ready Compact Camcorder Read More This B&H Kit provides you a Sony PXW-X70 camcorder with the 4K license upgrade. This provides you with a camera that features a 1"-type sensor and the capability to capture footage in multiple formats including DV, HD, and 4K (UHD). Don't let the compact size fool you, the features and functionality packed into this kit make it suitable for use as an A camera, and not just a glorified B camera. And, this is before you activate the 4K upgrade.
The camera features Slow and Quick motion, which allows you to capture footage shot at a variety of frame rates in camera, as opposed to interpolating frames in post. The 3G-SDI and HDMI outputs allow the camera to be at home in both a professional infrastructure as well as a more consumer-oriented production. The XLR audio inputs support line, mic, and mic plus 48, allowing you to work with professional mics. Wireless LAN control is supported from select mobile devices. - Sony PXW-X70 Professional XDCAM Compact Camcorder Sony's PXW-X70 Professional XDCAM Compact Camcorder is about the same size as a conventional 1/3" professional compact camcorder, but it features a 1" type sensor, which is larger than a super-16 sized sensor and more than eight times the size of a 1/3" sensor. The larger Exmor R sensor size provides for more cinematic appearing depth of field than a 1/3" sensor is capable of and features a back-side illuminated design for improved low light performance. It features an integrated 12x optical zoom lens with a manual lens ring for zoom/focus control, and a three level switchable ND filter. The top handle incorporates two 3-pin XLR inputs for recording audio from XLR microphones.
The camera records HD video using the XAVC Long-GOP codec with 4:2:2, 10-bit color sampling at 50 Mb/second, providing footage with a high data rate that is suitable for broadcast applications. Sony's Slow & Quick Motion is built-into the camera. The camera features two SD card slots, allowing simultaneous and relay recording, and both a 3G-SDI and an HDMI output. The camera supports control via Wi-Fi using smartphones or tablets and the optional Content Browser Mobile application. Planned upgrades will allow the camera to record in 4K UHD as well as add file transfer and streaming via Wi-Fi. - 4K Upgrade
- An optional upgrade via a license key (Sony part # CBKZ-X70FX) allows the camera to record 4K.
- The 1" type sensor features 14.2 million effective pixels on a sensor that is more than 8 times larger than a 1/3" type sensor. The larger size of the pixels allows them to gather more light compared to a 1/3" sensor. The Exmor R designation indicates the sensor features a back-side illuminated design, which allows more light to reach the sensor's photosites for increased light sensitivity and less noise in low light conditions.
- The PXW-X70 is a compact camcorder that weighs less than 3 pounds including the XLR handle unit, battery (NP-FV70), lens hood and large eye-cup. It features professional interfaces including 3G-SDI and HDMI output connectors, an XLR handle unit with zoom lever, a manual lens ring that can control zoom and focus, and an ergonomic palm grip with large zoom lever. Its records video to two SD memory card slots that can be used for simultaneous and relay recording and to backup files.
- The camera is capable of using Sony's Slow & Quick motion recording, which allows you to shoot at selectable frame rates (1, 2, 4, 8, 15, 30, 60 / 1, 2, 3, 6, 12, 25, 50.)
- The integrated 12x optical zoom lens incorporates a three-level switchable ND filter, with 24x clear Image Zoom technology that retains the quality of the HD image, and a digital extender allows you to zoom up to 48x.
- Multiple recording choices are available depending on application, including XAVC, AVCHD, and DV file-based recording. The PXW-X70 records in XAVC using the MXF file format, which efficiently compresses full HD (1920 x 1080) resolution using the MPEG-4 AVC/H.264 CODEC. Color sampling is 4:2:2 10-bit with high-efficiency Long-GOP compression at 50 Mbps, 35 Mbps, or 25 Mbps for broadcast quality images.
- Supporting Near Field Communication functions, the camera allows easy, one-touch wireless LAN connection to a smartphone or tablet, while the Content Browser Mobile application allows confirmation of shot angles and operation of the camcorder by remote, including spot focus and iris adjustment.
UPC: 027242884649 - Sony 4K Upgrade License Key for Sony PXW-X70 The 4K Upgrade License Key for Sony PXW-X70 provides support for QFHD shooting at 30/25/24p. This upgrade expands the shooting capabilities of your PXW-X70, allowing you to shoot with the same camera you are used to, but now in 4K as well as Full HD. This upgrade is only compatible with PXW-X70 cameras that are purchased from authorized dealers in the USA.
- 4K Capture
- This firmware allows your camera to capture images at 4K resolution, as well as the Full HD video your camera was originally capable of shooting.
- Firmware version 2.0 is required for use of the Upgrade License.
- This upgrade is only compatible with PXW-X70 cameras that are purchased from authorized dealers in the USA and are for the USA market; it does not work with non-USA cameras.
UPC: 027242892026 In the Box - PXW-X70 Professional XDCAM Compact Camcorder
- XLR Handle Unit with Microphone Holder
- Lens Hood
- Lens Cap
- Eyecup
- Accessory Shoe Kit
- USB Cable
- Rechargeable Battery Pack (NP-FV70)
- AC Adapter AC-L200D
- AC Power Cord
- Wireless Remote Commander (RMT-845)
- CR2025 Battery
- Limited 1-Year Warranty
- 4K Upgrade License Key for Sony PXW-X70
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder with 4K Upgrade License in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony PXW-X70 Professional XDCAM Compact Camcorder
| | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 20.00 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | White Balance Range | 2300 to 15,000K | | | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm | | Max Digital Zoom | 48x | | Maximum Aperture | f/2.8 to 4.5 | | Filter Size | 62 mm | | | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SD (Unspecified Type) Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | XAVC-L:
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output | | Audio Connectors | 2 x 3-Pin XLR Mic Level Input
1 x 1/8" (3.5 mm) Stereo Input | | Wireless Interfaces | Wi-Fi | | | | EVF Display Type | OLED | | Screen Size | .39" | | EVF Resolution | 1,440,000 Dots | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 1 x Multi-Interface Shoe | | Dimensions | 4.8 x 4.1 x 10.8" / 120.7 x 103.5 x 274.3 mm | | Weight | 3 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 10.2 x 9.65 x 6.0" | - Sony 4K Upgrade License Key for Sony PXW-X70
| | | Box Dimensions (LxWxH) | 5.0 x 3.05 x 0.5" |
