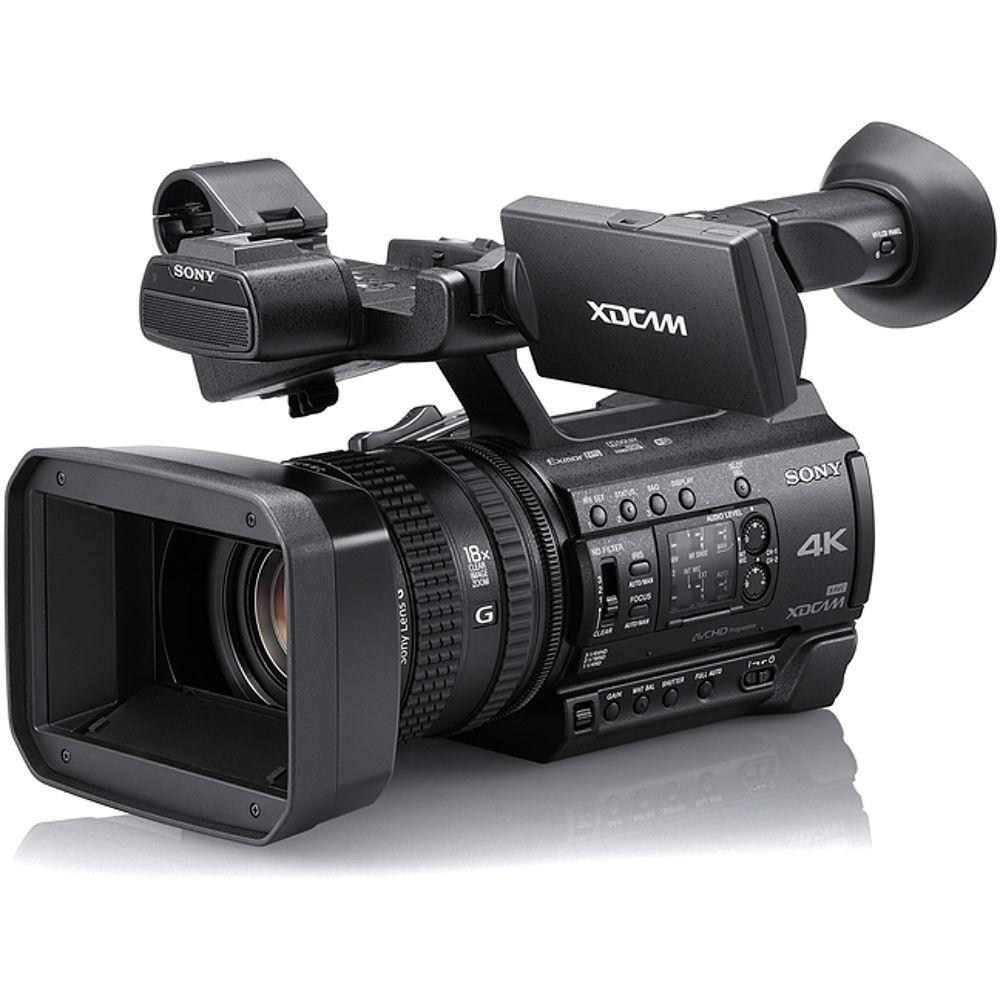

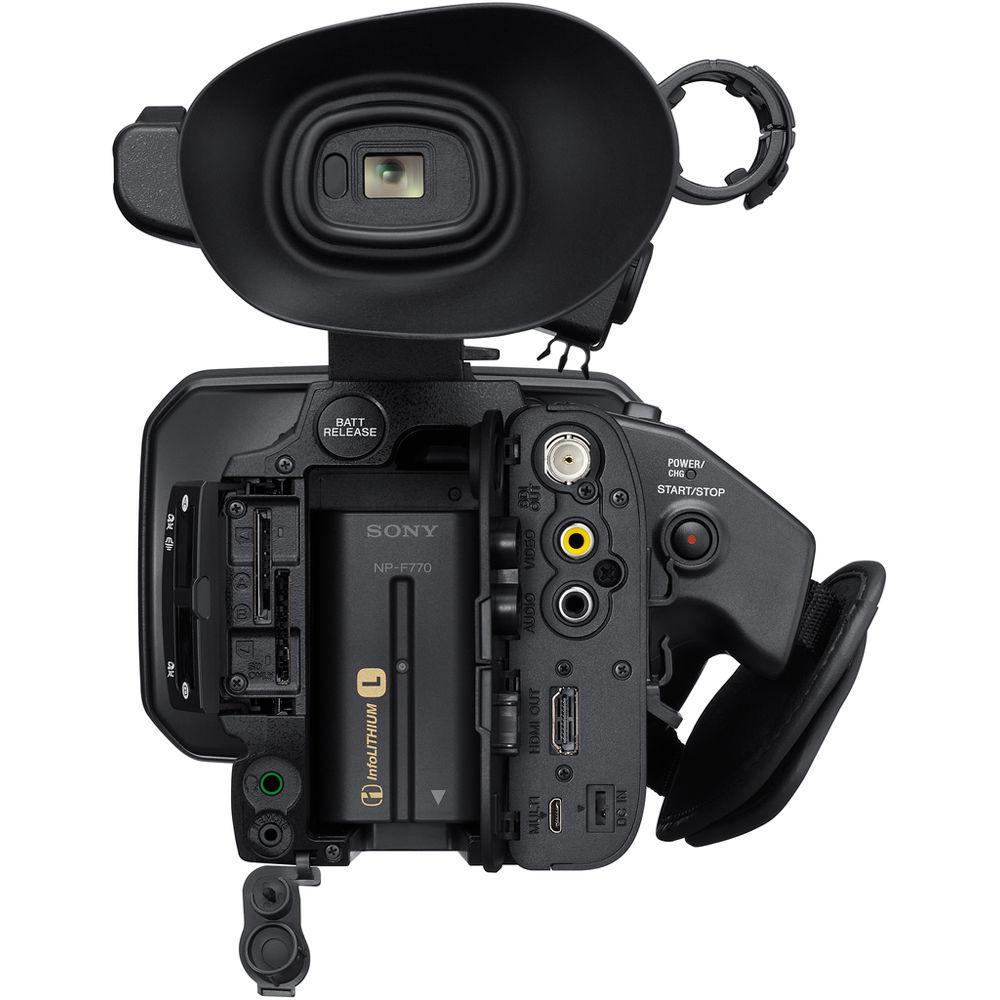

User Manual for Sony PXW-Z150 4K XDCAM Camcorder Click to enlarge the picture
Contents of the user manual for the Sony PXW-Z150 4K XDCAM Camcorder
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony PXW-Z150 4K XDCAM Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Unveiled: Sony PXW-Z150 XDCAM Professional Camcorder Read More The PXW-Z150 4K XDCAM Camcorder from Sony brings high-quality performance, adaptability, and ease of use to a compact, handheld body that is the same size as the HXR-NX100. Suitable for corporate video, house of worship, and legal deposition recording. The camcorder features a single Exmor RS sensor with a UHD 4K (3840 x 2160) resolution, Sony G lens with 12x optical zoom range, and 18/24x Clear Image Zoom in 4K/HD. It can record 4K in XAVC Long at 4:2:0 8-bit, and HD in XAVC Long at 4:2:2 10-bit, as well as MPEG2HD at 4:2:2 or 4:2:0 in 8-bit only. The integrated zoom lens features individual lens control rings for focus, iris, and zoom, and produces smooth-rounded-out-of-focus highlights. The lens can be used in either full-auto mode with servo control, or as a completely manually operated lens.
The camcorder supports storing up to 6 picture profiles and allows you share profiles; the camera also supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long GOP recording of 4K UHD video at up to 29.97p, HD up to 59.94p, MPEG HD up to 59.94p, and AVCHD 2.0 up to 59.94p. Your footage is recorded to media via two SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. It features built-in Wi-Fi and NFC connectivity. The PXW-Z150 features two 3-pin XLR audio inputs that support line, mic, and mic + 48V (phantom power) for using external microphones; you can also use the PXW-Z150's built-in microphone to record audio when shooting. The camcorder also includes Night Shot capability for shooting in extremely dim lighting conditions as well as date/time stamp, and timecode functionality. - 1" Exmor RS CMOS Sensor
- The PXW-Z150 incorporates a 1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels. The R designation signifies that this is a backside illuminated sensor, and the S designation refers to the buffer design, and that it is able to read the information off the sensor much faster than a non-S designated sensor.
- Depth of Field
- The 1.0"-type offers more shallow depth of field than 1/2.88"-type or smaller sensors.
- Sony G Lens with 12x Optical Zoom, 24x Clear Image Zoom
- The PXW-Z150 is supplied with a fixed 12x optical zoom wide-angle Sony G lens, equivalent to a 29 to 348mm 35mm lens. The 12x optical zoom can be extended via Sony's Clear Image Zoom technology to deliver an apparent 18x zoom range in 4K. In HD the 12x optical zoom can be doubled to 24x with Clear Image Zoom, and the Digital Extender function can double this range again, up to 48x zoom.
- Frame Rate Flexibility
- The camera records UHD 4K video (3840 x 2160p) at 29.97, 25, and 23.98 fps, in XAVC Long GOP in a choice of 100 Mb/s or 60 Mb/s. You can also select to record HD video instead of 4K, which allows you to not only record at standard frame rates up to 59.94p, but also engage Sony's S&Q Motion, for recording HD video at 1, 2, 4, 8, 15, 30, and 60 fps.
- Multiple Codec Choice
- You can select to record in XAVC Long GOP (4K/1080p), MPEG HD at 4:2:2 or 4:2:0, or AVCHD 2.0 at a variety of data rates.
- Lens Control
- Three lens rings enable smooth, natural adjustment of focus, zoom, and iris control. The rings are not mechanically linked to the lens movement, but there is a mechanical feel to the rings. However, they are endlessly rotating, which protects your lens elements from pinning, and the faster you rotate the lens ring the more reactive the result. The lens can also be used in full-auto mode or completely manual for maximum creative control.
- Built-In ND Filters
- The PXW-Z150 is equipped with a ND Filter function, allowing you to choose four conventional mechanical ND filter positions (Clear, 1/4ND, 1/16ND and 1/64ND) for better exposure and depth of field control.
- Media Slots
- The PXW-Z150 is equipped with two memory card slots, one of which is for SDHC/SDXC cards only, while the other slot is compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2)/Memory Stick PRO-HG Duo cards.
Two media slots can be used to record in either "SIMUL" or "RELAY" mode. "RELAY" mode automatically switches recording from the first to the second memory card when the first is full, while "SIMUL" mode permits simultaneous recording to two memory cards. You can choose to record the same file to the second slot, creating an instant copy, or record a lower quality proxy for post. - Multi-Interface Shoe
- The Multi-Interface Shoe expands your options to use accessories without cables, such as the optional HVL-LBPC Video Light or the UWP-D wireless microphone series.
- Picture Profiles
- You can fine-tune the look of movies before shooting by adjusting up to 99 parameters such as gamma, knee, black level, color model, color level, color phase, and more. Adjusted parameters can be saved along with other settings as a profile, and up to six profiles can be stored for later recall.
You can copy the settings from one PXW-Z150 to another PXW-Z150 so that user can shoot with multiple cameras in the same settings. The picture profiles only work with the same model of camera. - Wi-Fi/NFC
- Using the camcorder's built-in Wi-Fi capability you can FTP files directly from the camcorder or live stream over Wi-Fi without having to add any additional accessories. You can also use the camcorder's Wi-Fi and NFC connectivity to remotely pair it to your iOS or Android mobile devices running the Content Browser Mobile app, giving you remote control over focus, zoom, iris, white balance, REC start/stop, and more
UPC: 027242899391 In the Box Sony PXW-Z150 4K XDCAM Camcorder Lens Hood Large Eyecup Shoe Cap Accessory Shoe Kit (1x Accessory Shoe, 1x Accessory Shoe Plate, 4x Screws) USB Cable AC-L100 AC Adapter AC Cable NP-F770 L-Series Info-Lithium Battery Pack (7.2v, 4400mAh) Battery Charger Infrared Remote Commander (RMT-845) CR2025 Lithium Battery (Pre-Installed in IR Remote Commander) Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-Z150 4K XDCAM Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PXW-Z150 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 20.00 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | Minimum Illumination | 1.7 lux | | White Balance Range | 2300 to 15,000K | | | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm | | Optical Zoom Ratio | 12x | | Max Digital Zoom | 48x | | Maximum Aperture | f/2.8 to 4.5 | | Filter Size | 62 mm | | Image Stabilization | Optical | | Focus Control | Autofocus
Manual Focus | | | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot | | | | Broadcast System Compatibility | NTSC | | Recording Modes | XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s) | | Variable Frame Rates | 1080i: 120 fps
1080i: 100 fps
1080i: 1 to 60 fps
1080i: 1 to 50 fps | | Audio Recording | 2-Channel 24-Bit 48 kHz | | | | Video Connectors | 1 x RCA (Composite) Output
1 x HDMI Output
1 x BNC (3G-SDI) Output | | Audio Connectors | 1 x Stereo 2RCA Output
1 x 1/8" (3.5 mm) Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input | | Other I/O | 1 x 2.5 mm LANC Control
1 x USB Micro-B | | Wireless Interfaces | 2.4 GHz Wi-Fi | | | | Display Type | LCD | | Screen Size | 3.5" | | Screen Resolution | 1,560,000 Dots | | | | Screen Size | .39" | | EVF Resolution | 1,440,000 Dots | | | | Power Connectors | 1 x Barrel Input | | Power Consumption | 6.6 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 1 x Multi-Interface Shoe | | Dimensions | 6.7 x 7.4 x 14.6" / 171.3 x 187.8 x 371.3 mm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 17.9 x 10.4 x 9.5" |
