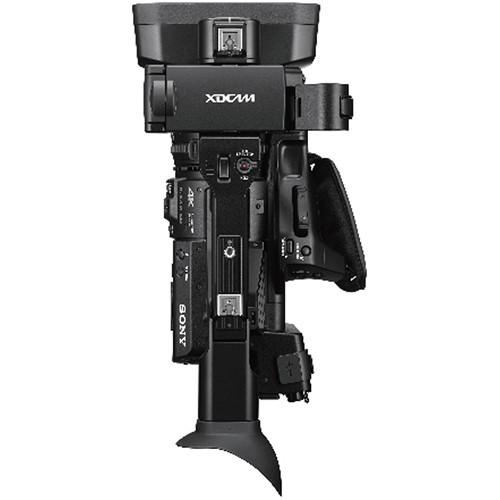

User Manual for Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder

Click to enlarge the picture
Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Contents of the user manual for the Sony PXW-Z190 4K 3-CMOS 1 3"
  • Product category: Camcorders Sony
  • Brand: Sony
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sony Camcorders

Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder
User manual for the Sony PXW-Z190 4K 3-CMOS 1 3" contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sony product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!



Product description

  • Taking the Sony PXW-Z190 for a Spin
  • Sony| PXW-Z190 | Introduction Video

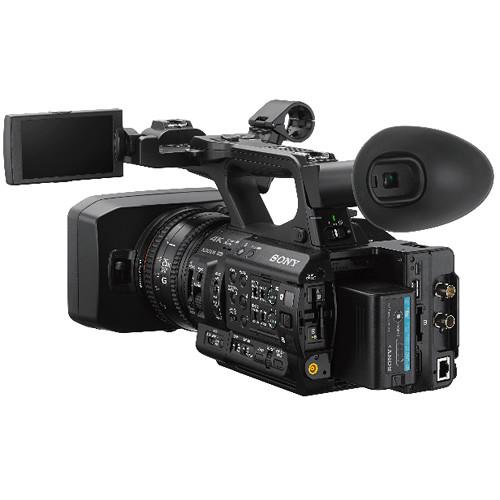

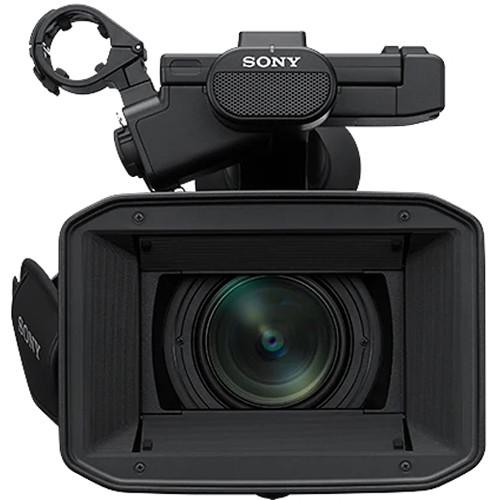

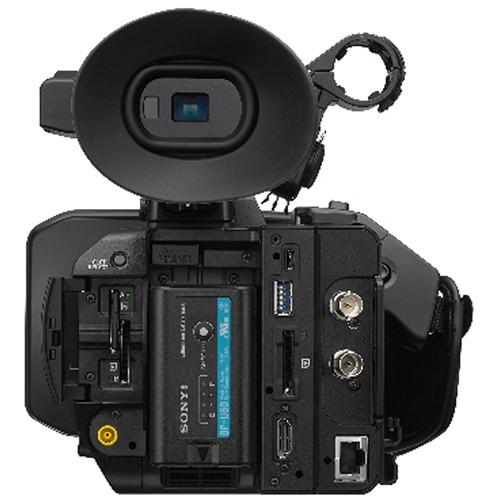

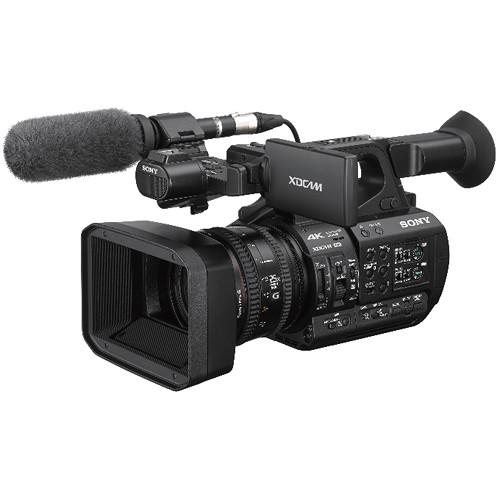

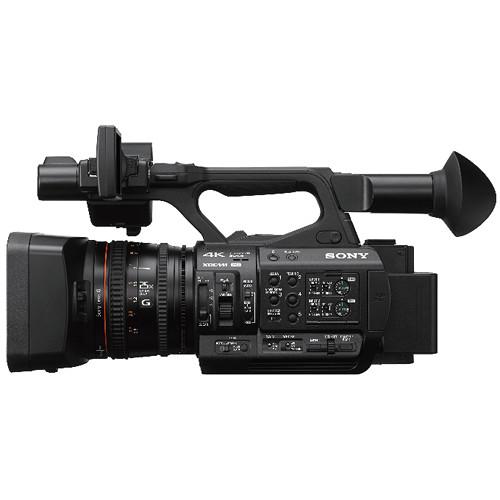

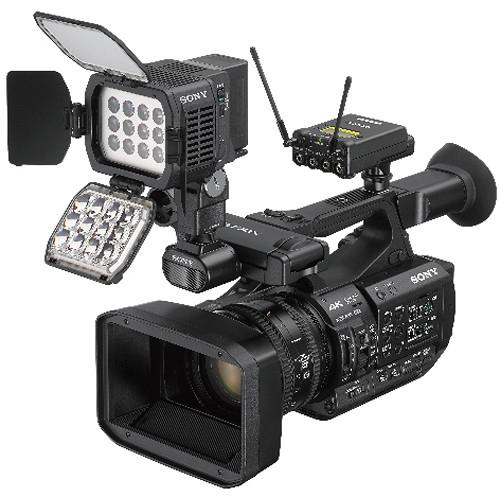

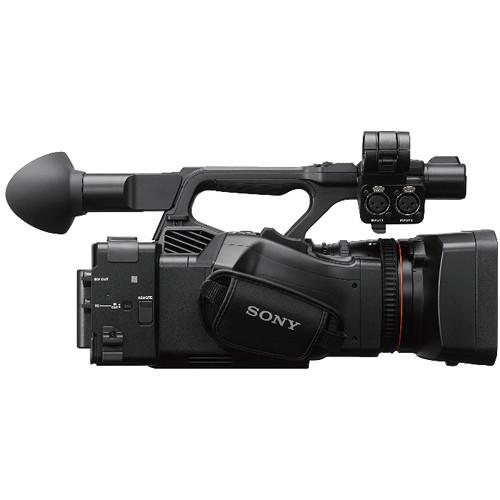

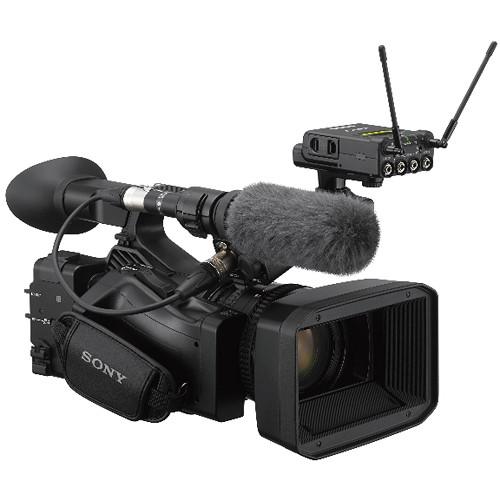

Sony's PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder continues the fine tradition of the XDCAM series of cameras. It captures 4K at up to 60p, relying on three 1/3" Exmor R sensors that provide improved low-light capability when compared to standard sensors. The camera integrates a 25x optical Sony G zoom lens and an electronic variable ND filter. The camera supports a variety of codecs out of the box, with an optional MPEG HD license enabling you to shoot HD video.

The camera supports HLG (Hybrid Log Gamma), allowing you to shoot and deliver footage compatible with both HDR (high dynamic range) and SDR (standard dynamic range) without needing laborious post-production work. Dual SD card slots permit a variety of recording options including simultaneous HD and 4K recoding. The camera features built-in 2.4 and 5 GHz Wi-Fi. UPC: 027242913806 In the Box Sony PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder
  • Lens Hood
  • EVF Eyecup
  • BP-U30 Lithium-Ion Battery
  • BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30
  • Power Cord
  • USB Cable
  • Limited 1-Year Warranty Labor
  • Limited 90-Day Warranty Parts
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sony PXW-Z190 4K 3-CMOS 1 3" Sensor XDCAM Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sony PXW-Z190 Specs

    Image Sensor 3-Chip 1/3" CMOS Sensor
    Sensor Resolution 3840 x 2160
    Prism Speed f/1.6
    Minimum Illumination 0.02 lux
    Focal Length 3.7 to 92.5mm
    35mm Equivalent Focal Length 28.8 to 720mm
    Optical Zoom Ratio 25x
    Maximum Aperture f/1.6
    Minimum Aperture f/11
    Filter Size 82 mm
    Control Rings Focus
    Zoom
    Iris
    Focus Control Autofocus
    Manual Focus
    Shutter Speed 1/24 to 1/8000 sec
    Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter
    Built-In Microphone Type Stereo
    Recording Media 2 x SD (Unspecified Type) Card Slots
    Broadcast System Compatibility NTSC, PAL
    Recording Modes XAVC-L:
    3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s)
    1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
    1920 x 1080i at 50/59.94 fps (50 Mb/s)
    1280 x 720p at 50/59.94 fps (50 Mb/s)
    1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
    1920 x 1080i at 50/59.94 fps (35 Mb/s)
    1920 x 1080i at 50/59.94 fps (25 Mb/s)
    DV:
    720 x 480i at 59.94 fps
    720 x 480PsF at 29.97 fps
    720 x 576i at 50 fps
    720 x 576PsF at 25 fps
    Audio Recording XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
    Video Connectors 1 x BNC (3G-SDI) Output
    1 x HDMI Output
    Audio Connectors 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
    1 x 1/8" (3.5 mm) Stereo Headphone Output
    Other I/O 1 x BNC Timecode Input/Output
    1 x USB Micro-B
    2 x USB Type-A
    1 x RJ45 LAN
    Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi, NFC
    Display Type LCD
    Screen Size 3.5"
    Screen Resolution 1,560,000 Dots
    Screen Size .39"
    EVF Resolution 2,360,000 Dots
    Battery Type Sony BP-U Series
    Accessory Mount 1 x Multi-Interface Shoe
    Built-In Light No
    Dimensions 7.48 x 7.95 x 16.52" / 190 x 202 x 419.7 mm (With Protrusions)
    Weight 5.1 lb / 2.3 kg
    Package Weight 11.25 lb
    Box Dimensions (LxWxH) 20.0 x 11.0 x 11.0"
