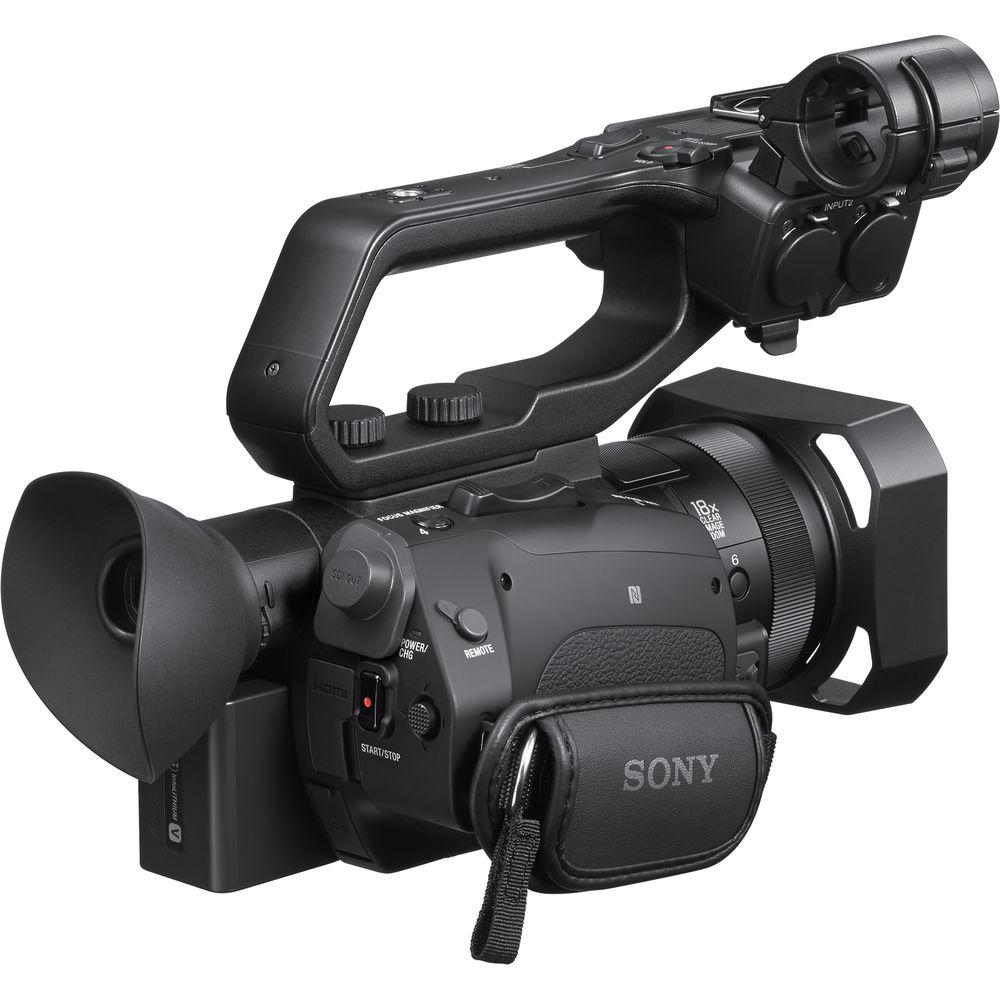

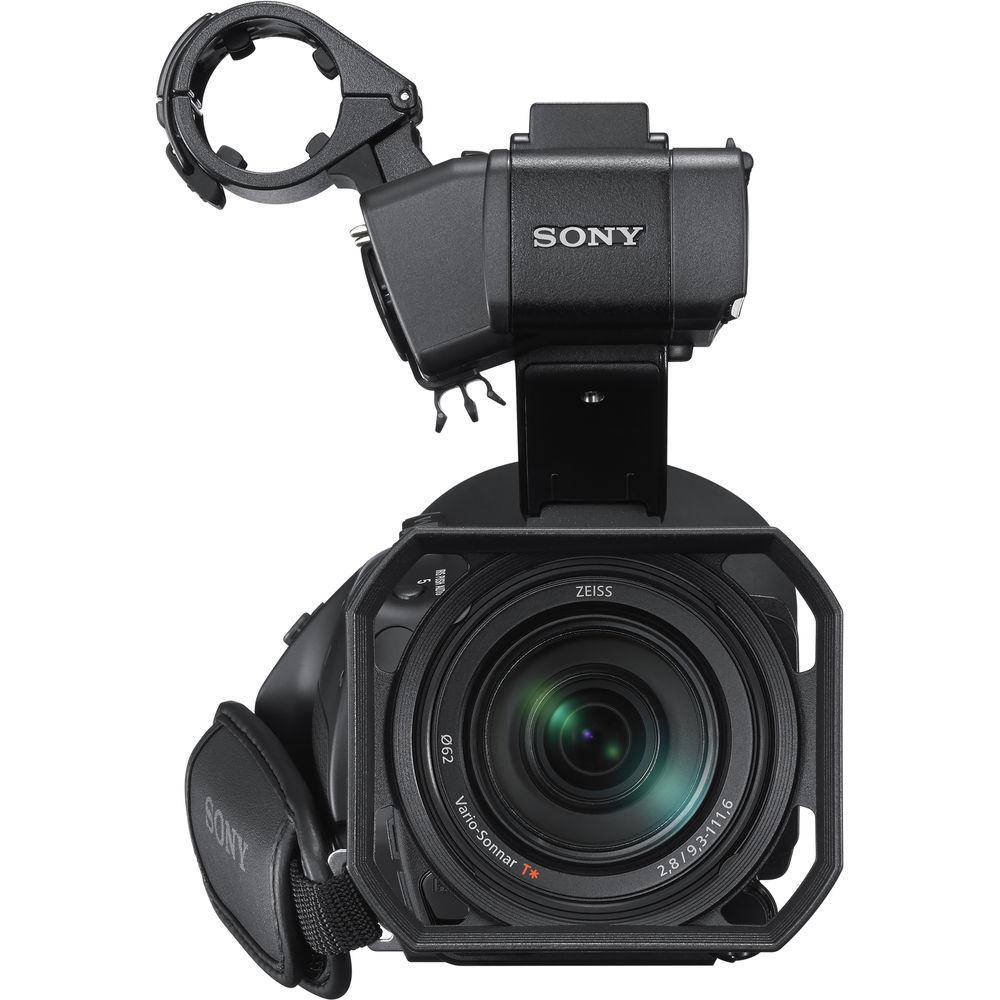

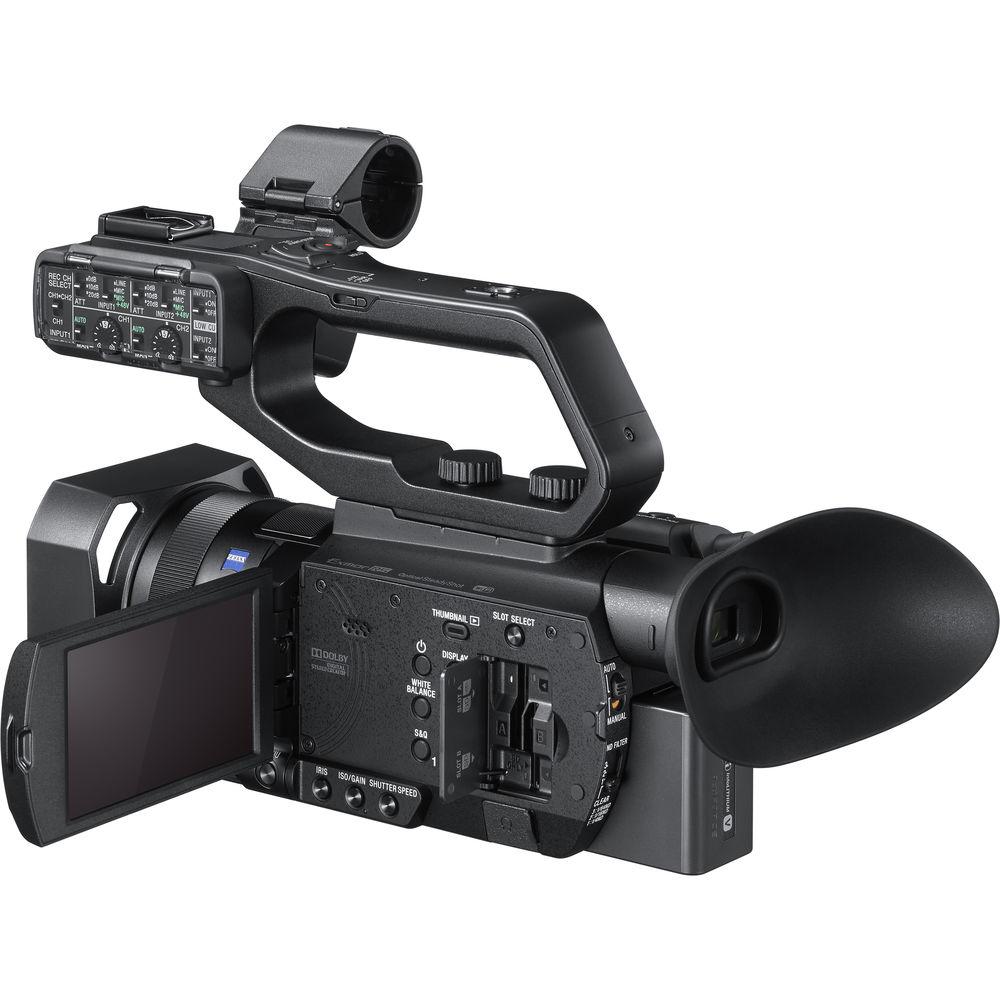

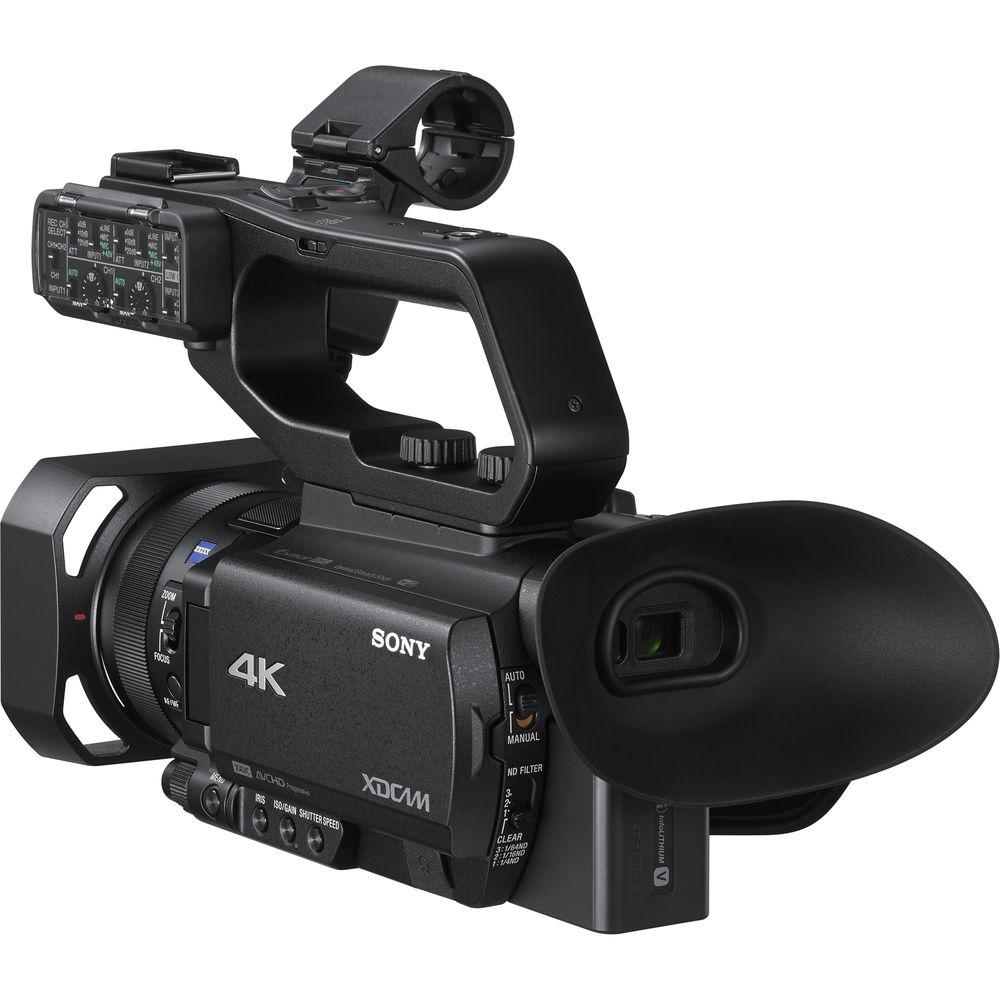

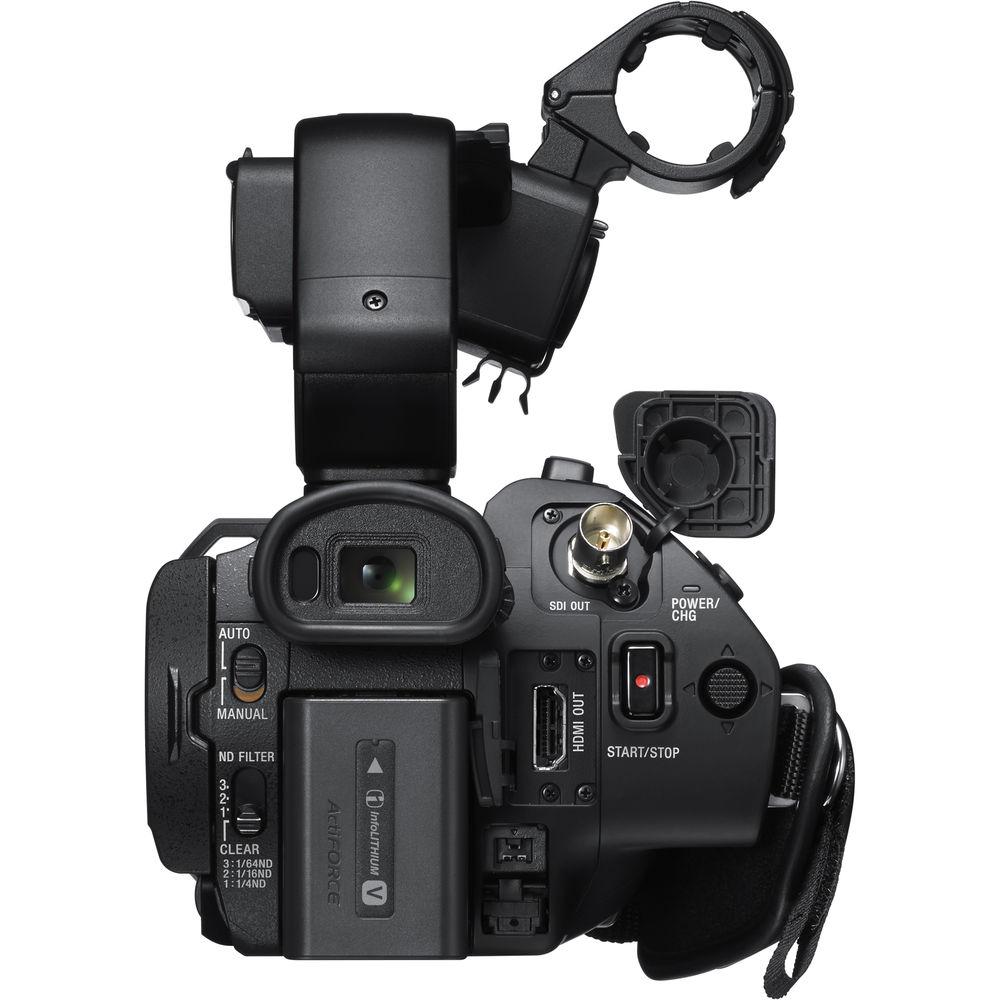

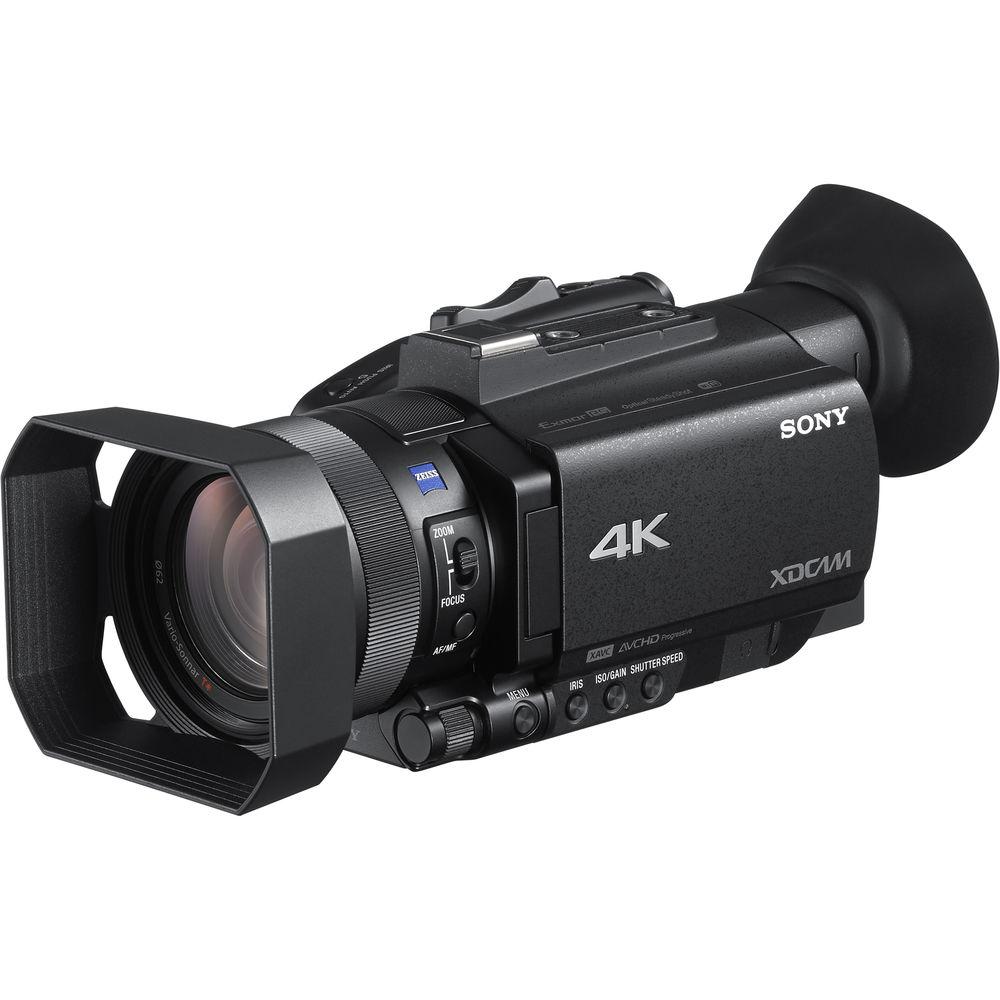

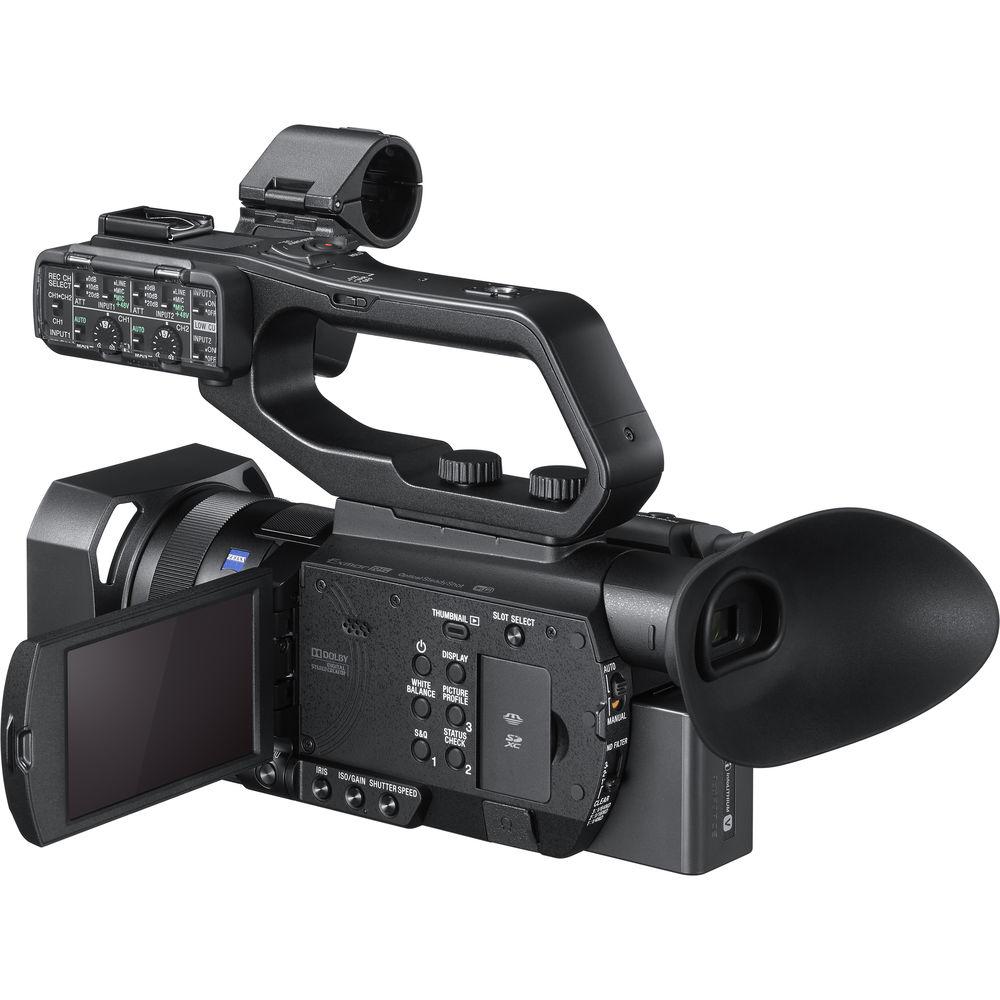

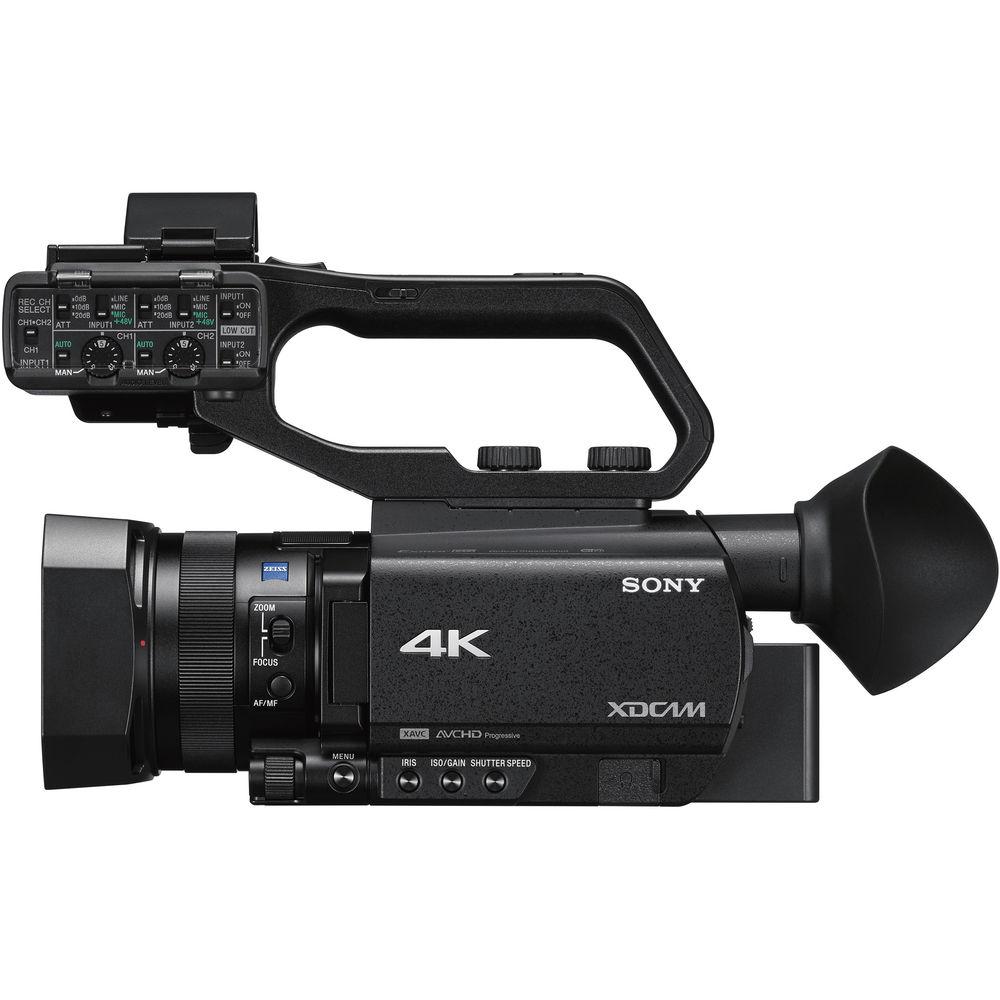

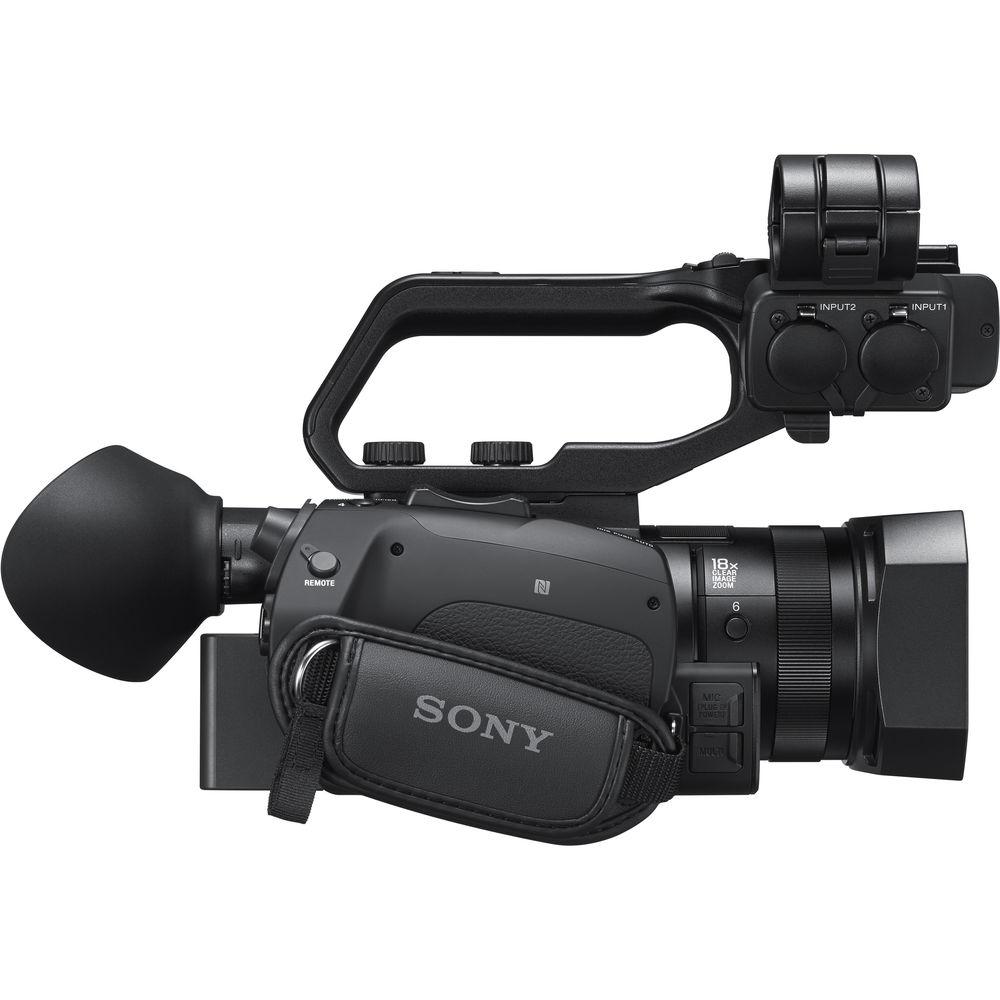

User Manual for Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF Click to enlarge the picture
Contents of the user manual for the Sony PXW-Z90V 4K HDR XDCAM with
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony PXW-Z90V 4K HDR XDCAM with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony Unveils New 4K 1" Sensor Camcorders with Phase Detection AF Read More cacqbdszubactfrrxbwucxerasuxydayt - Are Camcorders Down for the Count?
- Sony Z90 NX80 SampleFootage 1 Main HLG
- Sony Z90 NX80 SampleFootage 2 HQ HLG
- Sony Z90 NX80 SampleFootage 3 HLG HLG
- Sony Z90 NX80 SampleFootage 5 TAF HLG
The PXW-Z90V 4K HDR XDCAM camcorder from Sony offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1" Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor. It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key). S-Log3/S-Gamut3 functions offer users additional image control.The PXW-Z90V's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking—a boon when shooting UHD 4K, especially for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus. The PXW-Z90V's 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.The PXW-Z90V camera supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long recording of 4K UHD video at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p. Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay mode to create a backup. The PXW-Z90V's 3G-SDI output offers integration with professional studio environments.Additional features include built-in 2.4/5 GHz for multiple streaming and FTP options. The PXW-Z90V provides external microphone support via two 3-pin XLR audio inputs (line, mic, mic +48V phantom) and a 3.5mm mini input. You can also use the PXW-Z90V's built-in microphone to record audio when shooting. For multicamera productions, the PXW-Z90V integrates seamlessly with Sony's MCX-500 live switcher (available separately). - 1" Exmor RS CMOS Sensor
- 1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels provides optimal image quality
- Fast Hybrid Auto Focus
- Offers highly accurate focusing and tracking, especially useful when shooting sharp UHD 4K footage
- Zeiss T* Lens with 12x Optical Zoom
- The PXW-Z90V's fixed 12x optical wide-angle zoom with 18x Clear Image Zoom technology in UHD 4K (24x in HD)
- Frame Rate Flexibility
- Record up to UHD 4K video (3840 x 2160p) at 29.97, 25, and 23.98 fps, in XAVC Long in a choice of 100 Mb/s or 60 Mb/s, or HD at frame rates up to 59.94p
- Super Slow Motion
- Offers slow motion recording up to 960 fps
- Slow & Quick Recording
- Uses Sony's Slow & Quick Motion for recording 1080p/i60 HD video at 1, 2, 4, 8, 15, 30, 60, and 120 fps
- Multiple-Codec Choice
- Record in XAVC Long (UHD 4K), MPEG-4 HD at 4:2:0, XAVC Long (HD) 4:2:2, HD 2.0, or XVAC Proxy at 4:2:0, at a variety of data rates (license key required for some codecs)
- Built-In ND Filters
- The PXW-Z90V incorporates an ND filter function with Clear, 1/4ND, 1/16ND, and 1/64ND for optimal exposure and depth-of-field control
- Media Slots
- The PXW-Z90V is equipped with two memory card slots—one for SDHC/SDXC cards only, and one compatible with both SDHC/SDXC and Memory Stick PRO Duo (Mark 2) / Memory Stick PRO-HG Duo cards
- Video Output
- 3G-SDI output integrates with professional studio environments
- Wi-Fi/NFC
- Use the PXW-Z90V camcorder's built-in Wi-Fi capability to send FTP files directly from the camcorder or live stream over Wi-Fi
UPC: 027242908420 In the Box Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF XLR Handle Lens Hood Lens Cap Large Eyecup Accessory Shoe Kit USB Cable NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh) cacqbdszubactfrrxbwucxerasuxydayt AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries Power Cord RMT-845 Wireless Remote CR2025 Lithium Battery (for Remote) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PXW-Z90V Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | Minimum Illumination | 1.7 lux at 1/30 Shutter Speed | | White Balance Range | 2300 to 15,000K | | | | 35mm Equivalent Focal Length | 29mm | | Max Digital Zoom | 48x | | | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | XAVC:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s) | | Variable Frame Rates | UHD: 1 to 30 fps
1080p: 1 to 120 fps | | Audio Recording | 2-Channel 24-Bit 48 kHz | | | | Video Connectors | 1 x HDMI Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Output | | Audio Connectors | 1 x 1/8" (3.5 mm) Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input | | Other I/O | 1 x USB Micro-B
1 x USB Micro-B Control
1 x 2.5 mm LANC Control | | Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi | | | | Display Type | LCD | | Screen Size | 3.5" | | Screen Resolution | 1,560,000 Dots | | | | EVF Display Type | OLED | | Screen Size | .39" | | EVF Resolution | 2,360,000 Dots | | | | Power Connectors | 1 x Barrel Input | | Power Consumption | 6.9 W | | | | Storage Temperature | -4 to 40°F / -20 to 60°C | | | | Dimensions | 5.1 x 7.1 x 11.3" / 130 x 181.5 x 287 mm | | Weight | 2.2 lb / 1020 g | | | | Package Weight | 4.955 lb | | Box Dimensions (LxWxH) | 10.25 x 9.7 x 6.0" |
