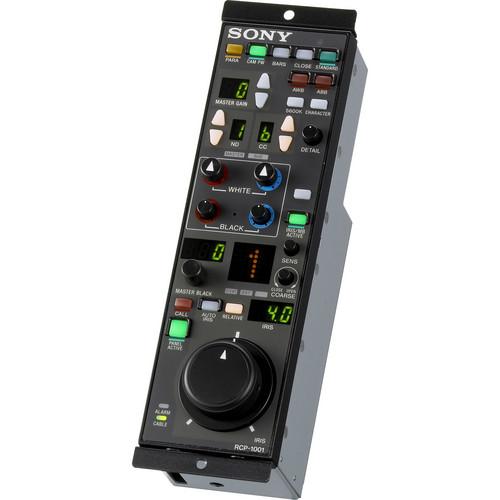

User Manual for Sony RCP-1001 Simple Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Sony RCP-1001 Simple Remote Control Panel
- Product category: RCPs & MCPs Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony RCPs & MCPs
|
User manual for the Sony RCP-1001 Simple Remote Control Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony RCP-1001 Simple Remote Control Panel provides specialized, basic operations of professional studio camcorders, using a dial knob-type control for iris and master black adjustments. In accordance with your system's specific configuration, the RCP-1001 allows customizing of frequently used settings. And it's compact enough that up to 6 units can be mounted in a single 19" rack. - Simple and Compact
- This remote control panel is provided with the control functions required to perform the basic operations of cameras, enabling the simple and accurate operation of various functions.
- IRIS/MB (Master Black) Display Window
- The IRIS window displays the iris setting as an F number. If the lens is closed, "CLS" is displayed. The Master Black display window displays the master black setting value.
- Direct Control Filters and Master Gain Buttons
- Easily access ND/CC filters as well as master gain control.
- Customizable Switch
- User can assign any function to a spare switch.
- Compatible with a Variety of Control Systems
- HDC/HSC/BVP system camera users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700s, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
In the Box Sony RCP-1001 Simple Remote Control Panel (Dial Knob) 1 Year Parts, 90 Days Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony RCP-1001 Simple Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony RCP1001 Specs | Input and Output Connectors | CCU/CNU: Multi-connector 8-pin (female) x1
EXT I/O: 9-pin D-Sub (female) x1 | | Power Requirements | 10.5 - 30VDC | | Power Consumption | 2W | | Operating Temperature | 41°F - 104°F (5°C - 40°C) | | Dimensions (WxHxD) | 2.8 x 9.6 x 3.4" (6.8 x 24.4 x 8.4 cm) | | Weight | 2.4 lbs (1.1kg) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 13.75 x 9.1 x 7.1" |
