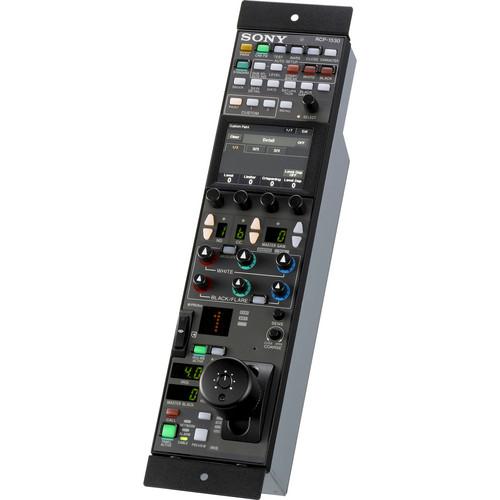

User Manual for Sony RCP-1530 Slim Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Sony RCP-1530 Slim Remote Control Panel
- Product category: RCPs & MCPs Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony RCPs & MCPs
|
User manual for the Sony RCP-1530 Slim Remote Control Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony RCP-1530 Slim Remote Control Panel provides multifunctional operation of professional studio camcorders, using a joystick-type control for iris and master black adjustments. A touch-panel LCD display provides direct access to numerous control functions, while allowing the customization of frequently used settings and menus. At just over 3" wide, the RCP-1530 is compact enough that up to 5 units can be mounted in a single 19" rack. - Camera Operation via Touch Panel & Direct Access Switches
- This remote control panel is equipped with the control functions required to perform various camera operations enabling the simple and accurate operation of various functions. The operation buttons, adjustment knobs, and other controls are arranged on the panel according to function and frequency of use. Guard frames are provided around buttons that are vital to the operation and setup of cameras to prevent the buttons from being unintentionally operated.
- Ethernet Connection Capability
- Connection by LAN and CCA-5 cable are both possible, allowing a multi-camera control system to be set up not only using the CNU-700, but also using a LAN.
- Newly Added Narrow Design
- At just 3.1" (8cm) wide, RCP-1530 allows you to mount up to five units in a 19" EIA rack.
- Customizable Switch & Menu
- Users can assign any function to a spare switch and make their own favorite menu as well.
- Building of a Variety of Control Systems
- HDC/HSC/BVP users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700s, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
In the Box Sony RCP-1530 Slim Remote Control Panel (Joystick) 1 Year Parts, 90 Days Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony RCP-1530 Slim Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony RCP1530 Specs | Input and Output Connectors | Ethernet: 8-pin RJ-45 x1
CCU/CNU: 8-pin Multi-connector (female) x1
EXT I/O: 9-pin D-Sub (female) x1 | | Power Requirements | 10.5 - 30VDC | | Power Consumption | 4W | | Operating Temperature | 41°F - 104°F (5°C - 40°C) | | Dimensions (WxHxD) | 3.25 x 12.25 x 5" (8 x 31 x 12.5 cm) | | Weight | 3.5 lbs (1.6kg) |
