User Manual for Sony RM-30BP Wired Remote Controller Click to enlarge the picture
Contents of the user manual for the Sony RM-30BP Wired Remote Controller
- Product category: Zoom & Focus Controls Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Zoom & Focus Controls
 |
User manual for the Sony RM-30BP Wired Remote Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

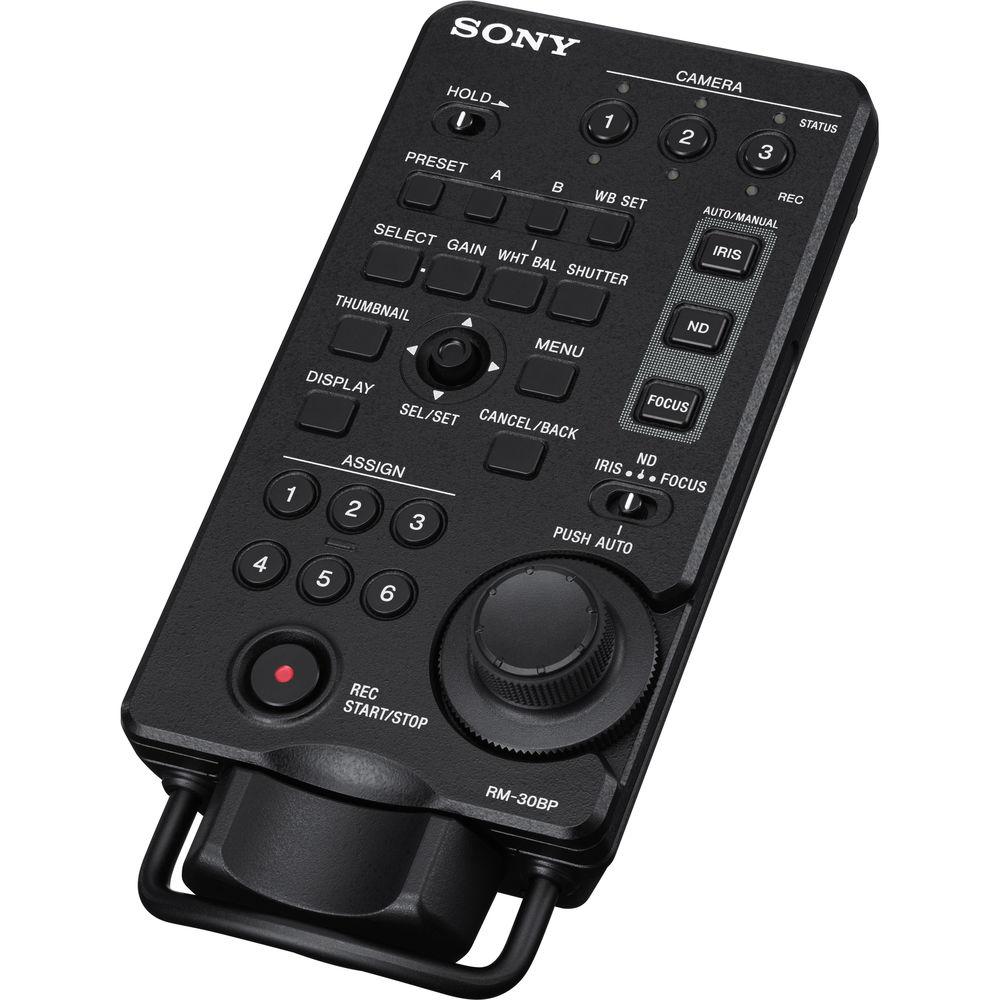

Product description Sony's RM-30BP Remote Controller features a compact form and can control most of the functions of your compatible NX5R or FS7 (v4.0) camera. The remote enables control of the one-push auto, manual focus, iris, and zoom of your lens. It also allows you to control the recording/display functions of your camera, as well as shutter speed and white balance adjustment. You can assign six buttons on the controller and control the functions and playback of up to three cameras, individually or simultaneously.
The remote incorporates an adjustment knob that can be set to control your camera's focus, iris, or electronic ND selection (if your camera features electronic ND). At the bottom of the unit is a zoom rocker with protective bar to help prevent accidental activation. You can daisy-chain together two RM-30BP units, allowing either remote to control your camera. You can also connect the remote to a Sony MCX-500, allowing for that switcher to control up to three cameras. - Status LEDs
- A green status display on the unit indicates the condition of the connected and selected cameras. The unit also incorporates red/green record LEDs for each of the three cameras you may be connected to.

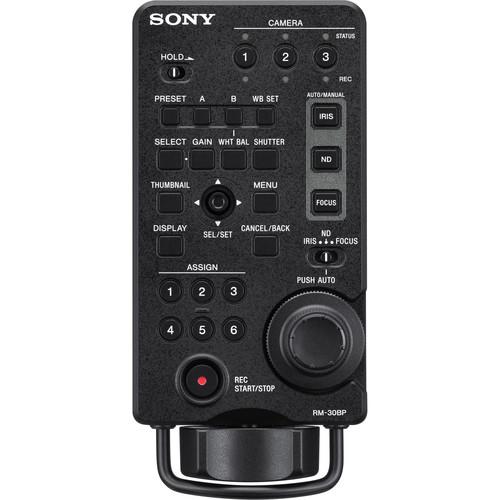

- Pre-Programmed Buttons
- The remote incorporates the following pre-programmed buttons:
Hold (slide switch)
Camera selector keys
Iris toggle
ND toggle
Focus toggle
3-Position slide switch (focus, iris, ND)
Rec Start/Stop
Assign key
Thumbnail key
Select/Set lever
Menu key
Cancel/Back key
Display key
Preset key
WB Preset A
WB Preset B
WB set
Shutter key
WB key
Gain key
Select key - Adjustment Knob
-
- Focus: Pressing the center of the adjustment knob temporarily activates auto focus adjustment (PUSH AUTO FOCUS). Please note that the rotation and speed of the focus adjustment will vary depending on the camcorder being used. You can change the direction of the focus knob if you wish.
- Electronic ND: If the connected camcorder has an electronically switchable ND filter you can adjust the density of the ND filter by using the adjustment knob.
- Iris: Please note that the rotation and speed of the iris adjustment will vary depending on the camcorder being used. You can change the direction of the iris knob if you wish.
- Zoom Rocker
- The zoom rocker is protected from incidental activation by a protective bar. You can adjust the speed and direction of the zoom lever on the unit.

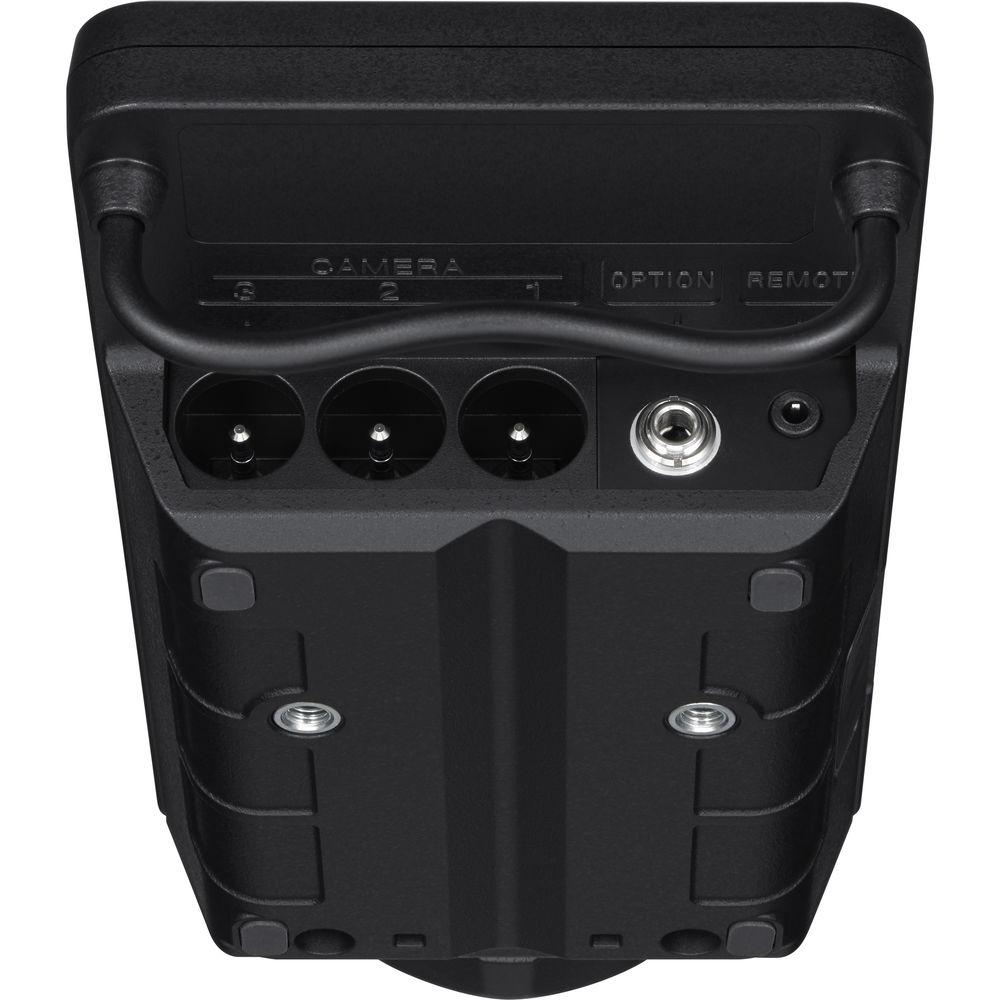

- Connection Ports
-
- Camera: The remote features three camera ports, allowing you to control up to three cameras either individually or simultaneously. Additional cables, not included, are required for this configuration.
- The option connector enables connecting the RM-30BP to an MCX-500.
- Remote: This connector allows you to daisy-chain two units together.
UPC: 027242903197 In the Box Sony RM-30BP Wired Remote Controller 3.3' Connection Cable 33' Connection Cable Attachment Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony RM-30BP Wired Remote Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony RM-30BP Specs | Environmental | Operating
Temperature: 32 to 104°F / 0 to 40°C
Humidity: 80% or lower
Storage
Temperature: -4 to 140°F / -20 to 60°C | | Dimensions | 3.2 x 1.3 x 6.9" / 8.3 x 3.4 x 17.5 cm | | Weight | 10.2 oz / 290.0 g | | | | Package Weight | 1.835 lb | | Box Dimensions (LxWxH) | 8.9 x 5.85 x 5.05" |
