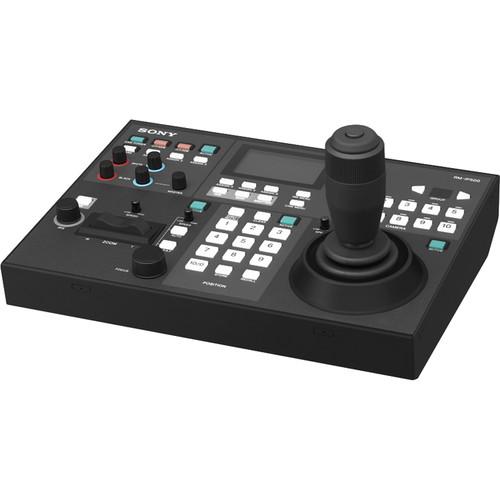

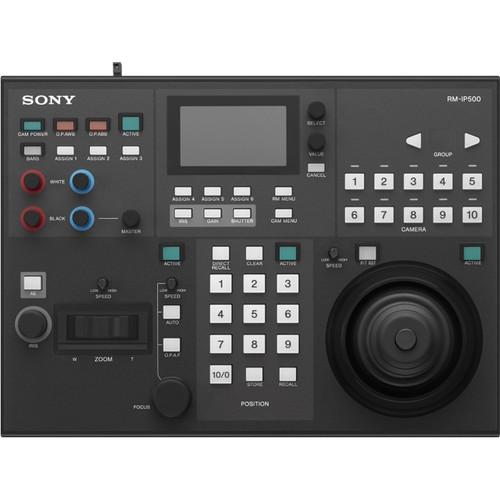

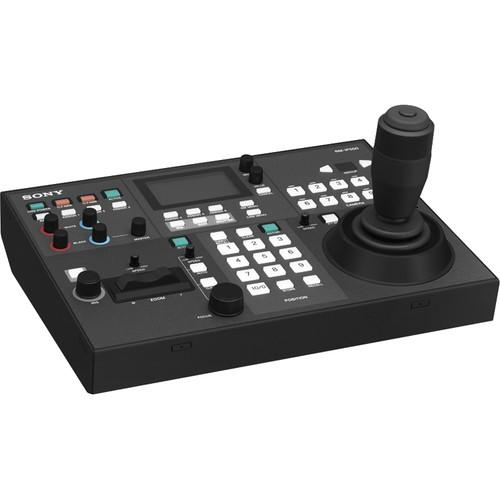

Product description The Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras provides control of Sony BRC-X1000/1, BRC-H800/1, BRC-H900 and SRG-360SHE PTZ cameras. This compact unit incorporates a joystick for pan, tilt, and zoom control, and has the capability of controlling up to 100 separate cameras over IP. In addition to the joystick, the controller features dedicated knobs and control buttons that allow you to bypass the camera's menu systems to access frequently used functions.
The controller also incorporates many "paint" functions that enable adjusting the look of your cameras from one central point. Auto IP addressing and camera numbering make connecting to your network as simple as plugging in an Ethernet cable into your camera. The RM-IP500/1 stores up to 100 presets, has a tally indicator, and offers discrete zoom, focus, and iris controls in addition to the joystick. - IP Addressing and Camera Numbering
- The RM-IP500/1 automatically manages addressing each camera you connect, as well as assigning a camera number. This speeds up configuring and controlling the cameras on your network.
- 100 Cameras
- The controller supports up to 100 cameras of the BRC or SRG series, enabling control of pan, tilt, zoom, and other functions, over an IP network.
- Store and Recall Camera Presets
- Depending on the specification and firmware version, the IP500/1 can store up to 100 presets of camera angles and settings.
- Numeric Keypad
- the built-in numeric keypad speeds up switching control between cameras.
- Tally
- Includes Normal Tally/On-Air Tally/Contact modes.
- Camera Paint Functions
- Use the controller to individually adjust camera settings including black levels, white balance, flicker cancel, detail level, knee point, auto exposure level, iris, gain, and shutter speed, all without needing to access each camera's menu system.
UPC: 027242913523 In the Box Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras Power Supply Limited 1-Year Warranty Parts Limited 90-Day Warranty Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony RM-IP500 1 Professional Remote Controller for Select Sony PTZ Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

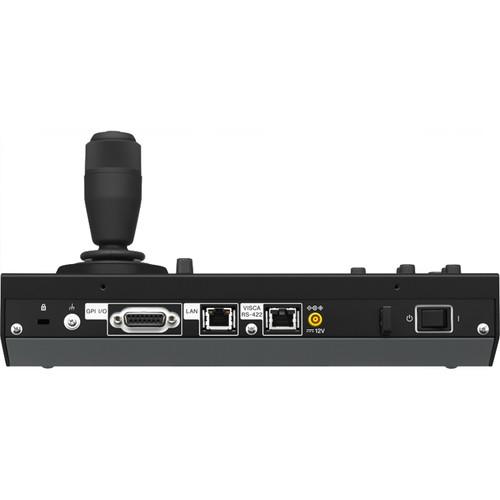

Technical parametersSony RM-IP500/1 Specs | I/O Connections | VISCA RS-422: 1 x RJ-45
GPI (Tally In/Contact Out): D-Sub 15-pin (female)
LAN: 1 x RJ-45 10BASE-T/100BASE-TX (automatic detection) | | Control Signal | 9,600 bps/38,400 bps
Data: 8-bit
Stop Bit: 1 (for RS-422 communication), VISCA over IP communication | | Power | Connector: JEITA-type 4 (12 VDC in)
Input Voltage: 10.8 to 13.2 VDC
Current Consumption: 0.2 A typical (2.4 W) | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C | | Dimensions | 12.05 x 6.27 x 8.82" / 30.6 x 15.93 x 22.4 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 15.9 x 12.6 x 10.2" |
