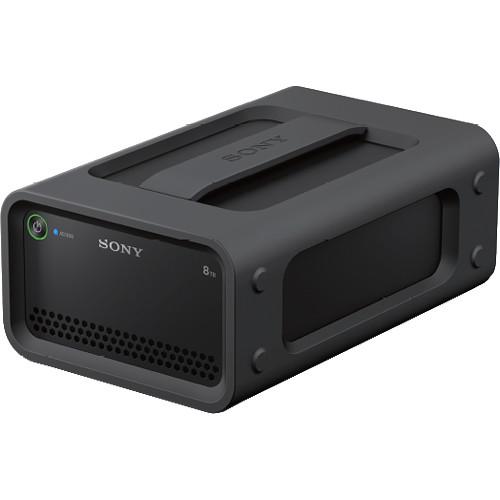

User Manual for Sony Ruggedized Raid PSZ-RA Thunderbolt 2 Portable RAID Array Click to enlarge the picture
Contents of the user manual for the Sony Ruggedized Raid PSZ-RA Thunderbolt 2
- Product category: Hard Drive Arrays Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Hard Drive Arrays
|
User manual for the Sony Ruggedized Raid PSZ-RA Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More svfyydqwesttwy The Ruggedized Raid PSZ-RA Thunderbolt 2 Portable RAID Array from Sony is designed for professional videographers, photographers, and serious production hobbyists that require robust storage. The PSZ-RA is built with two 4TB 3.5" hard drives capable of delivering a total storage capacity of 8TB at a rotational speed of 7200 rpm, all of which help to ensure uninterrupted data transfers up to 360 MB/s. Additionally, this portable drive system sports two Thunderbolt 2 ports and one USB 3.1 Gen 1 port so you can connect to a wide variety of devices at the same time.
Sony has outfitted the PSZ-RA with preconfigured RAID 0 array technology, which splits data evenly among the hard drives. However, to fit your diverse needs, the PSZ-RA also lets you reconfigure the hard disks in a RAID 1 or JBOD format that either mirror data across the drives or copy data without a sorted structure. Furthermore, the drives come formatted in the exFAT file system, which transfers large files between systems.
Moreover, the PSZ-RA is designed to be an easy to carry portable RAID array that transports data safely with its integrated exterior case and handle. Sony built and tested the PSZ-RA with a rugged, military-grade design that physically protects the drives, so it'd be unlikely for you lose your data from shock, harsh temperatures, or humidity. Protections aside, the PSZ-RA is designed to work across systems seamlessly since it's compatible with Windows and Mac systems. - Fast Transfer Speeds for 4K Content
- Transfer speeds of up to 360MB/s reduces transfer times and contributes to an efficient 4K workflow.
- Convenient Connectivity
- With one USB 3.0 port and two Thunderbolt 2 ports with built-in Thunderbolt daisy chaining for up to six Thunderbolt-equipped devices. These ports also support Windows and Mac device.
- Media Management Features
- The PSZ-RA comes with a downloadable Memory Media software Utility program for Sony memory media products provides enhanced media management. It allows you to see device information such as capacity, file system, and RAID mode as well as checking the status of the drives. You can also quickly reformat the drives or erase data before re-use
- SxS PRO+ D Series Memory Card Support
- This RAID storage unit works with the large-capacity SxS PRO+ D Series memory cards providing users with a high-speed data transfer solution.
- Durable Design for Transport
- Sony provides the PSZ-RA with a tough, easy-to-carry carton box that protects the product against damage during transport. Furthermore, the PSZ-RA is MIL 20G/11ms certified in operating mode and MIL 50G/11ms certified in non-operating mode with rubber dampers that offer vibration and shock-resistance, while its built-in handle provides easy portability.
UPC: 027242911635 In the Box Sony Ruggedized Raid PSZ-RA Thunderbolt 2 Portable RAID Array (8TB) USB Cable Thunderbolt Cable AC Adapter (VGP-AC19V77) Power Cord Label Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Ruggedized Raid PSZ-RA Thunderbolt 2 Portable RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony Ruggedized RAID Specs | | | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x USB Type-C (Thunderbolt 2 (20 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 440 MB/s (Read in RAID 0)
360 MB/s (Write in RAID 0) | | RAID Modes | RAID 0, 1, JBOD | | | | Total Raw Capacity | 8 TB (2 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3.3 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C (Recommended) | | Operating Humidity | 8 to 90% (Recommended) | | Storage Temperature | -4 to 194°F / -20 to 90°C | | Storage Humidity | 8 to 90% | | Operating Shock | 20 G / 11.00 ms | | Storage Shock | 50 G / 11.00 ms | | | | Dimensions (W x H x D) | 6.1 x 3.9 x 9.5" / 156.0 x 100.0 x 241.0 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 15.7 x 8.9 x 5.8" |
