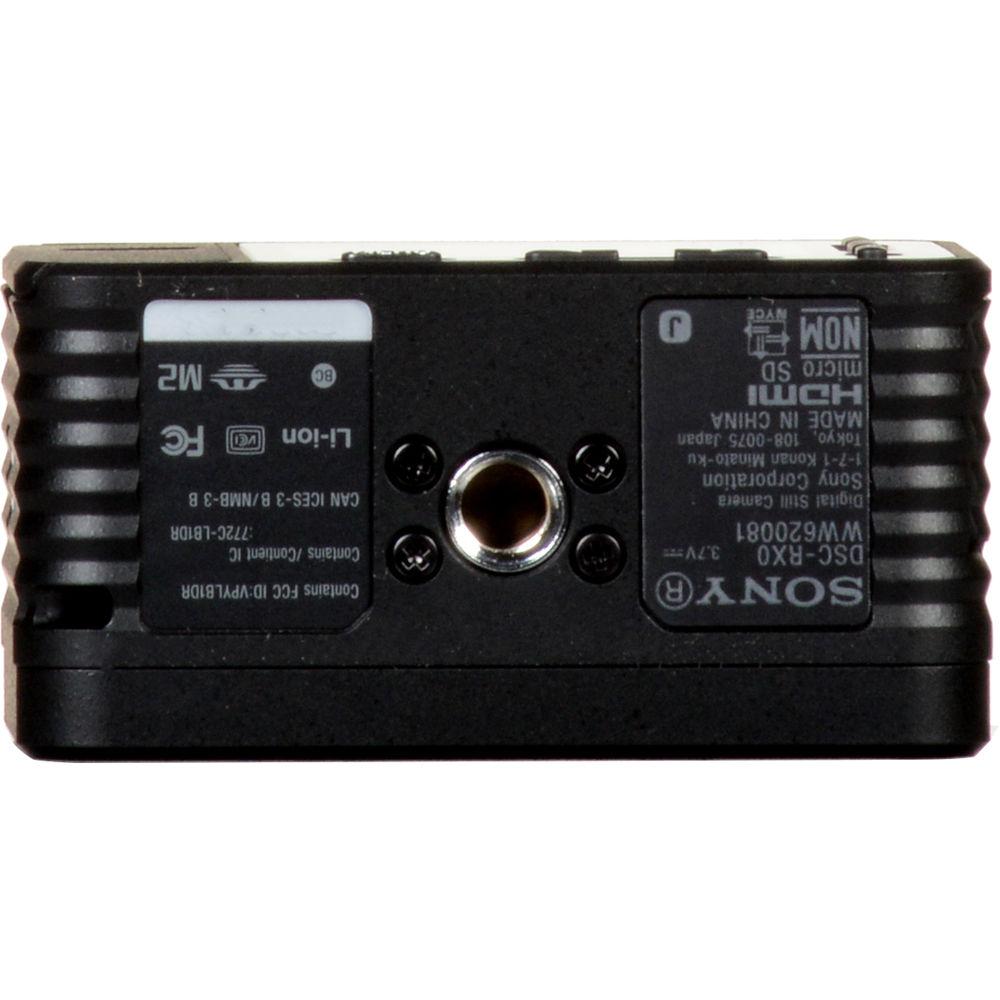

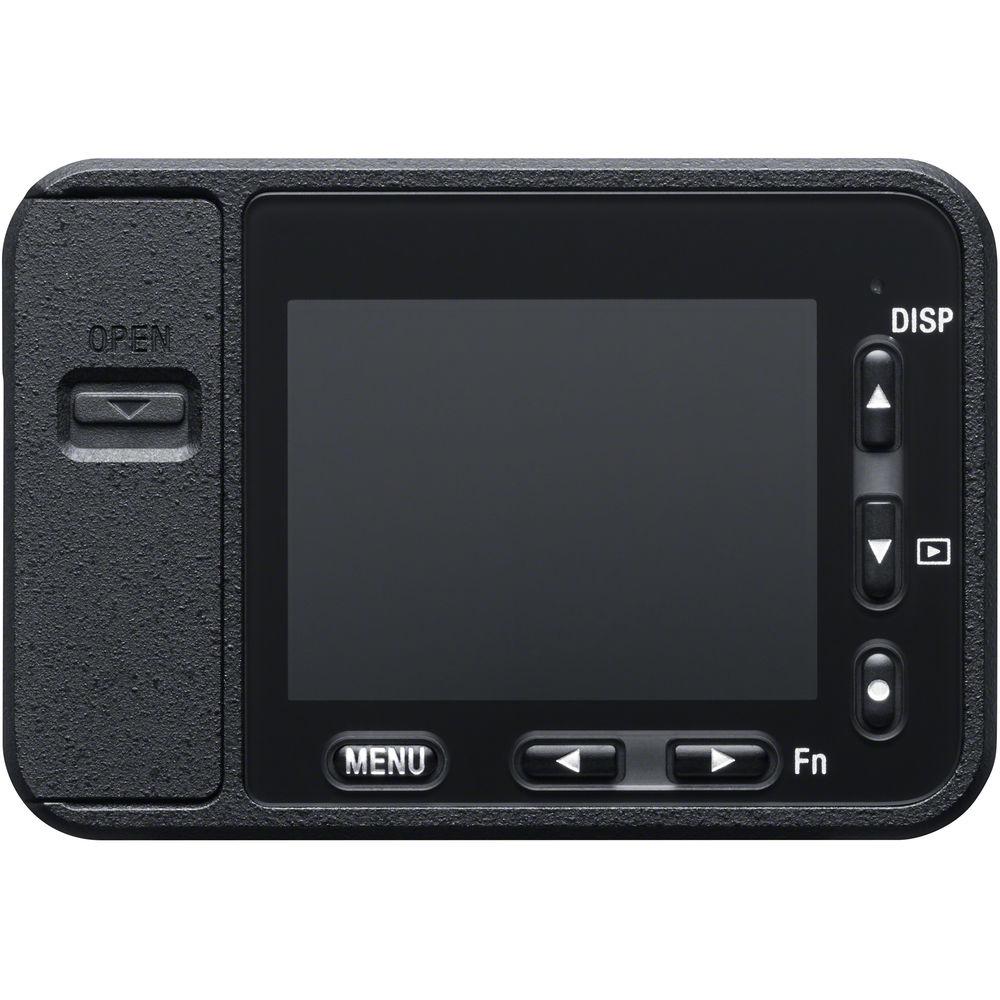

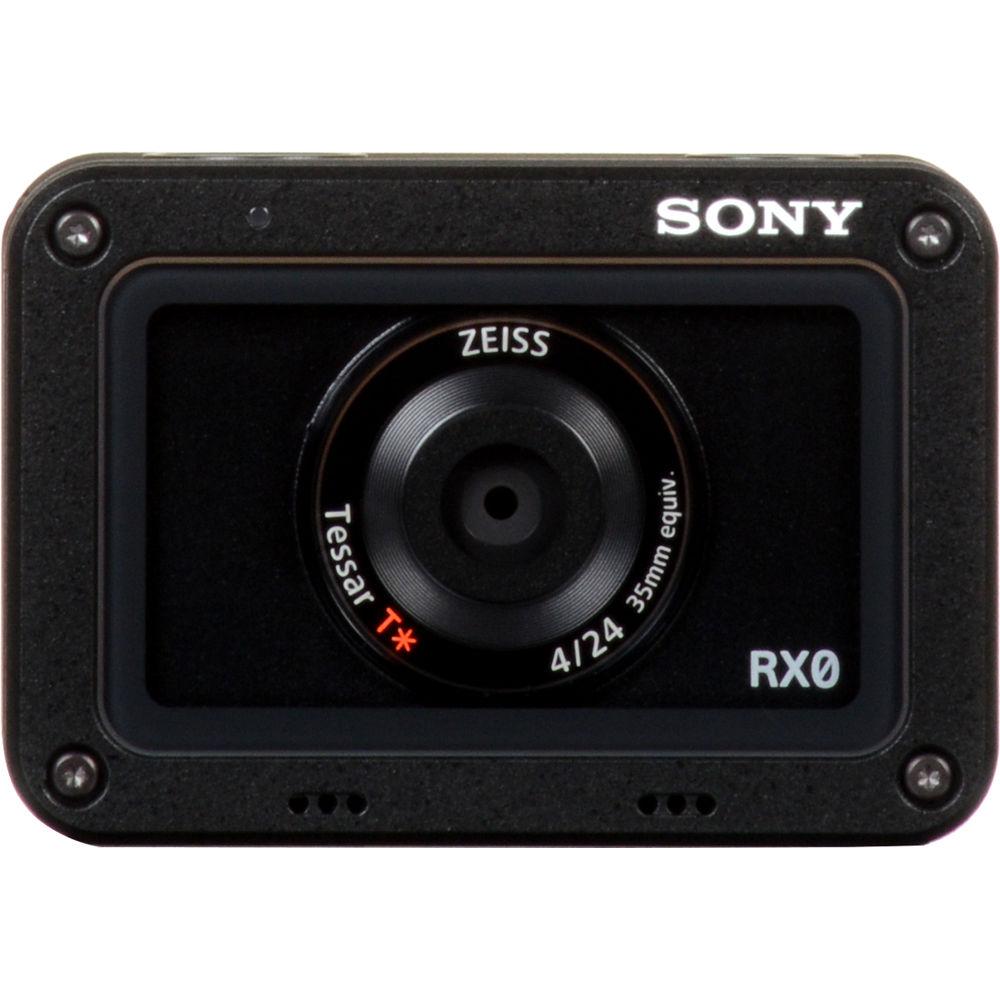

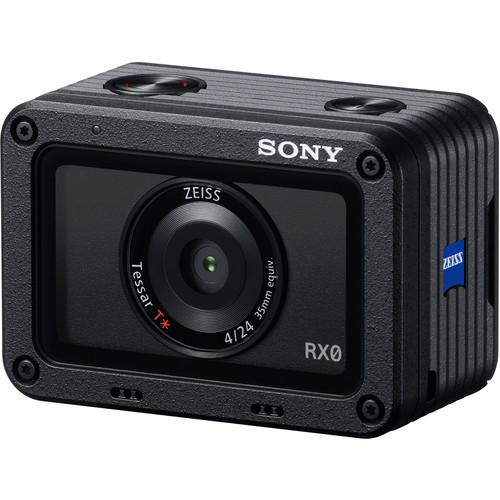

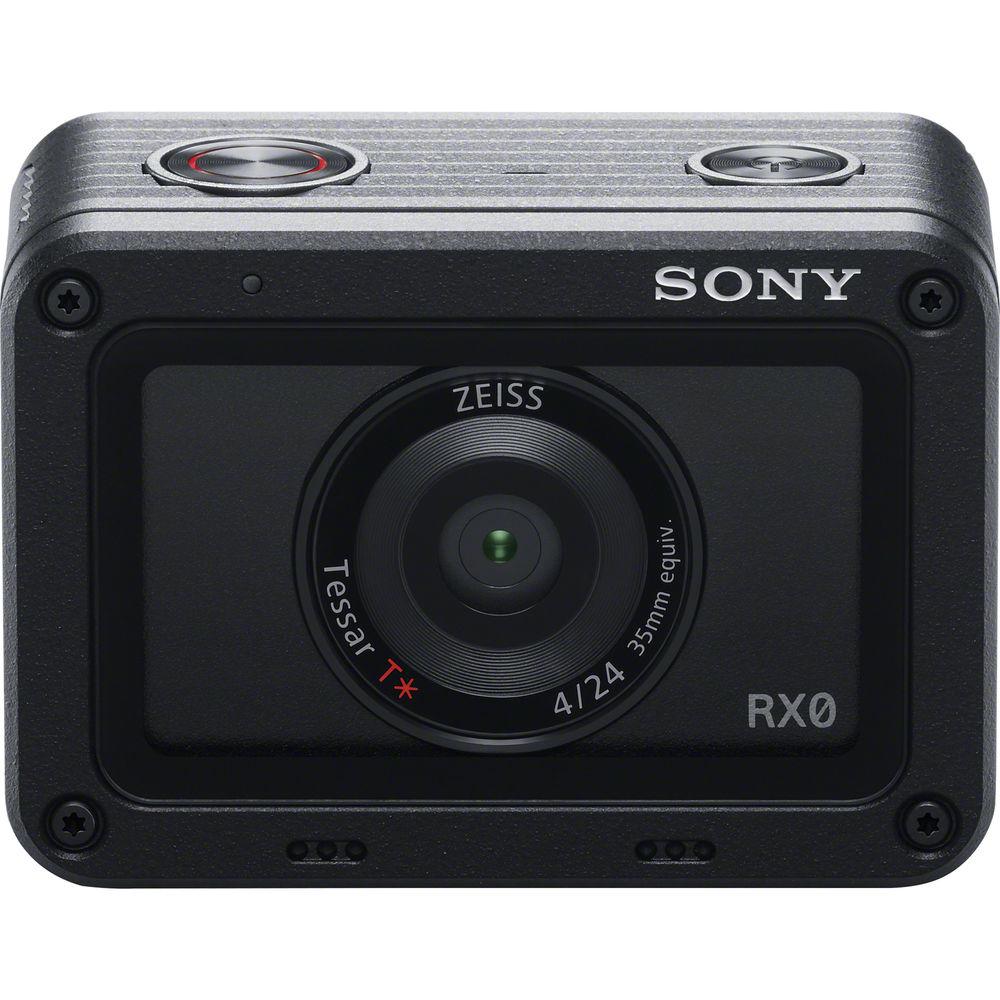

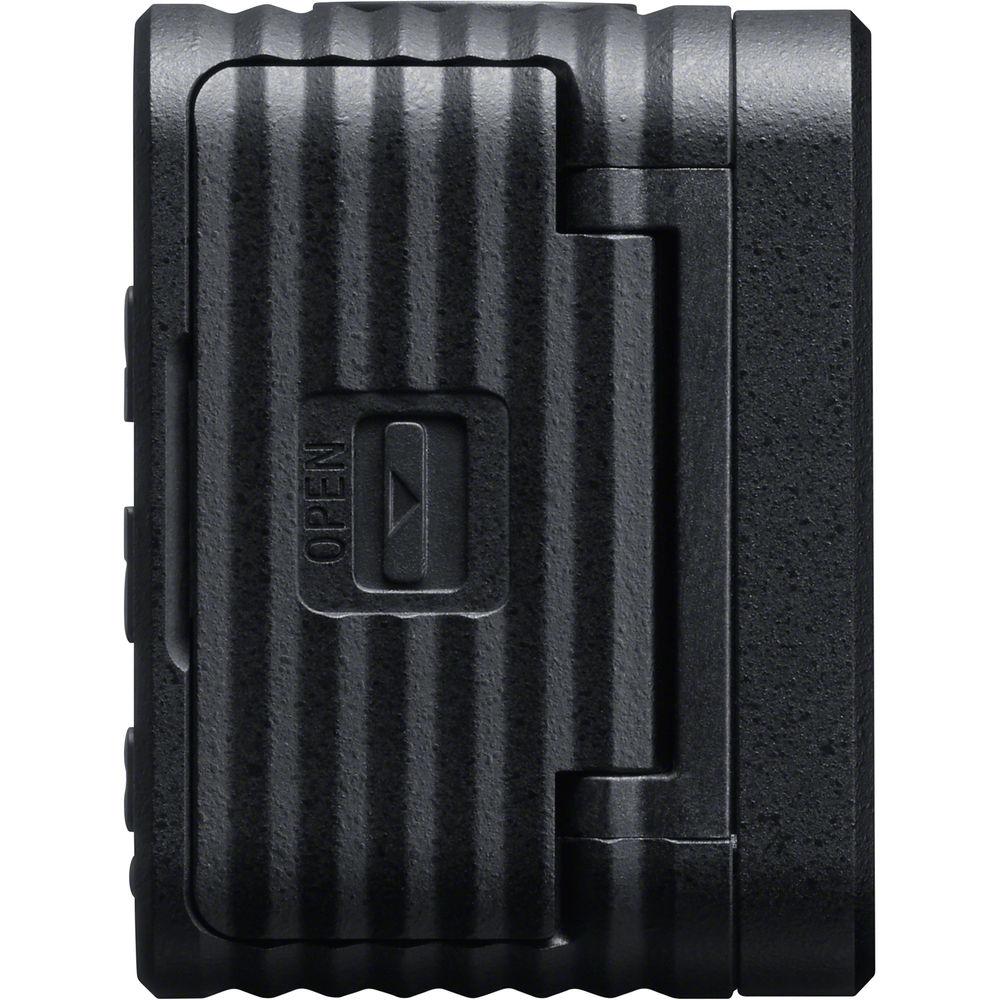

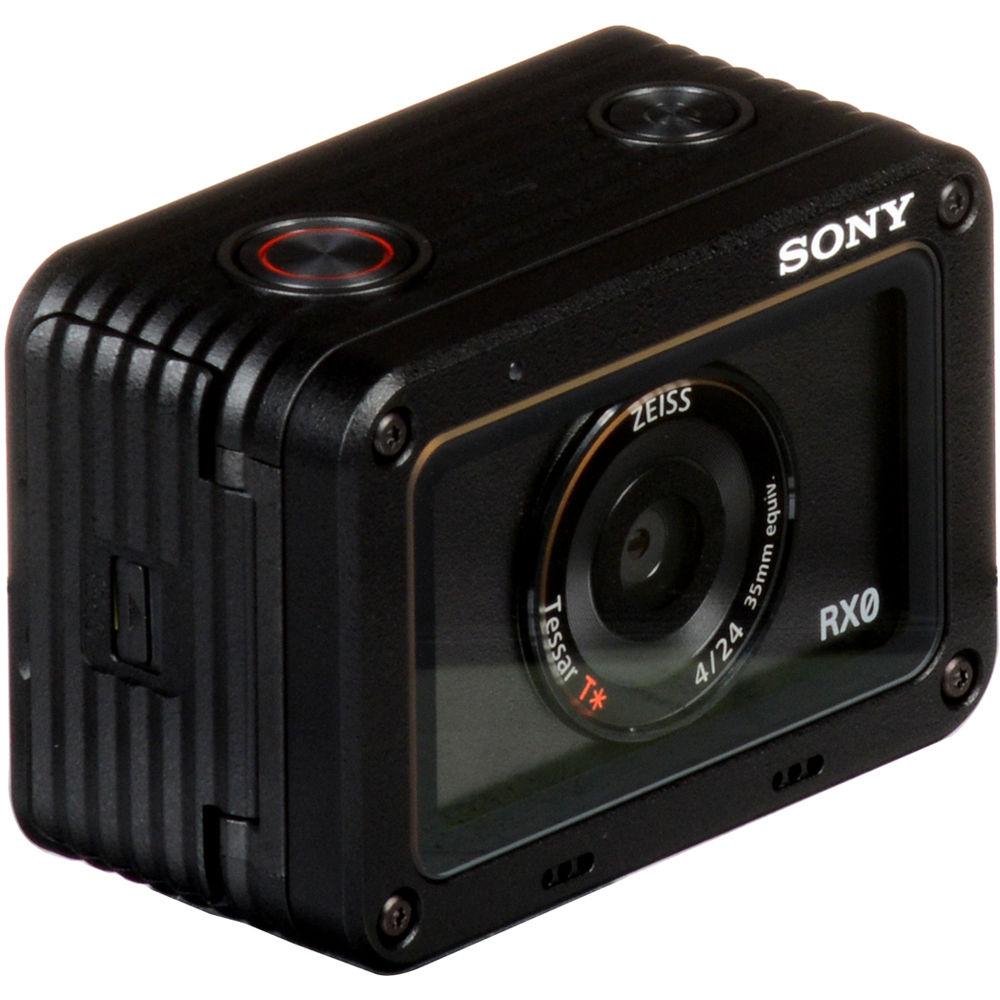

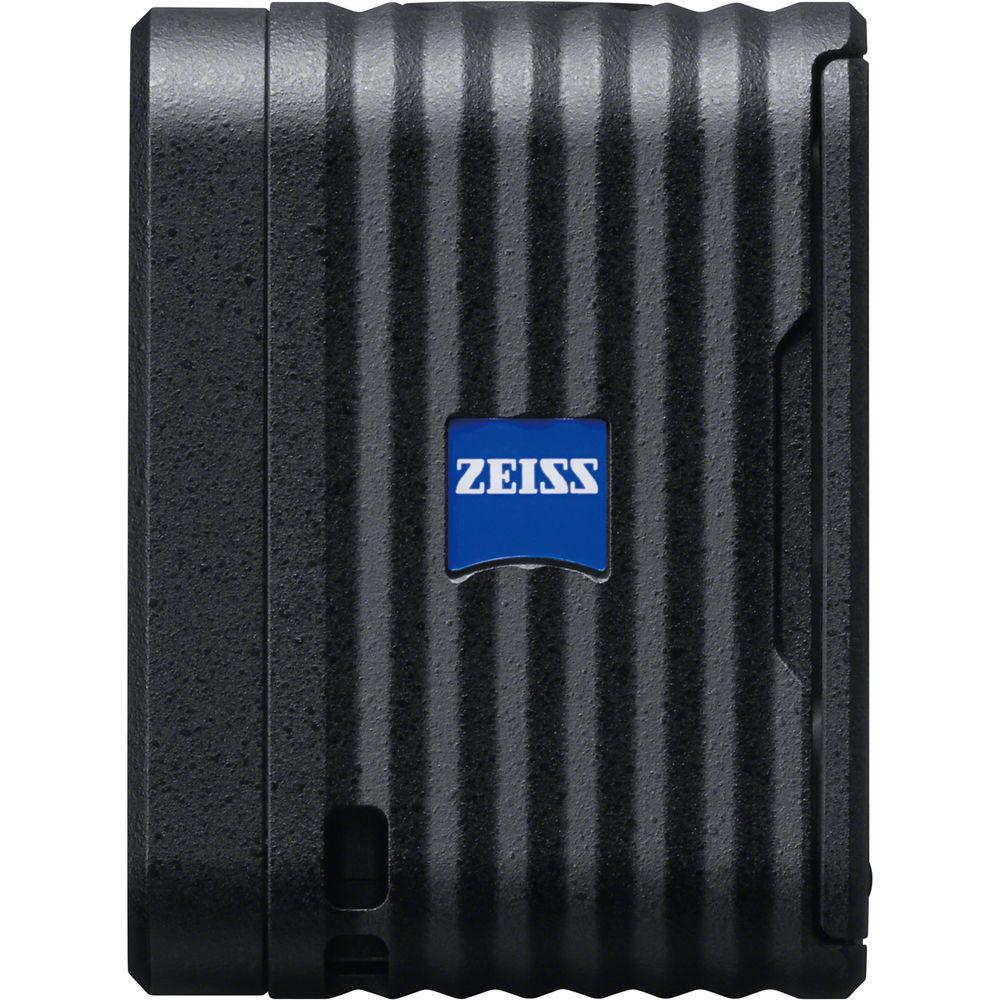

User Manual for Sony RX0 Ultra-Compact Waterproof Shockproof Camera Click to enlarge the picture
Contents of the user manual for the Sony RX0 Ultra-Compact Waterproof Shockproof Camera
- Product category: Sports & Action Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Sports & Action Cameras
 |
User manual for the Sony RX0 Ultra-Compact Waterproof Shockproof Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony Unveils the RX0, a Miniature Camera with Big Ambitions Read More - Announcing The Sony RX0
- Sony | Cyber-shot | RX0 - Product feature
- Sony | Cyber-shot | RX0 - Behind the scenes of "
|
Upload User Manual
Have you got an user manual for the Sony RX0 Ultra-Compact Waterproof Shockproof Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony RX0 Specs | | | Sensor | 1-Chip 1" CMOS Exmor CS CMOS | | Color Filter | Bayer | | Sensor Resolution | 21 MP | | Effective Pixels | 15.3 MP (Video) | | | | Focal Length | 7.7mm | | 35mm-Equivalent Focal Length | 24 | | Maximum Aperture | f/4 | | Lens Elements | 6 | | Minimum Focusing Distance | 20.0" / 50.8 cm | | Fixed Focus | No | | Angle of View | Wide: 84° (35mm-Equivalent: 24mm) Still Images. | | | | System | NTSC/PAL | | Recording Media | 1 x Memory Stick Micro, microSD, microSD/HC, microSD/HC/XC (128 GB Maximum) 8GB minimum | | Video Format | 1920 x 1080p at 24/25/30/50/60 fps (50 Mb/s XAVC S) | | Slow Motion Mode | 1000 fps Recorded at 1920 x 1080p
960 fps Recorded at 1920 x 1080p
500 fps Recorded at 1920 x 1080p
480 fps Recorded at 1920 x 1080p
250 fps Recorded at 1920 x 1080p
240 fps Recorded at 1920 x 1080p | | Still Image Resolution | Raw: 15 Megapixel
JPEG: 15 Megapixel | | | | Display Type | LCD | | Touchscreen | No | | Screen Size | 1.5" | | Screen Resolution | 230,400 Dots | | Aspect Ratio | 4:3 | | | | Shutter Speed | 1/4 - 1/32000 Second (Photo, Video) | | Photo ISO Range | 125 - 12,800 (Auto) | | Video ISO Range | 125 - 12,800 (Auto) | | Exposure Metering | Center-Weighted, Multi, Spot | | Shooting Modes | High Speed Movie
Intelligent Auto
M (Manual)
Movie
Program Auto
Superior Auto | | Burst Photo | 16 Photos / 1 Second | | Continuous Shooting | Up to 5.5 fps | | Self-Timer | 2, 5, 10 Sec | | Remote Control | PlayMemories Mobile App, CCB-WD1 (Included) | | | | Scene Modes | Preset: Yes | | Shockproof Rating | 6.6' / 2.0 m | | Waterproof Depth Rating | 33.0' / 10.0 m (Camera) | | IP Rating | IP68 | | White Balance Modes | 3000K
5500K
Auto
Cloudy
Cool White
Daylight
Fluorescent (Day White)
Incandescent
Shade
Underwater
Warm White | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, 802.11b/g | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB 2.0 Type-A
1 x 1/8" / 3.5 mm Stereo Microphone In | | Outputs | 1 x USB Micro-AB
1 x Micro-HDMI (Type D) | | Microphone Input | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack | | Charging Method | USB | | Power Adapter | 5.0 VDC | | Power Consumption | Operating: 1.3 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 2.4 x 1.6 x 1.2" / 61.0 x 40.6 x 30.5 mm | | Weight | 3.4 oz / 96.4 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.15 x 4.7 x 3.65" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
