Sony SCA-M30 Indoor Ceiling Microphone

Search your instruction manual in PDF to download

User Manual for Sony SCA-M30 Indoor Ceiling Microphone

Click to enlarge the picture
Sony SCA-M30 Indoor Ceiling Microphone Contents of the user manual for the Sony SCA-M30 Indoor Ceiling Microphone
  • Product category: Audio Surveillance Sony
  • Brand: Sony
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sony Audio Surveillance

User manual for the Sony SCA-M30 Indoor Ceiling Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sony product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!



Product description

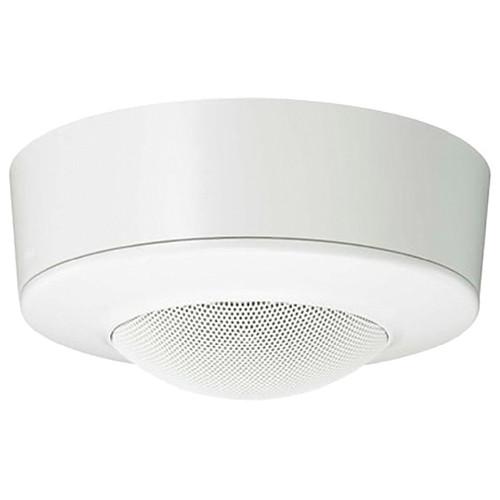

The Sony SCA-M30 Indoor Ceiling Microphone is specifically designed for indoor use with Sony security network cameras.
    All-in-one Microphone that Requires No External Amplifier or Power Supply
  • Built-in amplifier with the line-level output capability
    Plug-in power supply from Sony SNC video security cameras
    Two Methods of Mounting
  • In-ceiling Mount: For use on ceilings where a hole for attachment* is available, the main microphone unit can be inserted directly onto the ceiling and fixed instantly using the mounting springs
    Ceiling Surface Mount: For use on ceilings without a hole, the SCA-M30 can be installed with the supplied mounting bracket 1
    Please Note:
    * 3.62 to 4" (90 to 100 mm) in diameter close
    High Sensitivity Sound Quality
  • Unidirectional electret condenser transducer picks up clear sounds from the front, while acoustic shielding construction suppresses noise from the sides and back
    Pickup direction can be targeted by rotating the grill section
    Selectable gain to match the requirements of different connected devices
    Boundary effect architecture to collect more sounds
    Low Noise
  • Sealed ceiling architecture eliminates noise pickup from above the ceiling
    Rubber-cushioned element mount suppresses pickup of vibration noise
    Folding mounting springs with rubber bushings suppress pickup of direct external vibrations
    Low-cut filter achieves clear voice capture
UPC: 027242794061 In the Box Sony SCA-M30 Indoor Ceiling Microphone
  • Bracket for Ceiling Installation
  • 2 x Microphone Mounting Screw (BV4 x 20)
  • 3 x Bracket Mounting Screw (B2.6 x 20)
  • Operating Manual
  • Warranty Book
  • 1-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sony SCA-M30 Indoor Ceiling Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sony SCA-M30 Specs

    Type Electret condenser microphone
    Directivity Unidirectional with direction rotation mechanism
    Frequency Response 300 to 10 kHz
    Sensitivity -35 dB*1 ± 3.5 dB (at 1 kHz) *1 0 dB = 1 V/Pa, at 1 kHz
    Signal-to-Noise Ratio 60 dB or more (IEC179 A weighted, 1 kHz, 1 Pa)
    Sound Enhancement Rubber cushioned element mount
    Folding mounting springs with rubber bushing
    Sealed ceiling architecture
    Boundary effect architecture
    Low cut filter
    Power Supply 1.5 to 9 VDC (plug-in)
    Current Consumption 0.5 mA and less
    Output Connector Φ3.5 mm mini-plug (3 poles), tip-ring short connected
    Cable Length Connector: Approximately 118.1" (300 cm)
    Signal Output 10 mVrms ATT 0, 6, 12 dB selectable
    Installation Ceiling surface, flush in ceiling
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions Without Bracket: 4.96 x 2.16" (126 x 55 mm)
    With Bracket: 5.25 x 2.37" (132 x 60 mm)
    Weight Approximately 5 oz (146 g) (excluding cable)
    Approximately 8 oz (225 g) with bracket (excluding cable)
    Package Weight 1.68 lb
    Box Dimensions (LxWxH) 9.7 x 6.5 x 4.7"
