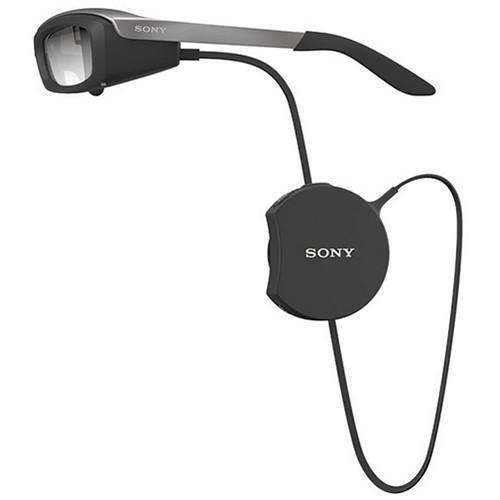

User Manual for Sony SED-E1 SmartEyeglass Heads-Up Display Click to enlarge the picture
Contents of the user manual for the Sony SED-E1 SmartEyeglass Heads-Up Display
- Product category: Smart Glasses Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Smart Glasses
 |
User manual for the Sony SED-E1 SmartEyeglass Heads-Up Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony SmartEyeglass Developer Edition Augmented Reality Glasses Read More - Sony's SmartEyeglass: augmented reality smart glasses for business solutions

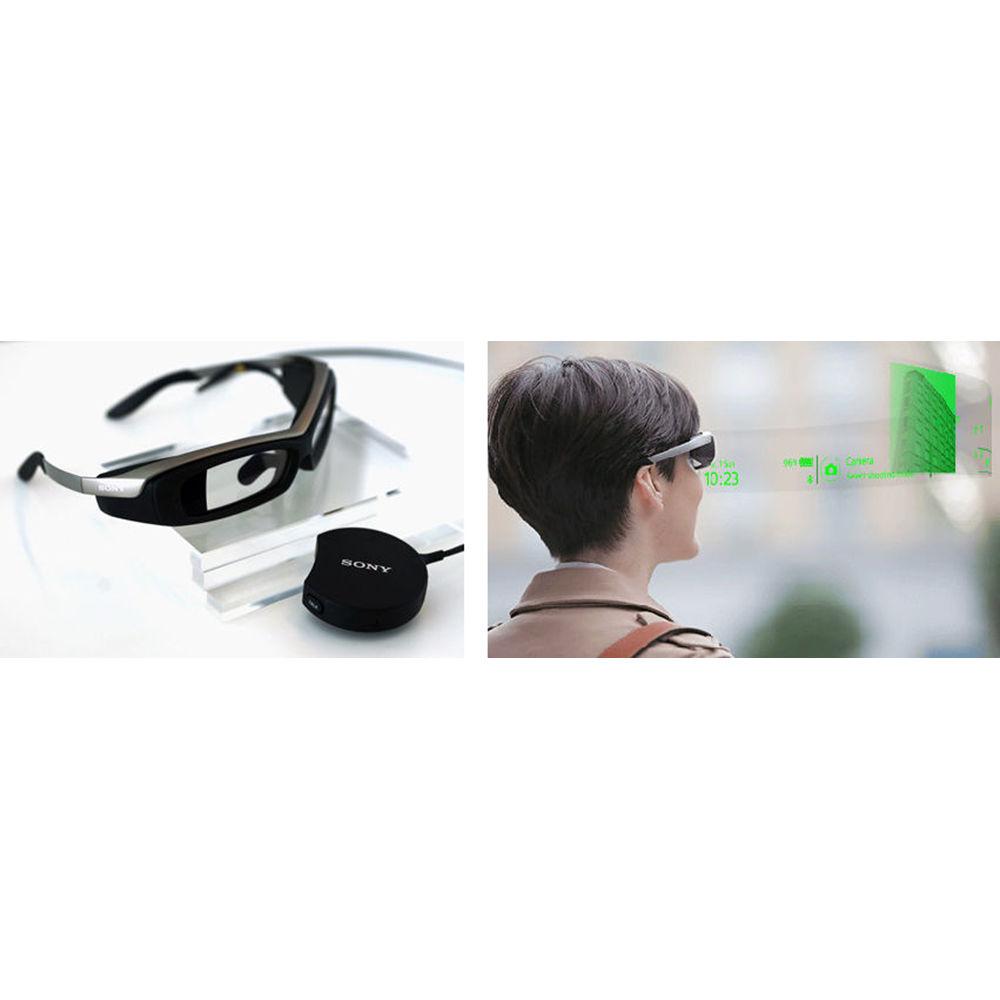

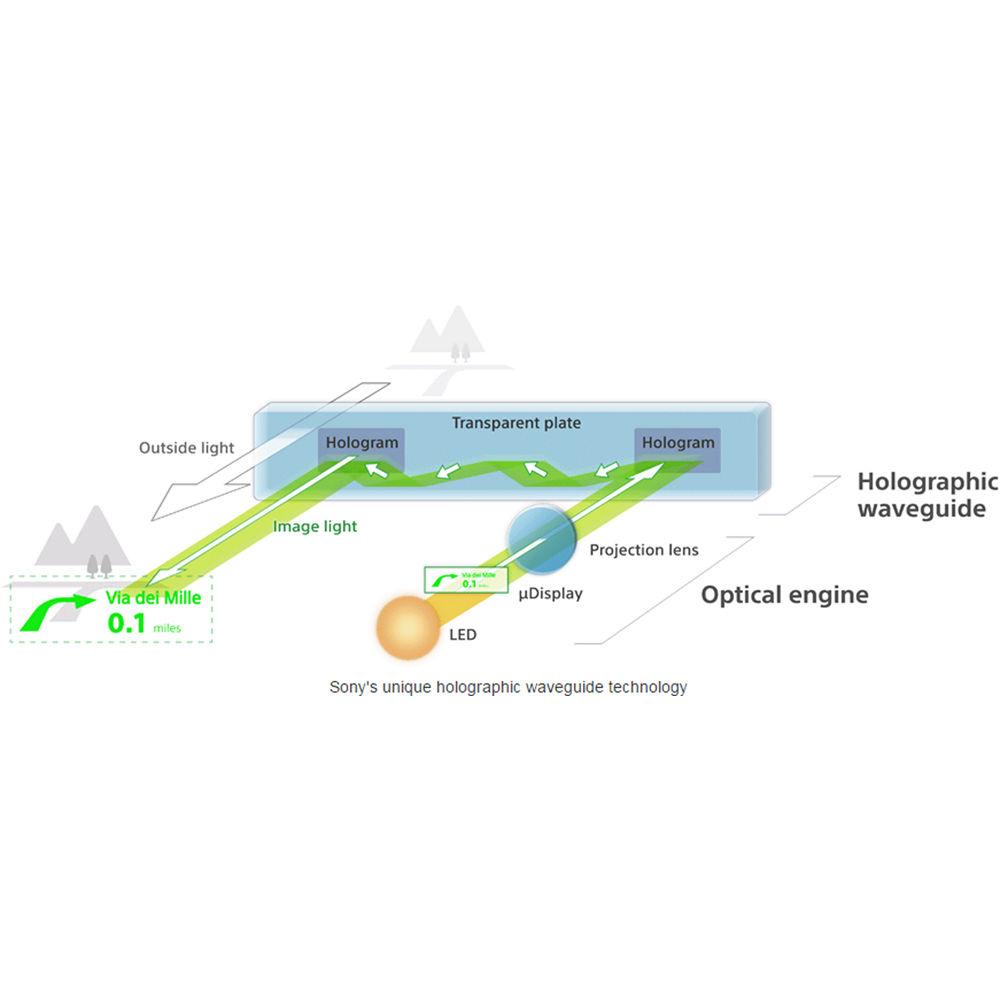

Enter a new world of information with the Developer Edition of the Sony SmartEyeglass Heads-Up Display. These glasses make use of holographic waveguide technology, which allows for 3mm thick, highly transparent AR lenses with high brightness. They project a green monochromatic overlay onto each lens, displaying various types of information in a heads-up display format. When connected to your smartphone, you can use your SmartEyeglass with specially-designed apps to navigate, view location-based tweets, control your smartphone with your voice, translate in real time, and more.

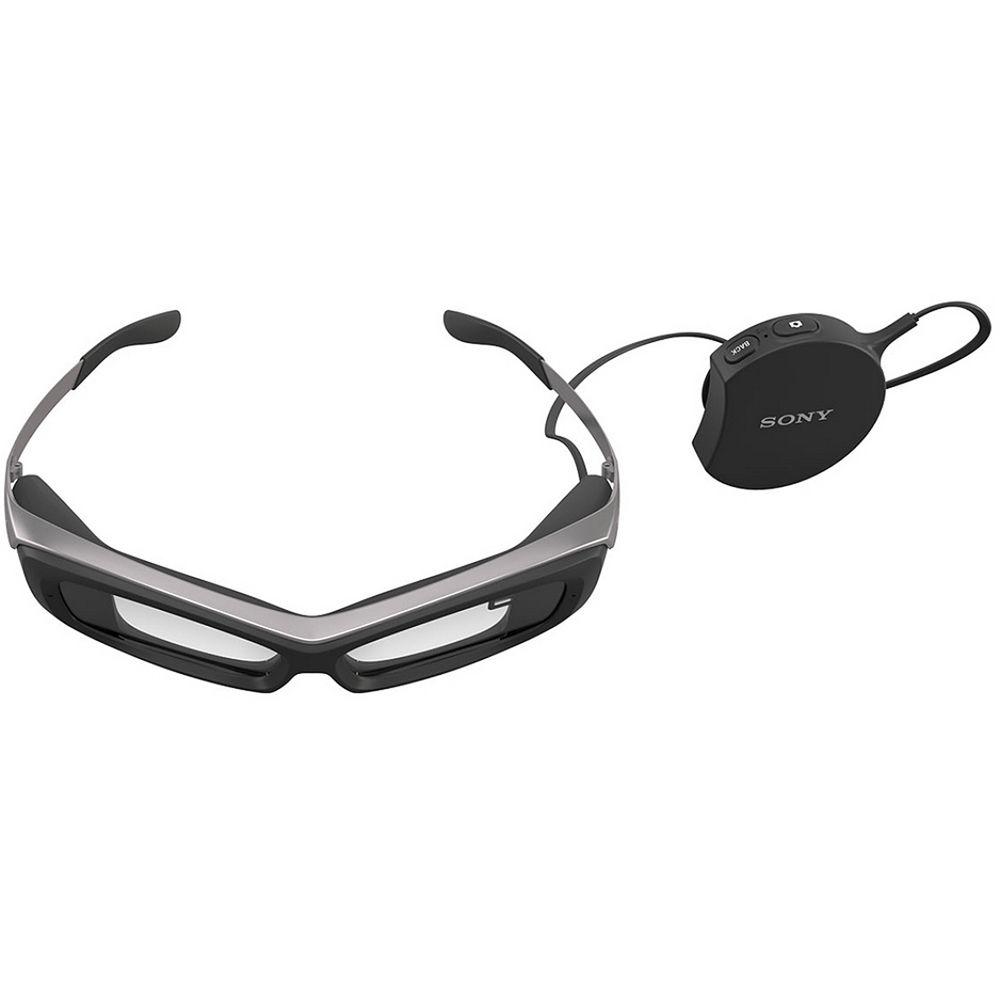

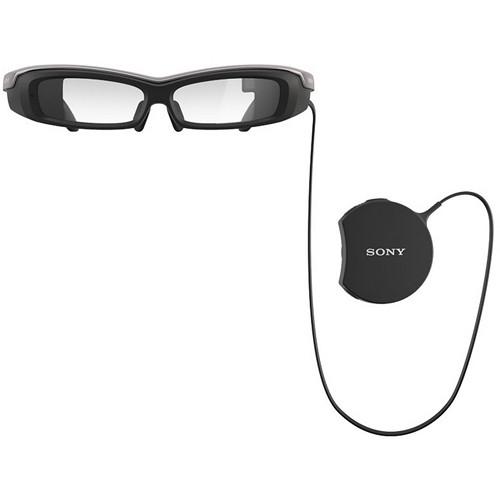

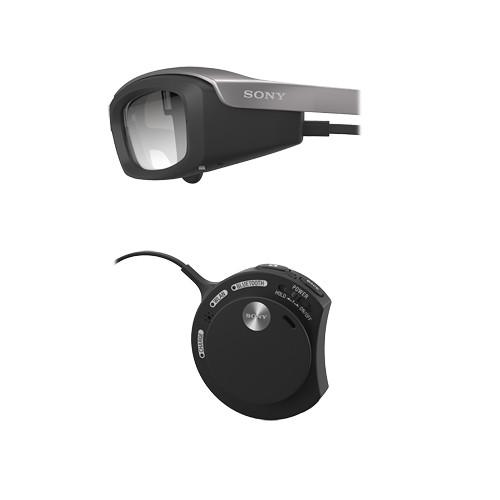

The SmartEyeglass is connected to a controller with a touch sensor that lets you navigate through onscreen menus. It also contains a talk button, back button, speaker, microphone, and a micro-USB charging port, as well as indicators for Wi-Fi, Bluetooth, and charging. A clip on the back attaches it to clothing and a shutter button controls the glasses' 3MP camera.
This Developer Edition model also lets you create your own apps: the SmartEyeglass SDK includes a smartphone emulator, sample code, guides, API references, and support information. You can take advantage of the glasses' camera, microphone, speaker, compass, gyroscope, and light sensor as well as the Wi-Fi connection and Bluetooth 3.0 connection to your Android smartphone. Apps can be created for everything from real-time stats at sporting events to hands-free assembly instructions for factory and assembly line workers. Note: This product is not intended for use by children. Therefore, children should not use it. Additionally, this device cannot be worn with traditional eyeglasses, and you may not be able to use this product if your interpupillary distance is outside the range of 54.5 to 72.5 mm. - Camera Integration
- A built-in 3MP camera lets you easily snap pictures with the controller's dedicated camera button or use facial recognition apps.
- High Transparency Display
- The SmartEyeglass features a binocular display with 1,000 cd/m2 brightness for high readability and 3mm-thick lenses with 85% transmittance for great transparency.
- Enhanced Sensor Array
- In addition to its 3MP CMOS image sensor, the SmartEyeglass is equipped with built-in accelerometer, gyroscope, electronic compass, and a brightness sensor to help provide a trule immersive experience.
- Hands-Free Use Cases
- Developers can combine the SmartEyeglass sensors and camera with the powerful features of compatible smartphones to create unique hands-free use cases. See your favorite sport stats in real time, get hands-free assembly instructions displayed in front of you, and even see real-time directions while you're on the move.
- Lightweight and Comfortable
- Weighing in at 77g, the SmartEyeglass is both well-balanced and comfortable to wear.
- Long-Lasting Battery Life
- The lithium-ion battery recharges in approximately two hours and provides up to 150 minutes of continuous use or up to 80 minutes with the camera on.
- Wireless Connectivity
- The SmartEyeglasses can pair your smartphone's Bluetooth connection traditionally or by tapping your NFC-enabled device against the NFC tag in the controller.
UPC: 027242884830 In the Box Sony SED-E1 SmartEyeglass Heads-Up Display (Developer Edition) Carrying Case Dark Filter Camera Cover Sheet Nose Pad, Small Limited 1-Year Warranty Sony SmartEyeglass Augmented Reality Glasses: Now Exclusive to B&H Max Waldroop 09/08/2015 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SED-E1 SmartEyeglass Heads-Up Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony SED-E1 SmartEyeglass Heads-Up Display can be downloaded in PDF format at the link stated below.
Technical parametersSony SEDE1BJU Specs | | | Display Type | Binocular, translucent (>85% transmittance) | | Resolution | 419 x 138 | | Color | Monochrome (green) | | Grayscale | 8-bit | | Field of View | Diagonal 20° (19° × 6°) | | Virtual Screen Size | H x W: 8.9 x 2.6' (2.7 x 0.8 m)
Virtual viewing distance: 26' (8 m) | | Maximum Brightness | 1000 cd/m2 | | | | Still Image Resolution | 3 MP | | Video | JPEG stream without audio, 320 x 240 | | | | Speaker | Yes, in controller | | Microphone | Yes, one traditional microphone and one noise suppression sub microphone, both in controller | | | | Wi-Fi | 802.11 b/g | | Bluetooth Version | 3.0, power class 2 | | Bluetooth Profiles | HFP, SPP | | NFC | Yes, compatible with NFC Forum Type 3 tags | | Ports and Connectors | 1 x micro-USB (charging) | | | | Type | Rechargeable lithium-ion, built-in | | Maximum Charge Voltage | 4.25 VDC | | Maximum Charge Current | 0.9 A | | Battery Life | Camera On: Up to 80 minutes
Camera Off: Up to 150 minutes | | | | OS Compatibility | Android 4.4 and up, please consult manufacturer to ensure compatibility | | Sensors | Accelerometer, gyroscope, electronic compass, brightness sensor, microphone, noise suppression sub microphone | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | 5 to 122°F (-15 to 50°C) | | Dimensions | Glasses, Folded: 7.1 x 1.5 x 2.8" (18.0 x 3.9 x 7.2 cm)
Glasses, Opened: 7.1 x 1.5 x 7.2" (18.0 x 3.9 x 18.2 cm)
Controller: 2.1 x 0.8 x 2.4" (5.4 x 2.1 x 6.0 cm)
Cable Length: 24.8" (63.0 cm) | | Weight | Glasses: 2.7 oz (77.0 g)
Controller: 1.6 oz (45.0 g) | | | | Package Weight | 1.275 lb | | Box Dimensions (LxWxH) | 11.25 x 9.45 x 3.0" |
