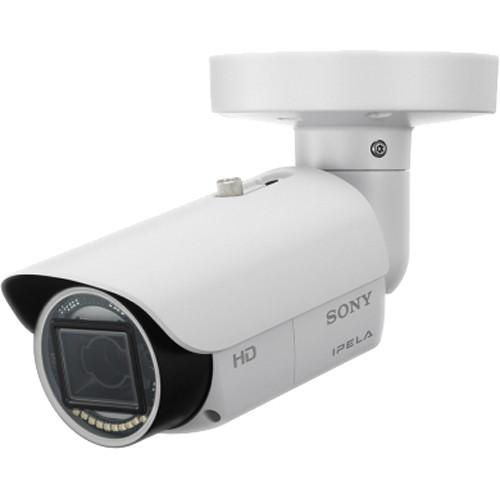

User Manual for Sony SNC-EB602R 1.3MP Outdoor Network Bullet Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Sony SNC-EB602R 1.3MP Outdoor Network Bullet
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony SNC-EB602R 1.3MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The SNC-EB602R 1.3MP Outdoor Network Bullet Camera from Sony features a 1/3" progressive scan Exmor CMOS sensor and 3-9mm built-in varifocal lens. The camera is capable of delivering 1280 x 1024 video at 30 fps. This multi-codec (H.264 & JPEG) camera comes with 3x optical and 4x digital zoom and supports multi-streaming. It features 10 built-in IR LED illuminators that allow it to capture clear images of objects in the dark to a distance of 82'. This camera features the IPELA ENGINE EX signal processing system that offers features such as View-DR, XDNR, and DEPA Advanced technologies. Power over Ethernet functionality enables you to power the camera via the same Ethernet cable that carries data, eliminating the need for an additional power supply and associated wiring. The camera comes in an IP66-rated water-resistant and dust-tight enclosure for installation outdoors or indoors in environments where water ingress may be possible. - Maximum resolution of 1280 x 1024 pixels with the Exmor CMOS sensor
- Wide dynamic range of 90 dB, achieved with View-DR technology
- Minimum illumination of 0.05 lux in color mode at 50 IRE
- Built-in IR (infrared) illuminators to help provide clear B&W images in the dark under 0 lux, from up to 82' away
- Image stabilizer to help minimize the effect of camera shaking or vibration
- IP66-rated water-resistant and dust-tight case for outdoor surveillance or indoor where water ingress may pose an issue
- Operating temperature ranging from 22 to 122°F (-30 to 50°C)
- IPELA ENGINE EX signal processing system developed based on Sony's signal processing and video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies
- Visibility Enhancer (VE) technology optimizes contrast and makes a scene more visible; it is ideal for scenes where objects are hard to recognize due to severe back light or shadows
- VE optimizes the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under lowlight conditions
- DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules such as passing (virtual border)
- Camera arm design allows you to easily adjust the viewing angle
- Easy Zoom/Easy Focus for installation
- Easy initial network settings by supplied SNC Easy IP Setup Guide application
- Power over Ethernet capability IEEE 802.3af-compliant
- Advanced IR technology to provide high-quality IR images without overexposure, ensuring clear B&W images of close and distant objects
- True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
- Picture mode feature allows you to easily adjust camera settings based on scene requirements
- VBR (variable bit rate) capable of maximum bit rate setting or CBR (constant bit rate) compression mode selectable to correspond with various network conditions
- Smartphone viewer to display an image of the camera on the smartphone's screen and control the camera's pan, tilt, and zoom functions by simple touch-panel manipulation
- ONVIF (Open Network Video Interface Forum) Profile S conformance firmware that ensures greater interoperability and more flexibility in building multi-vendor systems
UPC: 027242875692 In the Box Sony SNC-EB602R 1.3MP Outdoor Network Bullet Camera with Night Vision & Heater Template Waterproof Tape Wrench Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-EB602R 1.3MP Outdoor Network Bullet Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-EB602R Specs | | | Sensor | 1/3" progressive scan Exmor CMOS | | Effective Pixels | 1.37 MP approximately | | Signal System | NTSC/PAL (switchable) | | Scanning | Internal synchronization | | Minimum Illumination | At 50 IRE:
Color: 0.05 lux (f/1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
B&W: 0 lux (IR illuminator on)
At 30 IRE:
Color: 0.03 lux (f/1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
B&W: 0 lux (IR illuminator on) | | S/N Ratio | More than 50 dB at 0 dB gain | | Gain | Auto | | Shutter Speed | 1/10,000 to 1 sec | | Exposure Control | Exposure compensation, AGC, shutter speed, iris | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one push WB, manual | | Lens Type | Built-in varifocal | | Zoom Ratio | Optical Zoom: 3x
Digital Zoom: 4x
Total Zoom: 12x | | Focal Length | 3-9mm | | F-Number (f) | f/1.2 (wide) to f/2.1 (tele) | | Viewing Angle | Horizontal: 92.9 to 31.8°
Vertical: 73.1 to 25.5° | | Minimum Object Distance | 1' (30 cm) | | Day/Night | True day/night | | Number of IR LEDs and Range | Number: 10
Range: 82' (25 m) at 50 IRE | | IR Wavelength | 850 nm (typical) | | Wide-D | View-DR | | Tone | Correction: Visible Enhancer (VE) | | Noise Reduction | XDNR | | Privacy Masking | Number: 20
Shape: Quadrangle formed by any four corner points
Color/Effect: Opaque: 14 colors (black, white, red, green, blue, cyan, yellow, magenta, gray (6 scales)), mosaic | | Overlay | 3 independent positions for characters (codec, date & time, event, text (64 characters maximum)), 1 independent position for logo marks
Language: English | | Menu Language | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai | | | | Resolution | 1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288, 320 x 240 (H.264, JPEG) | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Frame Rate | 30 fps (1280 x 1024) for H.264 and JPEG | | Bit Rate | Compression Mode: CBR/VBR/VBR with cap (selectable)
Setting Range: 64 kb/s to 32 Mb/s | | Rate Control | Adaptive: H.264 | | Bandwidth Control | JPEG | | Streaming Capability | Multi-streaming (triple streaming) | | Number of Clients | 20 | | | | Architecture | DEPA Advanced | | Detection Functions | Motion detection, face detection | | Alarm | Tamper alarm | | Scene | Passing, intrusion, left object detection, removed object detection | | | | Protocol | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client only), SNMP (v1, v2c, v3), SSL | | QoS | DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | Streaming | Multicast | | | | Operating System | Windows XP (32-bit) Professional Edition / Vista (32-bit) Ultimate, Business Edition / 7 (32/64-bit) Ultimate, Professional Edition / 8 Pro (32/64-bit) / 8.1 Pro (32/64-bit) | | Processor | Intel Core i7 2.8 GHz and above | | Memory | 2 GB and above | | Web Browser | Microsoft IE v7.0 and above, FireFox v19.02 (plug-in free viewer only), Safari v5.1 (plug-in free viewer only), Google Chrome v25.0 (plug-in free viewer only) | | | | Analog Output | 1 x phono jack, monitor output for setup | | Port | Network: 10Base-T/100Base-TX (RJ45) | | | | UL Listing | UL2044 | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Temperature | Storage: -4 to 140°F (-20 to 60°C)
Cold Start: -4°F (-20°C) | | Humidity (Non-condensing) | Operating: 20 to 90%
Storage: 20 to 95% | | Ingress Protection Rating | IP66 | | Power Requirement | IEEE 802.3af-compliant (PoE system) | | Power Consumption | Maximum 10 W (tentative, IEEE 802.3af-compliant PoE system) | | | | Dimensions (W x H x D) | 3.8 x 3.8 x 6.4" (93.0 x 93.0 x 160.9 mm) without camera arm
5.38 x 12.38" with camera arm (140 x 313.4 mm) | | Weight | 3.19 lb (1.45 kg) approximately | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 15.8 x 8.4 x 8.2" |
