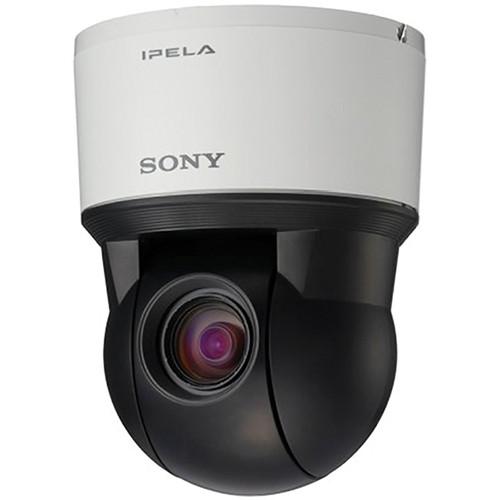

User Manual for Sony SNC-EP520 Network PTZ Camera Click to enlarge the picture
Contents of the user manual for the Sony SNC-EP520 Network PTZ Camera
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony SNC-EP520 Network PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SNC-EP520 Network PTZ Camera is a reliable monitoring solution that delivers excellent quality video footage of your home or business. It features a powerful 36x optical zoom that brings distant objects closer, making it ideal for detailed monitoring. Its 3.4 to 122.4mm zoom lens lets you adjust the camera view, so that you can get what you desire – either more detailed images or a wider coverage. Featuring a pan/tilt mechanism, the camera offers 340° pan and 105° tilt operations for quick and accurate movements.
Designed for Day/Night surveillance, the camera can capture clear images even in locations with a minimum illumination of 1.4 lux (color) and 0.15 lux (B&W). For improved image quality, the camera is equipped with a 1/4-type EXview HAD CCD sensor that reproduces high-resolution images. For versatile data management, recorded footage can be captured in MPEG4, JPEG, and H.264 compression formats.
Operating on Sony's DEPA platform that offers intelligent video analytics, the Fixed Indoor Camera provides customizable local alarm triggers and prevents false alarms. It sends images as well as provides related information such as object size and position for advanced downstream video analytics.
With the RealShot Manager Lite recording software, the camera can be setup quickly for recording and monitoring. The Network Camera is compliant with ONVIF (Open Network Video Interface Forum) protocol, which enables exchange and use of information between network video devices from various manufacturers. The smartphone viewer feature lets you access the camera from a smartphone to keep an eye on your premises when you’re away. - Image Quality
-
- Stylish and compact design for discreet surveillance of your premises
- 36x optical and 12x digital zoom with a total zoom ratio of 432x
- 1/4-type EXview HAD CCD sensor captures clear images
- 3.4 to 122.4mm lens to cover a wider viewing area
- 3 codecs (H.264, MPEG-4, JPEG) and dual-streaming capability
- Optical Day/Night function switches the camera between day and night modes, depending on the light level
- DynaView - Wide-D technology to handle various lighting conditions in a scene
- DEPA Platform - Intelligent Video Analytics
-
- Offers intelligent motion detection combining built-in intelligence in the camera itself with object-filters to provide customizable local alarm triggers
- Provides metadata output stream for advanced downstream video analytics
- Interoperability & Ease of Recording
-
- ONVIF (Open Network Video Interface Forum) software ensures greater interoperability and flexibility in building multiple-vendor systems
- RealShot Manager Lite recording software for setting up the camera quickly for recording and monitoring
- Smartphone Compatible
-
- Smartphone viewer feature for accessing the camera from a smartphone to keep an eye on your premises from anywhere
- Power & Storage
-
- Powered by HPoE for simple installation
- SD memory card slot for an on-board storage
UPC: 027242826717 In the Box Sony SNC-EP520 Network PTZ Camera CD-ROM (User's Guide, Supplied Programs) Installation Manual Ceiling Bracket 2 x Screws Template 24V AC Connector, I/O Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-EP520 Network PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-EP520 Specs | Image Device | 1/4-type Exmor CMOS | | Number of Effective Pixels | Approx. 0.38 MP | | Minimum Illumination | Color: 1.4 lux (F1.6, shutter 1/60sec, AGC ON, 50 IRE[IP])
B&W: 0.15 lux (F1.6, shutter 1/60sec, AGC ON, night mode 50 IRE [IP])
Color: 0.9 lux (F1.6, shutter 1/60sec, AGC ON, 30 IRE[IP])
B&W: 0.1 lux (F1.6, shutter 1/60sec, AGC ON, night mode, 30 IRE[IP]) | | Electronic Shutter Speed | 1/1 to 1/10,000 sec. | | Gain Control | Auto/manual (-3 to 28 dB) | | Exposure Control | Full auto, shutter priority, iris priority, manual | | White Balance Modes | Auto, ATW, indoor, outdoor, one-push, manual, sodium vapor lamp | | Lens Type | Auto-focus zoom lens | | Zoom Ratio | Optical zoom 36x, digital zoom 12x, total zoom 432x | | Horizontal Viewing Angle | 57.8 to 1.7° | | Focal Length | f=3.4 to 122.4 mm | | F Number | F/1.6 to 4.5 | | Minimum Object Distance | Wide: 0.39" (10 mm)
Tele: 59.05' (1500 mm) | | Pan Angle | 340° | | Pan Speed | 300°/s (max) | | Tilt Angle | 105° | | Tilt Speed | 300°/s (max) | | Preset Positions | 256 positions | | Tour | 5 | | Features | Day/Night: Yes
Wide-D: Yes (92 dB)
Noise Reduction: Yes | | Codec Image Size (H x V) | 704 × 576, 720 × 480, 640 × 480, 384 × 288, 320 × 240 | | Video Compression Format | H.264, MPEG-4, JPEG | | Codec Streaming Capability | Dual streaming | | Maximum Frame Rate | 30 fps (H.264/MPEG-4/JPEG) | | Audio Compression | G.711/G.726 | | Intelligent Motion Detection | Yes | | Protocols | IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2) | | ONVIF | Yes (Ver. 1.02) | | Number of Clients | 5 | | Authentication | IEEE802.1X | | Ethernet | 10BASE-T / 100BASE-TX (RJ-45) | | Card Slot | SD memory card x 1 (Compatible with the SD/SDHC standards) | | Sensor Input | x2 | | Alarm Output | x1 | | External Microphone Input | Mini-jack (monaural) | | Audio Line Output | Mini-jack (monaural), Max output level: 1 Vrms | | Power Requirements | HPoE (IEEE802.3at compliant), 24 VAC | | Power Consumption | Approx. 25 W | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Starting Temperature | 32 to 122°F (0 to 50 °C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Safety Regulations | UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A | | Operating System | Microsoft Windows XP (32 bit) - Professional Edition
Microsoft Windows Vista (32 bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64 bit) - Ultimate, Professional Edition | | Processor | Intel Core2 Duo 2 GHz or higher | | Memory | 1 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only) | | Dimensions (Ø x H) | 5.87 x 7.62" (147.4 x 190.9 mm) | | Weight | 3 lb 12 oz (1.7 kg) (including ceiling bracket) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 11.8 x 10.6 x 9.2" |
