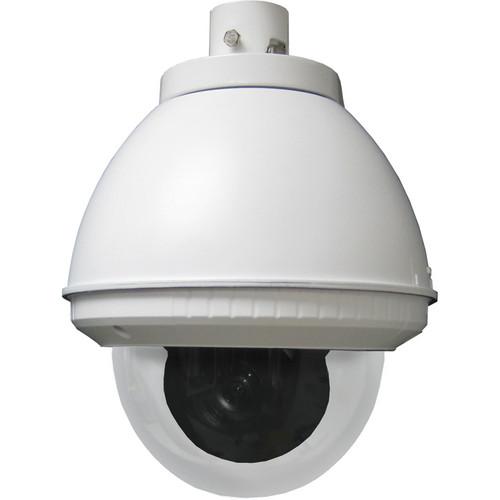

User Manual for Sony SNC-EP550 Unitized Outdoor PTZ Camera Kit Click to enlarge the picture
Contents of the user manual for the Sony SNC-EP550 Unitized Outdoor PTZ Camera
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony SNC-EP550 Unitized Outdoor PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SNC-EP550 Unitized Outdoor PTZ Camera Kit with HPoE is a complete monitoring solution that delivers excellent quality video footage for outdoor surveillance. It includes the SNC-EP550 PTZ Camera, a housing, and a pendant mount with clear lower dome.
The camera features a powerful 28x optical zoom that brings distant objects closer, making it ideal for detailed monitoring. Its 3.5 to 98mm zoom lens lets you adjust the camera view, so that you can get what you desire either more detailed images or a wider coverage. Featuring a pan/tilt mechanism, the camera offers 340° pan and 105° tilt operations for quick and accurate movements.
For improved image quality, the camera is equipped with a 1/4-type Exmor CMOS sensor that reproduces high-resolution images at 720p resolution at 30 fps. For versatile data management, recorded footage can be captured in MPEG4, JPEG, and H.264 compression formats.
Operating on Sony's DEPA platform that offers intelligent video analytics, the PTZ Camera provides customizable local alarm triggers and prevents false alarms. It sends images as well as provides related information such as object size and position for advanced downstream video analytics.
With the RealShot Manager Lite recording software, the camera can be setup quickly for recording and monitoring. The Network Camera is compliant with ONVIF (Open Network Video Interface Forum) protocol, which enables exchange and use of information between network video devices from various manufacturers.
The housing includes an 8 pin Ethernet cable with coupling and 60 W power through HPoE. - Image Quality
-
- 1/4-type Exmor CMOS sensor captures high-quality and low noise images
- 28x optical and 12x digital zoom with total zoom ratio of 336x
- 3.5 to 98mm varifocal lens to cover a wider viewing area
- 3 codecs (H.264, MPEG-4, JPEG) and dual-streaming capability
- Intelligent Features
-
- DynaView Wide-D technology ensures high-contrast image capture even under difficult lighting conditions
- Optical Day/Night function switches the camera between day and night modes, depending on the light level
- Wide-D technology to handle various lighting conditions in a scene
- Offers intelligent motion detection combining built-in intelligence in the camera itself with object-filters to provide customizable local alarm triggers
- Provides metadata output stream for advanced downstream video analytics
- ONVIF (Open Network Video Interface Forum) software ensures greater interoperability and flexibility in building multiple-vendor systems
- RealShot Manager Lite recording software for setting up the camera quickly for recording and monitoring
- Noise reduction technology digitally corrects any video noise that could cause blurring or distortion in the images
- Housing
-
- Features 8-pin Ethernet cable with coupling
- Pendant mount with clear lower dome
- Power & Storage
-
- Powered by 60 W HPoE (High Power over Ethernet) for simple installation
- SD memory card slot for an on-board storage
1 Please Note: SD memory card not included. close In the Box Sony SNC-EP550 Unitized Outdoor PTZ Camera Kit Pendant Mount Clear Lower Dome CD-ROM (User's Guide, Supplied Programs) Installation Manual Ceiling Bracket 2 x Screws Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-EP550 Unitized Outdoor PTZ Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-EP550 Specs | Image Device | 1/4-type Exmor CMOS | | Number of Effective Pixels | Approximately 1.43 MP | | Minimum Illumination | Color: 2.0 lux (Approximately) | | Electronic Shutter Speed | 1/1 to 1/10,000 seconds | | Frames Per Second | variable up to 30 | | Gain Control | Auto/manual (-3 to 28 dB) | | Exposure Control | Full auto, shutter priority, iris priority, manual | | White Balance Modes | Auto, ATW, indoor, outdoor, one-push, manual, sodium vapor lamp | | Lens Type | Auto-focus zoom lens | | Focal Length | f=3.5 to 98 mm | | Zoom Ratio | Optical zoom 28x, digital zoom 12x, total zoom 336x | | Horizontal Viewing Angle | 55.9 to 2.1° | | F Number | F/1.35 to 3.7 | | Minimum Object Distance | Wide to tele: 0.39 to 59.05" (10 to 1500 mm) | | Pan Angle | 340° | | Pan Speed | 300°/s (maximum) | | Tilt Angle | 105° | | Tilt Speed | 300°/s (maximum) | | Preset Positions | 256 | | Tour | 5 | | Features | Day/Night: Yes
Wide-D: Yes
Noise Reduction: Yes | | Codec Image Size (H x V) | 1280 × 720, 1024 × 576, 800 × 600, 800 × 480, 768 × 576, 720 × 576, 704 × 576, 720 × 480, 640 × 480, 640 × 368, 384 × 288, 320 × 240, 320 × 192 | | Video Compression Format | H.264, MPEG-4, JPEG | | Codec Streaming Capability | Dual streaming | | Maximum Frame Rate | 30 fps (H.264/MPEG-4/JPEG) | | Audio Compression | G.711/G.726 | | Intelligent Motion Detection | Yes | | Protocols | IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2) | | ONVIF Conformance | Yes (Version 1.02) | | Number of Clients | 5 | | Authentication | IEEE802.1X | | Ethernet | 10BASE-T / 100BASE-TX (RJ-45) | | Card Slot | SD memory card x 1 (Compatible with the SD/SDHC standards) | | Sensor Input | x2 | | Alarm Output | x1 | | External Microphone Input | Mini-jack (monaural) | | Audio Line Output | Mini-jack (monaural), Maximum output level: 1 Vrms | | Power Requirements | HPoE (IEEE802.3at compliant) | | Power Consumption | Approximately 25 W | | Operating Temperature | -20 to 122°F (-28.8 to 50°C)
| | Starting Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Safety Regulations | UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A | | Operating System | Microsoft Windows XP (32 bit) - Professional Edition
Microsoft Windows Vista (32 bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64 bit) - Ultimate, Professional Edition | | Processor | Intel Core2 Duo 2 GHz or higher | | Memory | 1 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only) | | Dimensions (L x W x H) | 11.5 x 11.5 x 21.5" (292.1 x 292.1 x 546.1 mm) | | Weight | 13 lb (5.89 kg) |
