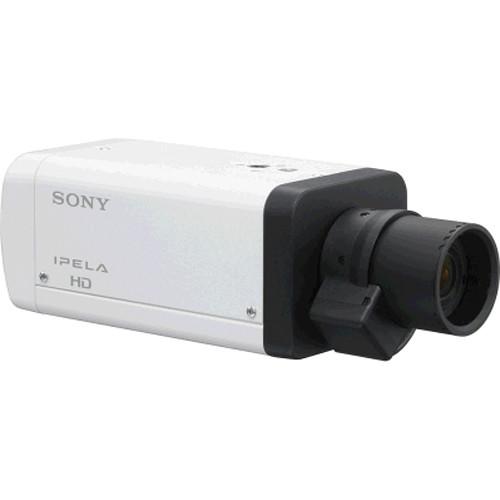

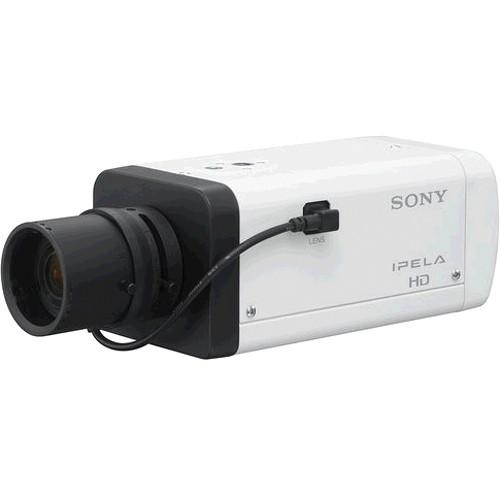

Product description The Sony SNC-VB600 High-Quality 720 HD Fixed Network Camera delivers a wide range of features and high level of performance with a maximum resolution of 1280 x 1024 pixels, frame rate of 60 fps, and improved sensitivity thanks to the Exmor CMOS sensor. This camera features the IPELA ENGINE EX signal processing system that allows the camera to provide advanced features such as improved image processing with View-DR, XDNR, and DEPA Advanced. View-DR at 130 dB captures objects clearly, even under harsh lighting conditions, such as strong backlight or high-contrast conditions. XDNR (eXcellent Dynamic Noise Reduction) allows the camera to deliver clear, low-noise images in low-light conditions. DEPA Advanced Intelligent Video and Audio Analytics triggers alarms according to user-defined rules. In-camera analytics are enhanced by additional features such as Face Detection, Left Object, and Removed Object Detection.
The SNC-VB600 offers high sensitivity with a minimum illumination of 0.05 lux in color mode and 0.04 lux in B/W mode. It can be powered by PoE (IEEE 802.3af-compliant), 24 VAC ±20%, or 12 VDC ±10% for easy installation. - Good 720 HD Picture-Quality: Gain the huge surveillance benefits of good picture quality with 720 HD with up to 1280 x 1024 maximum resolution.
- High-Quality and Low-Noise Images with Exmor CMOS Sensor: Derived from Sony's broadcast range, the high-resolution Exmor CMOS sensor improves image acquisition with its low noise characteristics.
- Unique Features from IPELA ENGINE EX Signal Processing System: IPELA ENGINE EX delivers improved View-DR, XDNR (eXcellent Dynamic Noise Reduction), and DEPA Advanced Intelligent Video and Audio Analytics.
- DEPA Delivers Intelligent, Customizable Image Capture and Alarm Triggering: The Sony DEPA platform offers intelligent video analytics delivered through a combination of the intelligence built into the camera and the rules and filters that determine which images should be recorded and when an alarm should be triggered.
- Operates at Low Minimum Illumination: The SNC-VB600 operates at a minimum illumination of 0.05 lux in color mode (F1.2, View-DR off, VE off, AGC on, 1/30 s, 30 fps) and 0.04 lux in B/W mode at 50 IRE and 30 fps.
- Multiple Video and Audio Codecs: The SNC-VB600 supports H.264 (high / main / baseline profile) / JPEG video codecs and AAC (16 / 48 kHz) / G.726 / G.711 audio codecs.
- True Day/Night Function for Optimized Images in Different Light Conditions: The Day/Night functionality allows automatic switch between day (color) and night (B/W) mode depending on the light level. In night mode, the IR-cut filter is removed so that the camera becomes sensitive to near-IR light and can reproduce images of scenes that are not visible to the naked eye.
- ONVIF Compliance for Compatibility and Confidence: The camera conforms to ONVIF (Open Network Video Interface Forum) Profile S, the widely accepted protocol for information exchange between network video devices, allowing ease of compatibility.
- Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range

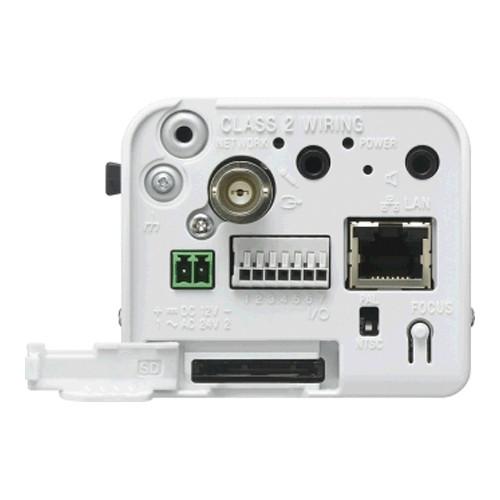

- SD card slot for an on-board recording capability 1
Please Note: Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is given against damage (including passive damage). close - XDNR (eXcellent Dynamic Noise Reduction) technology for clear images without motion blur under low illumination
- Smartphone viewer for accessing the camera from a smartphone
- Easy focus / easy zoom for easy installation
- VBR (variable bitrate) or CBR (constant bitrate) encoding format selectable to correspond with various network conditions
- Easy initial network settings by supplied SNC Easy IP Setup guide application
- Image stabilizer to minimize the effect of camera shake or vibration for less blurry images
- View-DR - Sony's innovative wide dynamic range technology to capture objects clearly and adaptively even under very harsh, severe backlight, or highlight conditions
UPC: 027242855991 In the Box Sony SNC-VB600 High-Quality 720 HD Fixed Network Camera (60 fps) 1 x CD-ROM (Supplied Programs) 1 x Installation Manual 1 x Wire Rope 1 x Screw M4 1 x 12 VDC / 24 VAC Connector 1 x Safety Regulations Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-VB600 High-Quality 720 HD Fixed Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-VB600 Specs | Image Sensor | 1/3-type progressive scan Exmor CMOS | | Number of Effective Pixels | Approximately 1.37 MP | | Signal System | NTSC color system / PAL color system (switchable) | | Minimum Illumination | 50 IRE
Color: 0.05 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
B/W: 0.04 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
30 IRE
Color: 0.03 lx (F1.2, View-DR off, VE off, AGC on, 1/30 s, 30 fps)
B/W: 0.02 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 130 dB with View-DR technology | | S/N Ratio | >50 dB (gain 0 dB) | | Gain | Auto | | Shutter Speed | 1/1 to 1/10,000 sec | | Sync System | Internal synchronization | | Exposure Control | Exposure compensation, AGC, shutter speed, iris | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one-push WB, manual | | Lens | CS-mount varifocal lens | | Zoom | Powered: No | | Zoom Ratio | Optical: 2.9x
Digital: 2x | | Powered Focus | Yes (easy focus) | | Horizontal Viewing Angle | 100 to 35.7° | | Vertical Viewing Angle | 78.1 to 28.6° | | Focal Length | 2.8 to 8 mm | | F Number | F1.2 (wide) to F1.95 (tele) | | Minimum Object Distance | 11.81" (300 mm) | | Horizontal Resolution | 600 TVL (analog video) Monitor display ratio 4:3. | | Preset Positions | 8x | | Tour | 5x | | IR Illuminators | No | | | | Day/Night | Yes | | Wide-D | Yes (View-DR) | | Image Enhancement | Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Codec Image Size (H x V) | 1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288, 320 x 240 (H.264, JPEG) | | Video Compression Format | H.264 (high / main / baseline profile), JPEG | | Codec Streaming Capability | Triple Streaming , CBR / VBR (selectable) Triple streaming: Any combination with JPEG / H.264, including multiple streams of the same format. | | Maximum Frame Rate | H.264: 60 fps (1280 x 1024)

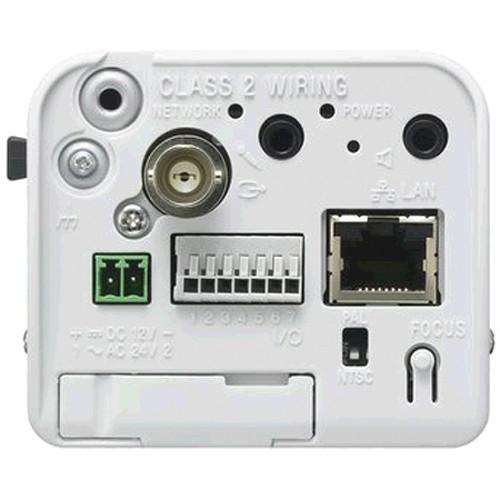

JPEG: 60 fps (1280 x 1024) | | | | Audio Compression Format | G.711 / G.726 / AAC (16, 48 kHz) | | | | Intelligent Motion Detection | Yes | | Face Detection | Yes Version 1.3 or later. | | Filter | Rule-Based: DEPA advanced Version 1.2 or later. | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2), IPv6, HTTPS , SNMP Version 1.2 or later. | | ONVIF Conformance | Yes (Profile S) Version 1.2 or later. | | Wireless Network Access | No | | Number of Clients | 20x | | Authentication | 1x IEEE 802 Version 1.3 or later. | | | | Analog Video Output | 1x BNC, 1 Vpp, 75 Ω, unbalance, sync negative | | Analog Monitor Output | No | | Line Input | Mini jack (monaural) | | Line Output | Mini jack (monaural), maximum output level: 1 Vrms | | Network | Port: 10BASE-T / 100BASE-TX (RJ-45) | | Sensor Input | 2x make contact, break contact | | Alarm Output | 2x 24 VAC / 24 VDC, 1 A (mechanical relay outputs electrically isolated from the camera) | | Microphone Input | Mini jack (monaural) | | Number of Card Slots | 1x SD card | | | | Operating System | Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32 / 64 bit) Ultimate, Professional Edition | | Processor | Intel Corei7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer 7.0, 8.0, 9.0 versions
Firefox Version 3.5 (plug-in free viewer only)
Safari Version 4.0 (plug-in free viewer only)
Google Chrome Version 4.0 (plug-in free viewer only) | | | | Power Requirements | PoE system (IEEE 802.3af compliant), 12 VDC ±10%, 24 VAC ±20% | | Power Consumption | 6 W maximum | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Starting Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 80% | | Storage Humidity | 20 to 95% | | Vandal Resistant | No | | Safety Regulations | JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A) | | Ingress Protection Rating | No | | Dimensions (W x H x D) | Without Lens: 2.87 x 2.5 x 5.75" (72 x 63 x 145 mm)
With Lens: 2.87 x 2.5 x 7.87" (72 x 63 x 197 mm) | | Weight | With Lens: 20 oz (565 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.6 x 6.6 x 5.7" |
