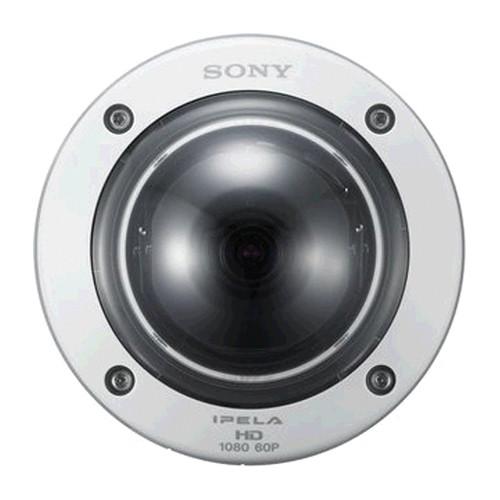

User Manual for Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Sony SNC-VM631 Indoor Vandal-Proof Mini Dome
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony SNC-VM631 Indoor Vandal-Proof Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera delivers a wide range of features and a high level of performance with a maximum resolution of 1920 x 1080 and improved sensitivity thanks to the Exmor CMOS sensor.
This camera features the IPELA ENGINE EX signal processing system that allows the camera to provide advanced features such as high frame rate and improved image processing with View-DR, XDNR, and DEPA Advanced. The high frame rate mode (60 and 50 fps) delivers smooth, more natural movement in the video. View-DR at 90 dB captures objects clearly, even under harsh lighting conditions, such as strong backlight or high-contrast conditions. XDNR (eXcellent Dynamic Noise Reduction) allows the camera to capture clear, low-noise images in low-light conditions. DEPA Advanced Intelligent Video and Audio Analytics triggers alarms according to user-defined rules. In-camera analytics are enhanced by additional features such as Face Detection, Left Object, and Removed Object Detection.
The SNC-VM630 camera offers high sensitivity with a minimum illumination of 0.1 lux in color mode and 0.07 lux in B&W mode. It can be powered by PoE (IEEE 802.3af-compliant), 24 VAC ±20%, or 12 VDC ±10% for easy installation. - Excellent 1080/60p HD Picture Quality: Gain the huge surveillance benefits of excellent picture quality with 1080/60p full HD, with up to 1920 x 1080 resolution.
- High-Quality and Low-Noise Images with Exmor CMOS Sensor: The high-resolution Exmor CMOS sensor improves image acquisition with its low noise characteristics.
- Unique Features from IPELA ENGINE EX Signal Processing System: IPELA ENGINE EX delivers high frame rate capability of up to 60 fps. IPELA ENGINE EX delivers improved View-DR, XDNR (eXcellent Dynamic Noise Reduction), and DEPA Advanced Intelligent Video and Audio Analytics. 1
Please Note: High frame-rate mode and ViewDR cannot be used at the same time. close - DEPA Delivers Intelligent, Customizable Image Capture and Alarm Triggering: The Sony DEPA platform offers intelligent video analytics delivered through a combination of the intelligence built into the camera and the rules and filters that determine which images should be recorded and when an alarm should be triggered.
- Vandal-Resistant: The SNC-VM631's dome is certified as IK10 for vandal resistance. It protects the camera from destructive behaviors.
- Operates at Low Minimum Illumination: This camera operates at a minimum illumination of 0.1 lux in color mode (F1.2, View-DR off, VE off, AGC on, 1/30 s, 30 fps) and 0.07 lux in B&W mode at 50 IRE and 30 fps.
- Multiple Video and Audio Codecs: The SNC-VB600B supports H.264 (high / main / baseline profile) / JPEG video codecs and AAC (16 / 48 kHz) / G.726 / G.711 audio codecs.
- True Day/Night Function for Optimized Images in Different Light Conditions: The Day/Night functionality allows automatic switch between day (color) and night (B/W) mode depending on the light level. In night mode, the IR-cut filter is removed so that the camera becomes sensitive to near-IR light and can reproduce images of scenes that are not visible to the naked eye.
- ONVIF Compliance for Compatibility and Confidence: The camera conforms to ONVIF (Open Network Video Interface Forum) Profile S, the widely accepted protocol for information exchange between network video devices, allowing ease of compatibility.
- Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- SD card slot for an on-board recording capability 2
Please Note: Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is given against damage (including passive damage). close - XDNR (eXcellent Dynamic Noise Reduction) technology for clear images without motion blur under low illumination
- Smartphone viewer for accessing the camera from a smartphone
- Easy focus / easy zoom for easy installation
- VBR (variable bitrate) or CBR (constant bitrate) encoding format selectable to correspond with various network conditions
- Easy initial network settings by supplied SNC Easy IP Setup guide application
- Image stabilizer to minimize the effect of camera shake or vibration for less blurry images
- View-DR - Sony's innovative wide dynamic range technology to capture objects clearly and adaptively even under very harsh, severe backlight, or highlight conditions
In the Box Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera 1 x CD-ROM (Supplied Programs) 1 x Installation Manual 1 x Template 2 x Camera Unit Mounting Screw 1 x Audio Cable 1 x I/O Cable 1 x Power Input Cable 1 x M3 Screw 1 x Bracket 1 x Wire Rope 1 x Safety Regulations Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-VM631 Specs | Image Sensor | 1/2.9-type progressive scan Exmor CMOS sensor | | Number of Effective Pixels | Approximately 2.14 MP | | Signal System | NTSC color system / PAL color system (switchable) | | Minimum Illumination | 50 IRE: Color: 0.1 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
B&W: 0.07 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps)
30 IRE: Color: 0.06 lx (F1.2, View-DR off, VE off, AGC on, 1/30 s, 30 fps)
B&W: 0.05 lux (F1.2, View-DR off, VE off, AGC on, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | S/N Ratio | >50 dB (gain 0 dB) | | Gain | Auto | | Shutter Speed | 1/1 to 1/10,000 sec | | Sync System | Internal synchronization | | Exposure Control | Exposure compensation, AGC, shutter speed, iris | | White Balance | ATW, ATW-PRO, fluorescent lamp,mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one-push WB, manual | | Lens | Built-in varifocal lens | | Zoom | Powered: No | | Zoom Ratio | Optical: 3x
Digital: 2x Version 1.2 or later | | Powered Focus | Yes (easy focus) | | Horizontal Viewing Angle | 105.2 to 35.4° | | Vertical Viewing Angle | 57 to 20° | | Focal Length | 3 to 9 mm | | F Number | F1.2 (wide) to F2.1 (tele) | | Minimum Object Distance | 11.81" (300 mm) | | Horizontal Resolution | TBD | | Preset Positions | 8x | | Tour | 5x | | IR Illuminators | No | | | | Day/Night | Yes | | Wide-D | Yes (View-DR) | | Image Enhancement | Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Codec Image Size (H x V) | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 180 (H.264, JPEG) | | Video Compression Format | H.264 (high / main / baseline profile), JPEG | | Codec Streaming Capability | Triple Streaming , CBR / VBR (selectable) Triple streaming: Any combination with JPEG / H.264, including multiple streams of the same format. | | Maximum Frame Rate | H.264: 60 fps (1920 x 1080)
JPEG: 60 fps (1920 x 1080) | | | | Audio Compression Format | G.711 / G.726 / AAC (16, 48 kHz) | | | | Intelligent Motion Detection | Yes | | Face Detection | Yes Version 1.3 or later. | | Filter | Rule-Based: DEPA advanced Version 1.2 or later. | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2), IPv6, HTTPS , SNMP Version 1.2 or later. | | ONVIF Conformance | Yes (Profile S) Version 1.2 or later. | | Wireless Network Access | No | | Number of Clients | 20x | | Authentication | 1x IEEE 802 Version 1.3 or later. | | | | Analog Video Output | 1x BNC, 1 Vpp, 75 Ω, unbalance, sync negative | | Analog Monitor Output | No | | Line Input | Mini jack (monaural) | | Line Output | Mini jack (monaural), maximum output level: 1 Vrms | | Network | Port: 10BASE-T / 100BASE-TX (RJ-45) | | Sensor Input | 2x make contact, break contact | | Alarm Output | 2x 24 VAC / 24 VDC, 1 A (mechanical relay outputs electrically isolated from the camera) | | Microphone Input | Mini jack (monaural) | | Number of Card Slots | 1x SD card | | | | Operating System | Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32 / 64 bit) Ultimate, Professional Edition | | Processor | Intel Corei7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer 7.0, 8.0, 9.0 versions
Firefox Version 3.5 (plug-in free viewer only)
Safari Version 4.0 (plug-in free viewer only)
Google Chrome Version 4.0 (plug-in free viewer only) | | | | Power Requirements | PoE system (IEEE 802.3af compliant), 12 VDC ±10%, 24 VAC ±20% | | Power Consumption | TBD | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Starting Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 80% | | Storage Humidity | 20 to 95% | | Vandal Resistant | Yes | | Safety Regulations | JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A) | | Ingress Protection Rating | No | | Dimensions (W x H x D) | 5.87 x 4.37" (148 x 108 mm) The values for dimensions are approximate. | | Weight | 28 oz (800 g) approximately |
