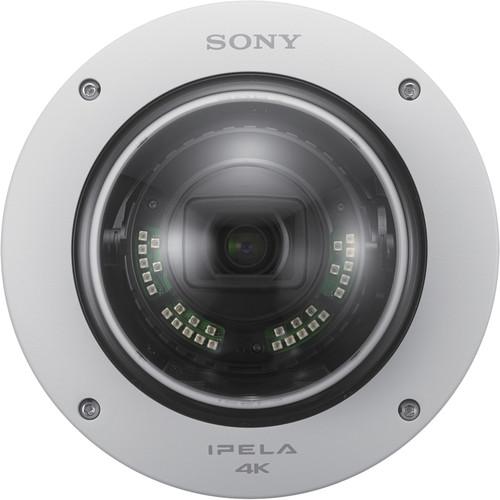

User Manual for Sony SNC-VM772R 20MP Outdoor Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Sony SNC-VM772R 20MP Outdoor Network Mini
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony SNC-VM772R 20MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The SNC-VM772R 20MP Outdoor Network Mini Dome Camera from Sony captures UHD 4K (3840 x 2160) resolution video at a minimum illumination of 0 lux thanks to its Exmor R 20MP 1.0-type back-illuminated CMOS sensor, high-speed image processing engine, IR emitters, and 2.9x motorized high-quality zoom lens. The camera has a built-in SD card slot and evidence shot for high-quality still-image recording. - Exmor R 20MP (5,472 x 3,648) large-sized 1.0-type back-illuminated CMOS sensor
- UHD 4K (3840 x 2160) resolution at a minimum illumination of 0 lux
- High-speed image processing engine
- Intelligent scene capture to automatically select the best picture settings that are predefined based on lighting conditions and typical scenes such as backlight, spotlight, night scene, low light, and more
- Preset and custom scene profiles allow picture parameter changes by schedule or event
- Intelligent cropping (Region of Interest) simultaneously observes up to 4 specific areas of interest in any captured images with a native 4K resolution, while viewing the entire image
- Capable of dynamically tracking up to 4 objects detected using advanced motion detection
- Built-in SD card slot and evidence shot for still image recording
- Optical image stabilizer to help reduce image blur, maintains full resolution image capture
- Smartphone app to wirelessly adjust the camera's field view from a smartphone or tablet PC with an optional IFU-WLM3 USB Wireless LAN Module
- IK10-rated vandal resistance
- IP66-rated weather resistance
- SD card slot for edge storage that supports SD card notification function with specific Sony SD card models to send alerts when SD card is failing or defective
- View-DR with 90dB wide dynamic range
- Supports VBR (variable bit rate) with cap or CBR selectable
- Powered by either PoE/PoE+ system, 24 VAC ±20%, or 12 VDC ±10%
- DEPA advanced intelligent video analytics
- ONVIF (Open Network Video Interface Forum) Profile S
UPC: 027242890046 In the Box Sony SNC-VM772R 20MP Outdoor Network Mini Dome Camera with Night Vision Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SNC-VM772R 20MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-VM772R Specs | | | Image Sensor | 1.0-type progressive scan Exmor R CMOS sensor | | Number of Effective Pixels | Approximately 20 MP | | Minimum Illumination | Color: 0.1 lux
B&W: 0 lux with IR | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | Lens | Built-in motorized zoom lens | | Zoom Ratio | Optical zoom 2.9x | | Viewing Angle | Horizontal: 70.7 to 27.5°
Vertical: 39.9 to 15.7° | | Focal Length | 8.8 to 25.7mm | | Aperture | f/1.8 to 2.8 | | IR Range | Approximately 164' (50 m) | | Day & Night | True D/N | | Tone | Visibility Enhancer (VE) | | Image Stabilizer | Optical | | | | Resolution | 5472 x 3648, 3840 x 2160, 2880 x 2160, 1920 x 1080, 1440 x 1080, 1440 x 960, 1280 x 720, 960 x 720, 720 x 480, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Compression Format | H.264 (High/Main Profile), JPEG | | Maximum Frame Rate | H.264: 30 fps (3840 x 2160)
JPEG: 2.5 fps (5472 x 3648) | | Bit Rate | CBR/VBR with cap (selectable) | | Multi-Streaming | 5 streams | | | | Analytics | DEPA Advanced | | Scene Analytics | Entering, passing, loitering, exiting, counting, object removed, object left behind | | | | Compression Format | G.711/G.726/AAC-LC (16, 48 kHz) | | | | Protocols | IPv4, TCP, UDP, ICMP, HTTP, RTP/RTCP, RTSP over TCP, IPv6, HTTPS, FTP (client only), TLS (v1.0) | | ONVIF Conformance | Profile S | | Digital Video Output | 1 x HDMI | | Microphone Input | Mini jack | | Line Input | Mini jack | | Network Port | 10Base-T/100Base-TX (RJ45) | | Alarm | 2 x inputs
2 x outputs | | Wireless | 1 x terminal | | Card Slot | 1 | | Maximum SD Card Size | SDHC/SDXC (maximum 128 GB) | | Power Requirements | 12 VDC ± 10%
24 VAC ± 20%, 50/60 Hz
IEEE 802.3at compliace (PoE/PoE+ system) | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Vandal Resistance | IK10 | | Ingress Protection Rating | IP66 | | Dimensions (Ø x H) | 7.5 x 5.9" / 19 x 15 cm | | Weight | Approximately 4 lb / 2 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 9.0" |
