User manual
Sony Sonnar T* E 24mm f

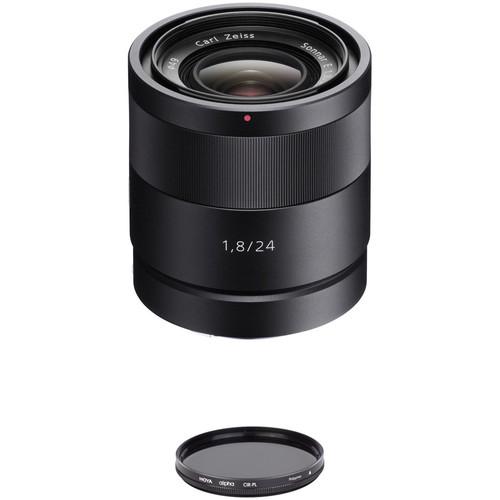

User Manual for Sony Sonnar T* E 24mm f 1.8 ZA Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony Sonnar T* E 24mm f/1.8 ZA Lens Practically distortion-free and featuring a fast f/1.8 maximum aperture, this Sonnar T* E 24mm f/1.8 ZA Lens from Sony will help APS-C E-mount shooters capture difficult scenes with ease. Offering a 36mm equivalent focal length, this lens is a common choice for street, interiors, landscapes, and general photography. Also, thanks to the use of one extra-low dispersion element, two aspherical elements, and the Zeiss T* coating, shooters will enjoy images free from aberrations and flare. Operation is speedy as well due to the use of a fast and silent linear autofocus motor and an internal focus design, which permits focusing as close as 6.3" for close ups with a 0.25x magnification. Additionally, it has a seven-blade circular diaphragm for smooth, round bokeh.
  • Based on the Zeiss Sonnar optical concept, this lens uses a design with eight elements in seven groups that helps achieve the large maximum aperture of f/1.8 while simultaneously reducing flare and improving contrast.
  • A wide-angle prime designed for APS-C Sony E-mount cameras, this 24mm lens will provide an equivalent focal length of 36mm. It can also be used on full-frame E-mount cameras in APS-C mode.
  • The f/1.8 maximum aperture allows users to create images with shallow depth of field and work in low-light conditions with relative ease.
  • Zeiss T* anti-reflective coatings have been applied to each lens surface to help minimize reflections in order to provide greater image clarity, contrast, and color fidelity.
  • One extra-low dispersion glass element is featured in the lens design to help reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
  • Two aspherical elements are incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
  • A linear autofocus motor and internal focus design provide quick and precise autofocus performance and enables accurate and silent focusing while recording videos.
  • The advanced optical design permits a minimum focus distance of just 6.3" for a maximum magnification of 0.25x, allowing shooter to capture sharp close ups.
  • Rounded seven-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242830004
• Hoya 49mm alpha Circular Polarizer Filter The Hoya 49mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056146

• Sonnar T* E 24mm f/1.8 ZA Lens duvdvaydbzuwsxrtwczweeacswefyvscvdse
• ALC-SH114 Lens Hood
• ALC-F49S 49mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Lens Pouch
• Limited 1-Year Warranty

• Hoya - 49mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Sonnar T* E 24mm f/1.8 ZA Lens

  Focal Length	24mm (35mm Equivalent Focal Length: 36mm)
  Maximum Aperture	f/1.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	APS-C
  Angle of View	61 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 23 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
