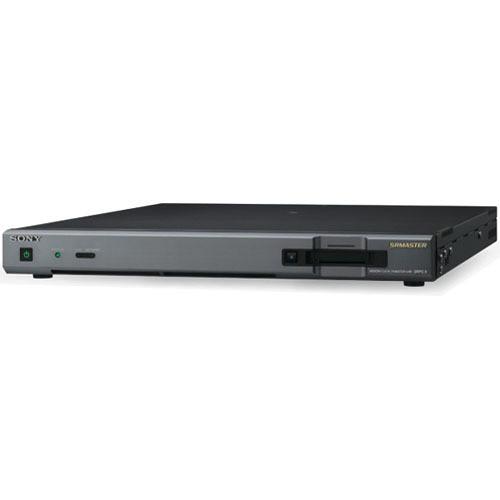

User Manual for Sony SR-PC5 SRMASTER Data Transfer Unit Click to enlarge the picture
Contents of the user manual for the Sony SR-PC5 SRMASTER Data Transfer Unit
- Product category: Recorders & Duplication Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Recorders & Duplication
|
User manual for the Sony SR-PC5 SRMASTER Data Transfer Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SR-PC5 SRMASTER Data Transfer Unit is a cost-effective solution for SRMemory data viewing, logging, and ingesting to off-line editing applications. This unit offers a web-based GUI, which is used for viewing and ingesting SRMemory content for review on-set and at post-production acceptance. The SRPC5 is a hub that bridges SRMASTER-based file-based operations. It can ingest recorded data to servers and to non-linear editors (NLEs). In addition, it can duplicate valuable materials to the HDCAM-SR tape. - Fast data transfer from SRMemory cards to servers and/or NLEs via an optional 10Giga-E network interface
- Browsing capability of files and clips on SRMemory card by SRPC-5's GUI
- Up to 2x ingest from HDCAM-SR tape
- Browsing and viewing capability of materials recorded in SR video mode on broadcast monitor
- Data cloning from SRMemory card to HDCAM-SR tape without decode/re-encode processes
In the Box Sony SR-PC5 SRMASTER Data Transfer Unit Rack Mount Angle (1 Each for Left and Right) 4 x Washers 4 x Screws SR Viewer (CD-ROM) Installation Manual Operation Guide Operation Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SR-PC5 SRMASTER Data Transfer Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SR-PC5 Specs | Power Supply | 100 to 240 VAC (50/60 Hz) | | Power Consumption | 110 W (with all options installed) | | Inrush Current | Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 28 A peak, 1.7 A r.m.s. (240 VAC) After a mains interruption of 5 seconds (Voltage changes caused at zero-crossing): 5 A peak, 1.6 A r.m.s. (240 VAC) | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60 °C) | | I/O Connectors | Auxiliary Output A, B
A: BNC (1), B: BNC (1)
HD SDI (1.485 Gbps) (conforming to SMPTE-292M/372M, BTA-S004B)
3G SDI (2.97 Gbps) (SMPTE-424M)
VTR I/F (IN, OUT): Local I/F INPUT A/B: BNC (2)
Local I/F OUTPUT A/B: BNC (2)
Network: 1000Base-T modular jack (1)
Option: PCI Express Slot (1) (PCI Express x4 Gen1) | | Environment | Browser: Firefox, Internet Explorer, Safari, Google Chrome
NFS Server: Redhat Linux E5, Mac OS v10.6
CIFS Server: Windows XP, Windows 7 | | Dimensions | 16.87 x 1.75 x 21.5" (427 x 43.6 x 546 mm) | | Weight | 22 lb (10 kg) |
