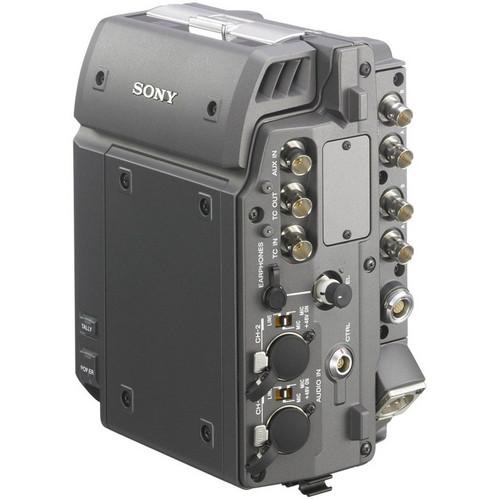

User Manual for Sony SR-R1 Portable Recorder for HD-SDI Cameras Click to enlarge the picture
Contents of the user manual for the Sony SR-R1 Portable Recorder for HD-SDI
- Product category: Recorders & Duplication Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Recorders & Duplication
|
User manual for the Sony SR-R1 Portable Recorder for HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SR-R1 Portable Recorder for HD-SDI Cameras is a portable I/O device with dual-stream HD-SDI inputs & outputs that's capable of recording both 4:2:2 1080p60 and stereoscopic 3D video (up to 1080p30) to extremely high-capacity SRMemory Cards (sold separately). For cameras such as the Sony F35 and the PMW-F3, the SR-R1 presents a powerful, convenient way to capture advanced formats – in the field or in the studio, with backup recording to the cameras' cards. It even records S-Log data from those cameras.The SR-R1 also features timecode input & output, dual XLRs for separate analog audio input, and of course embedded SDI audio recording (16 channels at 24-bit). As standard the SR-R1 recorder captures 4R-SR-Lite (220 Mb/s) and SR-SQ (440 Mb/s) – two very high-bit-rate formats that benefit greatly from the huge capacities and expansive bandwidths of SRMemory Cards, which support transfer speeds of up to 5.5 Gb/s. Note: Requires SRMemory Cards for operation. All 12-bit and uncompressed format support is forthcoming in 2012. - SRMemory Recording
- The SR-R1 records on to SR-MC SRMemory Cards (sold separately), offering massive data capacity and huge sustained transfer rates. SRMemory is unique with its combination of capacity, sustained data throughput, security, and portability. It opens up completely new ways for creatives to work. SRMemory Cards are available in capacities of 256 GB, 512 GB, and 1 TB, combining massive storage capacity with unrivalled levels of data security. The cards can record and replay multiple streams simultaneously and support data rates that can handle up to 4K. SRMemory Cards offer huge transfer speeds – up to 5.5 Gb/s for faster transfer of data in post production and for ultra-fast cloning of data on-set or at a live event. It is possible to record multiple camera streams on to a single card at a live event
- HDCAM SR Recording and Replay
- The SR-R1 records the same picture quality that has made HDCAM SR the worldwide reference for ultimate quality. SR-Lite (220 Mb/s) and SR-SQ (440 Mb/s) are supported as standard; SR-HQ (880 Mb/s) and uncompressed recording are supported as an option (not included) with the SRK-R311
- Uncompressed DPX Recording Option
- With the SRK-R311 option (not included), the SR-R1 records uncompressed Native DPX file format for a wide range of applications
- 3D & 2D 4:2:2 and RGB 4:4:4 Recording
- The SR-R1 records 4:2:2 2D and 3D as standard, with 3D stereoscopic (dual-stream) mode. Up to 30p RGB 4:4:4 dual-stream is an option (not included). The recorder has a dual HD-SDI / 3G-SDI interface and, with the SRK-R301 option (not included), dual 3G-SDI for an RGB 3D rig
- Multiple Frame Rate Recording
- The SR-R1 is able to record multiple frame rates working with the PMW-F3 Camera – 17-60 fps in 4:2:2, and 17-30 fps in RGB
- Frame-Accurate Recording with SxS Card and SRMemory simultaneously
- Operating with the PMW-F3 Camera, the SR-R1 is able to make frame-accurate recordings on both the SxS Card and SR-MC SRMemory Card
- Other Features
- The SR-R1 recorder also features 16-channel uncompressed audio recording at 23 bits, timecode input & output, a control panel, and DC power operation. Via an optional adapter (not included), you can dock the recorder to Sony camcorders. The SR-R1 also records RGB S-Log data from F35, SRW-9000PL, and PMW-F3 cameras.
In the Box Sony SR-R1 Portable Recorder for HD-SDI Cameras Control Panel BKP Spacer Control Panel Bracket Control Panel Cable (L600) Remote Conversion Cable 1 Year Limited Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SR-R1 Specs | | | Recording Format | MPEG-4 SStP format, Uncompressed Uncompressed available in 2012 | | Sampling Frequency | 422 Format Video: Y: 74.25 MHz, Pb/Pr: 37.125 MHz
444 Format Video: RGB: 74.25 MHz
Digital Audio: 48 kHz (synchronized with video) | | Quantization | 422 Format Video: 10 bits/sample
444 Format Video: 10 bits/sample, 12 bits/sample
Digital Audio: 24 bits/sample | | Compression | 422 Format Video: MPEG-4 SStP, Uncompressed
444 Format Video: MPEG-4 SStP, Uncompressed | | Headroom | Digital Audio: 20 dB | | Analog Audio Input | A/D Quantization: 24 bits/sample
Reference Input Level Line: +4 dBV, Mic: -34/-46/-58 dBV
Frequency Response 20 Hz to 20 kHz +0.5/-1.0 dB (reference level)
Dynamic Range 100 dB or more (1 kHz)
Distortion 0.05% or less (1 kHz, reference level)
Crosstalk -80 dB or less (1 kHz, between each channel) | | | | HD-SDI Input | 2x BNC
HD-SDI (1.485 Gb/s) (SMPTE 292M/372M/BTA-S004B standard)
3G-SDI (2.97 Gb/s) (SMPTE 424M) | | Audio Input | 2x XLR-3-pin (female, channel 1 / channel 2)
Line/Mic/Mic +48V selectable | | Timecode Input | 1x BNC
0.5 to 18 Vp-p, 10 kΩ (SMPTE 12M standard) | | Auxiliary Input | 1x BNC (digital audio)
HD-SDI embedded audio (1.485 Gb/s) | | | | HD-SDI Output | 2x BNC
HD-SDI (1.485 Gb/s) (SMPTE 292M/372M/BTA-S004B standard)
3G-SDI (2.97 Gb/s) (SMPTE 424M) | | Headphones | 1x Stereo mini-jack | | Timecode Output | 1x BNC
1.0 Vp-p (75Ω), 2.2 Vp-p (10 kΩ) (SMPTE 12M standard) | | | | Remote | 1x LEMO 14-pin (female) | | Control Panel | 1x Control panel connector | | | | Power Requirement | 11-17V DC | | Power Consumption | 30W (when recording at 422 23.98PsF SR-Lite mode) | | Operating Temperature | 32° to 104° F (0° to 40° C) | | Storage Temperature | -4° to +140° F (-20° to +60° C) | | Operating Humidity | 10-95% (no condensation) | | Dimensions (HxWxD) | 3.9 x 5.6 x 7.5" (14.1 x 9.7 x 19.0 cm) | | Weight | 4.2 lb (1.9 kg) – excluding control panel and SRMemory card | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 7.2" | Note: 12-bit and uncompressed (4:4:4) support is forthcoming in 2012.
