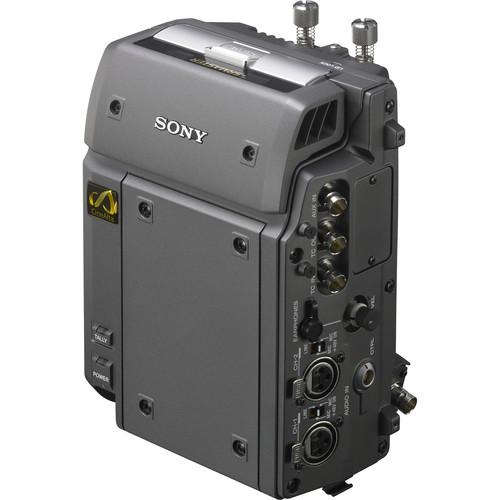

The Sony SR-R4 Dockable Memory Recorder for Sony F65 is a portable memory recorder specifically designed for Sony's F65 cinematography camera. It takes full advantage of the ultra high-speed SRMemory platform to record RAW data from the F65 at speeds as fast as 5 Gbps. The SR-R4 records on to SR-MC Series SRMemory media for the most demanding cinematography, 3D origination, live studio and post production applications.
    Direct Docking to F65 4K Camera
  • The SR-R4 has a multi-pin interface to dock directly on to the F65 CineAlta camera.
    4K 16-Bit Double Bayer RAW Recording
  • The SR-R4 records 4K Double Bayer 16-bit RAW data and 2K RAW high frame rate data for the highest quality uncompressed recordings.
    2K RAW High-Frame Recording
  • Select FPS -- variable frame rate image capturing - from 1 FPS to 60 FPS in 4K mode, and 1 FPS to 120 FPS in 2K mode.
    SRMemory Recording
  • The SR-R4 records on to SRMemory Cards, which is unique with its combination of capacity, sustained data throughput, security and portability. SRMemory Cards are available in capacities of 256GB, 512GB and 1TB, combining large storage capacity with data security. The cards can record and replay multiple streams simultaneously and support data rates that can handle up to 4K. SRMemory Cards offer fast transfer speeds - up to 5.5 Gbps for faster transfer of data in post production and for ultra-fast cloning of data on-set.
