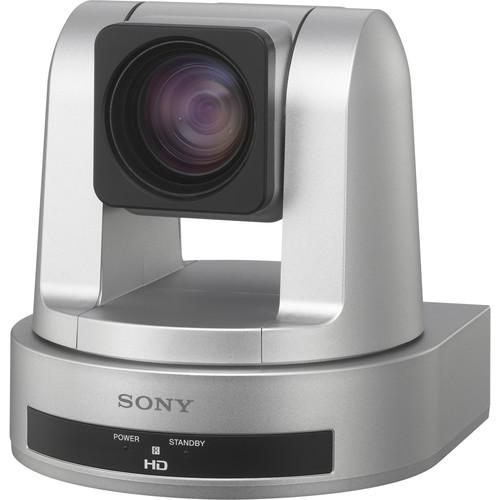

Product description The silver-housed SRG-120DS 12x PTZ Desktop Camera with SDI Output from Sony is a remote controlled high definition 1080p/60 PTZ camera with a 12x optical zoom designed for desktop use. The SRG-120DS incorporates Sony's high sensitivity 1/2.8-type Exmor CMOS sensor and a 3G-SDI signal interface, and is equipped with View-DR dynamic range enhancement and XDNR technology (Dynamic Noise Reduction). View-DR is engineered to provide superb visibility even in challenging back-lit conditions; it allows the camera to pan across an area and stay sharp despite shifting from front-lit to back-lit views. XDNR technology reduces noise and provides clear images in both moving and still objects under low light conditions.
Another feature of this SRG camera is its easy operation due to intuitive PC control software that enables full access to camera functions such as color adjustment. The full range of VISCA command protocols are accessible through standard IP connections. The 12x PTZ Desktop Camera is RS-232C capable and features a 12x optical zoom and a 12x digital zoom, with a 71° horizontal viewing angle. It is especially suited to videoconferencing and remote monitoring applications. - 2.1MP 1/2.8" Exmor CMOS sensor that supports 1080p/60
- View-DR (Wide Dynamic Range) feature allows for the capture of clear images in extreme lighting conditions including back lighting
- High zoom ratio (12x optical /12x digital zoom)
- Wide field of view at 71°
- Dynamic Noise Reduction feature reduces image noise in extreme lighting conditions
- Easy camera control with VISCA and built-in IP control (no separate camera boards required)
- Smooth & quiet PTZ movement - less than 35 dB driving noise
- Auto white balance, indoor, outdoor, one-push auto, manual
UPC: 027242913462 In the Box Sony SRG-120DS 12x PTZ Desktop Camera with SDI Output (Silver Housing) AC Power Adaptor AC Power Cable IR Remote Commander Unit Limited 1-Year Warranty Limited 90-Day Warranty for Parts Guides & Manuals rzuadcvauaaxxtudecywdcfrt Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG-120DS 12x PTZ Desktop Camera with SDI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony SRG-120DS 12x PTZ Desktop Camera with SDI Output can be downloaded in PDF format at the link stated below.
Technical parametersSony SRG-120DS Specs | Image Sensor | 1 x 1/2.8" Exmor CMOS | | Effective Pixels | 2.1 MP (approximately) | | Lens | Focal Length: 3.9-46.8mm
Aperture: f/1.8-2.0 | | Zoom | Optical: 12x
Digital: 12x | | Minimum Object Distance | - 0.4" / 1.0 cm (wide end)
- 59.1" / 150.0 cm (tele end)
| | Horizontal Resolution | 1000 TV lines (center) | | Horizontal Viewing Angle | 71° (wide) | | Video Signal HD | - 1080p: 59.94/50/29.97/25
- 1080i: 59.94/50
- 720p: 59.94/50/29.97/25
| | Min. Illumination | High Sensitivity Mode: 0.4 lx (50 IRE, F1.8, 30 FPS) Normal Mode: 1.8 lx (50 IRE, F1.8, 30 FPS) | | Shutter Speed | 1/1 - 1/10000 sec | | S / N Ratio | 50 dB | | Pan/Tilt Angle | - Pan: +/- 100°, 300°/sec
- Tilt: +25° / -25°, 126°/sec
| | Preset Positions | 16 | | Video Output | 3G-SDI | | Camera Control Interface | Input: 8-pin Din VISCA protocol
Output: 8-pin Din VISCA protocol
IP control: RJ-45 / RS-232C | | Camera Control | - Interface: RJ-45 / RS-232C
- Protocol: VISCA
| | Power Requirement | 12 VDC (10.8 - 13.2 VDC) | | Power Consumption | 16.8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 6.0 x 6.1 x 6.0" / 15.3 x 15.6 x 15.3 cm | | Weight | Approx. 3.5 lb / 1.6 kg | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 10.394 x 10.236 x 9.213" |
