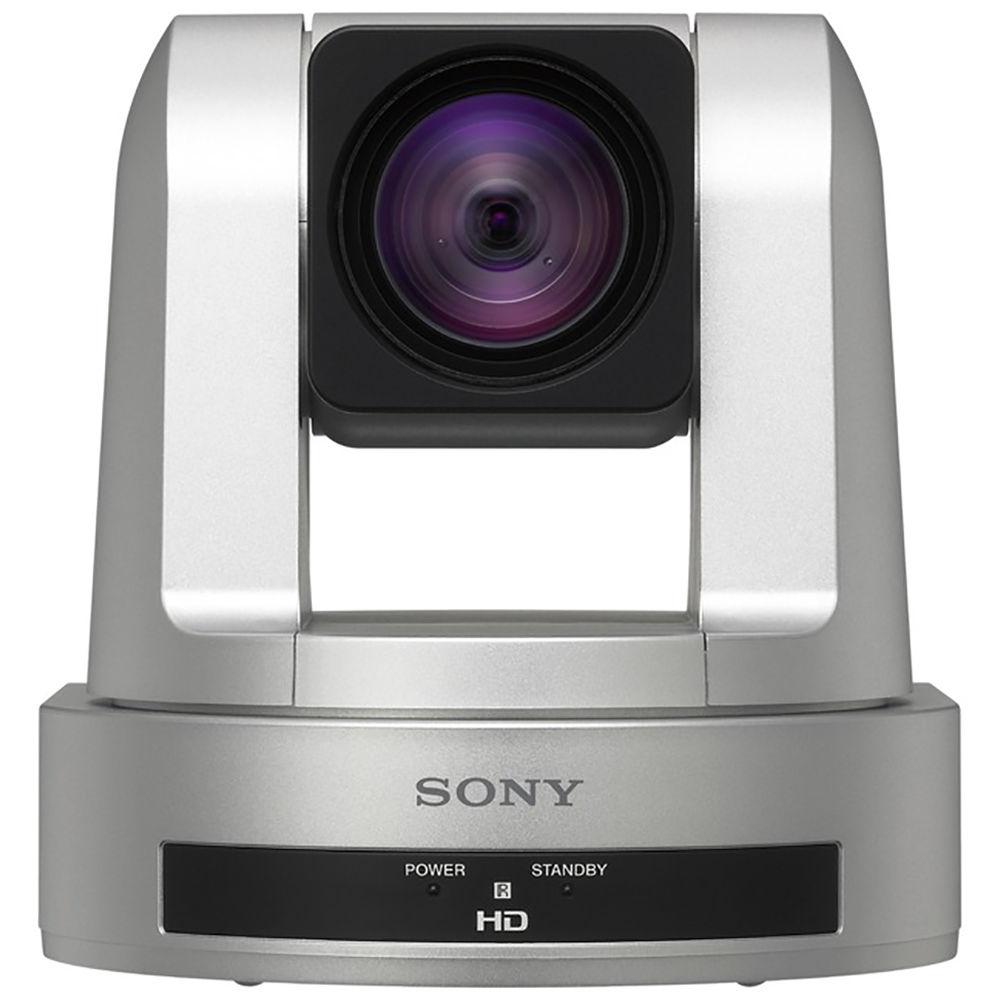

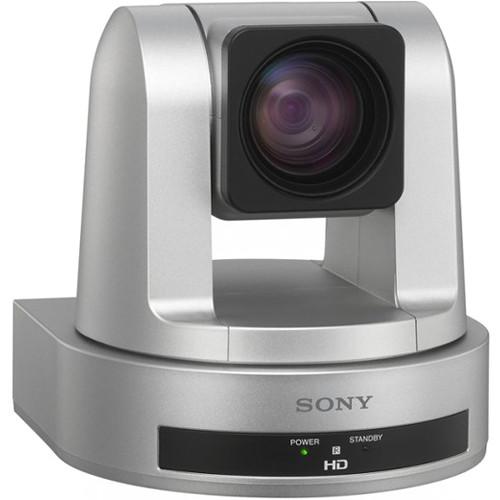

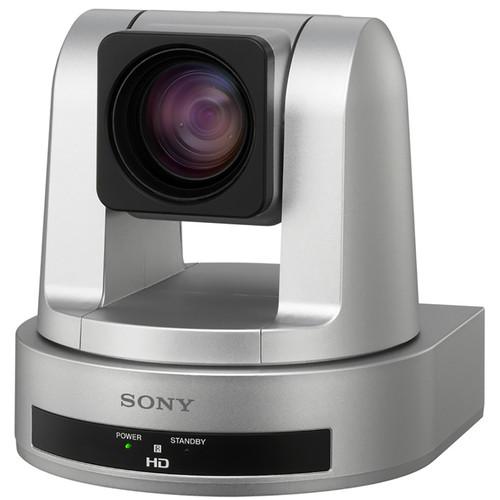

User Manual for Sony SRG-120DU USB 3.0 Full HD PTZ Camera Click to enlarge the picture
Contents of the user manual for the Sony SRG-120DU USB 3.0 Full HD
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
 |
User manual for the Sony SRG-120DU USB 3.0 Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The SRG-120DU USB 3.0 Full HD PTZ Camera from Sony is designed to interface easily with a dedicated computer system using the same USB technology utilized by most computers. Simply connect the camera directly to a standard PC through the USB 3.0 input, and you are able to access Unified Communications and Collaboration (UCC) as well as multimedia streaming devices. This function is suitable for visual communications and remote monitoring applications. An all-in-one, compact and lightweight construction offers easy installation in a variety of locations, converting any boardroom, classroom, courtroom, or medical space into a professional video collaboration environment.

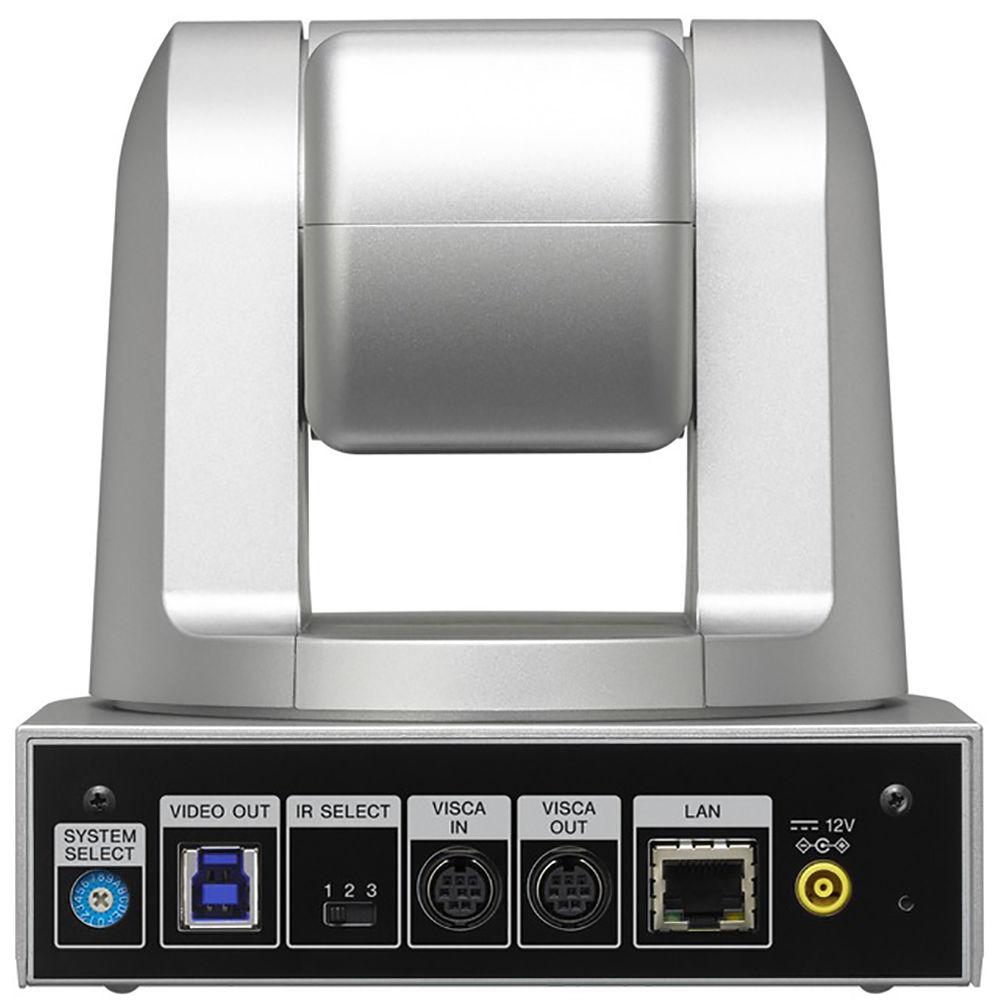

The camera provides wide dynamic range with a 1/2.8-type Exmor CMOS sensor and View-DR, enabling full capture Wide-D technology to compensate for backlight or changing light conditions. Additionally, XDNR technology reduces noise and provides clear images in low lighting conditions. The lens provides a wide field of view and a 12x optical / 12x digital zoom with auto focus, great for use in mid-sized rooms. The SRG-120DU's fast and silent pan/tilt/zoom capabilities, controlled via VISCA protocol connectors, and low-noise drive motor (less than 35 dB) allow for use in noise-restricted environments such as hospitals, classrooms, and meeting rooms. - High sensitivity sensor for capturing smooth, crisply detailed full HD images with low noise
- High frame rate operation provides a smooth, fluid reproduction of moving subjects
- Clear images in harsh or backlit lighting conditions with View-DR technology
- XDNR technology reduces noise and provides clear images in low lighting conditions
- 12x Optical zoom range and 12x digital zoom for frame-filling close-ups with clear detail
- Responsive auto-focus offers clear and sharp images, even at high zoom settings
- Wide field of view suitable for small to mid-sized rooms
- Simple plug-and-play connection with USB 3.0
- High-speed data transfer of uncompressed 1080p59.94 video to a connected PC
UPC: 027242913448 In the Box Sony SRG-120DU USB 3.0 Full HD PTZ Camera IR Remote Commander Unit AC Power Adapter Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG-120DU USB 3.0 Full HD PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony SRG-120DU USB 3.0 Full HD PTZ Camera can be downloaded in PDF format at the link stated below.
Technical parametersSony SRG-120DU Specs | Image Device | 1/2.8 Exmor CMOS sensor | | Effective Pixels | Approximately 2.1 megapixels | | Zoom Lens | 12x Optical
12x Digital | | Minimum Object Distance | 0.4 to 59.1" / 10.0 to 1,500.0 mm | | Shutter Speed | 1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system) | | Gain | Auto, manual (0 to +43 dB) | | White Balance | Auto, indoor, outdoor, one-push auto, ATW, manual | | Pan Angle | ±100 Degrees (300 degrees per second) | | Tilt Angle | ±25 Degrees (126 degrees per second) | | Horizontal Viewing Angle | 71° Wide | | Focus System | Auto, manual | | Sync System | INT | | Camera Control Interface | RS-232, RJ45 | | Minimum Illumination | 1.8 Lux (50 IRE, f/1.8 30 fps) | | Signal to Noise Ratio | 50 dB | | Video Output | HD USB 3.0 | | Signal System | 1080p59.54/50/29.87/25
720p59.94/50/29.97/25 | | Power Requirements | 12 VDC (DC 10.8 to 13.2 V) | | Power Consumption | 16.8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 6.0 x 6.1 x 6.0" / 153 x 156 x 153 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 10.4 x 10.1 x 9.3" |
